Waterproof Focusable LED Laser Module – Red, Green & Blue

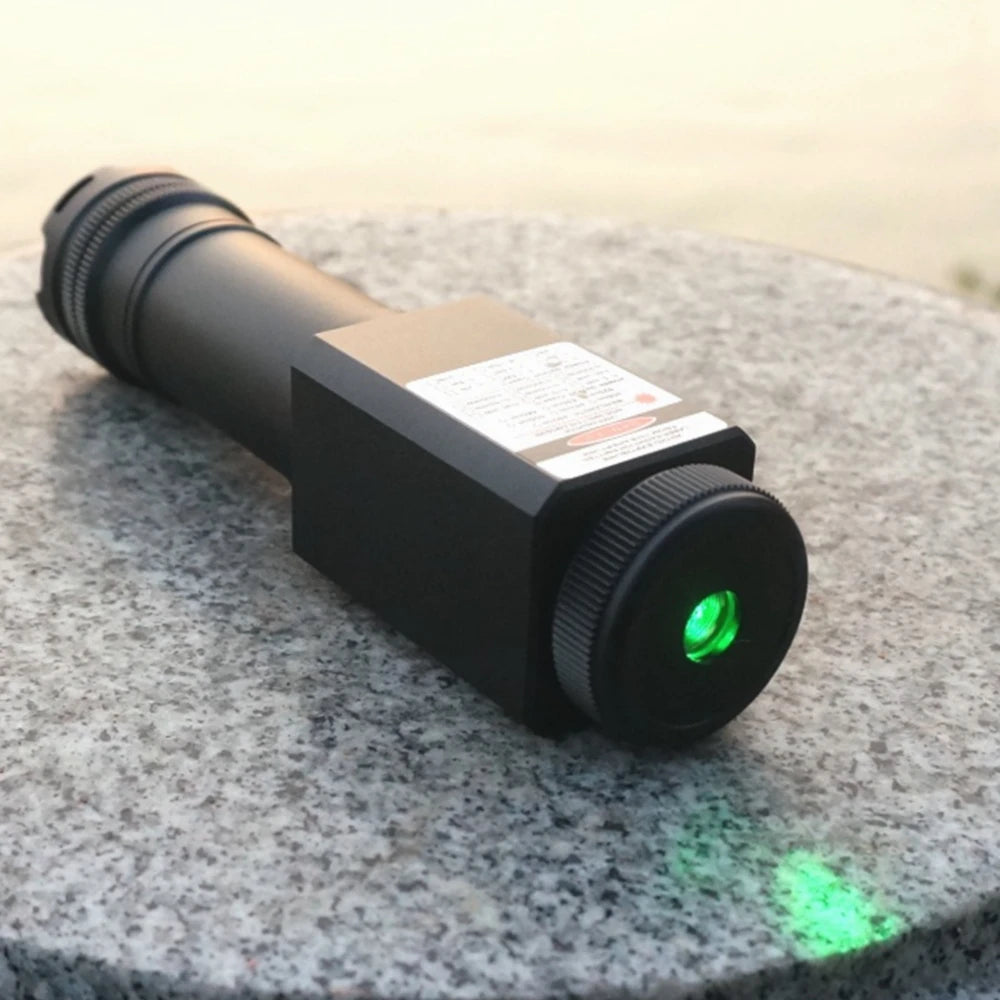

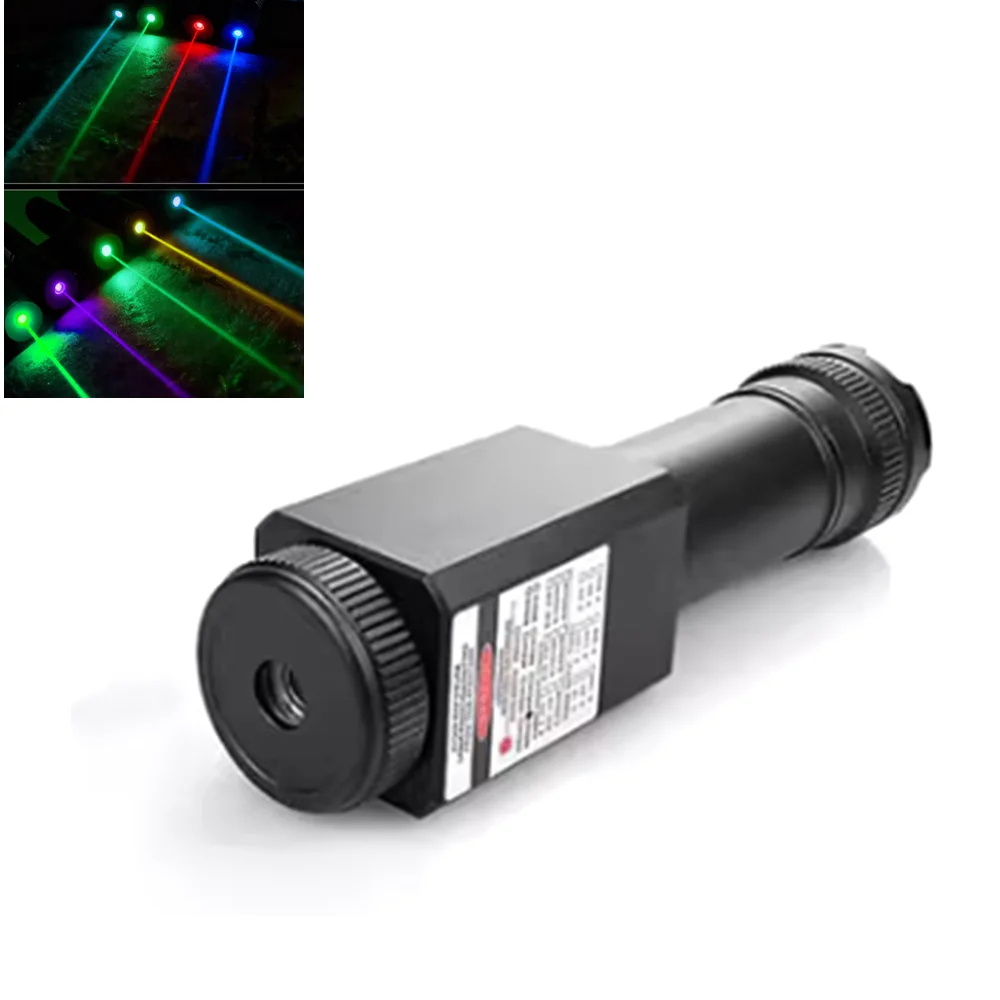

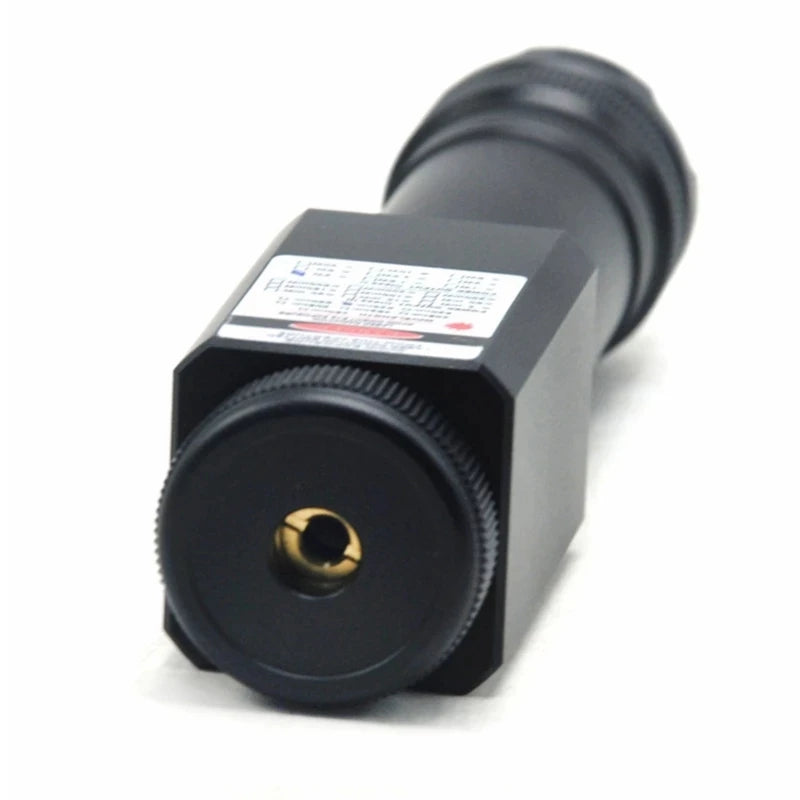

Take your stage lighting, DJ setups, outdoor signaling, or DIY projects to the next level with this precision-engineered, waterproof laser module from Elubor. Available in multiple wavelengths — 405nm, 450nm, 465nm, 515nm, and 638nm — this mini laser delivers sharp, vivid dot and continuous line beam patterns through a rugged aviation-grade aluminum housing. Made in Mainland China.
Key Features
- Multiple Wavelengths: Choose from 405nm, 450nm, 465nm, 515nm, or 638nm (violet, blue, green, and red options) to suit your exact application.
- Waterproof & Dive-Ready: Rated for submersion up to 5 meters — ideal for outdoor, wet-environment, or underwater use cases.
- Focusable Beam: Adjustable focus ring lets you dial in a precise dot or continuous line beam pattern for versatile applications.
- Aviation Aluminum Housing: High-strength, lightweight body (φ33 × 135mm) with a pressure-assembled, tight-fit structure for maximum durability.
- High-Precision Concentricity: Built with imported laser tubes for accurate, consistent beam output.
- Tail Switch Control: Convenient ACC tail switch for steady-on operation.
- Wide Operating Temperature: Functions reliably from -10°C to +60°C, making it suitable for both indoor and outdoor environments.
- Compact & Portable: Mini design that's easy to mount, carry, or integrate into a larger system.
Specifications
- Wavelengths: 405nm / 450nm / 465nm / 515nm / 638nm
- Beam Pattern: Dot / Continuous Line
- Working Voltage: DC 3.7V / 4.9A
- Start Voltage: 2.5V
- Spot Size: ~φ15–18mm at 5 meters
- Dimensions: φ33 × 135mm
- Housing Material: Aviation aluminum
- Waterproof Depth: Up to 5 meters
- Operating Temperature: -10°C to +60°C
- Power: 1mW
- Nominal Voltage: 5V
- Battery: 1× 18650 Lithium battery (not included)
- Electric Control: ACC
- Occasion: Professional Stage & DJ, Outdoor, DIY Projects
Safety Information
⚠️ Important: Do not look directly into the laser beam with bare eyes. Avoid direct eye exposure at all times. Keep away from children. Store in a dry environment when not in use.
What's in the Box
- 1× Laser Module (Battery not included)
For guidance on laser product safety standards and classifications, refer to the U.S. Consumer Product Safety Commission – Radiation-Emitting Products.
Learn more: Laser lighting display
Frequently Asked Questions
Q: What wavelengths are available for this waterproof laser module?
A: This laser module is available in five wavelengths: 405nm (violet), 450nm (blue), 465nm (blue), 515nm (green), and 638nm (red), allowing you to choose the exact color and application you need.
Q: Is a battery included with the waterproof laser module?
A: No, the 18650 lithium battery is not included. This is intentional to simplify customs clearance. You will need to supply one standard 18650 lithium battery to operate the module.
Q: How deep can this laser module be submerged in water?
A: This module features a waterproof design rated for diving up to 5 meters, making it suitable for outdoor, wet-environment, and underwater applications.
Q: Can the beam be adjusted or focused?
A: Yes, the laser module includes an adjustable focus mechanism, allowing you to switch between a sharp dot beam and a continuous line shape depending on your project requirements.
Q: What is the housing material and how durable is it?
A: The housing is made from aviation-grade aluminum with a precision pressure-assembled structure, offering excellent durability, corrosion resistance, and a reliable tight-fit seal for waterproofing.
