UWEI UW832 Handheld Infrared Thermal Imaging Camera | USB-C

UWEI UW832 Handheld Infrared Thermal Imaging Camera

Meet the UWEI UW832 — a compact, rechargeable thermal imager designed for technicians, inspectors, and DIY enthusiasts who need fast, reliable surface-temperature visualization in the field. With a wide measurement range of -30°C to +500°C (-22°F to 932°F), multiple color palettes, and a built-in 300,000-pixel visible-light camera, this handheld unit gives you the thermal intelligence you need in a rugged, carry-box-ready package.

Please note: The UW832 is an entry-level thermal imager with 32×32 infrared resolution. Its imaging performance is intentionally basic compared to higher-resolution models (e.g., 120×90 or 256×192). If your workflow demands sharper thermal detail, a higher-resolution model may be more appropriate.

Made in Mainland China.

Key Features at a Glance

• 1.77" TFT Color Display — bright, easy-to-read screen even in variable lighting conditions

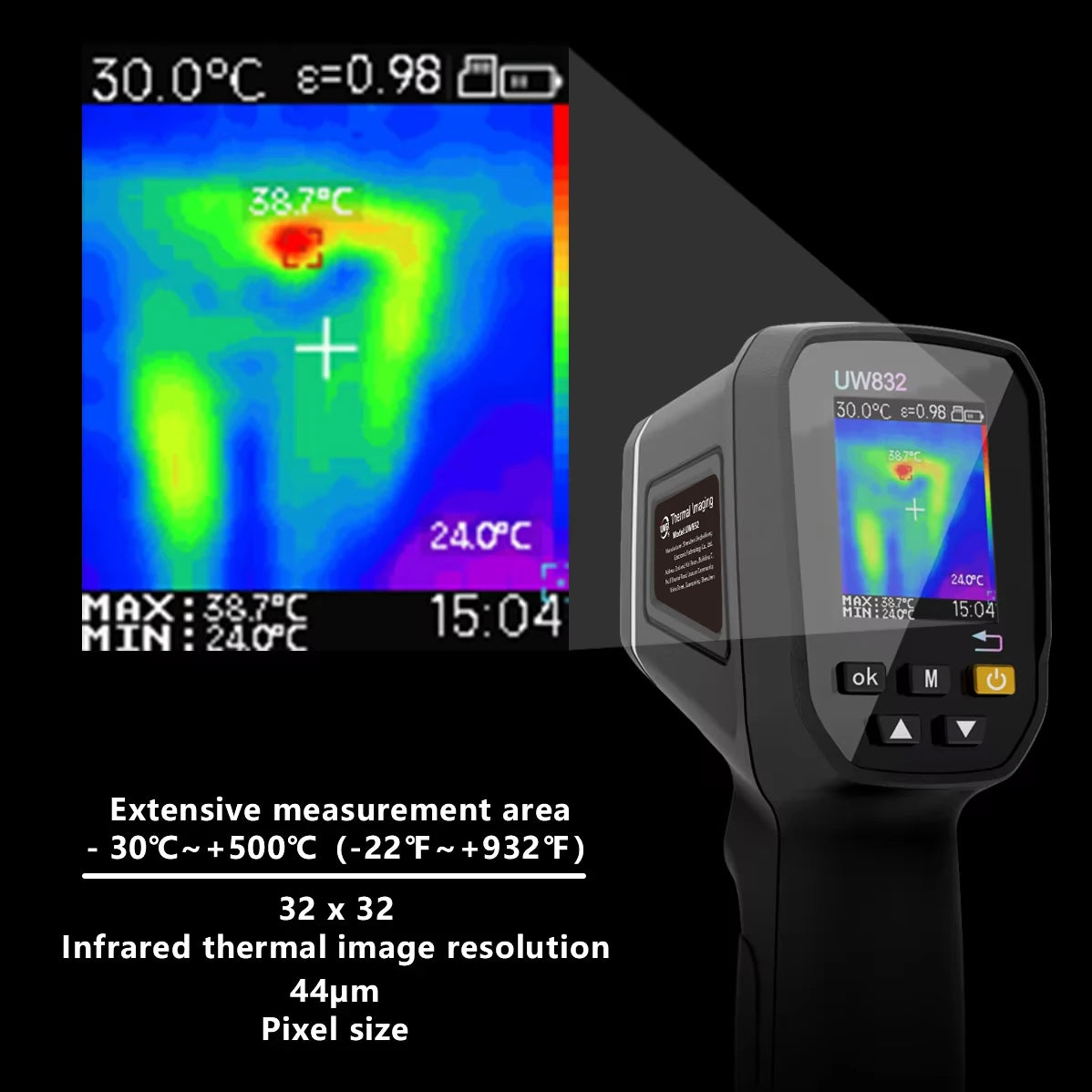

• Infrared Resolution: 32×32 pixels — ideal for basic hotspot detection and temperature surveying
• Visible Light Camera: 300,000 pixels (128×128) — enables thermal/visible fusion imaging

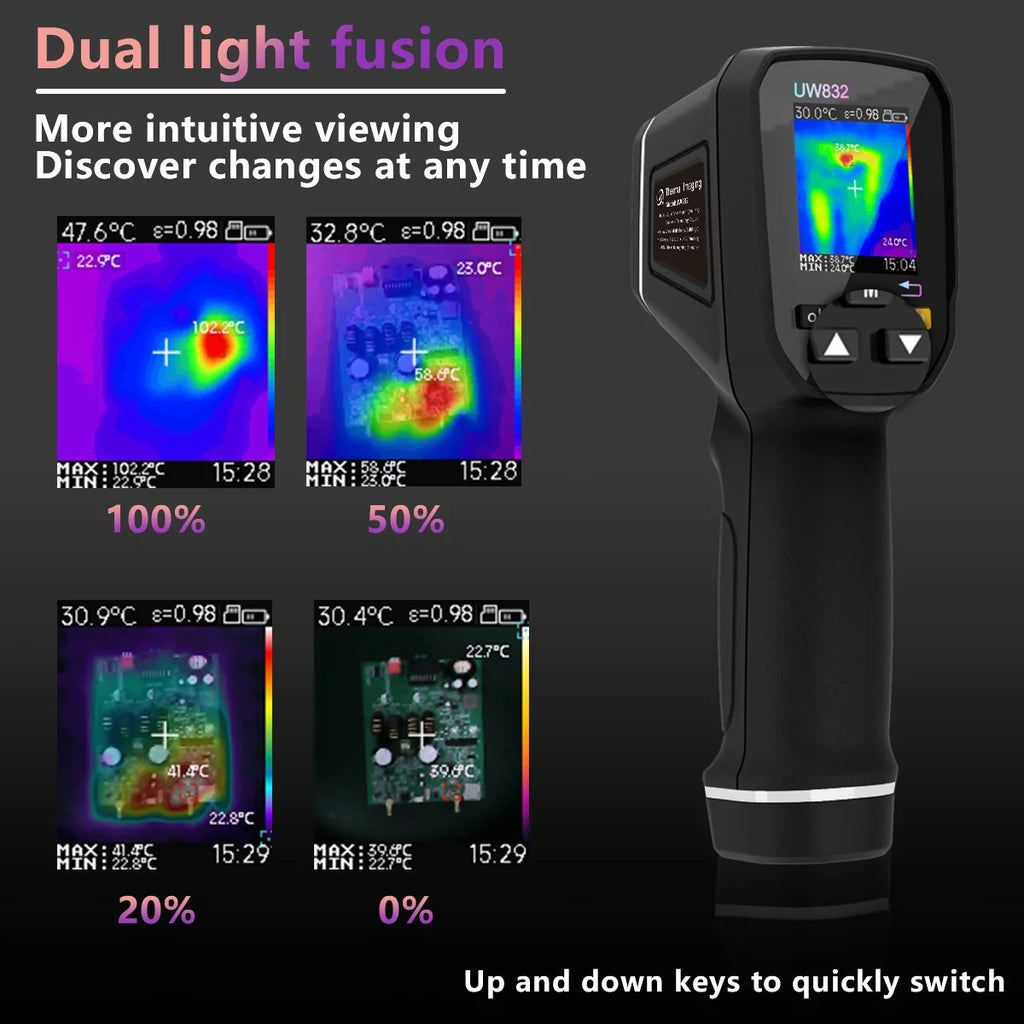

• 3 Image Modes: Thermal Only, Visible Light Only, Thermal + Visible Fusion
• Temperature Range: -30°C to +500°C (-22°F to 932°F) — covers HVAC, electrical panels, automotive, and industrial surfaces
• Adjustable Emissivity: 0.01 – 1.00 — accurately measures different materials from glass to metal
• 5 Color Palettes: Rainbow, Iron Red, Rock Red, White Hot, Black Hot — choose the best contrast for your task
• Min / Center / Max Temperature Display — instant read of the coldest, hottest, and center-point temperatures simultaneously
• USB Type-C Rechargeable — 1,000mAh built-in lithium battery, charges with any standard USB-C cable
• 8GB TF/SD Card Included — saves BMP-format images for computer analysis (card reader required, sold separately)
• Calibrate Function — align the thermal and visible images with precision using the built-in merge-align calibration menu

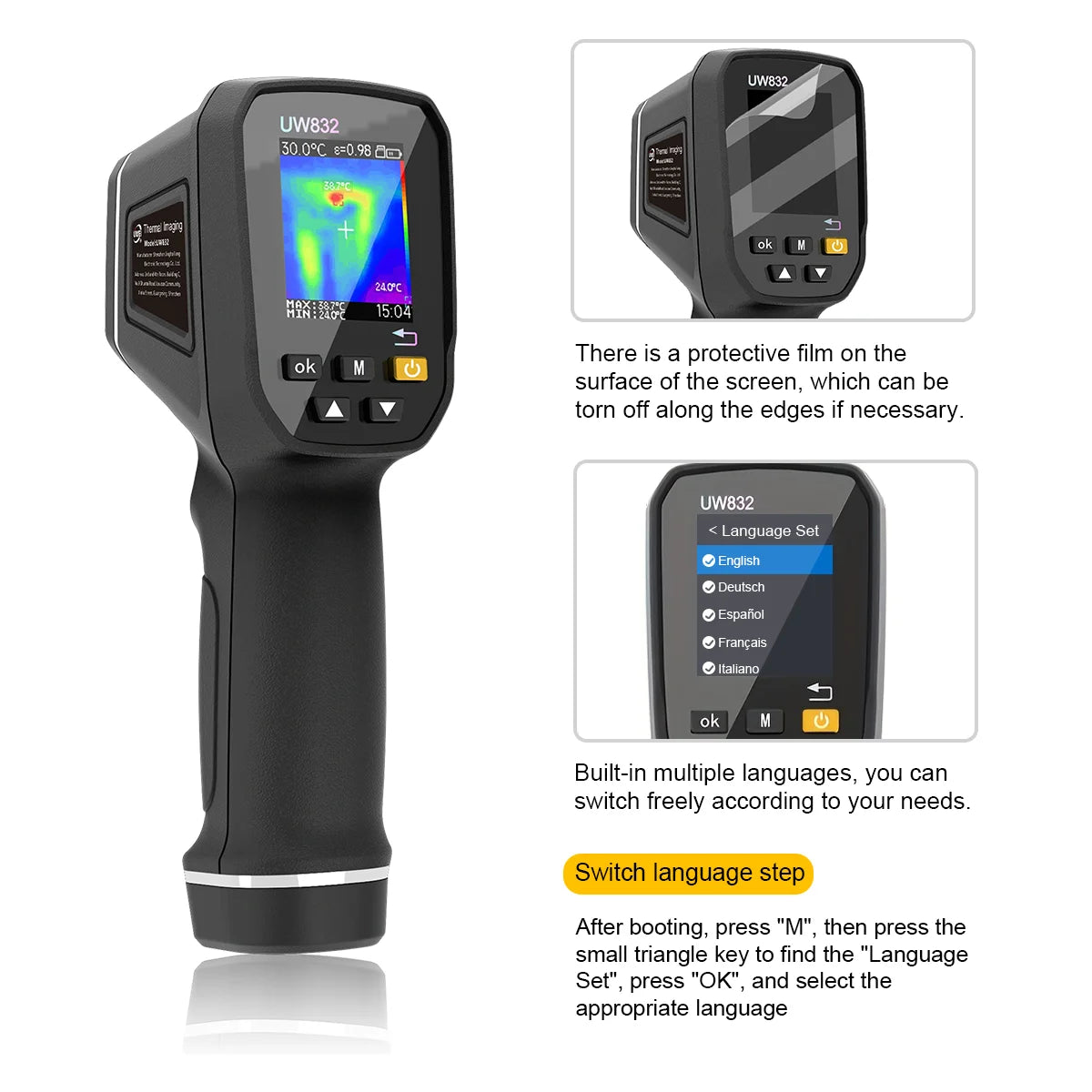

• 6 Multi-Language OS — intuitive interface across multiple languages
• CE Certified

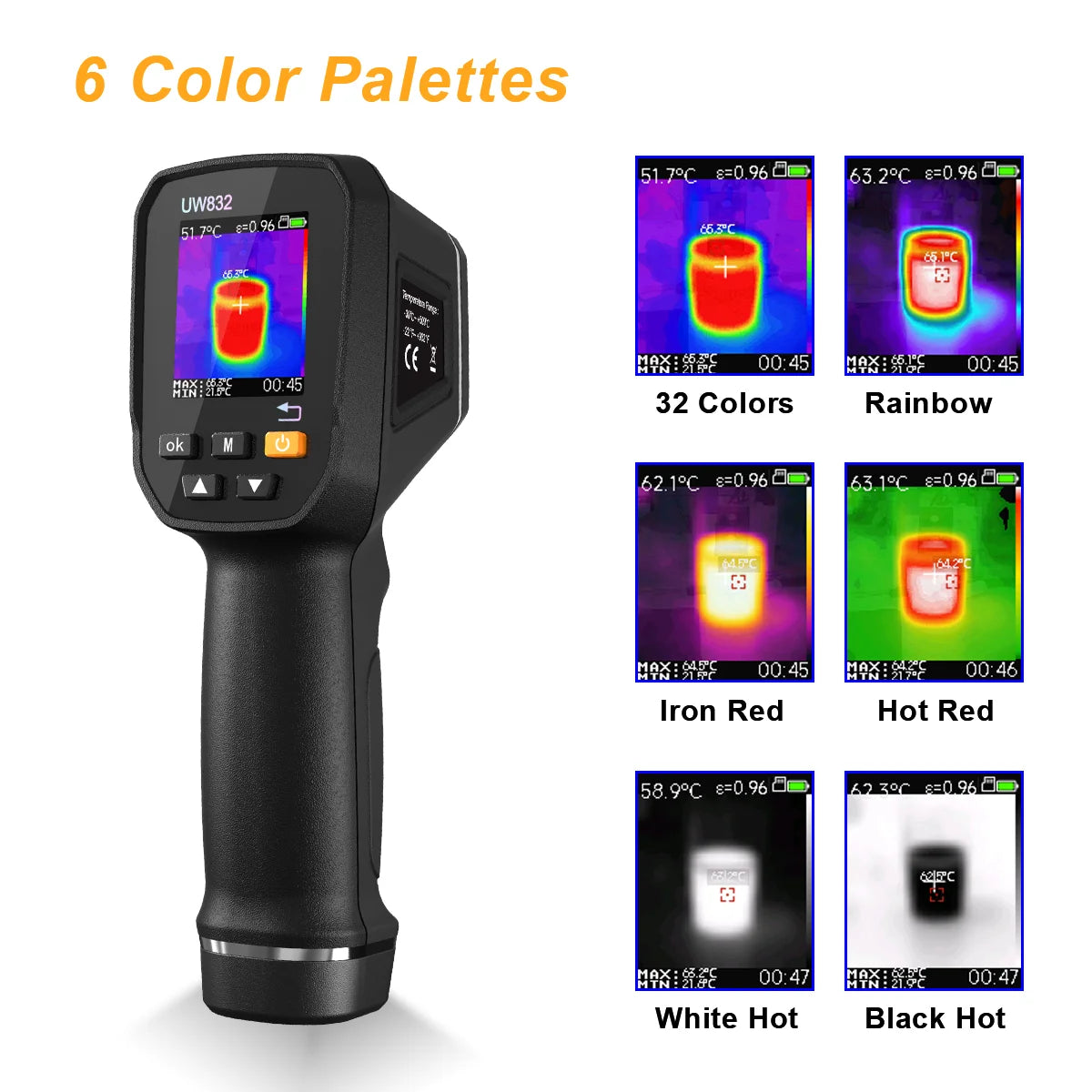

Choose Your Palette — The Right View for Every Job

• Ironbow (Iron Red): Clear, intuitive hotspot detection — ideal for electrical and mechanical inspections
• Rainbow: Reveals the most subtle thermal gradients — great for scientific and precision work
• White Hot: Maximum detail with reduced eye strain — trusted for security and long-duration monitoring
• Rock Red / Black Hot: High-contrast options for industrial and high-temperature environments

Color Clarity Adjustment

Use the increase key to fine-tune contrast and make thermal images more vivid and easier to interpret. The adjustable emissivity setting (0.01–1.00) ensures accurate surface-temperature readings across materials — simply reference the included emissivity chart and set accordingly (default: 0.96 for water-based surfaces).

SD Card Storage & Data Analysis

Images are stored in BMP format on the included 8GB TF card. Connect the card to your computer via a card reader (not included) to review, compare, and archive thermal data. The card slot accepts larger capacity cards if your projects demand more storage.

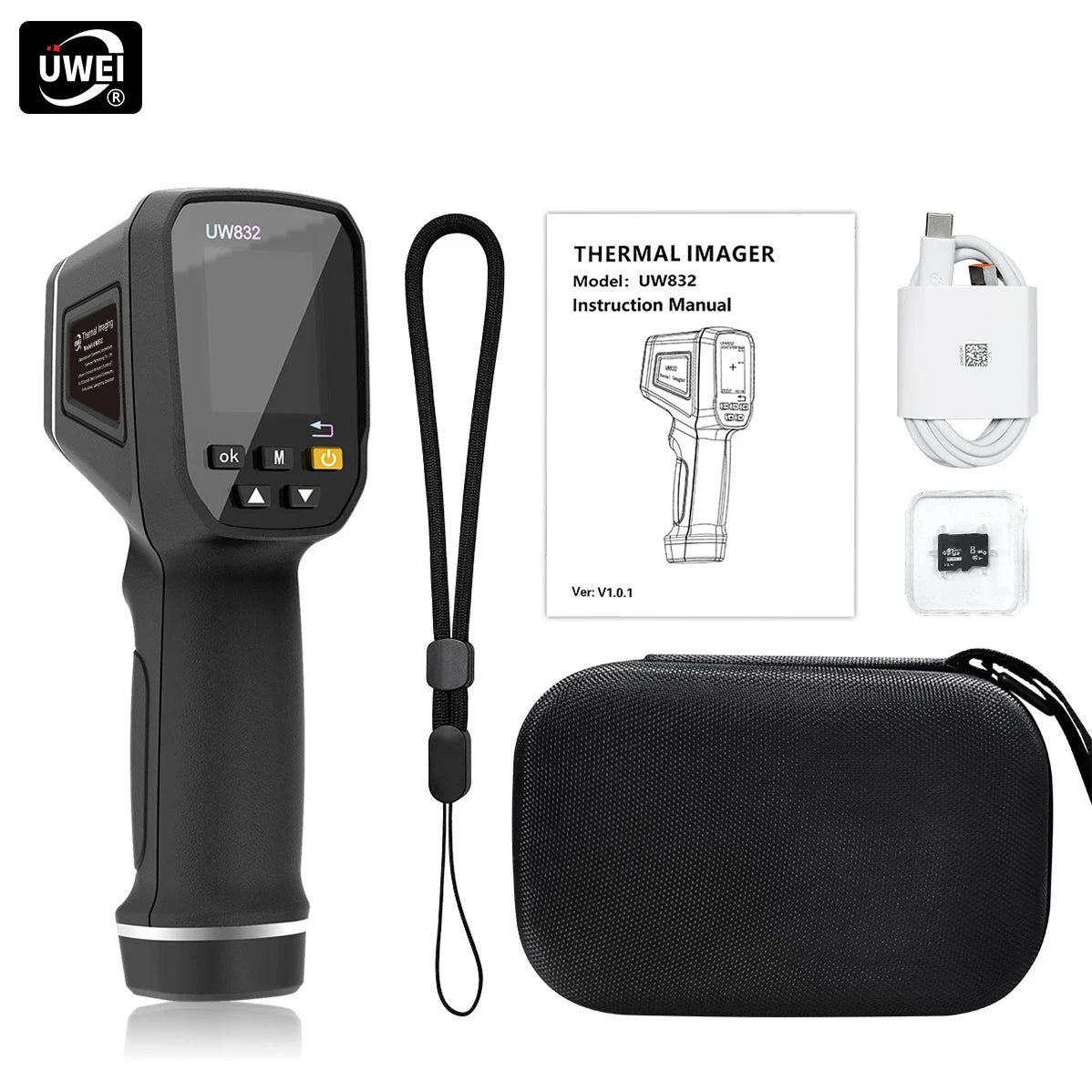

What's in the Box

• 1× UWEI UW832 Infrared Thermal Imager
• 1× USB-C Charging Cable
• 1× Lanyard
• 1× 8GB TF Memory Card
• 1× Protective Carry Box
• 1× User Manual

Specifications

Authoritative Resource

For guidance on electrical safety and best practices when inspecting electrical systems, visit the OSHA Electrical Safety page — a trusted resource for professionals working around electrical panels and industrial equipment.

Frequently Asked Questions

Q: What is the infrared resolution of the UWEI UW832 thermal imaging camera?

A: The UW832 features a 32×32 infrared pixel resolution. It is an entry-level thermal imager suited for basic hotspot detection and surface temperature surveys. For applications requiring finer thermal detail, consider higher-resolution models (e.g., 120×90 or 256×192).

Q: How do I ensure accurate temperature measurements with this thermal camera?

A: Set the emissivity value to match the material you are measuring (the default is 0.96, appropriate for most water-based surfaces). Refer to the emissivity chart in the user manual. For best results, maintain a measuring distance of 50–80 cm from the target surface.

Q: How do I fix misaligned thermal and visible camera images?

A: Use the built-in Merge Align calibration: hold the Trigger key and M key together to enter the Factory Menu, select Merge Align Setting, then adjust the X and Y axis offset values using the Up/Down buttons. Press OK to save once the images are aligned.

Q: How do I transfer and read the saved thermal images on my computer?

A: Images are saved in BMP format on the included 8GB TF card. Remove the card and insert it into a card reader (not included) connected to your computer. From there you can open, analyze, and archive your thermal images using any standard image viewer.

Q: What can I do if the screen freezes or the thermal image does not appear after startup?

A: Restart the device. A restart typically resolves common issues including a missing thermal image on startup, a frozen screen, SD card read errors, and display abnormalities. If problems persist after multiple restarts, contact UWEI after-sales support.

Q: What are the limitations of this thermal imager — when will it struggle to detect surface temperatures?

A: The UW832 may have difficulty detecting surface temperatures when: the target is physically obscured; there is insufficient temperature contrast between the target and its background; the target surface has very low emissivity or very high reflectivity; the target is smaller than the device's resolution; or there is strong environmental interference such as direct sunlight or airflow affecting the measurement area.
