UWB-1P Ultra Wideband RF Antenna 2.4GHz–7GHz SMA Module
UWB-1P Ultra Wideband RF Antenna 2.4GHz–7GHz SMA Module
UWB-1P Ultra Wideband RF Antenna Module — 2.4GHz to 7GHz with SMA-K Interface
The UWB-1P Ultra Wideband Antenna Module delivers rock-solid RF signal coverage across a massive 2.4GHz to 7GHz frequency range. Whether you're building UWB positioning systems, developing wireless communication hardware, or conducting RF testing, this compact PCB-integrated antenna is engineered to keep your signals strong and stable in even the most demanding electromagnetic environments. Made in Mainland China.
Key Features
- Ultra-Wide Frequency Coverage (2.4GHz – 7GHz): Supports an exceptionally broad frequency range, making it compatible with multiple communication protocols and multi-band device scenarios — from Wi-Fi and Bluetooth to UWB positioning and RF testing applications.
- Standard SMA-K Interface: Equipped with a universally compatible SMA-K connector for secure, reliable plug-and-unplug cycles. Fits the vast majority of communication and RF testing equipment with ease.

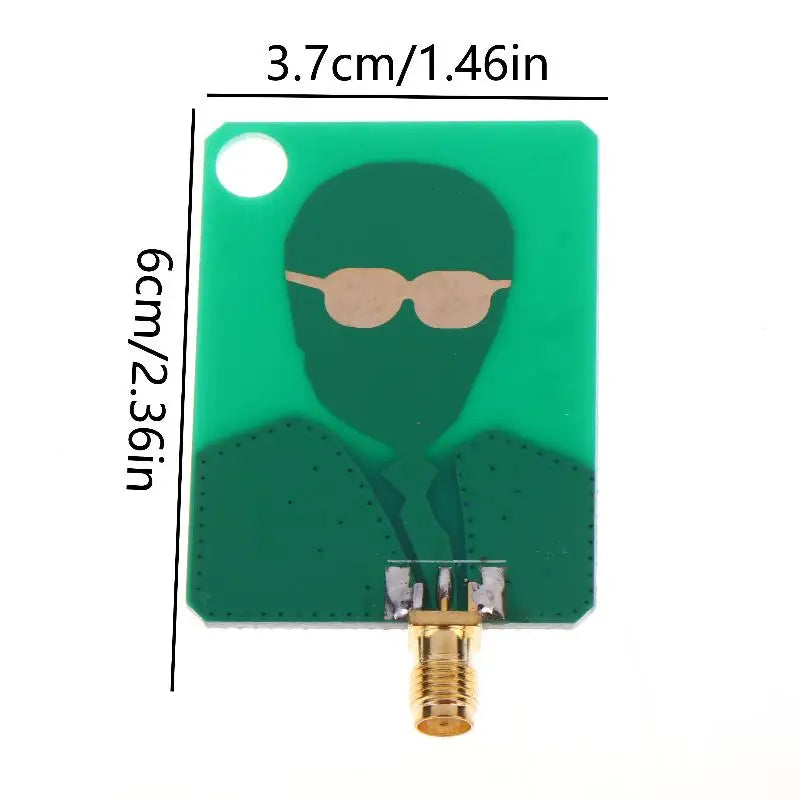

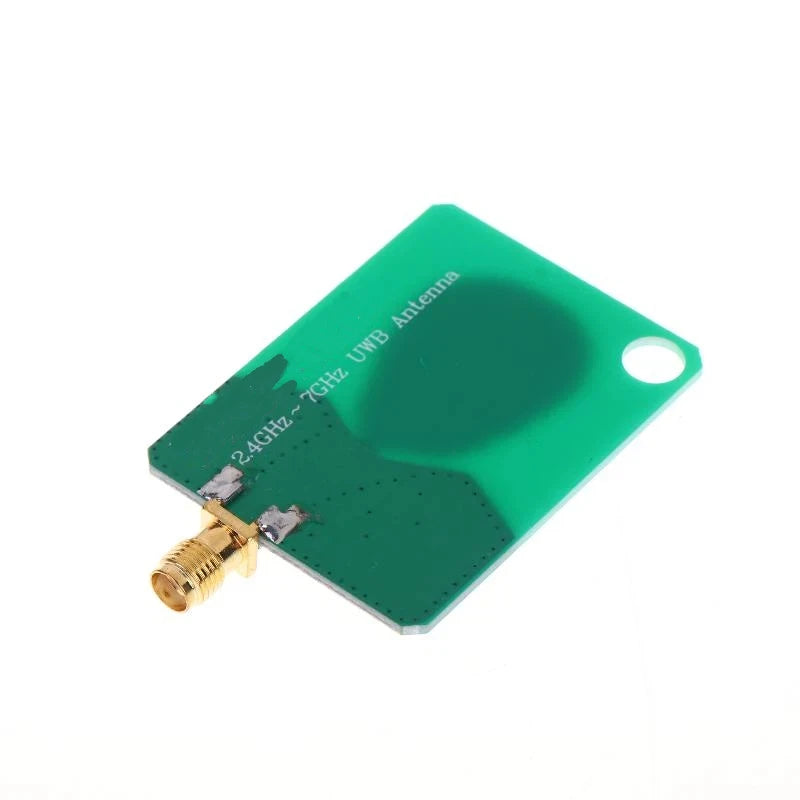

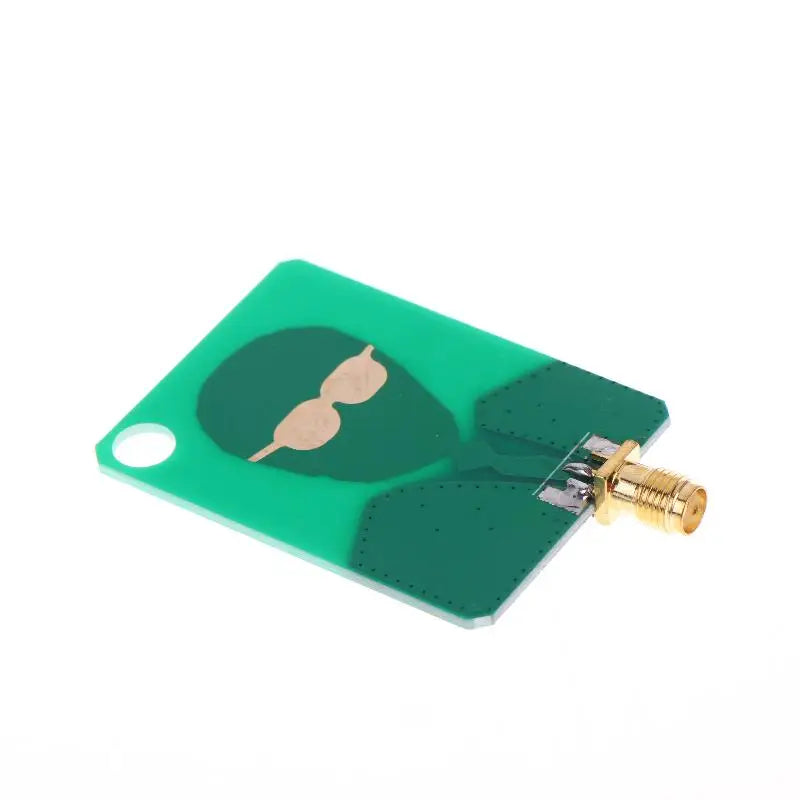

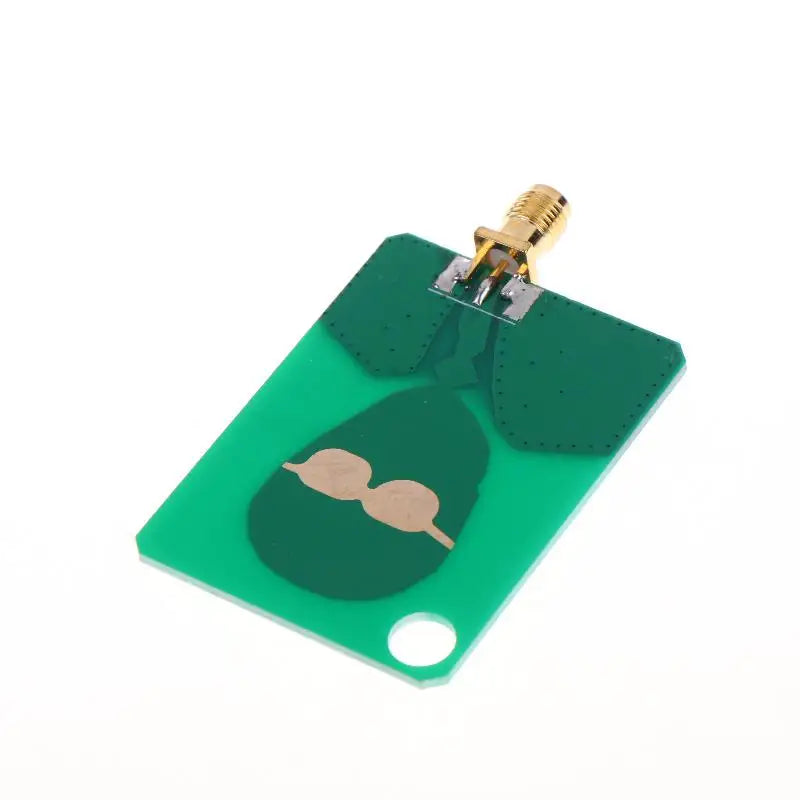

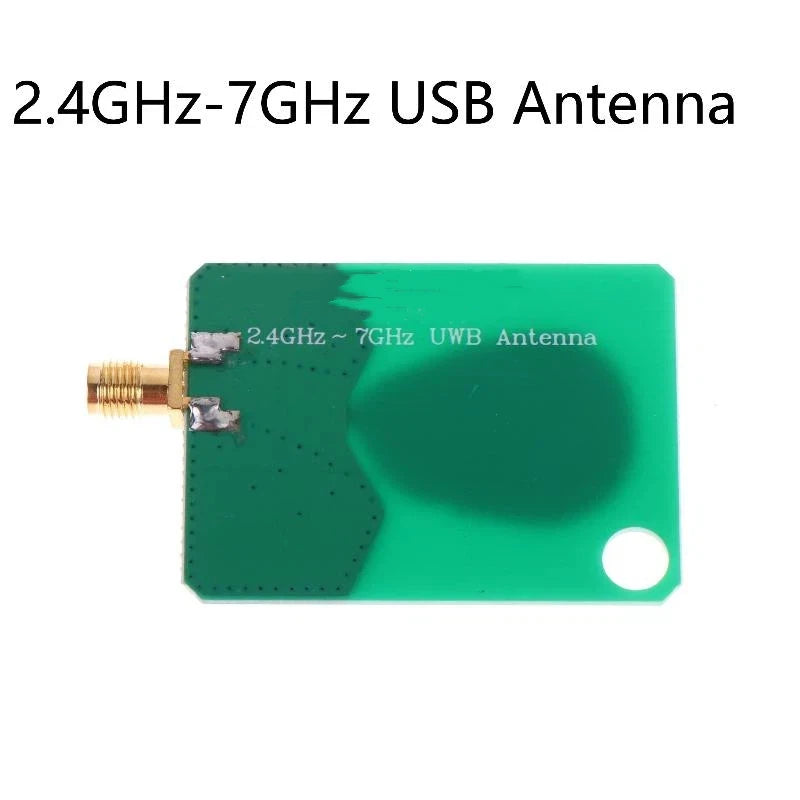

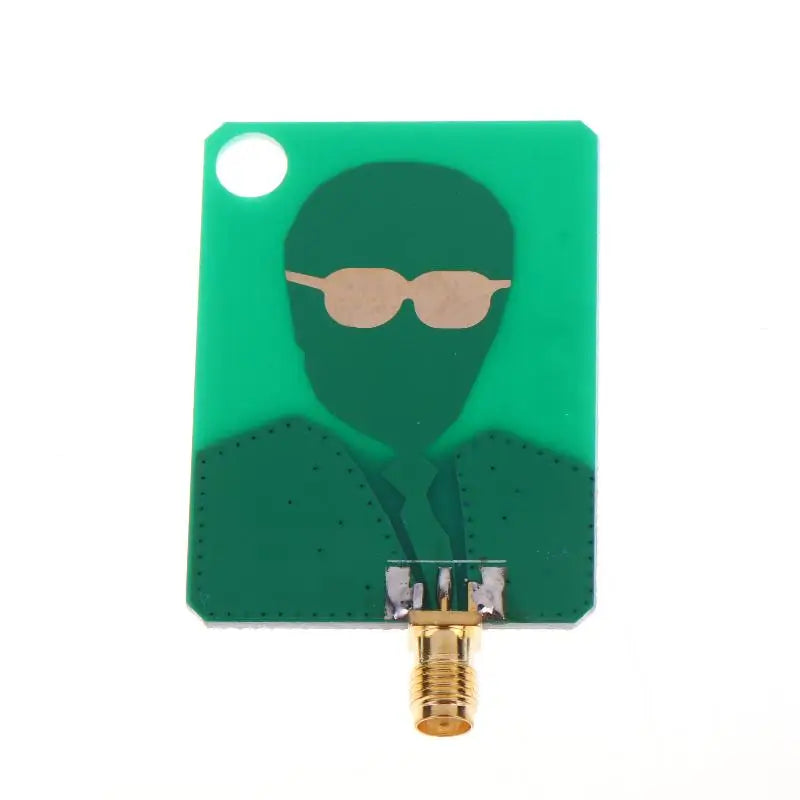

- Compact PCB-Integrated Design: Measuring approximately 6 × 3.7 cm (2.36 × 1.46 in), this lightweight antenna integrates seamlessly into compact device layouts, saving valuable board space without sacrificing performance.
- Stable Signal Transmission: Optimized RF circuit design ensures consistent, low-interference signal transmission — keeping communications reliable across complex electromagnetic environments.
- Versatile Application: Ideal for UWB indoor positioning, broadband wireless communication modules, RF signal testing, electronic prototyping, and any application requiring wide-band signal reception.
Specifications
| Frequency Range | 2.4GHz – 7GHz |
| Interface | SMA-K (Female) |
| Dimensions | ~6 × 3.7 cm / 2.36 × 1.46 in |
| Form Factor | PCB-integrated module |
| Package Contents | 1 × UWB-1P Antenna Module |
| Origin | Made in Mainland China |
What's in the Box?
- 1 × UWB-1P Ultra Wideband RF Antenna Module
Notes
Due to manual measurement, a dimensional deviation of up to 5mm may exist. Slight color differences from product images may occur due to varying lighting conditions.
Learn More About UWB Technology
Ultra-Wideband (UWB) is a standardized radio technology used for precise positioning and secure, high-speed short-range wireless communication. For an overview of radio frequency technologies and spectrum management, visit the NIST Wireless Communications Resource.
Frequently Asked Questions
Q: What frequency range does the UWB-1P antenna module cover?
A: The UWB-1P Ultra Wideband Antenna Module covers a continuous frequency range from 2.4GHz to 7GHz, making it suitable for UWB positioning, Wi-Fi, Bluetooth, RF testing, and other broadband wireless communication applications.
Q: What type of connector does this RF antenna module use?
A: This antenna features a standard SMA-K (SMA Female) interface, which is compatible with the vast majority of RF communication devices, transceivers, and test equipment that use SMA connectors.
Q: Can this antenna be used for UWB indoor positioning systems?
A: Yes. The UWB-1P is specifically suited for UWB indoor positioning systems, as well as broadband wireless communication modules, RF signal testing rigs, and any electronic equipment that requires stable, wide-band signal reception across the 2.4–7GHz spectrum.
Q: How compact is this antenna module?
A: The module measures approximately 6 × 3.7 cm (2.36 × 1.46 in) and uses a PCB-integrated design, making it lightweight and easy to embed into compact electronic assemblies and prototypes.
