USB to CAN Bus Analyzer Module – CAN FD & CAN 2.0 Support

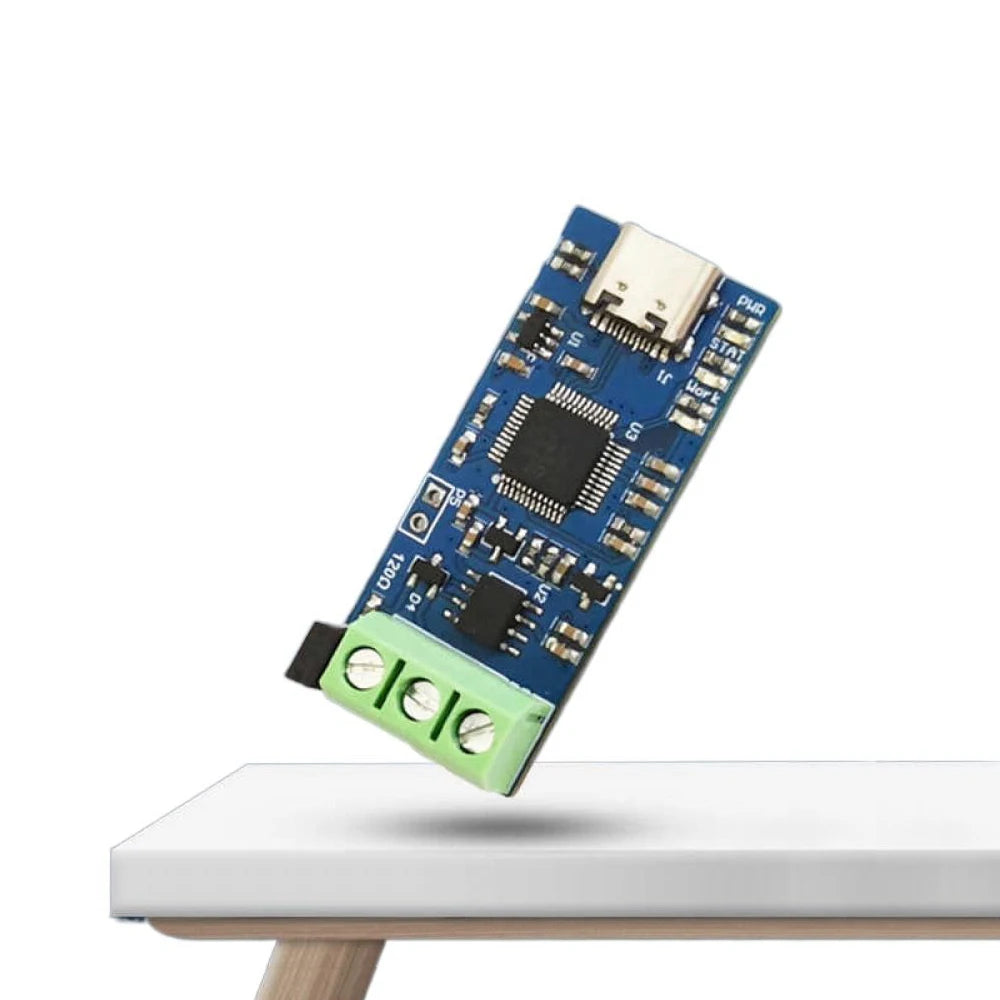

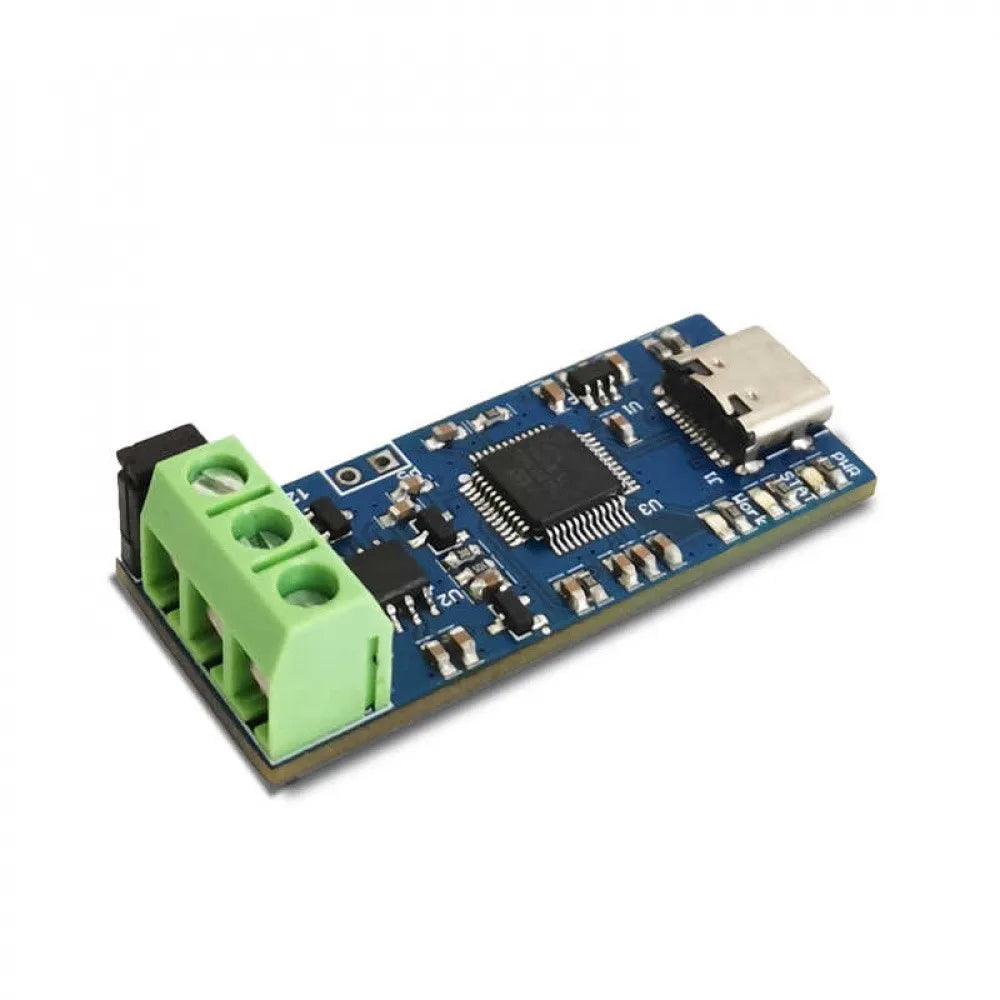

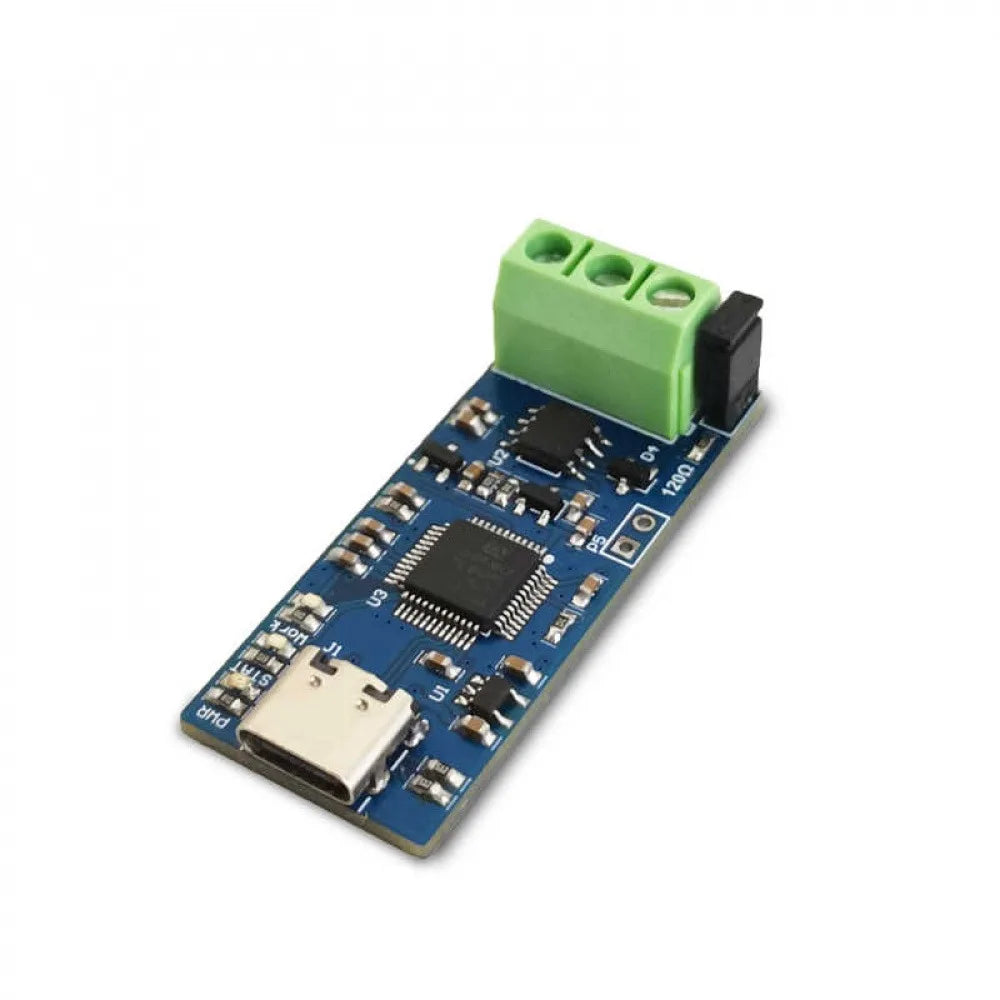

Take full control of your CAN bus development and diagnostics with this compact, high-performance USB to CAN Module. Built around the powerful STM32G4 microcontroller running at up to 170 MHz, this analyzer board supports CAN 2.0A, CAN 2.0B, and CAN-FD protocols — giving engineers, hobbyists, and automotive developers a versatile, plug-and-play solution for CAN network analysis and debugging.
With a slim 45×20 mm form factor, a Type-C USB interface, and three-color LED status indicators, this board is as easy to use as it is powerful. Open-source firmware, browser-based firmware updates, and compatibility with the popular Cangaroo CAN protocol analysis software make it an indispensable tool for any embedded systems workbench.
Made in Mainland China.
Key Features
- High-Speed MCU: STM32G4 series microcontroller with up to 170 MHz operating frequency for fast, reliable CAN data processing.
- Multi-Protocol Support: Fully compatible with CAN 2.0A, CAN 2.0B, and CAN-FD — supporting higher data-rate frames for modern automotive and industrial applications.
- Easy Firmware Updates: Update firmware directly via your web browser — no special programmer required. Open-source architecture for full customization.
- Cangaroo Compatible: Works seamlessly with the open-source Cangaroo CAN protocol analysis software for real-time bus monitoring and debugging.
- Three-Color LED Indicators: Instant visual status feedback so you always know the state of your connection.
- 120Ω Termination Resistor: Onboard jumper cap option lets you easily enable the standard CAN bus termination resistor.
- Type-C USB Interface: Modern, reversible connector powered directly from your computer's USB port at 5V — no external power supply needed.
- BOOT Mode: Dedicated BOOT pad for easy firmware re-flashing when needed.
Specifications
| Input Voltage | 5V (USB) |
| Interface | Type-C USB (power & data) |
| Microcontroller | STM32G4 series (up to 170 MHz) |
| Supported Protocols | CAN 2.0A, CAN 2.0B, CAN-FD |
| Termination Resistor | 120Ω (jumper-selectable) |
| Output Interface | CAN_H, CAN_L, GND |

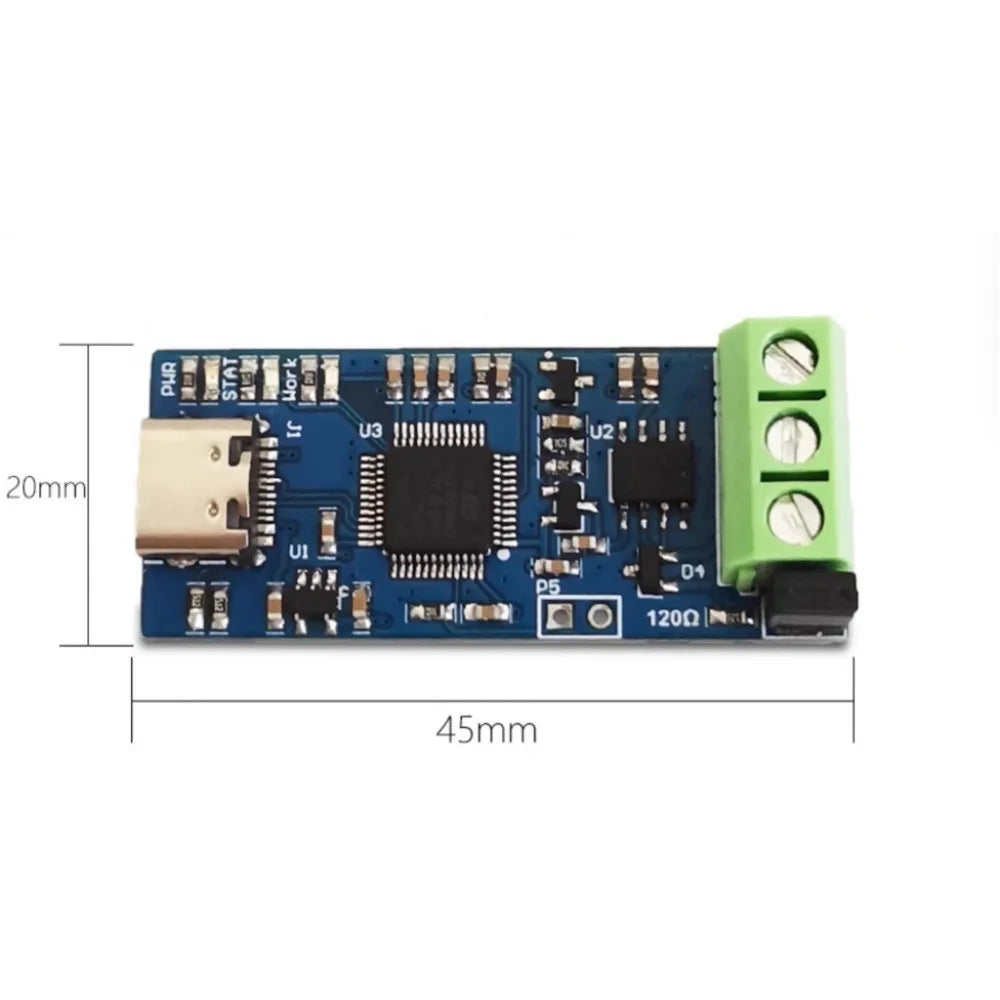

| Dimensions | 45 × 20 mm |
| Origin | Made in Mainland China |
How to Use
- Connect: Plug the USB Type-C cable into the module and connect to your computer. The three-color LEDs will light up and the device will appear as a serial device in Device Manager.
- Enter BOOT Mode: Short the BOOT pad and insert the Type-C cable to enter BOOT mode for firmware re-flashing.
- Enable Termination Resistor: Insert the jumper cap on the termination resistor header to connect the 120Ω resistor to the CAN bus.
- Connect to CAN Bus: Wire CAN_H and CAN_L to your CAN bus nodes. GND connection is optional but recommended for noise immunity.
- Analyze: Launch Cangaroo or your preferred CAN software to start capturing and analyzing bus traffic.
Package Includes
- 1× USB to CAN Module (CAN FD V2.0)
For more information on CAN bus standards and industrial communication protocols, visit the NIST Networked Control Systems program page.
Frequently Asked Questions
Q: Does this USB to CAN module support CAN-FD (Flexible Data-rate)?
A: Yes! This module fully supports CAN-FD (CAN Flexible Data-rate) in addition to CAN 2.0A and CAN 2.0B protocols. CAN-FD allows for higher data throughput and larger payload frames compared to classic CAN, making it ideal for modern automotive ECU development and industrial automation projects.
Q: What software is compatible with this CAN bus analyzer?
A: This module is designed to work with the open-source Cangaroo CAN protocol analysis software. It also presents itself as a standard serial device on Windows, macOS, and Linux, making it compatible with a wide range of CAN analysis tools that support virtual COM ports or USB-to-CAN adapters.
Q: Do I need an external power supply to use this module?
A: No external power supply is required. The module is powered entirely via the Type-C USB port at 5V, drawing power directly from your computer's USB port.
Q: How do I update the firmware on this CAN module?
A: Firmware can be updated in two ways. You can use the web-based firmware update method for a hassle-free over-the-air-style update, or you can short the BOOT pad before inserting the Type-C cable to enter BOOT mode and re-flash the firmware manually using standard STM32 flashing tools.
Q: What is the purpose of the 120Ω termination resistor jumper?
A: In a CAN bus network, both ends of the bus are required to have a 120Ω termination resistor to prevent signal reflections and ensure reliable communication. The onboard jumper allows you to easily enable this resistor when the module is placed at one end of the CAN bus — no external resistor needed.
