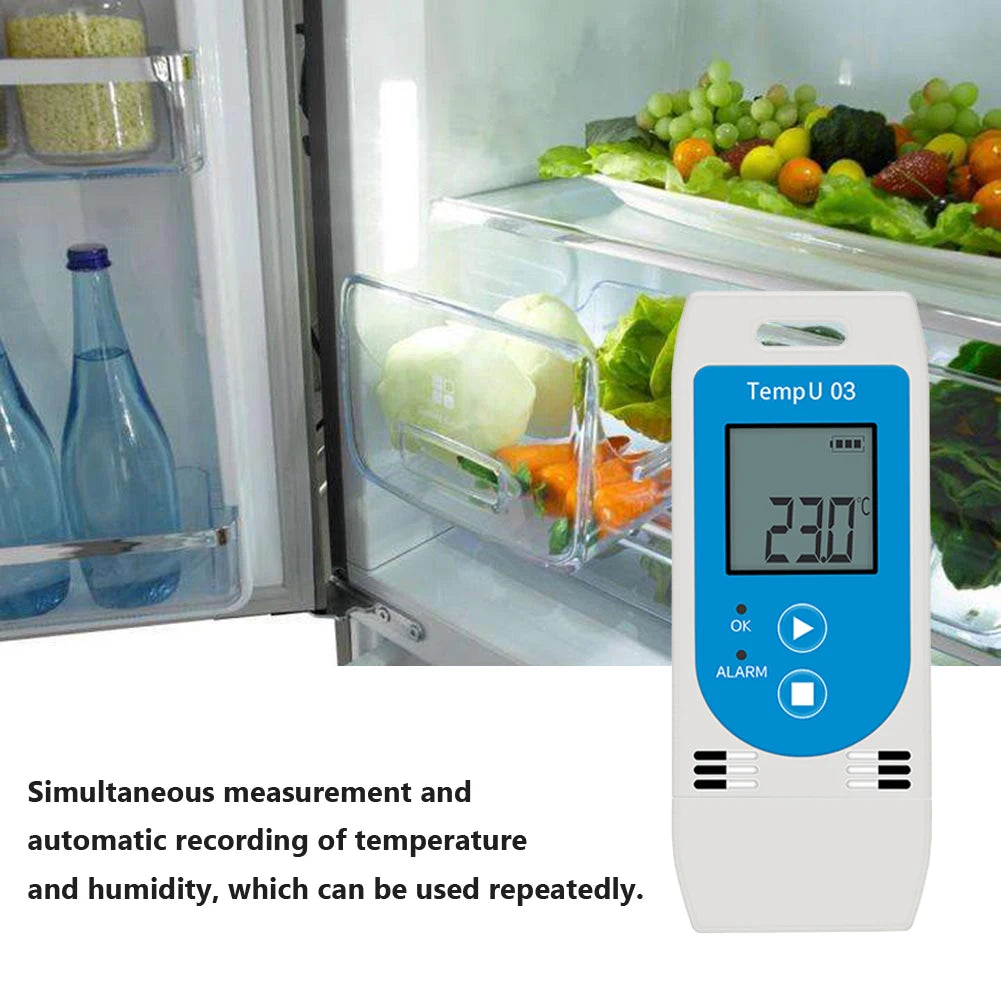

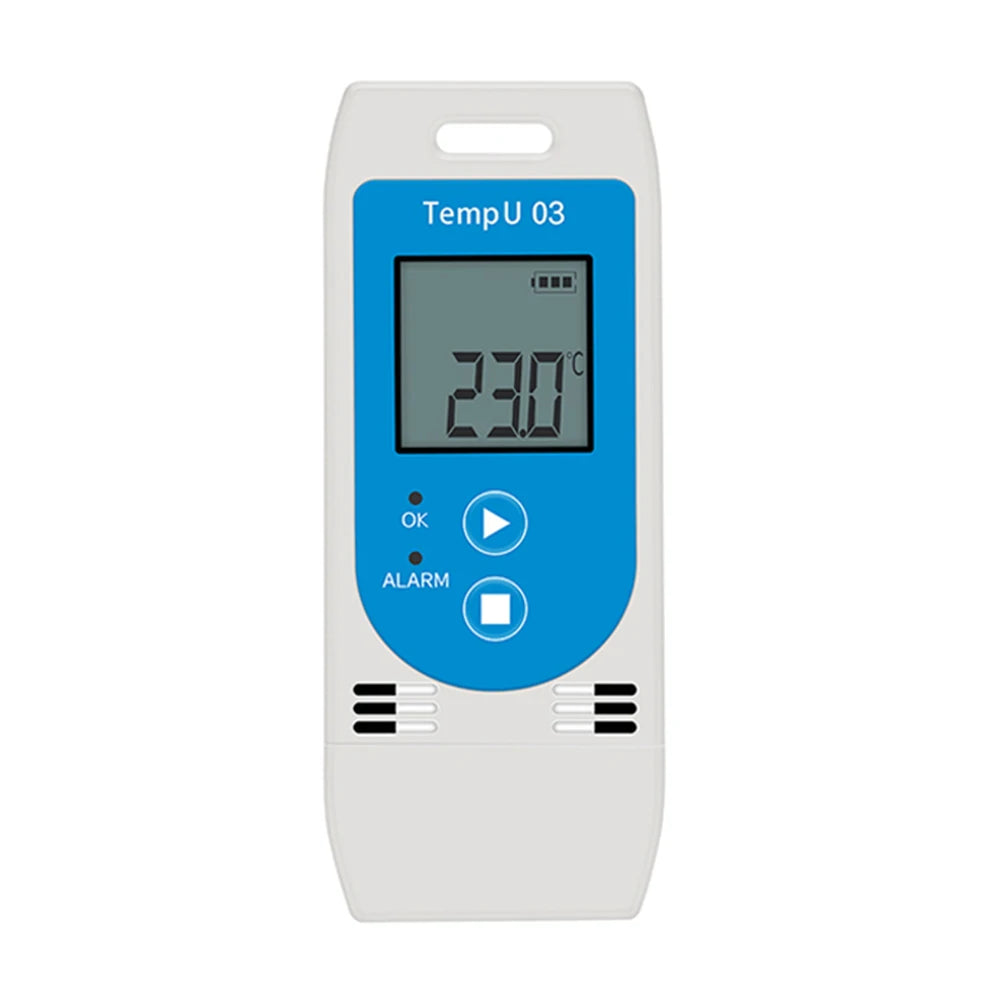

ALLOYSEED USB Temperature & Humidity Data Logger
Monitor, record, and report environmental conditions with precision using the ALLOYSEED Reusable USB Temperature & Humidity Data Logger. Designed for warehouse management, logistics, cold-chain transport, and indoor monitoring, this compact recorder automatically captures up to 32,000 data points and generates ready-to-use PDF and CSV reports — no additional software required for export.
Key Features
- Simultaneous Measurement: Records both temperature and relative humidity at the same time, giving you a complete environmental picture.
- Large Memory Capacity: Stores up to 32,000 data points so you can monitor long shipments or extended storage periods without interruption.
- LCD Display: Easy-to-read screen lets you view current readings and logger status at a glance — no PC needed for spot checks.
- Auto Report Generation: Plug into any USB 2.0 port and instantly generate a PDF report and CSV file — perfect for compliance documentation and audits.
- Programmable Parameters: Set custom logging intervals (10 seconds to 18 hours), start delays, and high/low alarm limits for both temperature and humidity channels.
- Reusable Design: Reset and redeploy for multiple shipments or monitoring cycles, making it a cost-effective long-term solution.
- Wide Measurement Range: Temperature: -30°C to +60°C (-22°F to +140°F); Humidity: 0% to 85% RH — suitable for diverse environments.
Technical Specifications
| Material | ABS Plastic |
| Dimensions | 89 × 36 × 16 mm (3.5 × 1.4 × 0.6 in) |
| Temperature Range | -30°C to +60°C / -22°F to +140°F |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.5°C (20–40°C); ±1.0°C (other ranges) |
| Humidity Range | 0% – 85% RH |
| Humidity Resolution | 0.1% RH |
| Humidity Accuracy | ±3.0% RH |
| Memory Capacity | 32,000 data points |
| Logging Interval | 10 seconds – 18 hours (default: 10 minutes) |
| Start Delay | Programmable 0–254 minutes (default: 30 min) |
| Alarm Delay | Programmable 0–960 minutes (default: 10 min) |
| Export Formats | PDF & CSV (auto-generated) |
| Connection | USB 2.0 |
| Power Supply | 1 × CR2032 3V Battery (not included) |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × ALLOYSEED USB Temperature & Humidity Data Logger
Ideal Applications
- Warehouse & storage facility environmental monitoring
- Logistics & freight transportation tracking
- Cold-chain management (pharmaceuticals, food, etc.)
- Indoor climate condition recording
- Lab and equipment environment compliance logging
For guidance on best practices in environmental monitoring and data logging standards, refer to the NIST Measurement Standards resource.
Learn more: Environmental monitoring
Frequently Asked Questions
Q: Does the USB temperature humidity data logger require special software to use?
A: No special software is required to export data. Simply plug the logger into a USB 2.0 port and it automatically generates a PDF report and CSV file. Optional PC data management software is available for configuring logging parameters, alarm limits, and start delays.
Q: Is the data logger reusable, or is it single-use only?
A: The ALLOYSEED data logger is fully reusable. Once you have downloaded and saved your data, you can reset the device and redeploy it for another monitoring cycle — making it an economical choice for ongoing warehouse or logistics operations.
Q: What is the maximum number of data points this humidity and temperature recorder can store?
A: The logger can store up to 32,000 data points. With the default 10-minute logging interval, that equates to over 200 days of continuous recording — more than sufficient for most long-haul shipments or extended storage monitoring.
Q: Is a battery included with the USB temperature humidity data logger?
A: No, the CR2032 3V battery is not included and must be purchased separately. The device is otherwise complete and ready to configure straight out of the box.
