UHF SO-239 Female Bulkhead Crimp Connector – RG58 RG142 LMR195
UHF SO-239 Female Bulkhead Crimp Connector – RG58 RG142 LMR195

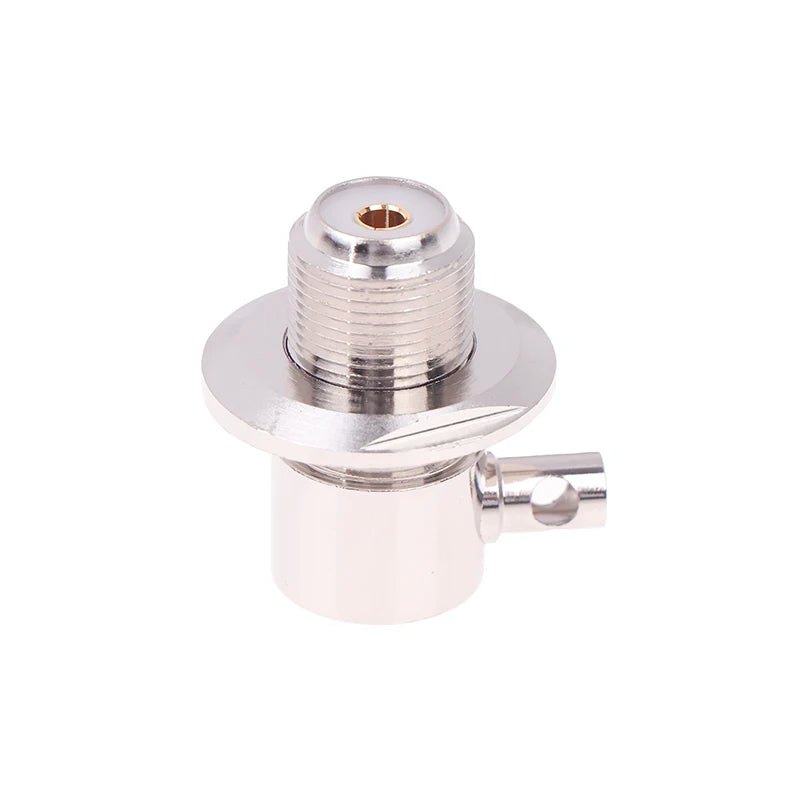

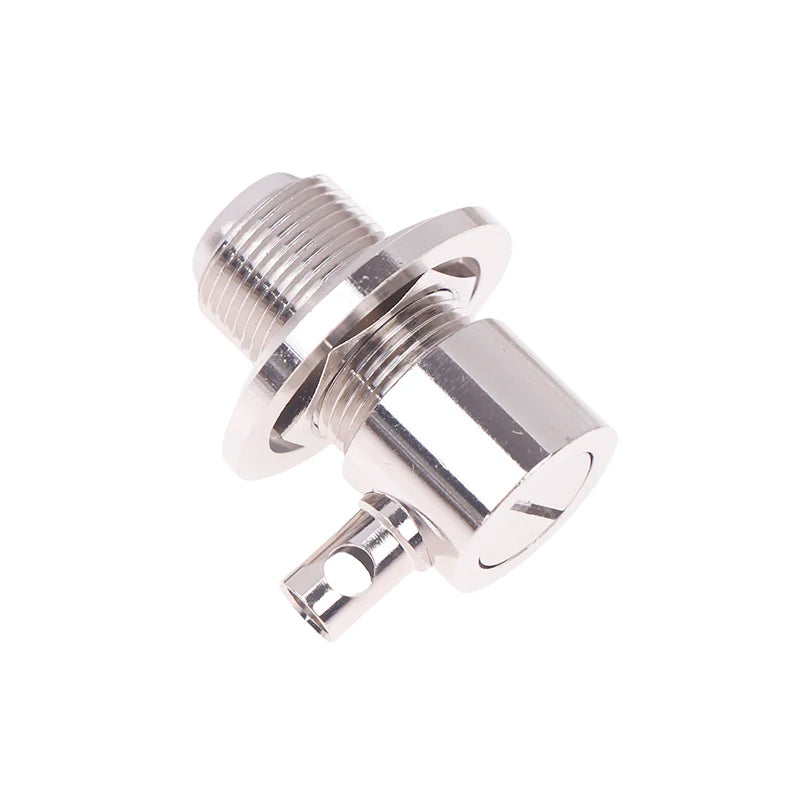

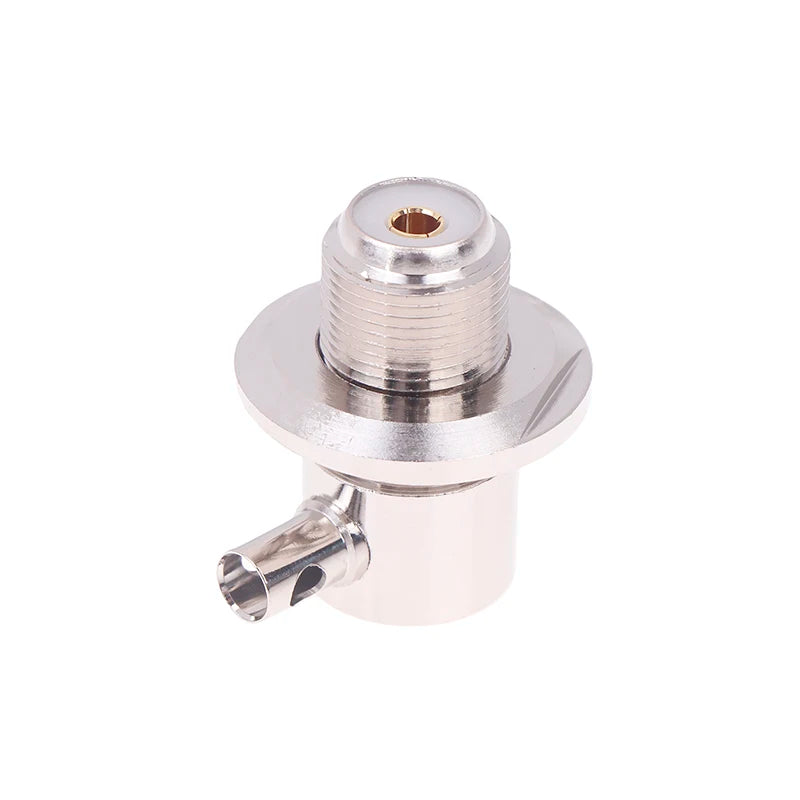

UHF SO-239 Female Jack Bulkhead Crimp Connector – Right Angle RF Coaxial
Upgrade your RF wiring setup with this precision-crafted UHF SO-239 Female Jack Bulkhead Crimp Connector. Designed for compatibility with popular coaxial cable types including RG58, RG142, and LMR195, this right-angle connector delivers a reliable, low-loss signal connection for amateur radio, antenna installations, and RF electronics projects. Made in Mainland China.
Key Features
- Universal Compatibility: Fits RG58, RG142, and LMR195 coaxial cables — perfect for a wide range of RF and antenna applications.
- All-Copper Nickel-Plated Construction: Solid copper body with nickel plating ensures excellent conductivity, corrosion resistance, and long-lasting durability.
- Right-Angle Design: 90° angle configuration allows for flexible routing in tight spaces without compromising signal integrity.
- Bulkhead Nut Mount: Panel-mount nut bulkhead style for secure, permanent installation on enclosures, chassis, or equipment panels.
- Crimp-Style Termination: Clean, secure crimp connection for a professional finish and strong mechanical hold.
- Compact Size: Approximately 3.5 × 3.5 cm (1.37 × 1.37 in) — easy to fit into space-limited builds.
- Silver Finish: Clean silver appearance suitable for both professional and hobbyist installations.
Specifications
- Connector Type: UHF SO-239 Female Jack
- Mount Style: Bulkhead Nut / Panel Mount
- Termination: Crimp
- Angle: Right Angle (90°)
- Compatible Cables: RG58, RG142, LMR195
- Material: All copper, nickel plated
- Color: Silver
- Dimensions: 3.5 × 3.5 cm / 1.37 × 1.37 in (manual measurement; ±5–10 mm tolerance)
- Country of Origin: Made in Mainland China
What's in the Box?
- 1 × UHF SO-239 Female Jack Bulkhead Crimp Connector (Right Angle)
Important Notes
- Product photos may not reflect actual size — please refer to the listed dimensions.
- Allow ±5–10 mm tolerance due to manual measurement.
- Slight color variations may occur due to monitor display settings.
For more information on RF connector safety and proper installation standards in electrical applications, visit OSHA Electrical Safety Guidelines.
Frequently Asked Questions
Q: What coaxial cable types is the SO-239 UHF female bulkhead crimp connector compatible with?
A: This connector is designed to work with RG58, RG142, and LMR195 coaxial cables, making it a versatile choice for amateur radio operators, antenna builders, and RF electronics enthusiasts.
Q: What does "bulkhead nut" mean for this connector?
A: A bulkhead nut connector is designed to be panel-mounted — it passes through a hole in an enclosure or chassis and is secured with a nut on the opposite side, providing a sturdy and permanent mount for your coaxial connection.
Q: Is this connector suitable for outdoor or weatherproof installations?
A: The nickel-plated all-copper construction provides good corrosion resistance. However, for long-term outdoor exposure, we recommend additional weatherproofing (such as self-amalgamating tape over the connection) to maximize durability.
Q: What tools are needed to install this crimp-style connector?
A: You will need a coaxial cable stripper to prepare the cable end and a compatible coaxial crimp tool sized for RG58/RG142/LMR195 cables. No soldering is required.
