UHF RFID Reader 8M Range RS232 RS485 TCP/IP Wiegand – R16-8DB
UHF RFID Reader 8M Range RS232 RS485 TCP/IP Wiegand – R16-8DB

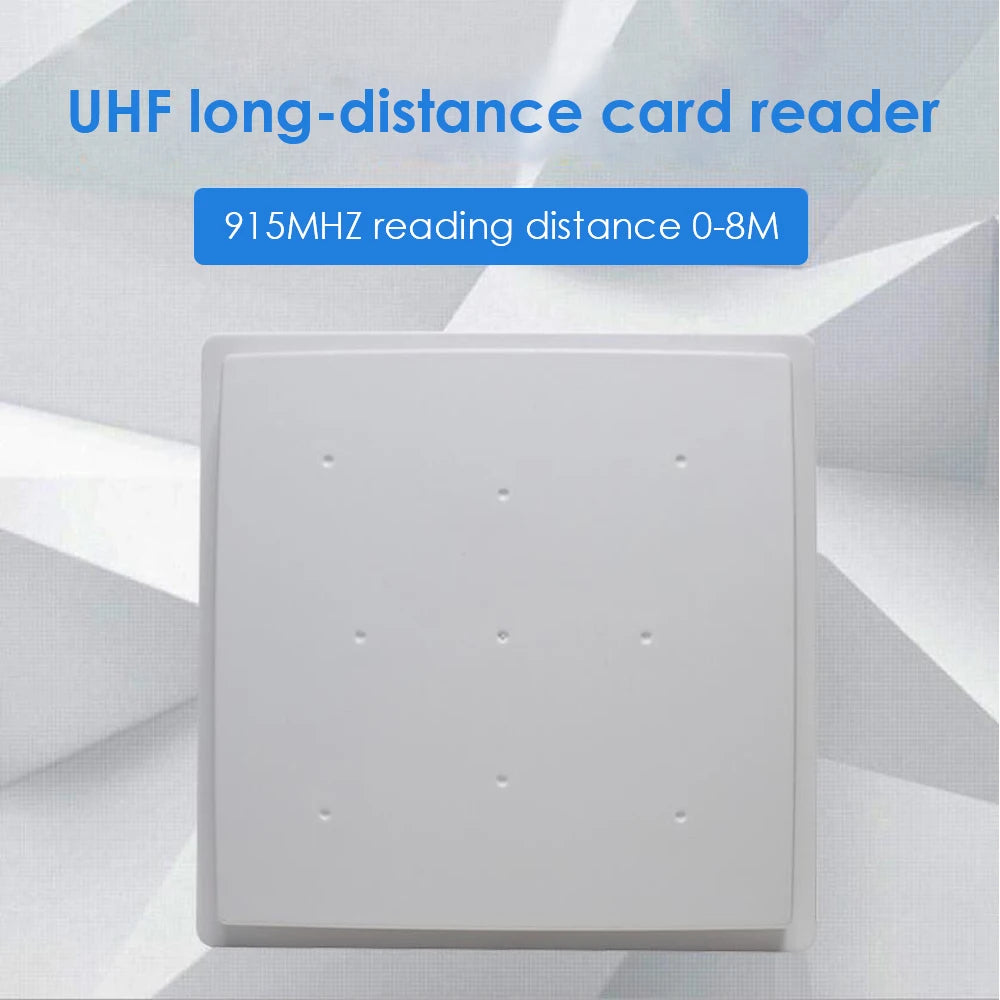

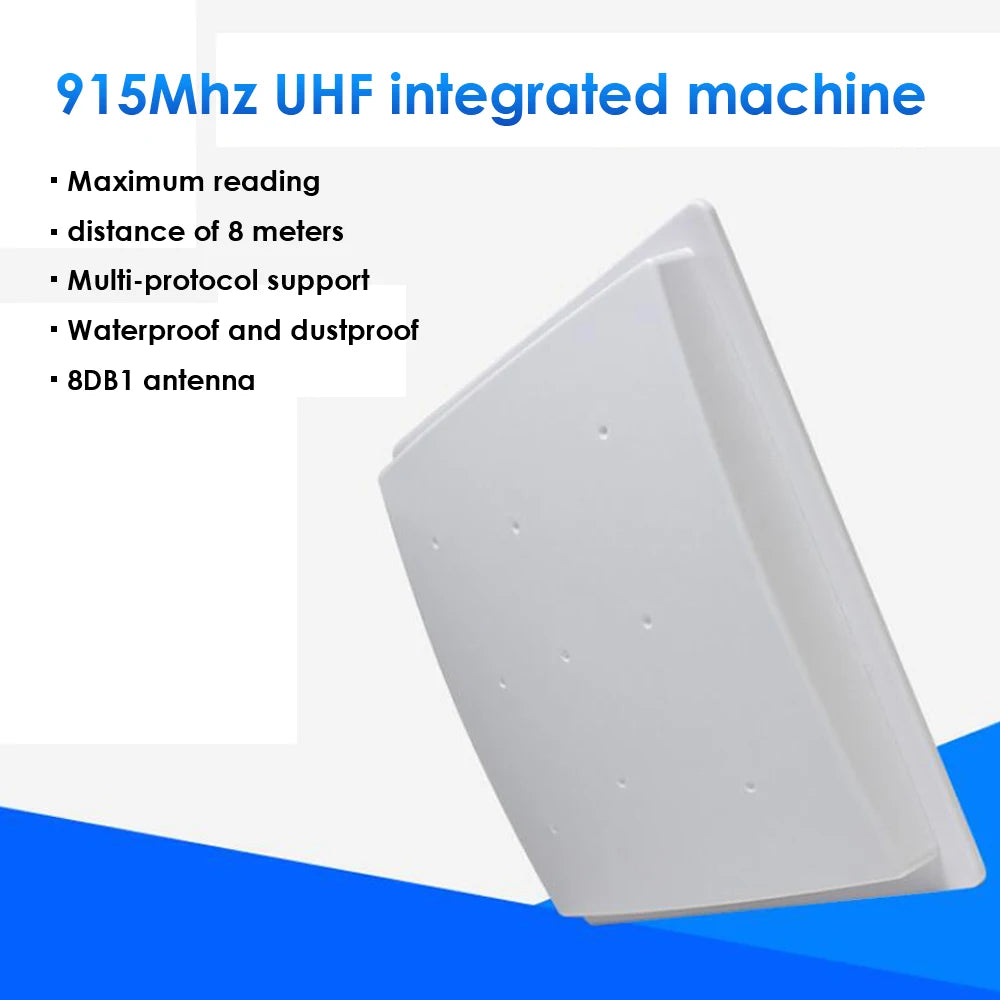

Asia-Teco R16-8DB — 8-Metre Long-Range UHF RFID Integrated Reader
The Asia-Teco R16-8DB is a professional-grade, integrated UHF RFID card reader engineered for demanding environments. With a built-in high-performance linear-polarised antenna capable of stable recognition up to 8 metres, this reader delivers fast, reliable multi-tag identification across a wide range of commercial and industrial applications — from car-park vehicle management to warehouse and asset tracking.
Its all-in-one integrated design means no external antenna is required, and the rugged waterproof housing ensures dependable operation outdoors and in harsh conditions. Flexible communication options (RS-232, RS-485, TCP/IP, Wiegand 26/34/96, USB) make integration with existing access-control, ERP, or custom software systems straightforward.
Made in Mainland China.
Key Features
- Up to 8-metre read range — integrated linear-polarised antenna for stable long-distance recognition
- Multi-protocol support — ISO 18000-6B and EPC Class 1 Gen 2 international standards
- High-speed identification — single-tag read rate of up to 140 reads/second
- Multi-tag reading — simultaneously reads multiple RFID tags in the field
- Frequency hopping mode — strong anti-interference capability and high recognition sensitivity across 902–928 MHz
- Rich communication interfaces — RS-232, RS-485, Wiegand 26 / 34 / 96, USB, TCP/IP
- Advanced tag functions — echo signal detection, data filtering, clock stamping, I/O control
- Multi-language SDK support — compatible with VC, VB, C, and more
- Online firmware upgrades — keep the reader current without hardware replacement
- Waterproof, integrated design — attractive enclosure suitable for outdoor installation
- Wide operating temperature — –20 °C to +60 °C; storage –40 °C to +70 °C
Technical Specifications
| Brand / Model | Asia-Teco R16-8DB |
| Working Frequency | 902–928 MHz (UHF) |
| Read Range | Up to 8 metres (dependent on tag type) |
| Communication Ports | RS-232, RS-485, Wiegand 26/34/96, USB, TCP/IP |
| Baud Rate | Default 9600 bps; software-selectable up to 115,200 bps |
| Working Mode | Software-selectable frequency hopping or fixed frequency |
| Supported Standards | ISO 18000-6B, EPC Class 1 Gen 2 |
| Dimensions | 240 mm × 240 mm × 50 mm |
| Weight | 2 kg |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +70 °C |
| Origin | Mainland China |
Typical Applications
- Car Park & Vehicle Access Management (TRIG trigger mode)
- Warehouse & Inventory Management
- Supply Chain & Logistics Tracking
- Asset Management
- Personnel Access Control & Attendance
- Product Authentication & Anti-Counterfeiting
- Production Line Management
Learn More About RFID Technology
For an overview of how UHF RFID systems work in supply chain and inventory contexts, visit the NIST RFID Technology Resource.
Frequently Asked Questions
Q: What is the maximum read range of the Asia-Teco R16-8DB UHF RFID reader?
A: The R16-8DB can read compatible UHF RFID tags at distances of up to 8 metres under optimal conditions. Actual range may vary depending on tag type, orientation, and environmental factors such as nearby metal surfaces or interference sources.
Q: Which RFID tag standards does the R16-8DB support?
A: The reader supports the ISO 18000-6B and EPC Class 1 Gen 2 (EPC Gen2) international standards, making it compatible with a wide range of commercially available UHF RFID tags used in logistics, access control, and asset tracking.
Q: What communication interfaces are available on this integrated UHF RFID reader?
A: The R16-8DB offers RS-232, RS-485, TCP/IP (Ethernet), Wiegand 26, Wiegand 34, Wiegand 96, and USB interfaces. This versatility allows seamless integration with access-control panels, PLCs, PCs, and networked systems.
Q: Can the R16-8DB be used outdoors for car-park management?
A: Yes. The reader features an integrated waterproof enclosure rated for operating temperatures from –20 °C to +60 °C, making it well-suited for outdoor vehicle access and car-park management applications, especially when used with the TRIG (trigger) input function for barrier control.
Q: Is custom software development supported?
A: Absolutely. The R16-8DB provides SDK support for multiple programming languages including VC, VB, and C. It also supports online firmware upgrades, so you can update and expand functionality without replacing hardware.
