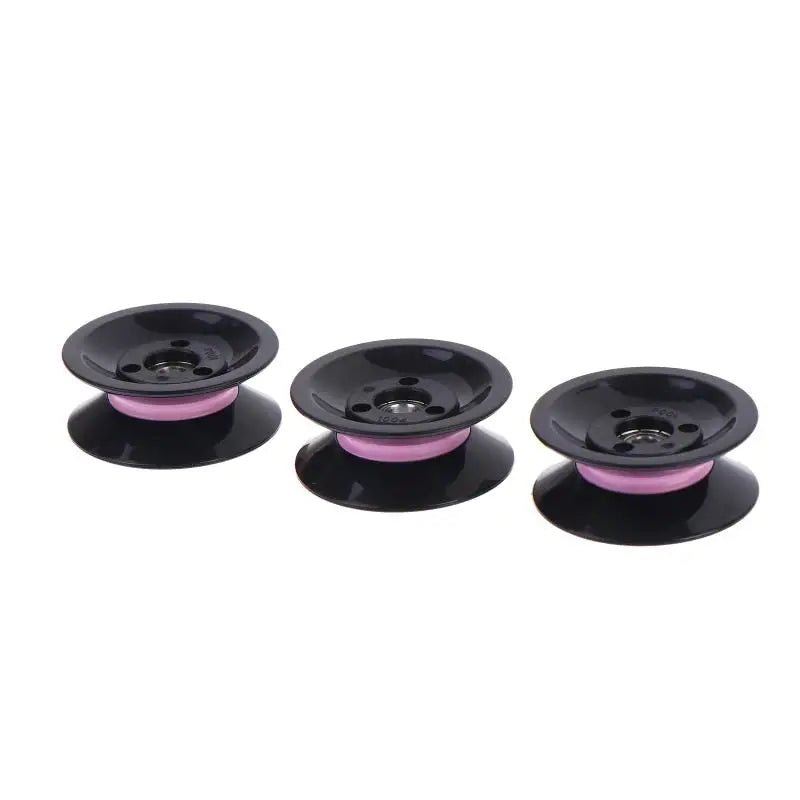

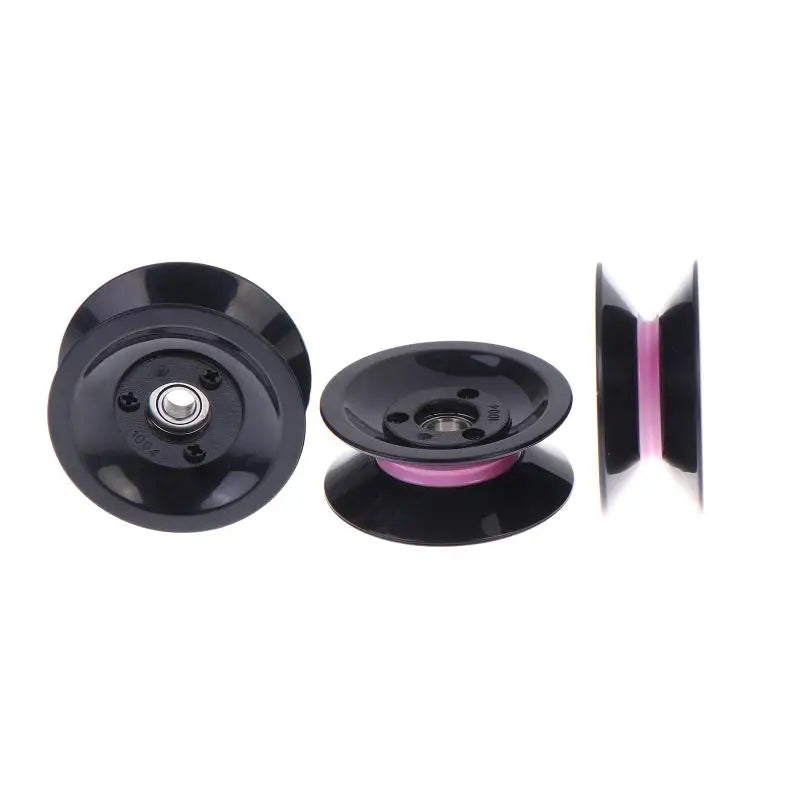

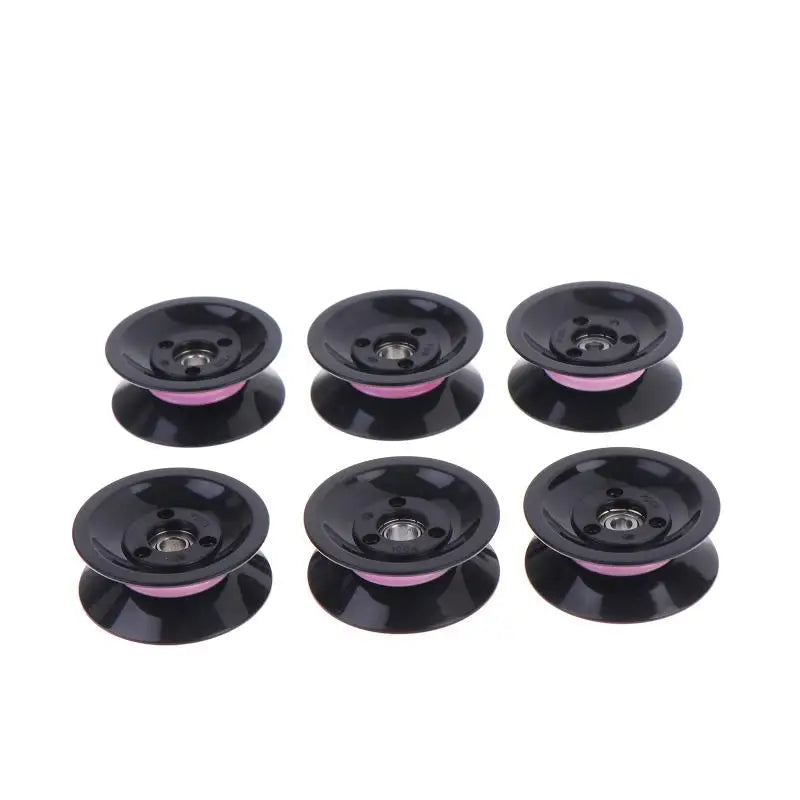

1004 U-Groove & V-Groove Ceramic Wire Guide Wheel Pulley Set (2 Pcs)
Upgrade your wire winding machine with this high-quality combination of U-Groove and V-Groove ceramic guide wheels. Engineered for precision wire management, these ceramic-tipped pulleys ensure smooth, consistent wire feeding and winding — reducing friction and wear on your wire for cleaner, more reliable results every time.
Key Features
- Dual-Groove Design: Includes both a U-Groove and a V-Groove wheel for versatile compatibility with a wide range of wire types and winding setups.
- Ceramic + Plastic Construction: The ceramic groove surface provides excellent hardness and low-friction guidance, while the durable plastic body keeps the unit lightweight.
- Pack of 2: Ideal for replacement or backup use — get two fully functional guide wheels in one purchase.
- Secure Wire Tracking: Precision-grooved ceramic surface keeps wire centered and prevents slipping during high-speed winding operations.
- Long-Lasting Durability: Ceramic material resists abrasion and heat, extending the service life of both the guide wheel and your wire.
- Color: Black
- Material: Plastic + Ceramic
- Package Quantity: 2 Pieces
Compatibility

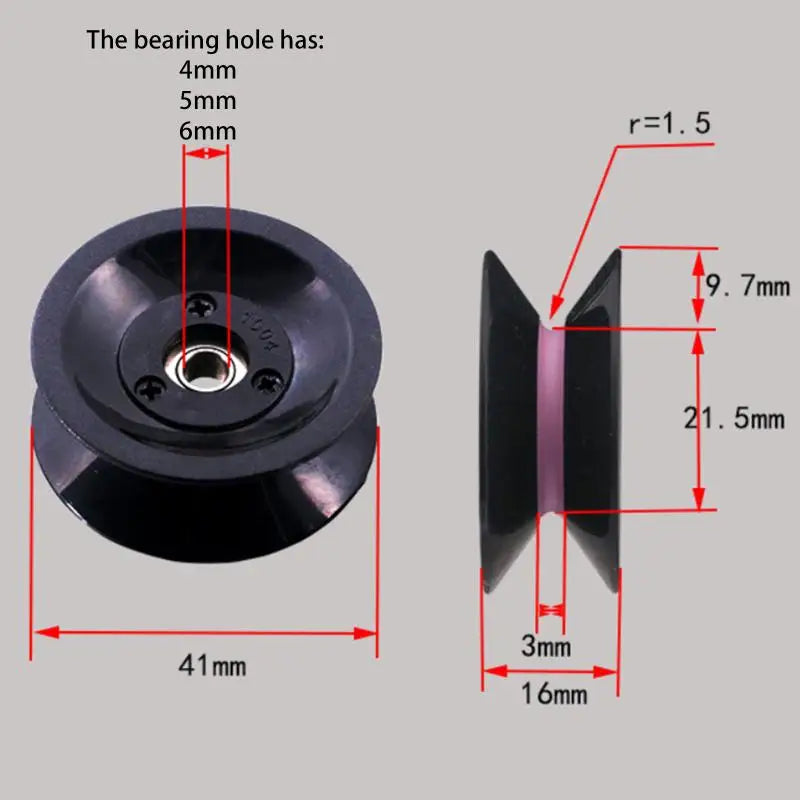

These guide wheels are designed for use with wire winding machines and similar coil-winding or wire-feeding equipment. The 1004 series pulley combination fits a range of standard setups — please refer to the product images for exact dimensions before ordering.
Made in Mainland China.
Note: Please allow a 2–3% dimensional variance due to manual measurement. Colors may vary slightly from screen to screen depending on your monitor's settings.
Technical Specifications
| Type | U-Groove & V-Groove Wire Guide Wheel |
| Series | 1004 |
| Material | Plastic + Ceramic |
| Color | Black |
| Quantity | 2 Pcs |
| Origin | Mainland China |
Resources
For general workshop and tool safety guidelines when operating machinery such as wire winding equipment, refer to the OSHA Machine Guarding Safety Resource.
Frequently Asked Questions
Q: What is the difference between a U-Groove and a V-Groove ceramic guide wheel?
A: A U-Groove guide wheel has a rounded channel that cradles the wire gently, making it ideal for softer or thinner wire types. A V-Groove guide wheel features an angled channel that grips the wire more firmly, suited for applications requiring tighter wire tracking. This set includes both types so you can use whichever fits your wire winding machine's requirements.
Q: Are these guide wheels compatible with my wire winding machine?
A: These 1004-series U-Groove and V-Groove ceramic guide wheels are designed for standard wire winding machines and coil-winding equipment. Please check the product images for exact dimensional measurements and compare them to your machine's specifications before purchasing.
Q: Why are ceramic guide wheels preferred over metal or plastic-only wheels?
A: Ceramic surfaces offer excellent hardness, very low friction, and strong resistance to abrasion and heat. This means the wire glides smoothly through the groove, reducing wear on both the wheel and the wire itself — resulting in better winding quality and longer component life compared to standard plastic or metal alternatives.
Q: How many pieces are included in this set?
A: This listing includes 2 pieces — one U-Groove and one V-Groove ceramic guide wheel — providing a complete pulley combination for your wire winding machine setup.
