Type 86 Zinc Alloy Surface Mounted Back Box for Access Control Systems
Upgrade your access control installation with this professional-grade Type 86 Universal Wall Surface Mounted Junction Box. Constructed from high-hardness zinc alloy with an electroplated bright chrome finish, this back box provides a secure, durable, and polished housing for access control readers, keypads, and exit switch buttons.
Key Features

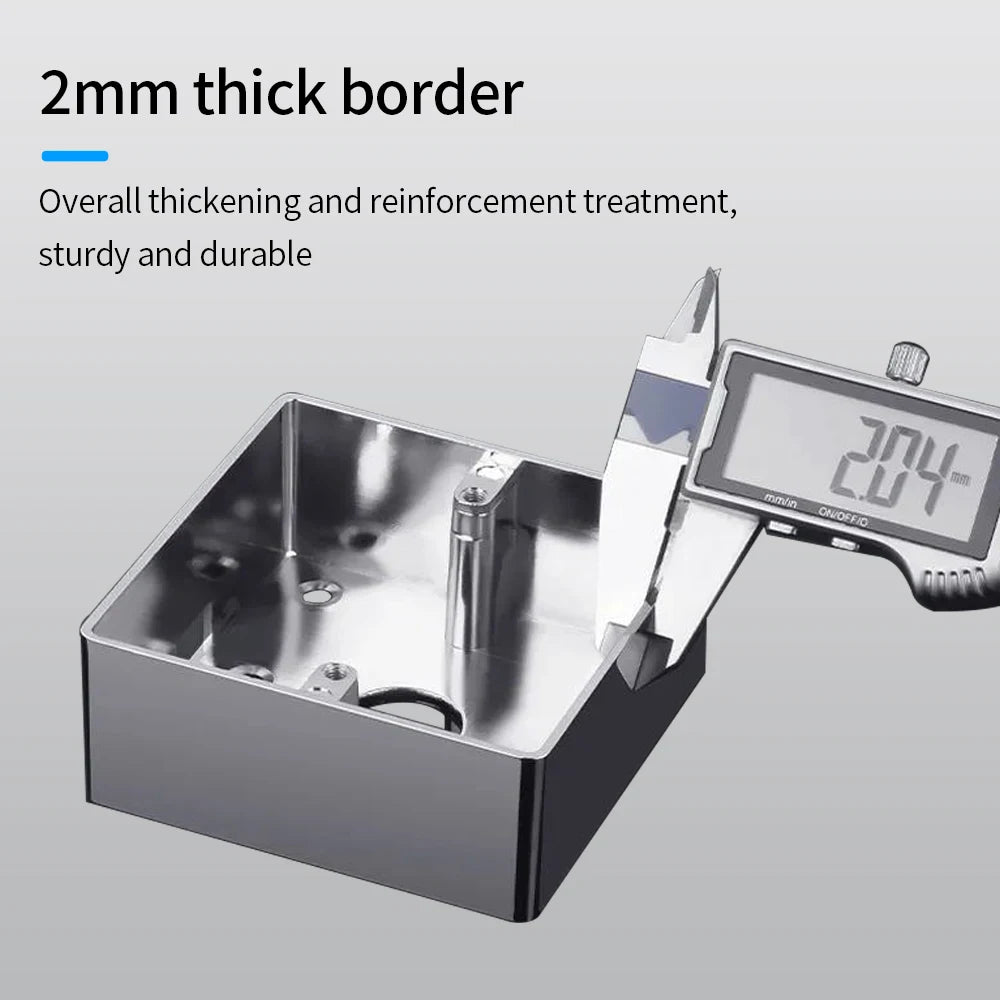

- High-Hardness Zinc Alloy Construction: Built to withstand daily use in commercial and residential environments, offering superior rigidity over standard plastic alternatives.

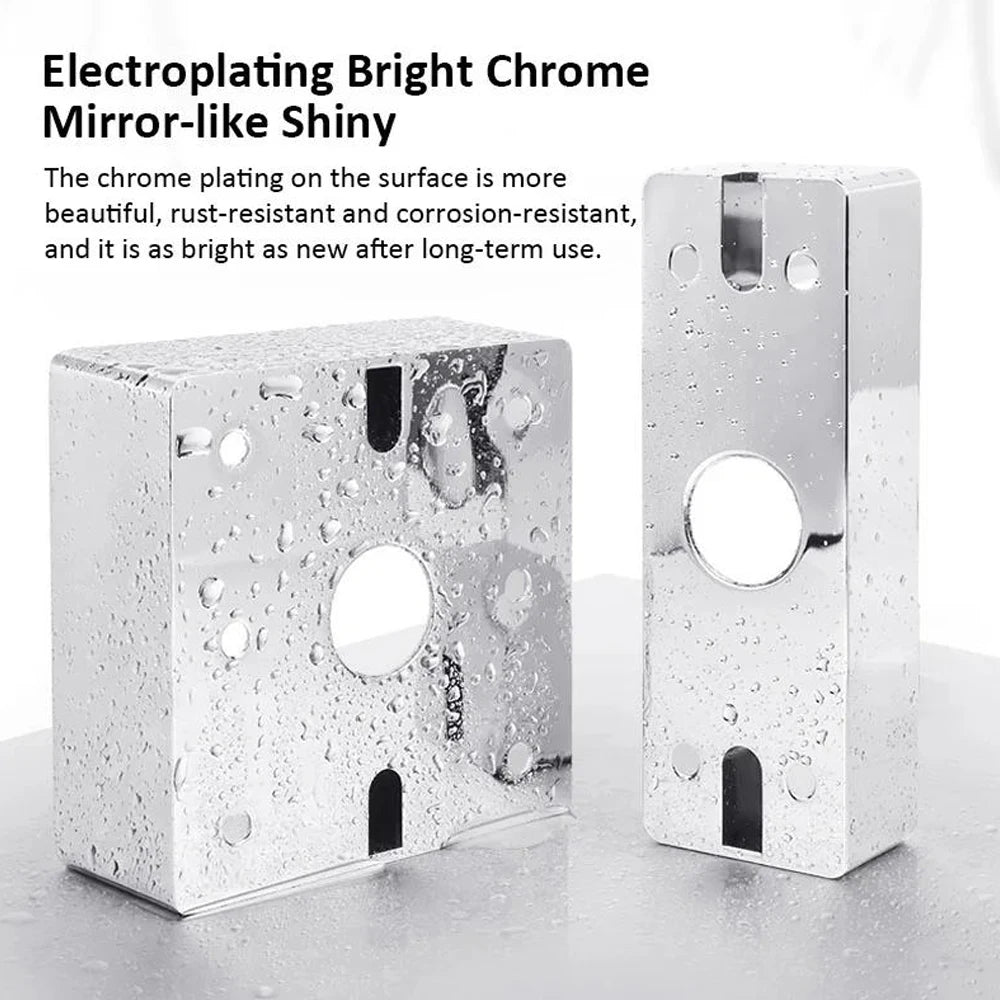

- Electroplated Bright Chrome Finish: Plated surface treatment delivers a sleek, professional appearance that complements modern door hardware and access panels.

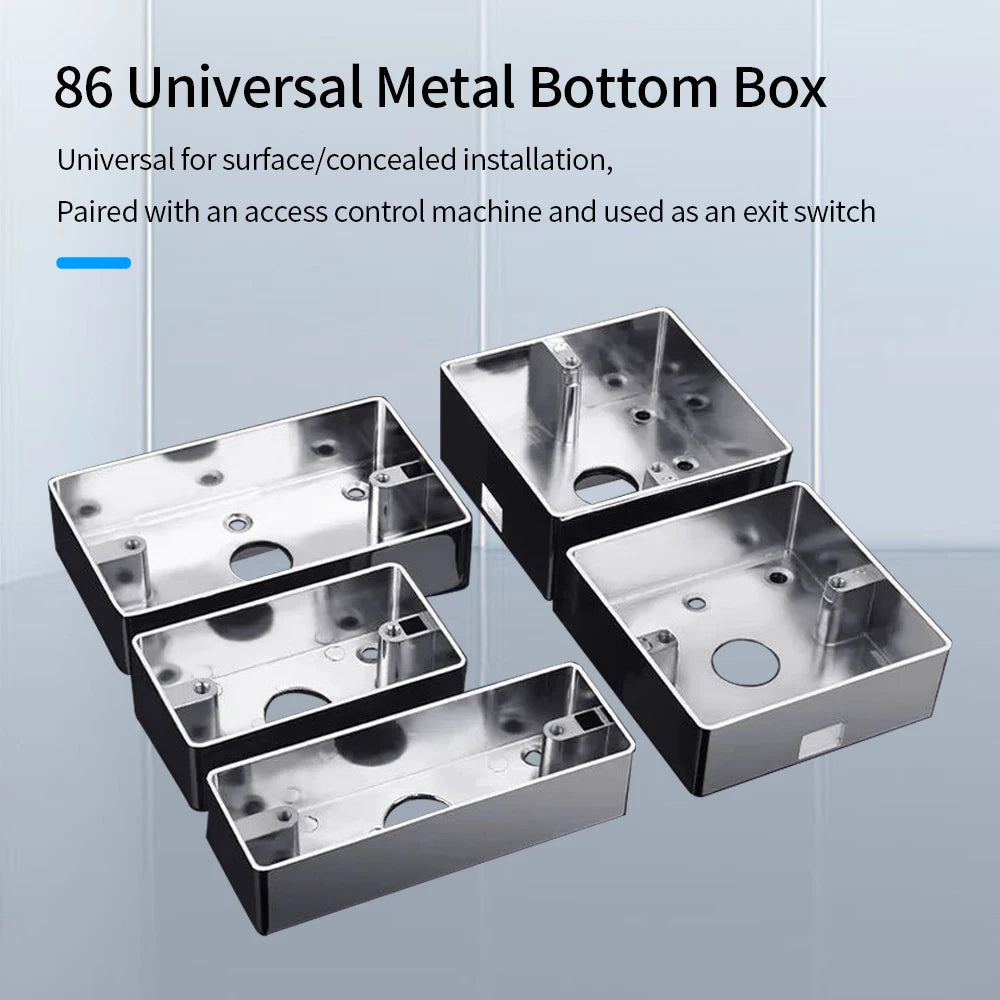

- Universal Type 86 Standard: Compatible with a wide range of access control readers, keypads, exit buttons, and switch panels conforming to the Type 86 wall plate standard.
- Fire Retardant & Durable: Engineered with fire-retardant properties for added safety, ensuring long service life even in high-traffic areas.
- Surface Mounted Design: Easy to install directly onto any wall surface — no deep cavity required. Ideal for retrofit and new installations alike.
- Multiple Model Options: Available in models M40, M50, M70, and M86 to suit various device footprints and installation requirements.
Specifications
| Brand | Asia-Teco |
| Model Numbers | M40 / M50 / M70 / M86 |
| Material | High-hardness zinc alloy |
| Surface Treatment | Electroplated bright chrome |
| Item Type | Surface mounted back/bottom box (junction box) |
| Compatible With | Access control readers, keypads, exit buttons, switch panels |
| Mounting Type | Wall surface mounted |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Office and commercial building access control installations
- Residential smart lock and keypad setups
- Security system entry/exit button mounting
- Retrofit upgrades for existing door control hardware
For general guidance on access control and physical security best practices, visit the Cybersecurity and Infrastructure Security Agency (CISA). For electrical safety standards relevant to wall-mounted electrical boxes, refer to resources from OSHA's Electrical Safety guidelines.
Frequently Asked Questions
Q: What is a Type 86 junction box and what devices does it fit?
A: The Type 86 standard refers to a widely used wall plate and back box sizing specification (86mm × 86mm face plate footprint) common in access control and electrical installations. This surface-mounted back box is compatible with Type 86 access control readers, keypads, exit buttons, and switch panels, making it a versatile choice for most standard security hardware.
Q: Is this junction box suitable for both indoor and outdoor installations?
A: This zinc alloy back box is primarily designed for indoor wall surface mounting. Its electroplated chrome finish provides good resistance to everyday wear, but for outdoor or high-moisture environments, additional weatherproofing measures are recommended to maintain performance and appearance.

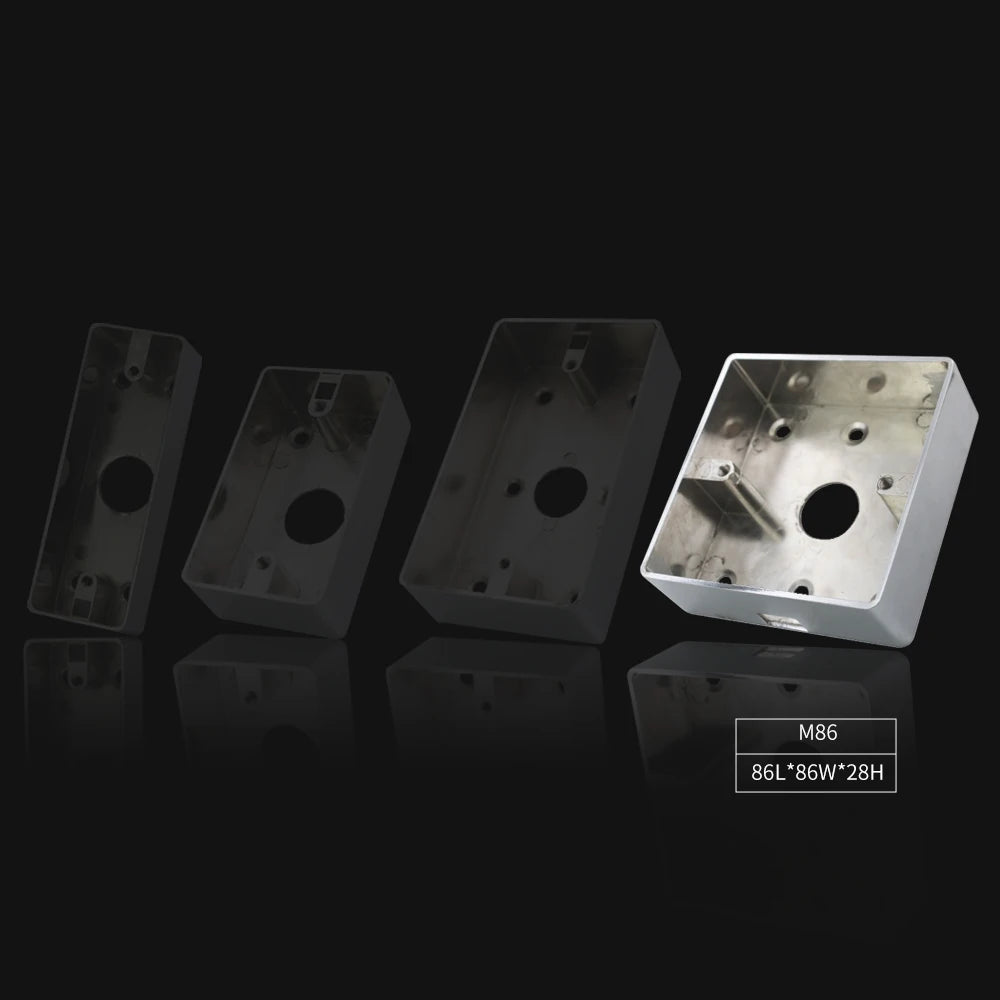

Q: What is the difference between the M40, M50, M70, and M86 models?
A: The model numbers (M40, M50, M70, M86) refer to different depth or dimension variants of the junction box, allowing you to choose the best fit for your specific access control device and wall installation requirements. Please check the depth and cutout dimensions of your device before selecting a model.
Q: How is this back box installed on the wall?
A: The box is designed for surface mounting directly onto any flat wall surface using standard fasteners. No deep cavity or flush-mount routing is required, making installation straightforward for both new builds and retrofit projects.
