Tuya WiFi Video Intercom RFID Keypad Door Access Control System
Tuya WiFi Video Intercom RFID Keypad Door Access Control System

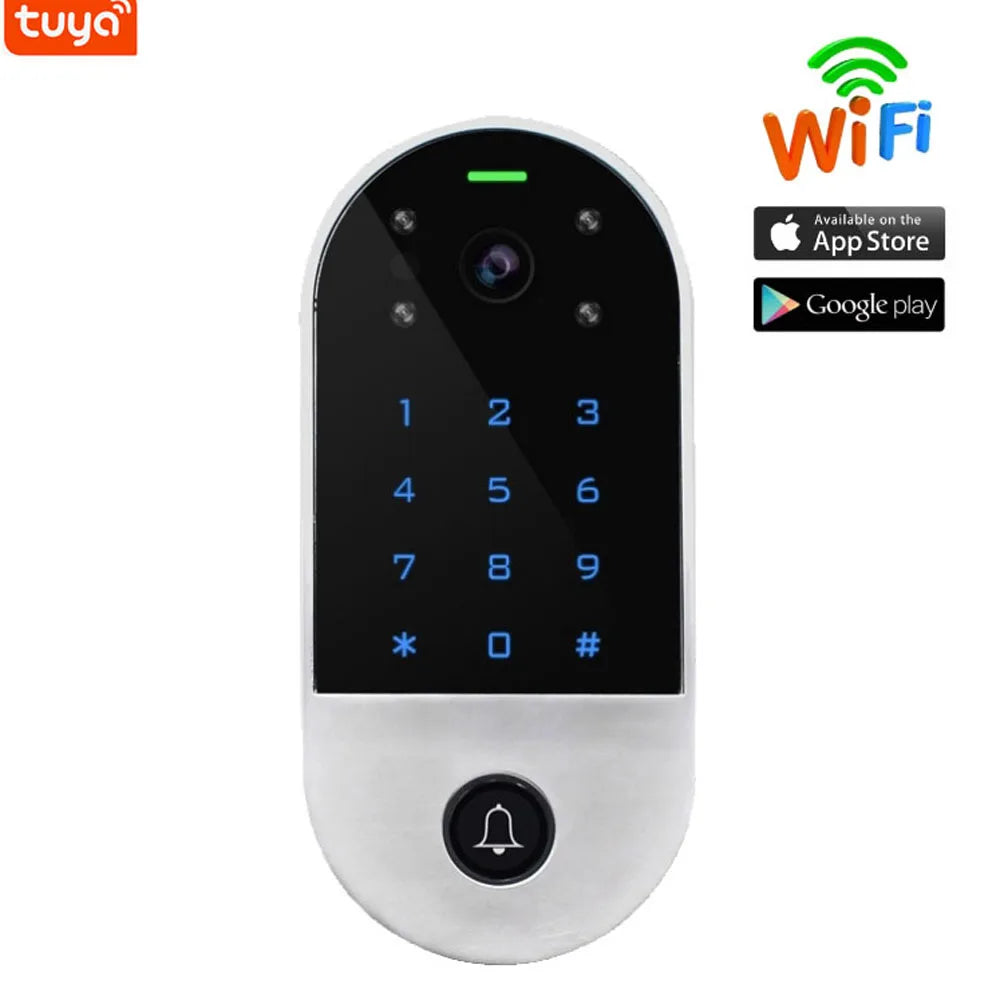

Tuya Smart WiFi Video Intercom & RFID Keypad Door Access Control System
Take full command of your home or apartment entryway with this all-in-one Tuya Smart WiFi Video Intercom and RFID Access Control Keypad. Featuring a built-in 2MP wide-angle camera, full-duplex two-way audio, and seamless integration with the Tuya / Smart Life app, you can see, speak with, and grant access to visitors from anywhere in the world — right from your smartphone. Made in Mainland China.
Why You'll Love It
- Remote Access via App: Control your door lock from anywhere using the Tuya or Smart Life app on iOS (7.0+) or Android (4.3+) over 2.4 GHz WiFi.

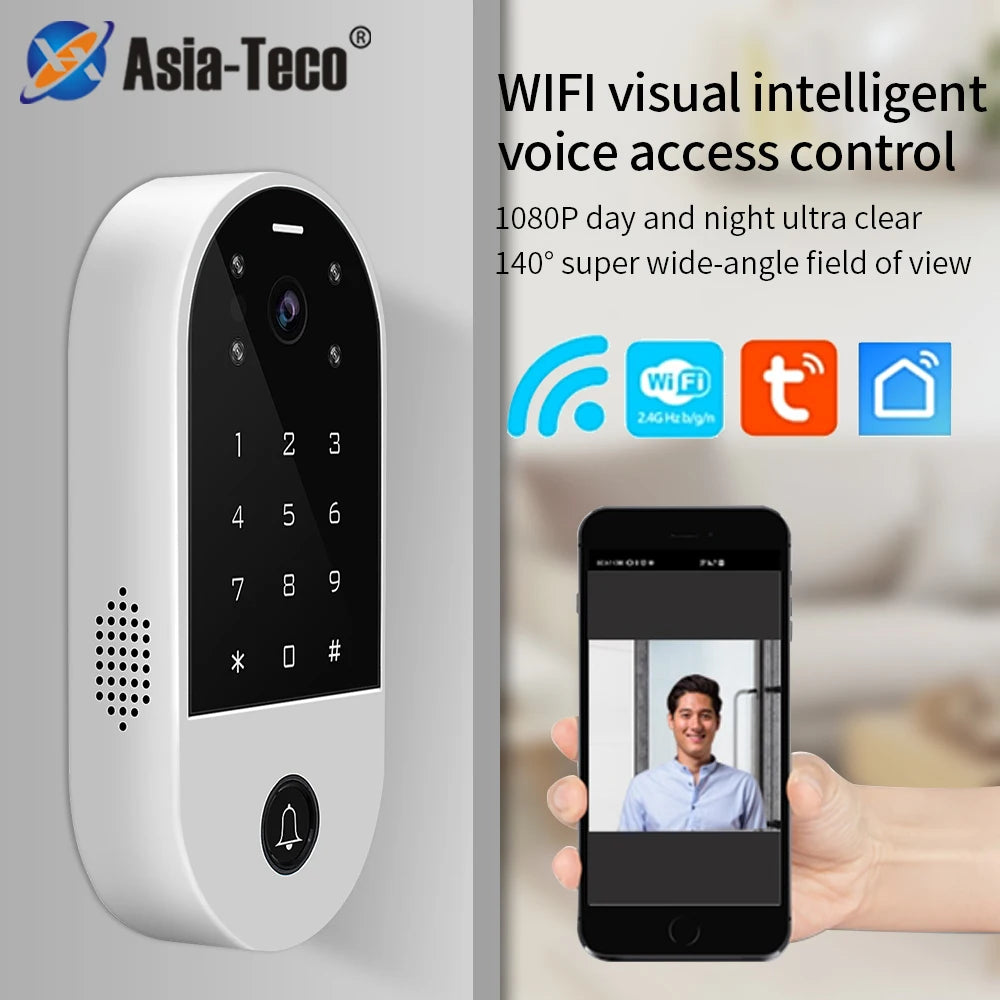

- 1080P Wide-Angle Camera: 2.0 MP CMOS sensor with a 140° horizontal field of view delivers crystal-clear color video during the day and IR-CUT night vision after dark.
- Full-Duplex Voice Intercom: Have a real-time, two-way conversation with visitors — no half-duplex delays or awkward button-holding.
- Multiple Unlock Methods: Grant entry via RFID card (EM or Mifare), 4–6 digit PIN code, or remote smartphone unlock — maximum flexibility for residents and guests.
- 1,000-User Capacity: Supports up to 988 common users, 10 visitor accounts, and 2 panic-mode users for comprehensive access management.
- Motion Detection & Recording: Get instant alerts, take snapshots or videos, and review playback footage stored on a TF card (unlimited capacity).
- Wiegand Interface: Wiegand 26–44 bit input/output makes it easy to integrate with existing security systems or expand with additional readers.

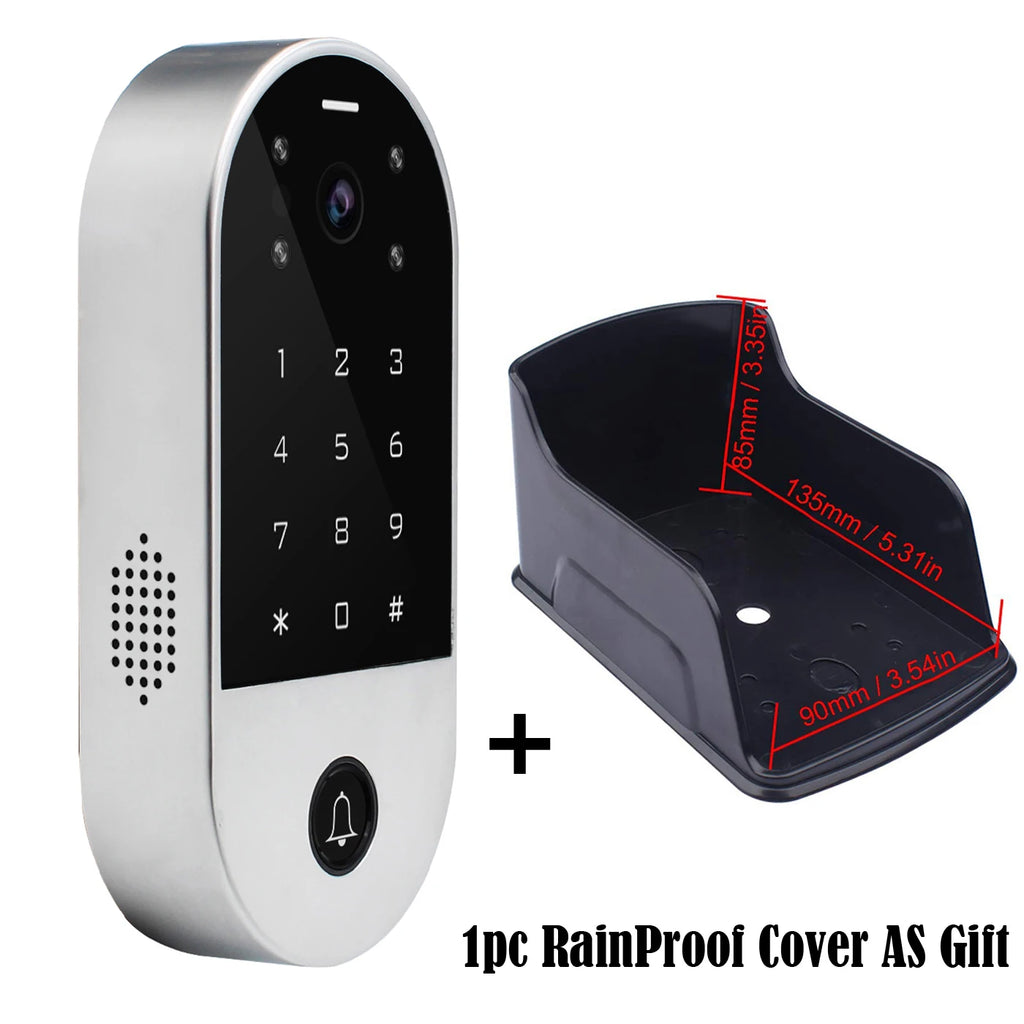

- Durable Zinc-Alloy Housing: Rugged silver and black zinc-alloy body (149 × 70 × 25 mm) built for long-lasting, wall-mounted indoor installation.
- Adjustable Relay Timer: Set relay output time from 0–99 seconds (5-second default) to suit any electric lock or strike plate.
- Interlock Support: Two units can be interlinked to manage access across two separate doors simultaneously.
Complete Specifications
| Network | 2.4 GHz WiFi |
| Camera | 2.0 MP (1080P), CMOS, 140° wide angle, IR-CUT night vision |
| Intercom | Full-duplex two-way voice |
| Storage | TF card (unlimited capacity) |
| Smart Platform | Tuya / Smart Life App (iOS 7.0+, Android 4.3+) |
| Unlock Methods | RFID Card, PIN (4–6 digits), Remote Phone Unlock |
| User Capacity | 1,000 (988 common + 10 visitor + 2 panic) |
| RFID Technology | 125 kHz EM (default) / 13.56 MHz Mifare (customizable) |
| Wiegand Interface | 26–44 bits input & output |
| Relay | 1 relay (NO/NC/Common), 0–99 s adjustable, 2 A max load |
| Operating Voltage | DC 12V |
| Current Draw | Idle ≤ 150 mA / Active ≤ 250 mA |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 0% – 86% RH |
| Material | Zinc-Alloy |
| Color | Silver & Black |
| Dimensions | 149 × 70 × 25 mm |
| Weight | 500 g (unit) / 550 g (shipping) |
| Installation | Wall Mounting (Indoor) |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Smart Home Security Resources
For tips on evaluating and selecting home security systems, visit the U.S. Consumer Product Safety Commission (CPSC) Home Safety Guide. The CDC also provides guidance on maintaining safe environments.
Frequently Asked Questions
Q: Does this WiFi video intercom work with both iPhone and Android?
A: Yes. The system is fully compatible with iOS 7.0 and above as well as Android 4.3 and above. Simply download the free Tuya or Smart Life app, connect to your 2.4 GHz WiFi network, and you can view live video, speak with visitors, and unlock the door remotely from your smartphone.
Q: What RFID card types does the access control keypad support?
A: The keypad supports 125 kHz EM cards by default. Mifare 13.56 MHz cards are also available as a customizable option. Cards are read at a range of 2–6 cm, and the system can store credentials for up to 1,000 users.
Q: Can I record video footage, and how much storage does it support?
A: Yes. The unit supports a TF (microSD) card with unlimited capacity for local recording. You can review playback footage directly through the Tuya app, and motion detection alerts allow the camera to automatically capture snapshots or video clips when activity is detected.
Q: Is this access control system compatible with my existing door lock or security panel?
A: Very likely, yes. The unit features a Wiegand 26–44 bit interface (input and output), a single relay output (NO/NC/Common) with a 2 A maximum load, and supports relay timing from 0–99 seconds — making it compatible with a wide range of electric strikes, magnetic locks, and existing Wiegand-based security panels.
Q: Does it support two-door access control?
A: Yes. Two units can be interlinked to manage and control access for two separate doors simultaneously, making it ideal for apartments, offices, or multi-entry buildings.
