Asia-Teco Tuya WiFi Smart Exit Switch – Intelligent Access Control

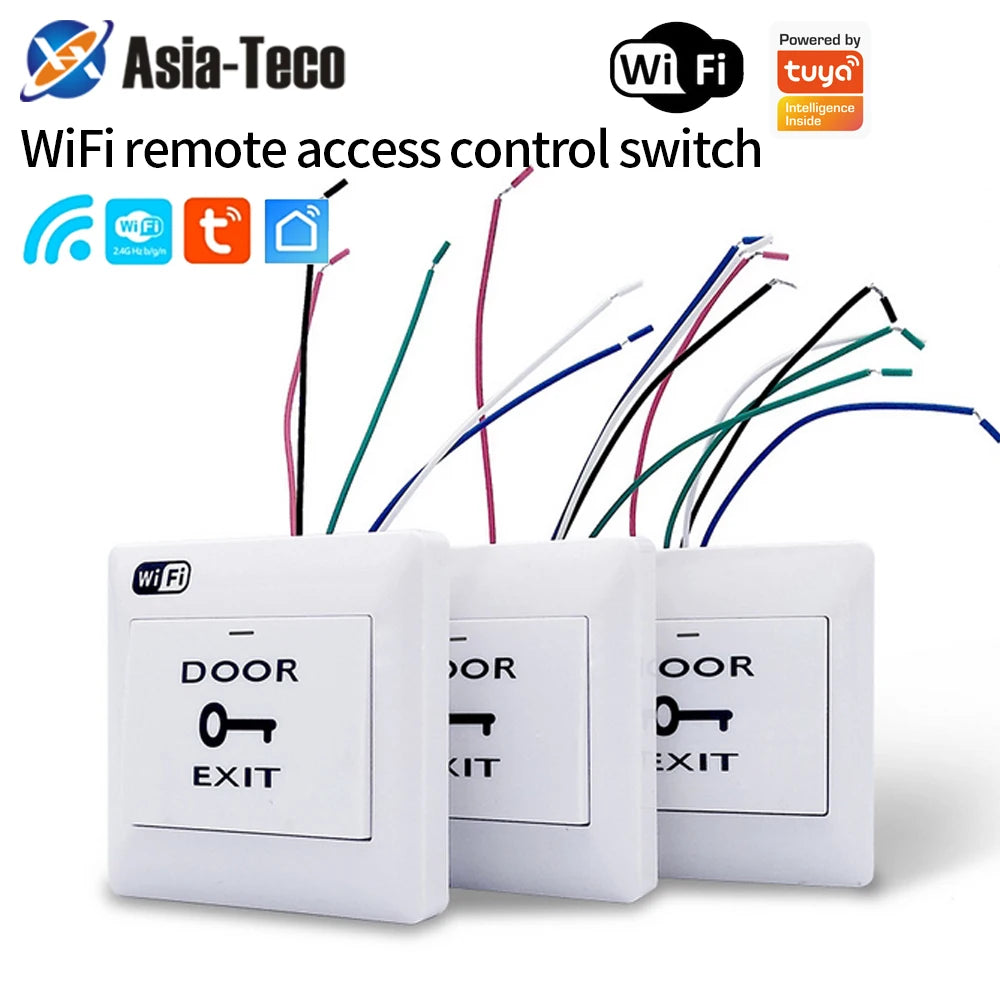

Take full command of your door access system from anywhere with the Asia-Teco PM7 Smart Exit Switch. This surface-mounted, Type 86 access control switch connects seamlessly to the Tuya / Smart Life app, giving you real-time remote control via your smartphone — plus RF433 wireless operation for added flexibility. Built for homes, offices, and commercial spaces that demand smart, reliable entry management. Made in China.
Key Features
- Tuya & Smart Life App Compatible – Control your access point from any location with a network signal. Switch status syncs to your phone in real time.
- RF433 Wireless Remote Control – Operate the switch wirelessly within up to 100 metres (indoor) without needing your phone.

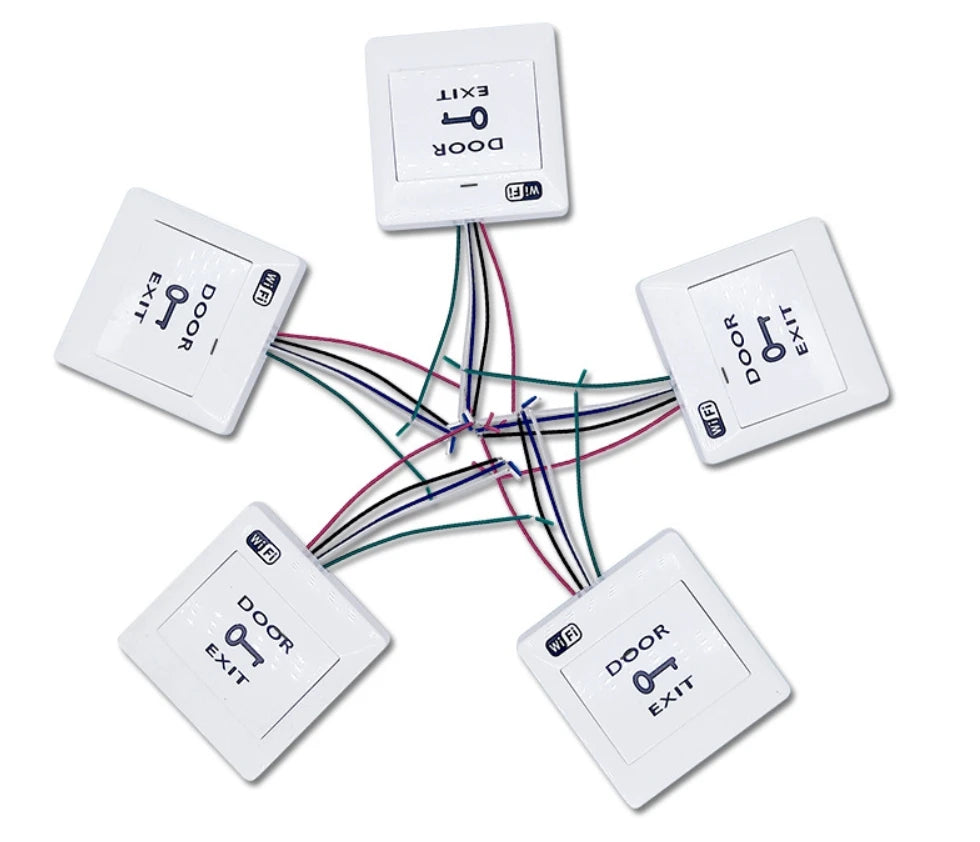

- Smart Cloud Sharing – One primary account can manage multiple shared users. Control multiple devices from one phone, or let multiple phones control one device — perfect for households and small teams.
- Fail-Safe Security Mode – Operates on a fail-safe signal-based security mode for reliable, consistent access management.
- Durable Construction – Fire-resistant mixed resin housing rated for 100,000 actuation cycles and a working temperature range of −10 °C to 55 °C (14–131 °F).
- Compact Type 86 Form Factor – Standard 86 × 86 × 22 mm surface-mount design fits most standard wall boxes and enclosures.
Specifications
| Brand | Asia-Teco |
| Model | PM7 Exit Button / Type 86 Smart Access Control Switch |
| Smart Platform | Tuya / Smart Life |
| Power Supply (Switch) | DC 12V (required for remote control function) |
| Wireless Remote Voltage | DC 3V (CR2032 battery) |
| Working Frequency | 433.92 MHz |
| Transmitting Power | <10 mW |
| Remote Control Range | Up to 100 m (indoor) |

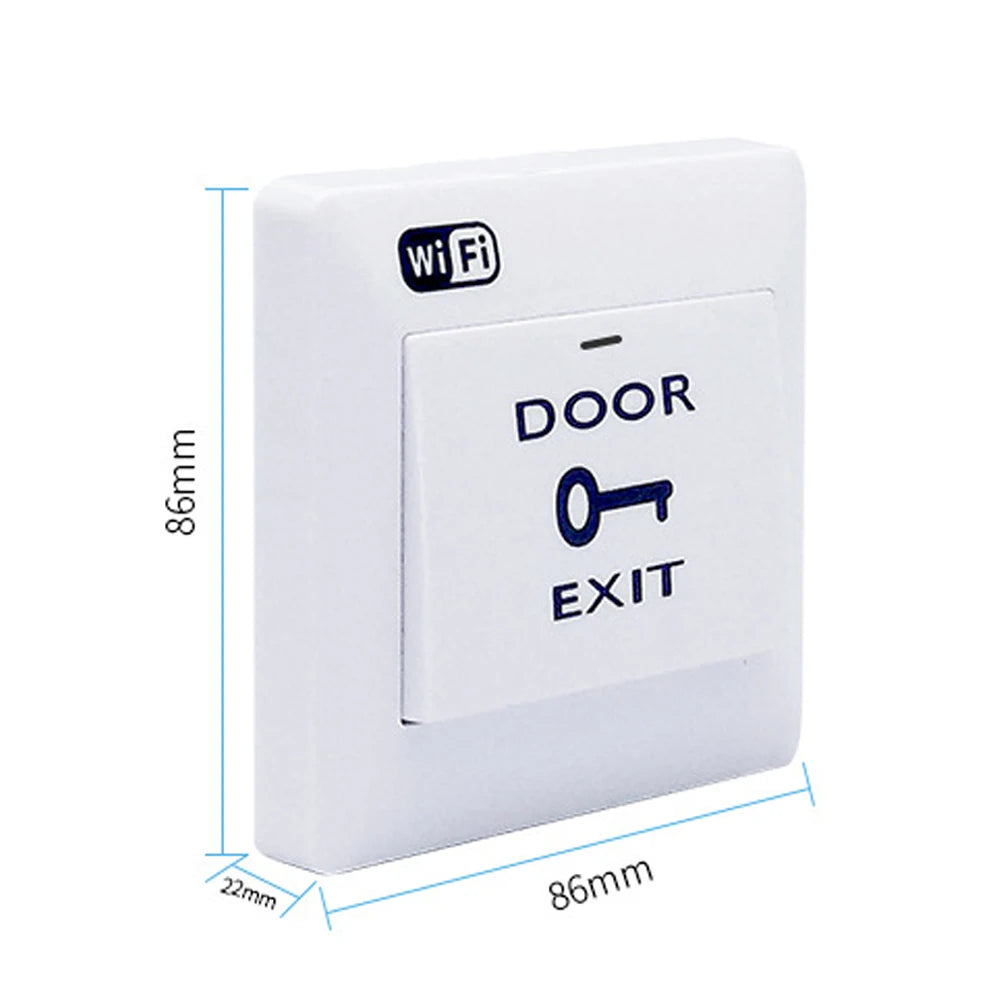

| Switch Dimensions | 86 × 86 × 22 mm |
| Remote Dimensions | 86 × 86 × 15.5 mm |
| Working Temperature | −10 °C to 55 °C (switch) / −10 °C to 70 °C (remote) |
| Security Mode | Fail Safe with Signal |
| Wiring | 4-Wire |
| Product Life | 100,000 cycle rated |
| Country of Origin | Made in China |
Important Installation Notes
- A DC 12V regulated power supply must be provided to the switch to enable smartphone remote control functionality.
- The switch must be installed in an environment with active WiFi coverage.
- Avoid installation near high-voltage sources or environments with strong magnetic interference.
Learn More About Smart Home Security
For guidance on building a safer, smarter home, visit the U.S. Consumer Product Safety Commission – Home Safety Resource Center.
Frequently Asked Questions
Q: Does the Asia-Teco PM7 WiFi exit switch require a hub or gateway?
A: No dedicated hub is required. The switch connects directly to your home or office WiFi network (2.4 GHz) and is managed through the free Tuya or Smart Life app on your smartphone. Simply pair the device within the app for instant remote access.
Q: Can multiple users control the same switch?
A: Yes. The smart cloud sharing feature allows the primary account holder to add and manage shared users. Multiple smartphones can control a single switch, and a single smartphone can manage multiple switches — ideal for families, shared offices, or property managers.
Q: What wiring configuration does this exit switch use?
A: The PM7 uses a standard 4-wire connection and requires a DC 12V regulated power supply to function correctly, especially for enabling remote smartphone control. Always follow the included wiring diagram and avoid high-voltage environments during installation.
Q: What is the RF433 remote's operating range?
A: The included RF433 wireless remote operates at 433.92 MHz with a transmitting power of less than 10 mW, providing a wireless control range of up to 100 metres indoors, making it convenient for larger spaces or multi-room setups.
