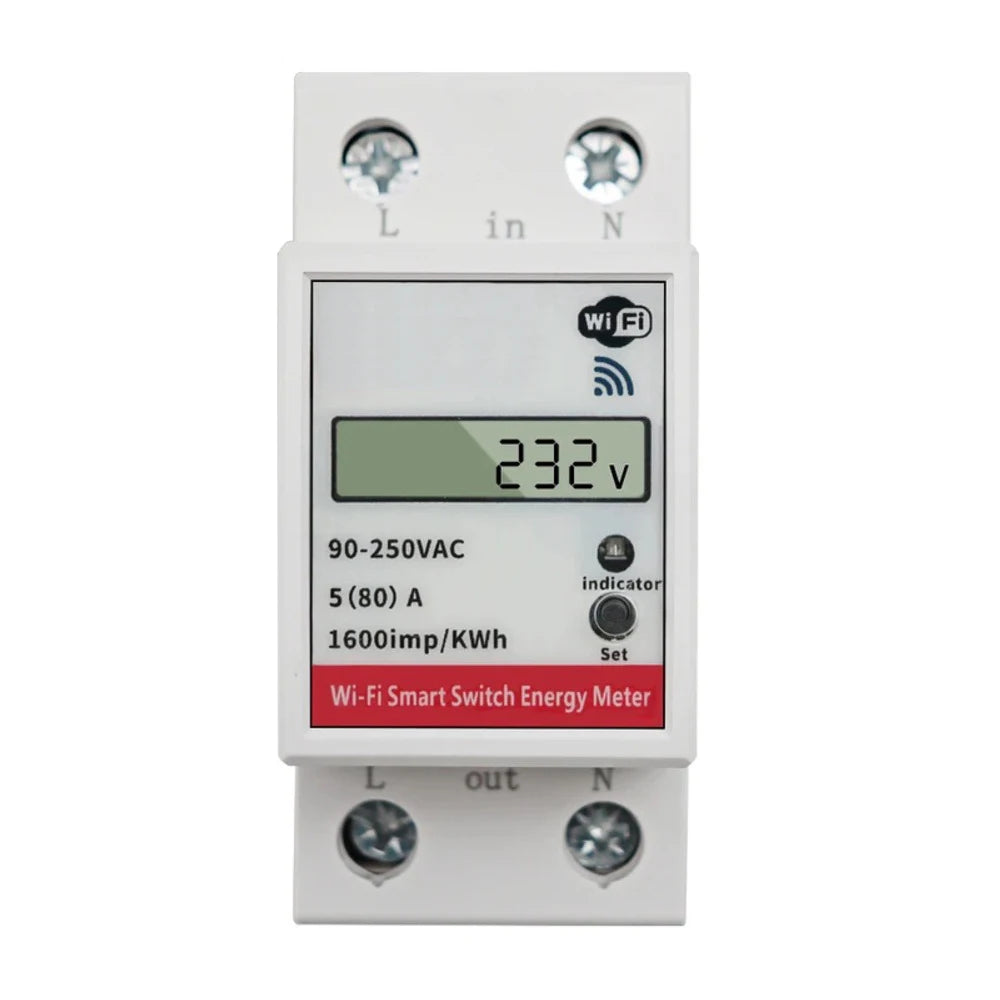

Tuya WiFi Smart Power Energy Meter — Monitor, Measure & Control from Anywhere
Take full command of your home or business electricity usage with this Tuya WiFi Smart Energy Meter. Designed for standard 35mm DIN rail installation, this compact device tracks real-time voltage, current, and kWh consumption — all visible on a clear LCD display and accessible from your smartphone via the Tuya app. It works seamlessly with Amazon Alexa and Google Home for hands-free voice control.
Key Features
- Real-Time Monitoring: Instantly view live power consumption, voltage (V), and current (mA) directly on the built-in LCD digital display.
- kWh Energy Tracking: Log total and monthly power consumption with annual historical data — perfect for managing electricity bills.
- WiFi Remote Control: Turn circuits ON/OFF from anywhere using the free Tuya Smart App on iOS or Android.
- Voice Control Ready: Fully compatible with Amazon Alexa and Google Home for effortless smart home integration.
- 30 Timer Schedules: Set up to 30 custom scheduling/timer programs to automate when power is on or off.
- Pulse & Break Indicators: Built-in indicator LEDs — flashing for active pulse, constant for a detected break — so you always know your circuit status at a glance.
- Wide Voltage Range: Supports 90–250VAC at 50/60Hz, making it suitable for a broad range of single-phase electrical systems.
- DIN Rail Mount: Clips securely onto a standard 35mm DIN rail for clean, professional panel installation.
Technical Specifications
| Rated Voltage | 90–250VAC, 50/60Hz |
| Phase | Single Phase |
| Rated Current | 5(80)A |
| Maximum Current | 80A |
| Max Operating Current | 60A |
| Pulse Frequency | 1600 imp/kWh |
| Accuracy Class | Class 1 |
| Display | LCD Digital |
| Mounting | 35mm DIN Rail |
| Dimensions | 80 × 62 × 37 mm |
| Measurements | Current, Voltage, kWh, Power |
| Country of Origin | Made in China |
What's in the Box
- 1× Tuya WiFi Smart Energy Meter
Installation Note
This device is intended for installation by a qualified electrician. Always follow local electrical codes and safety standards when working with mains voltage. For guidance on electrical safety in the home, visit the U.S. Consumer Product Safety Commission – Electrical Safety.
Frequently Asked Questions
Q: Does the Tuya WiFi Smart Energy Meter work with Amazon Alexa and Google Home?
A: Yes! This smart energy meter is fully compatible with both Amazon Alexa and Google Home, allowing you to control your connected circuit using simple voice commands alongside the Tuya Smart app.
Q: What voltage range does this energy meter support?
A: The meter supports a wide voltage range of 90–250VAC at 50/60Hz, making it compatible with most standard single-phase residential and commercial electrical systems worldwide.
Q: Can I monitor historical electricity usage with this device?
A: Absolutely. The meter records monthly power consumption and retains annual historical data, which you can review at any time through the Tuya app to understand and manage your electricity costs.
Q: How many timer schedules can I set?
A: You can configure up to 30 different timer/scheduling programs directly through the Tuya app, giving you precise automated control over when power is active on your circuit.
Q: Is professional installation required?
A: Because this device connects directly to mains wiring, installation by a licensed electrician is strongly recommended to ensure safe and code-compliant setup.
