Tuya WiFi Smart Door Exit Button – Wireless Release Push Switch for Electronic Door Locks

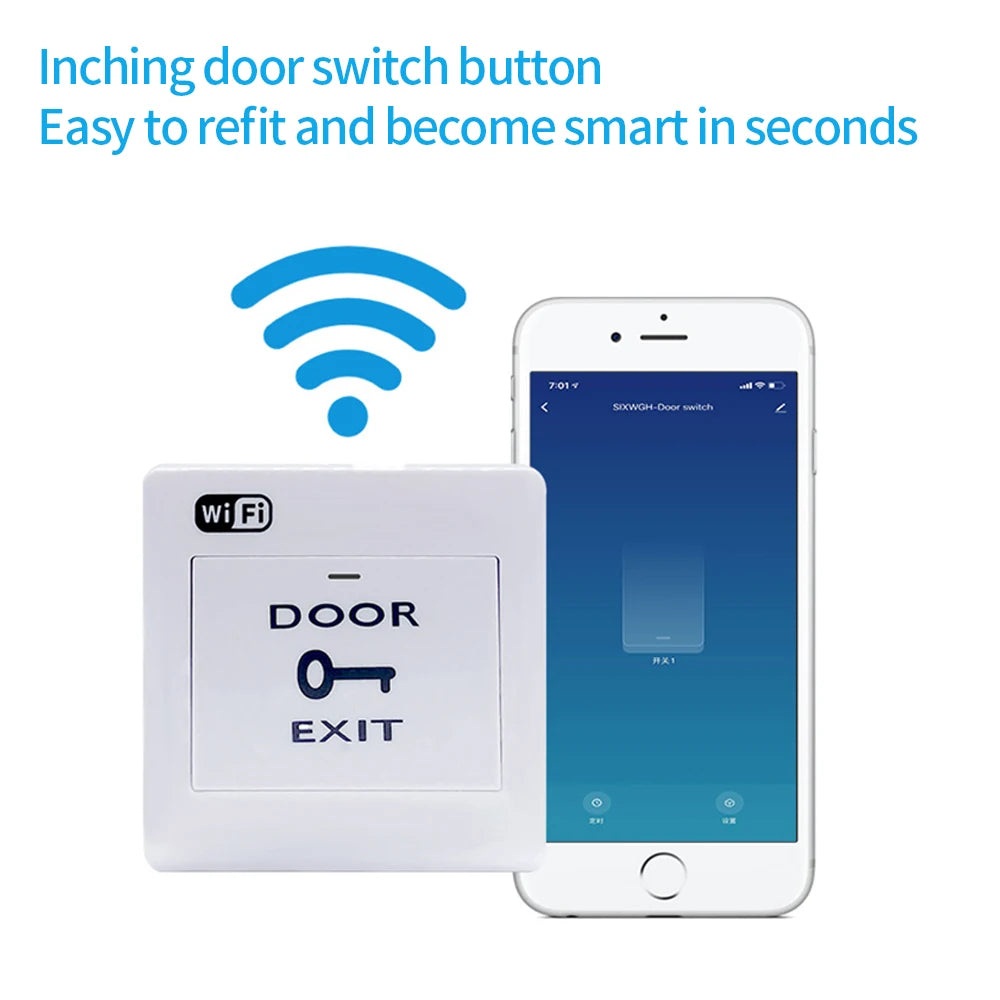

Upgrade your home or office access control with the Asia-Teco Type 86 Smart WiFi Door Exit Button. Powered by the Tuya Smart platform, this sleek wireless push switch lets you remotely unlock electronic door locks from anywhere using your smartphone, voice commands, or an RF433 remote — all from a compact, wall-mounted Type 86 panel.
Key Features
- Remote App Control: Open your door from anywhere via the Tuya Smart app. Switch status is synchronized to your phone in real time, so you always know the current state of your door.
- Voice Control Compatible: Supports Amazon Alexa and Google Assistant voice commands. (Contact customer service with your device ID to activate third-party voice services.)
- RF433 Wireless Remote: Operates at 433.92 MHz with a transmission range of up to 100 meters indoors — no wiring needed for the remote itself.
- Smart Cloud Sharing: The primary account holder can manage multiple shared users. Control multiple devices from one phone, or let multiple users control a single device — perfect for families, offices, or rental properties.
- Fail Safe Security Mode: Built-in "Fail Safe with Signal" mode ensures your door defaults to a safe state in the event of a power interruption.
- Long Product Life: Rated for 100,000 actuations through rigorous aging tests, delivering years of dependable performance.
- Durable Fire-Resistant Housing: Constructed from fire-resistant resin in a standard 86×86 mm form factor, fitting most standard wall boxes seamlessly.
Specifications
- Model: PM7 / Type 86 Smart Access Control Switch
- Smart Platform: Tuya / Tuya Smart App
- Power Supply: DC 12V (required for remote/app control functionality)
- Working Voltage: DC 3V
- Battery: CR2032
- Working Frequency: 433.92 MHz
- Transmitting Power: <10 mW
- Remote Control Range: Up to 100 meters (indoor)
- Operating Temperature: -10°C to 55°C (14°F – 131°F)
- Dimensions: 86 × 86 × 15.5 mm
- Security Mode: Fail Safe with Signal
- Material: Fire-resistant mixed resin
Important Installation Notes
- A DC 12V regulated power supply must be connected to the switch to enable smartphone remote control functionality.
- The switch must be installed in an environment with active WiFi coverage.
- Avoid installation near high-voltage power sources or strong magnetic fields to ensure stable operation.
Made in Mainland China.
For guidance on smart home access control standards and best practices, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does the Tuya WiFi Smart Door Exit Button work with Alexa and Google Assistant?
A: Yes, the switch supports Amazon Alexa and Google Assistant voice control. To activate these third-party voice services, contact customer support and provide your device ID number, which can be found in the Tuya Smart App under device information.
Q: Does this smart exit button require a power supply to function remotely?
A: Yes. To use the smartphone remote control and WiFi features, the switch must be connected to a DC 12V regulated power supply. The RF433 wireless remote operates independently on a CR2032 battery within a range of up to 100 meters indoors.
Q: Can multiple users control the same door lock with this switch?
A: Absolutely. The Tuya Smart platform supports cloud sharing, allowing the primary account holder to add and manage shared users. Multiple smartphones can control a single device, making it ideal for households, offices, or shared spaces.
Q: What type of wall box does this switch fit?
A: This switch uses the standard Type 86 form factor (86 × 86 × 15.5 mm), which is compatible with most standard wall-mounted electrical boxes used in access control and smart home installations.
