Asia-Teco Tuya WiFi Smart Door Access Control System — Standalone RFID Keypad
Take full command of who enters your space with the Asia-Teco T1203EM-W-WIFI Smart Access Control Kit. This standalone door controller pairs a backlit touch keypad with an EM proximity card reader and 2.4 GHz Wi-Fi connectivity, letting you manage up to 1,000 users from anywhere via the free Tuya Smart App. Whether you're securing a residential gate, office entrance, or community building, this system delivers professional-grade access management in a compact, IP67-rated waterproof housing built to handle the elements.
Why Choose This Access Control System?

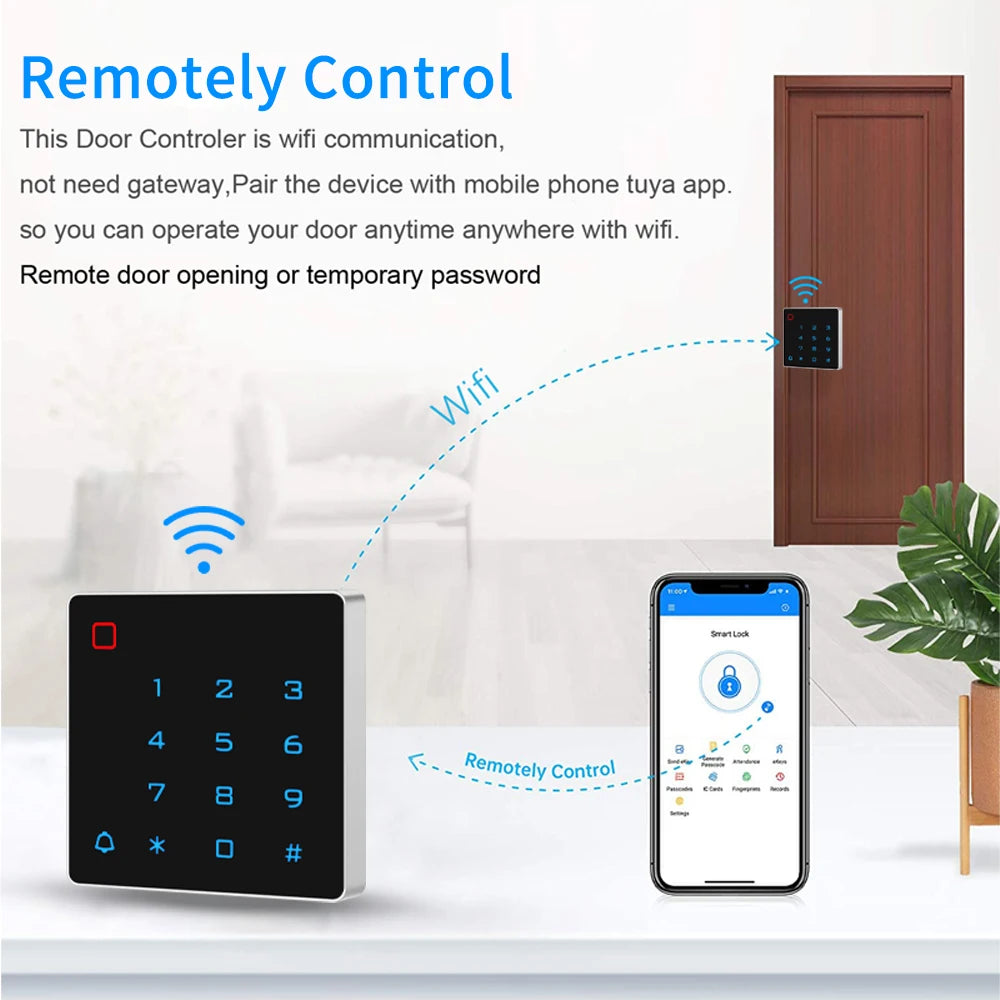

- Tuya App Remote Control: Add, delete, and manage users remotely over 2.4 GHz Wi-Fi — no need to be on-site.

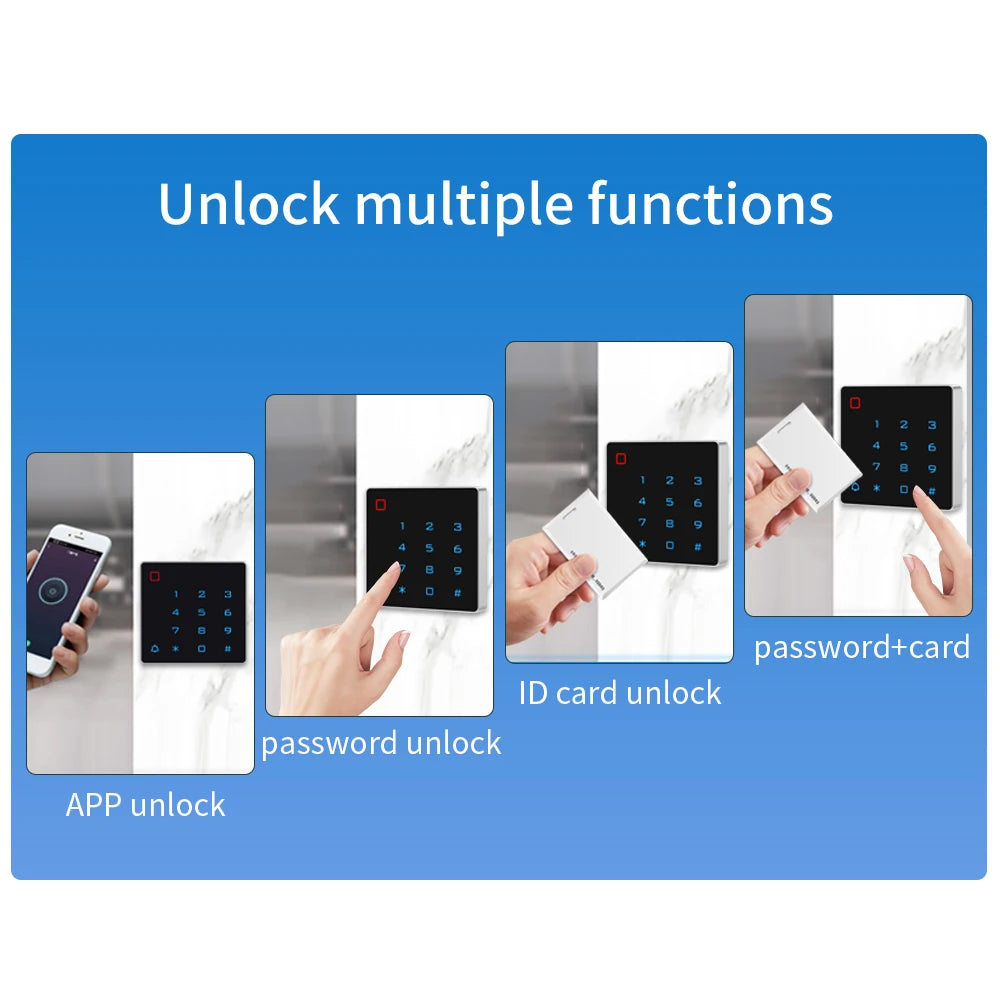

- 3-in-1 Entry Options: Unlock via RFID card, PIN code, or card + PIN combination for layered security.
- 1,000-User Capacity: Store up to 1,000 unique RFID cards and 1,000 individual PIN codes — ideal for multi-tenant buildings.
- Ultra-Low Power Standby: Standby current under 30 mA keeps operating costs minimal.
- Instant Card Recognition: Card search time under 0.1 seconds for smooth, queue-free entry.
- Backlit Touch Keypad: Illuminated keys make night-time operation effortless.

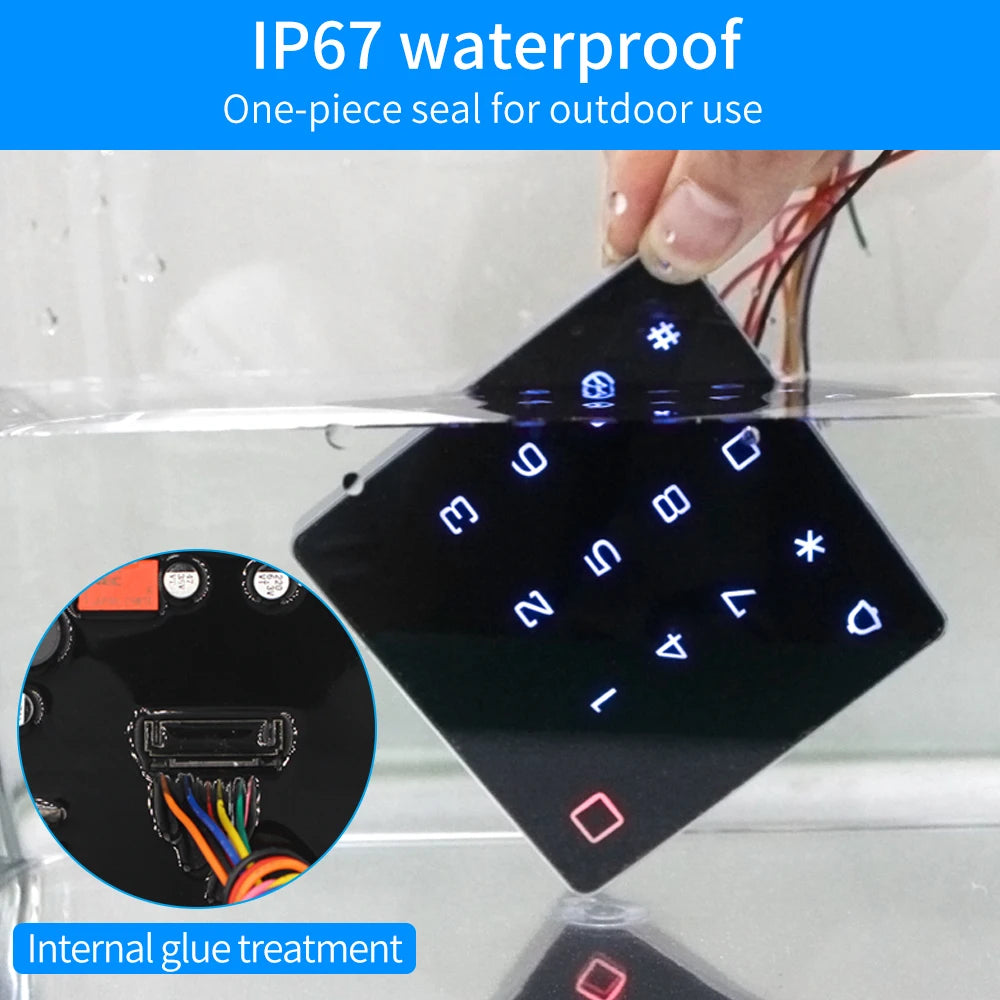

- IP67 Waterproof: Fully protected against dust and water submersion — ready for outdoor installation in all weather conditions.
- Wiegand WG26 Interface: WG26 input/output for easy integration with third-party access panels and controllers.
- Doorbell Interface: Supports connection of an external wired doorbell for visitor alerts.
- Fail-Safe Security Mode: Operates on a Fail Safe with Signal configuration for maximum reliability.
- Adjustable Door Open Time: Set lock release duration from 0–99 seconds to suit your door and locking hardware.
- Lost Card Management: Delete any lost or stolen card by entering the card number directly on the keypad — no card required.
- Short-Circuit Protection: Built-in protection (≤100 μs) safeguards your system and connected lock hardware.
- Wide Temperature Range: Operates reliably from −45 °C to 60 °C, suitable for extreme climates.
Technical Specifications
| Model | T1203EM-W-WIFI |
| Smart Platform | Tuya Smart App (iOS & Android) |
| Wi-Fi | 2.4 GHz |
| Card Type | EM (125 kHz) |
| Reading Range | 3–6 cm (max 10 cm) |
| User Capacity | 1,000 cards / 1,000 PIN codes |
| Working Voltage | DC 12V ± 10% |
| Working Current | <100 mA |
| Standby Current | <30 mA |
| Electric Lock Output | ≤3 A |
| Wiegand Interface | WG26 input/output |
| Security Mode | Fail Safe with Signal |
| Waterproof Rating | IP67 |
| Operating Temperature | −45 °C to 60 °C |
| Humidity | 10%–90% |
| Door Open Time | 0–99 seconds (adjustable) |
| Dimensions | 117 × 71 × 22 mm |
| Weight | 0.35 kg |
| Country of Origin | Made in China |
Ideal Use Cases
This smart access controller is well-suited for residential buildings, apartment complexes, office entrances, gated communities, warehouses, schools, and retail back-of-house doors — any location requiring controlled, auditable entry with the convenience of remote management.
For general guidance on electronic security systems and best practices, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer safety information related to electronic devices.
Frequently Asked Questions
Q: Does this Tuya WiFi access control keypad work with the Tuya Smart or SmartLife app?
A: Yes — the Asia-Teco T1203EM-W-WIFI is fully compatible with the Tuya Smart and SmartLife apps on both iOS and Android. You can add and remove users, monitor access events, and control the door lock remotely over a 2.4 GHz Wi-Fi connection.
Q: What type of RFID cards does this access controller support?
A: This standalone keypad reader supports EM-type proximity cards at 125 kHz. Standard EM4100 format cards and key fobs are compatible. It does not support Mifare (13.56 MHz) cards.
Q: Is this keypad suitable for outdoor installation in rain or extreme temperatures?
A: Absolutely. The unit carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary water submersion. It is also rated for temperatures from −45 °C to 60 °C, making it dependable in both very cold and very hot climates.
Q: Can I integrate this keypad with an existing access control panel using Wiegand?
A: Yes. The device includes a WG26 (Wiegand 26-bit) input and output interface, enabling straightforward integration with compatible third-party access control panels, door controllers, and security systems.
Q: How do I remove a lost or stolen RFID card from the system?
A: You can delete any registered card by entering the card number directly on the keypad — the lost or stolen card does not need to be physically present. This keeps your access list current and your premises secure at all times.
