Tuya WiFi Smart Access Control IP67 RFID Card Reader H18/HF18
Tuya WiFi Smart Access Control IP67 RFID Card Reader H18/HF18
Tuya WiFi Smart Access Control System — IP67 Waterproof RFID Reader
Take command of who enters your space with the Asia-Teco H18/HF18 Smart Access Control All-in-One Machine. Compatible with the Tuya Smart App, this sleek, rugged unit lets you manage door access remotely via WiFi, swipe an RFID card, or — on the fingerprint-enabled HF18 model — use your fingerprint for seamless, keyless entry. Built to an IP67 waterproof rating, it thrives outdoors in rain, dust, and temperatures from -40°C to +60°C, making it equally at home on a front gate, office door, or warehouse entrance.
Made in Mainland China.

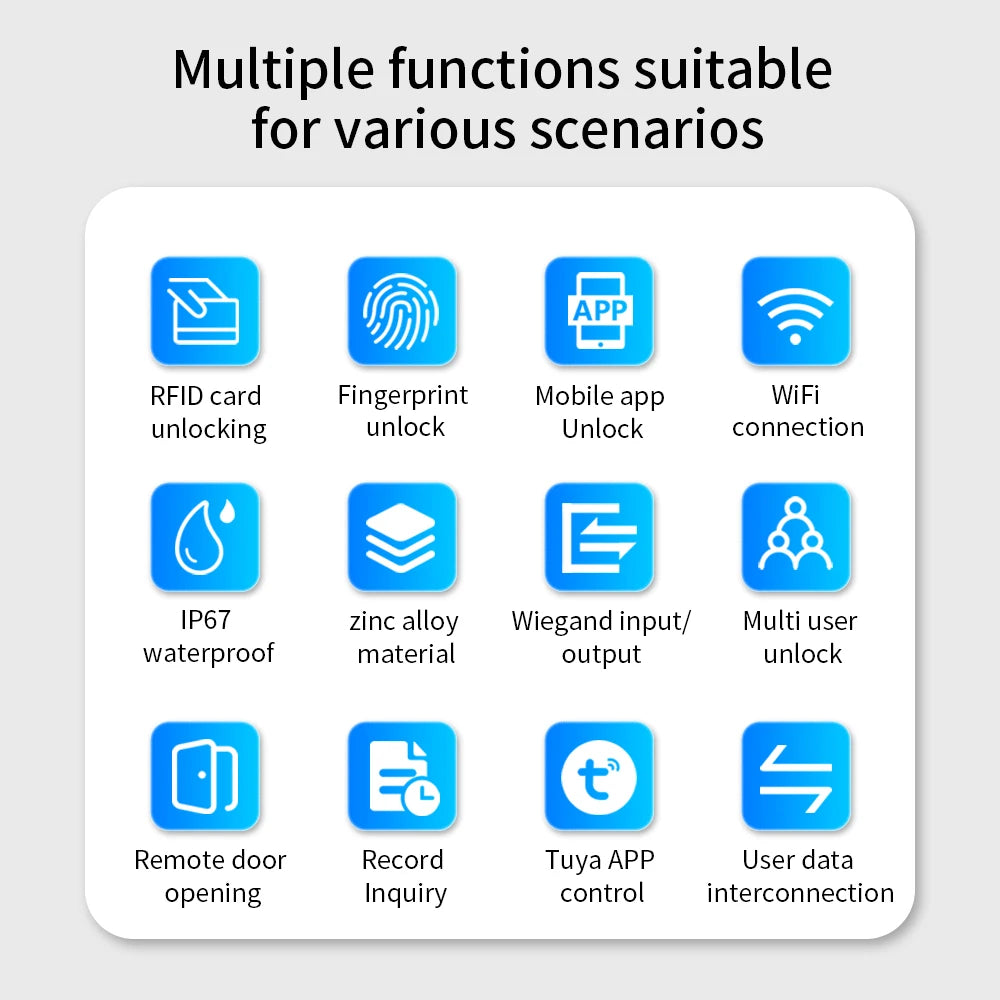

Key Features
- Tuya App Integration: Open, monitor, and manage your door from anywhere using the Tuya Smart App on iOS or Android.
- Dual RFID Frequency Options: Choose either 125 KHz (EM card) or 13.56 MHz (Mifare card) — note: this is a single-frequency unit, not dual-band.

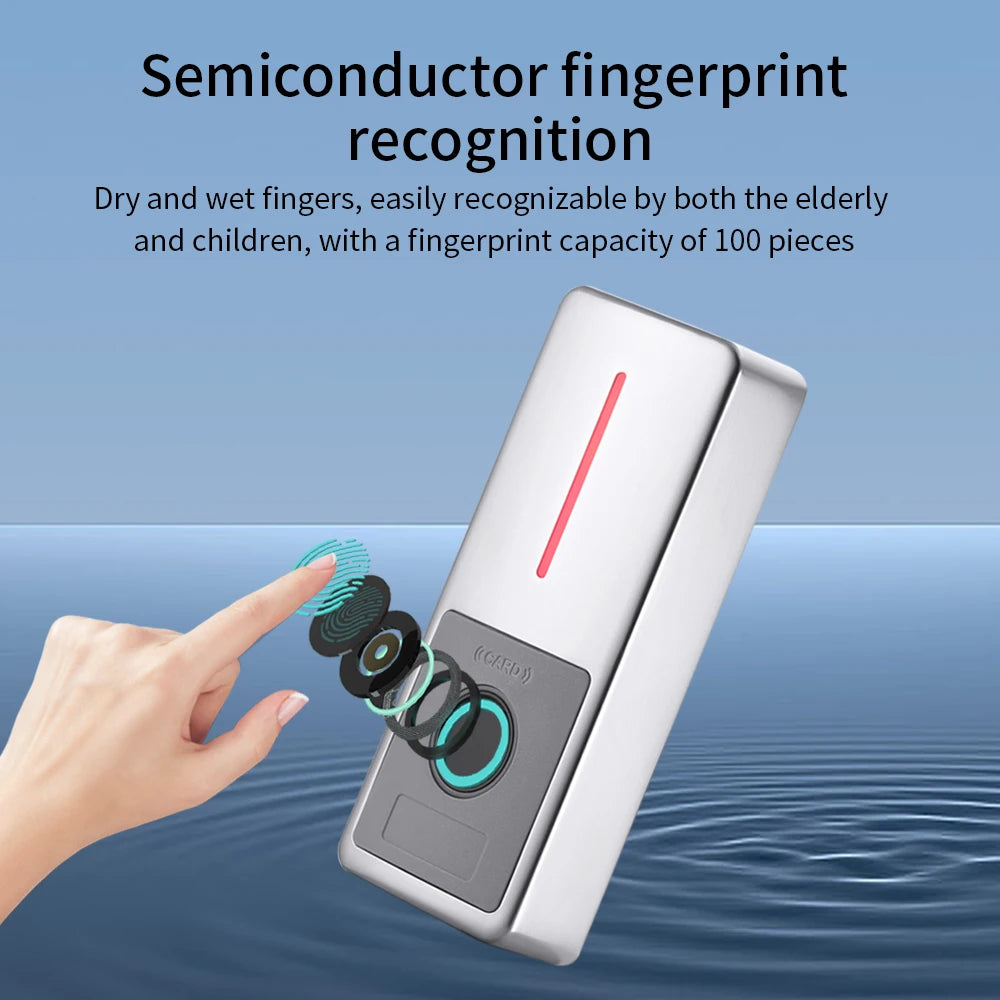

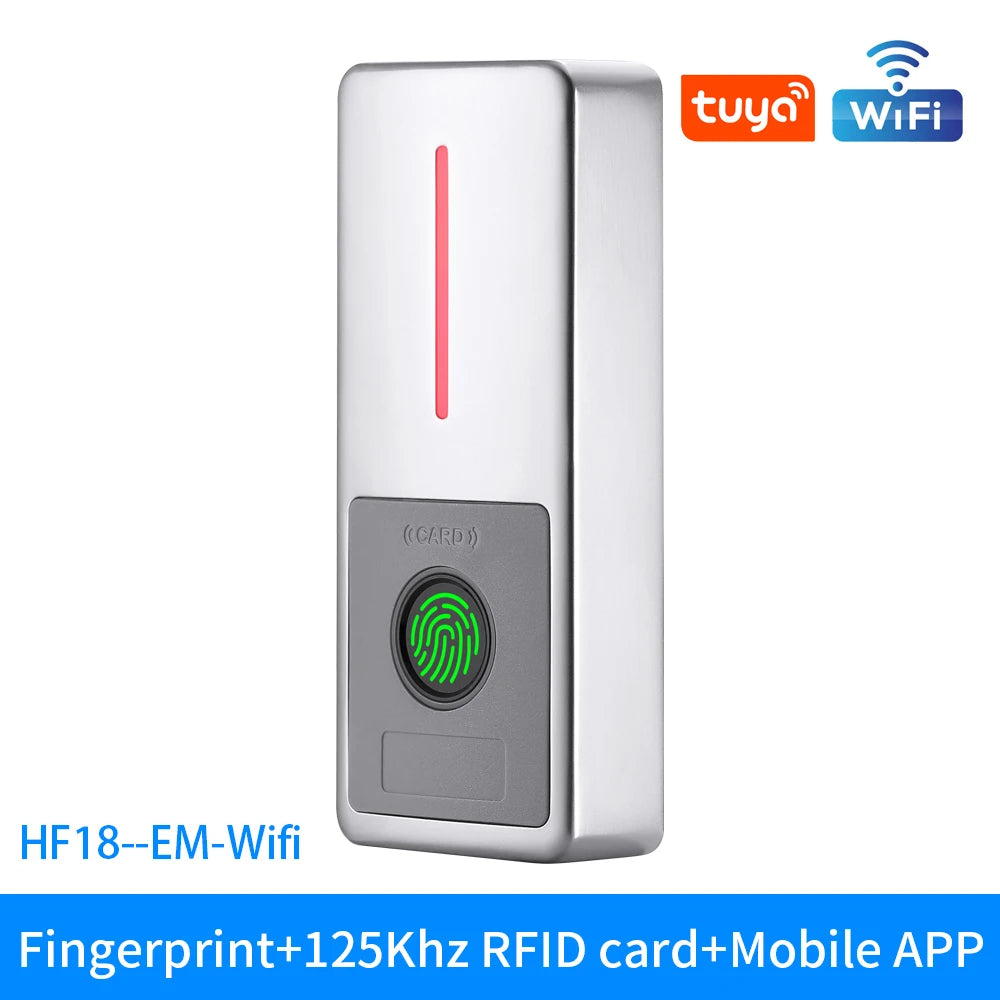

- Three Access Methods: RFID card swipe, mobile app remote unlock, and optional fingerprint recognition (fingerprint function available on HF18 model only, capacity: 100 fingerprints).
- Large User Capacity: Supports up to 10,000 users, ideal for commercial and multi-resident applications.
- IP67 Waterproof & Weatherproof: Fully sealed against dust ingress and submersion — built to perform in challenging outdoor environments.
- Wide Operating Range: Functions in humidity from 10%–99% and temperatures from -40°C to +60°C.
- Up to 60mm Reading Range: Convenient tap-and-go card reading without pressing the reader directly.
- Certified & Safe: CE and FCC certified for quality and electromagnetic compliance.
- Flexible Power Input: Operates on DC 10–24V, compatible with most access control power supplies.
- Low Power Consumption: Standby current of just 50mA; working current 120mA.
Technical Specifications
| Brand | Asia-Teco |
| Model | H18 / HF18 |
| Card Frequency | 125 KHz or 13.56 MHz (single frequency per unit) |
| Card Type | EM (125 KHz) or Mifare (13.56 MHz) |
| Fingerprint Capacity | 100 (HF18 only) |
| User Capacity | 10,000 |
| Reading Range | 60 mm |
| Working Voltage | DC 10–24V |
| Standby Current | 50 mA |
| Working Current | 120 mA |
| Working Temperature | -40°C to +60°C |
| Working Humidity | 10%–99% |
| Waterproof Rating | IP67 |
| Connectivity | WiFi (Tuya Smart Platform) |
| Certification | CE, FCC |
| Origin | Made in Mainland China |
Who Is This For?
Whether you're securing a home, office, rental property, or industrial facility, the Asia-Teco smart access controller gives you professional-grade access management in a compact, weather-resistant unit. The Tuya ecosystem also lets it integrate with thousands of other smart home and security devices.
For general guidance on electronic security systems and smart home device safety standards, refer to the U.S. Consumer Product Safety Commission (CPSC).
⚠️ Important Note
This product is available in either 125 KHz or 13.56 MHz — please select the correct frequency for your existing cards. It is NOT a dual-band (125 KHz + 13.56 MHz) device. Fingerprint functionality is exclusively available on the HF18 model.
Frequently Asked Questions
Q: What is the difference between the H18 and HF18 models?
A: The H18 supports RFID card access and Tuya WiFi remote unlocking only. The HF18 adds a built-in fingerprint reader with a capacity of up to 100 fingerprints, giving you a third method of keyless entry in addition to card swipe and mobile app control.
Q: Is this access control reader compatible with both 125 KHz and 13.56 MHz cards at the same time?
A: No — the Asia-Teco H18/HF18 is a single-frequency unit. You must choose either the 125 KHz version (for EM cards) or the 13.56 MHz version (for Mifare cards) when ordering. It does not support both frequencies simultaneously.
Q: Can I control the door lock remotely when I'm away from home?
A: Yes. Thanks to built-in WiFi and Tuya Smart App integration, you can lock or unlock your door from anywhere with an internet connection. You can also grant or revoke access for individual users directly through the app.
Q: Is the Asia-Teco access controller suitable for outdoor installation?
A: Absolutely. With an IP67 waterproof rating and an operating temperature range of -40°C to +60°C, this unit is designed to handle harsh outdoor environments including rain, dust, and extreme temperatures. CE and FCC certifications confirm its compliance with international standards.
Q: What power supply does this unit require?
A: The device operates on DC 10–24V, making it compatible with standard access control power supplies. It draws only 50 mA on standby and 120 mA during active use, so it is energy efficient even in 24/7 installations.
