Tuya WiFi Recessed Keypad Access Controller – Fingerprint & RFID
Tuya WiFi Recessed Keypad Access Controller – Fingerprint & RFID
Asia-Teco Tuya WiFi Recessed Keypad Access Control System

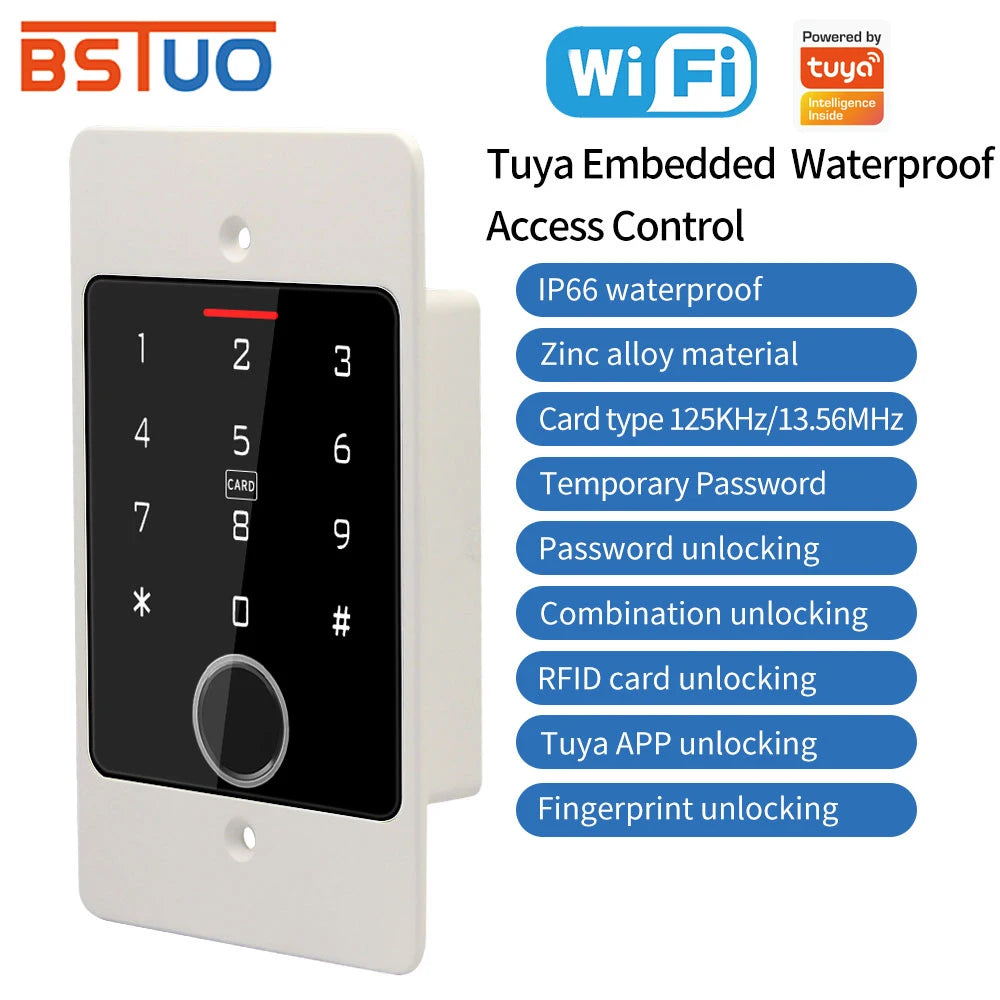

Upgrade your entry security with the Asia-Teco HF5 WiFi Standalone Access Controller — a next-generation, wall-recessed keypad that combines fingerprint recognition, RFID card reading, and PIN code entry in one sleek, tamper-resistant unit. Manage everything remotely through the Tuya Smart App on your smartphone, from anywhere in the world.
Made in Mainland China.
Why Choose This Access Controller?

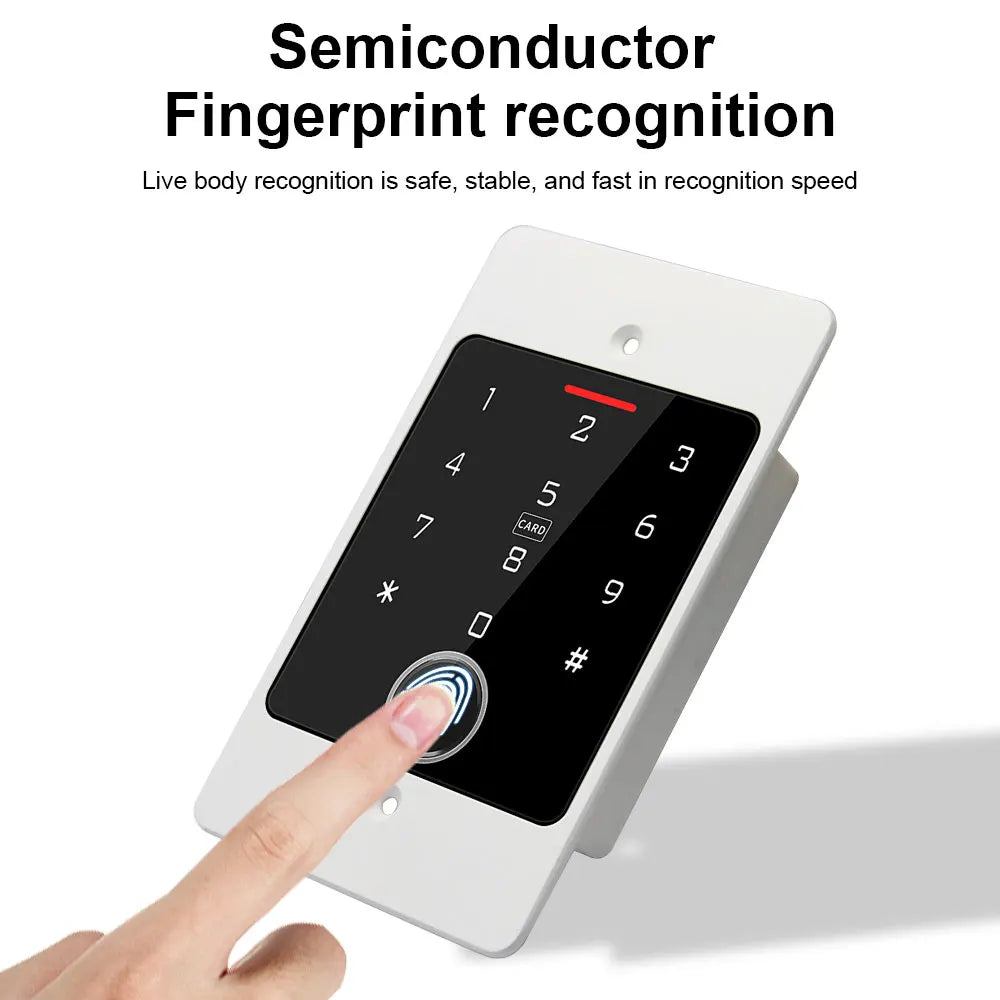

- Multiple Entry Modes: Fingerprint, RFID card (125KHz EM or 13.56MHz Mi-fare), PIN code, temporary visitor codes, and multi-user combined unlock — all in one device.
- Large User Capacity: Supports up to 100 fingerprint users and 10,000 card/PIN users — ideal for homes, offices, and commercial premises.
- Tuya Smart App Integration: Unlock doors remotely, check door status in real time, set temporary PIN codes for guests, and manage all users directly from your phone.

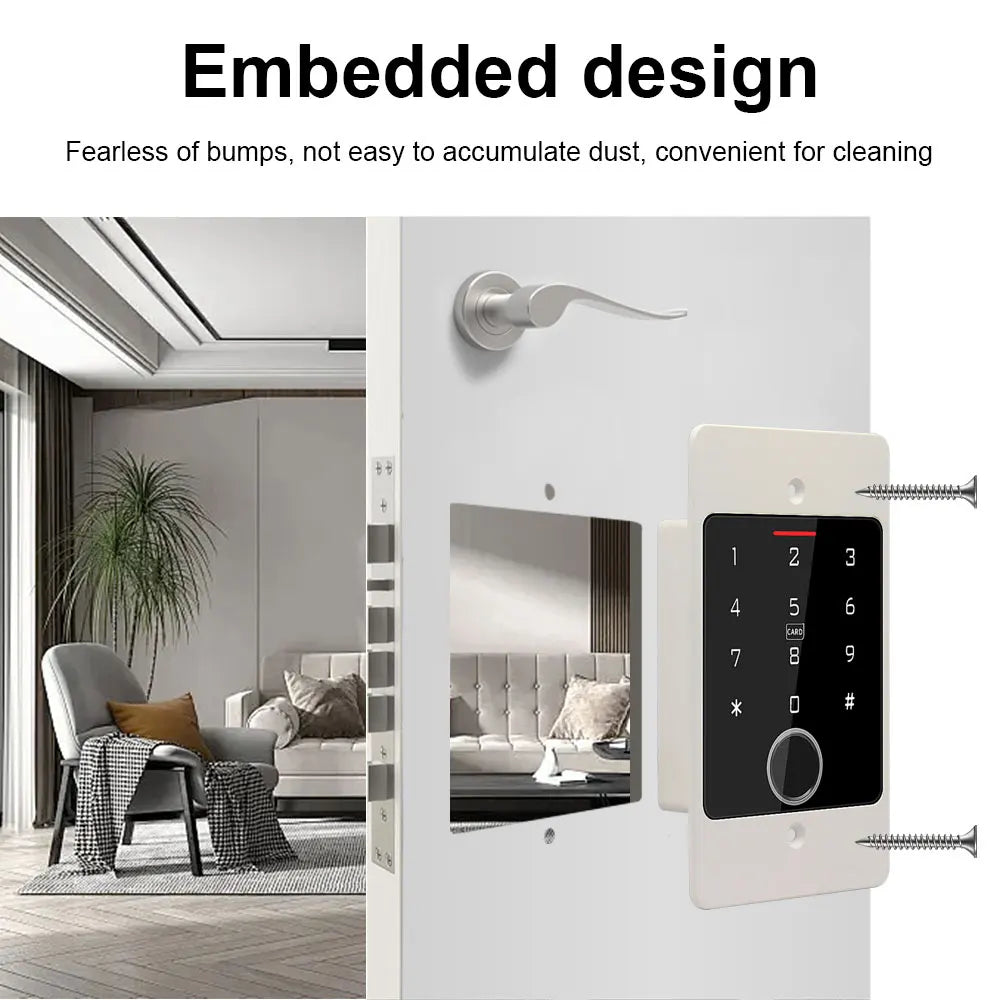

- Recessed / Flush-Mount Design: Embedded, wall-concealed installation gives a clean, professional aesthetic that blends seamlessly with any wall finish.

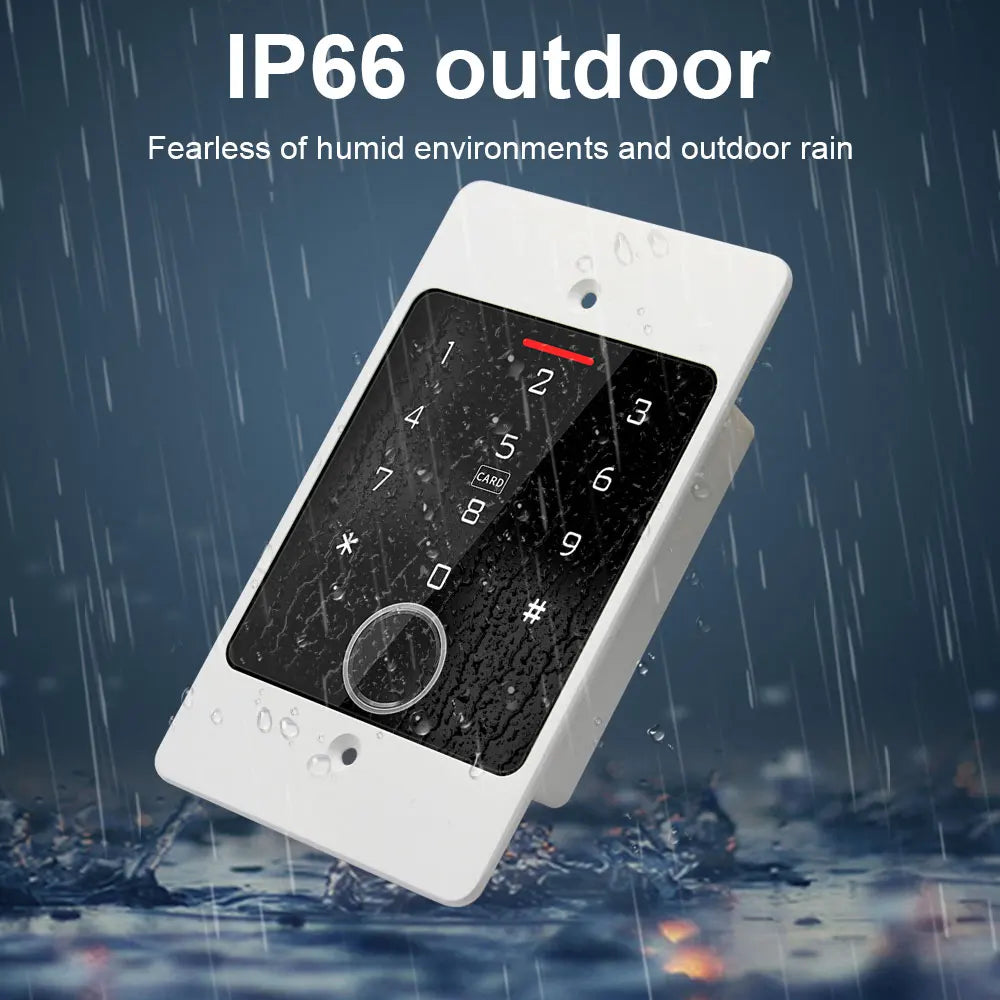

- IP66 Waterproof & Weatherproof: Built to handle outdoor environments — rated IP66 waterproof, operating from -20°C to +60°C (-4°F to 140°F).

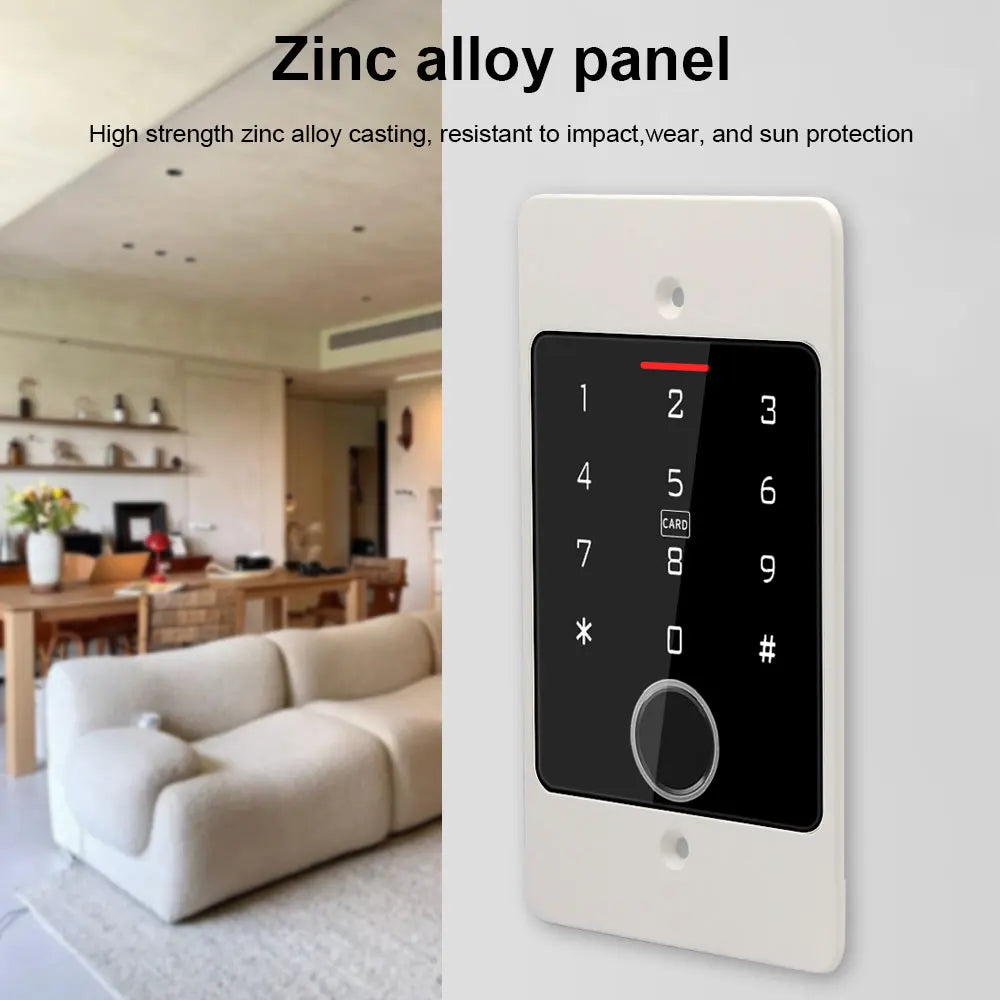

- Durable Zinc Alloy Housing: Anti-vandal and anti-explosion construction ensures long-term reliability in high-traffic or exposed locations.
- OTA Online Upgrades: Keep your device up to date with the latest features — firmware upgrades are delivered wirelessly through the app.
- Wiegand Input & Output: Supports Wiegand 26–44 bit, 56 bit, and 58 bit formats, plus 4-bit and 8-bit (ASCII) PIN Wiegand output with 10-digit virtual card number — fully compatible with most existing access control infrastructure.
- Anti-Tamper & Door Contact Detection: Built-in tamper alarm and door magnetic detection alert you if the unit is interfered with or the door is left open.
- CE Certified: Meets European safety and compliance standards.
Key Programmable Functions
- Administrator Password & Card Setup — assign dedicated admin credentials for full system control.
- Adjustable Door Opening Delay: Set door relay hold time from 1–99 seconds (factory default: 5 seconds).
- Pause Mode & Toggle Mode: Once activated, the door stays open until the next valid credential is entered — perfect for controlled access scenarios.
- Multi-User Combined Unlock: Require 2–9 users to authenticate simultaneously before the door opens — ideal for high-security areas.
- Door Magnetic Contact Detection: Enable or disable door-open alarm and external alert switch.
- Security Alarm Modes: Choose between standard mode, deadlock (lockout) mode, or alarm mode for layered security.
- Data Transmission: Upload and download card and PIN user data between compatible Asia-Teco devices.
- Sound & Light Settings: Toggle audible beeps and LED indicator light on or off to suit your environment.
Technical Specifications
| Model | HF5-EM-W-WIFI / HF5-MF-WIFI |
| Brand | Asia-Teco |
| Operating Voltage | DC 10–24V |
| Active Current | <120mA |
| Idle Current | <50mA |
| Card Frequency | 125KHz (EM) / 13.56MHz (Mi-fare) |
| Read Range | Up to 60mm |
| Fingerprint Capacity | 100 users |
| Card / PIN Capacity | 10,000 users |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 10%–99% |
| Waterproof Rating | IP66 |
| Smart Platform | Tuya |
| Certification | CE |
| Origin | Mainland China |
For general guidance on electronic security systems and consumer product safety, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does this WiFi access controller work without a hub or bridge device?
A: Yes — the Asia-Teco HF5 WiFi access controller connects directly to your 2.4GHz home or office WiFi network and pairs with the Tuya Smart App on iOS or Android. No additional hub or bridge is required for remote management and smartphone door control.
Q: Can I grant temporary access to visitors using this keypad?
A: Absolutely. Through the Tuya app, you can generate and share temporary PIN codes with guests, delivery personnel, or contractors. These codes can be set to expire automatically, giving you full control over who can enter and when.
Q: Is this access controller suitable for outdoor installation?
A: Yes. The unit carries an IP66 waterproof rating and is built from durable zinc alloy with anti-vandal construction, making it fully suitable for outdoor use across a wide temperature range of -20°C to +60°C.
Q: What access modes does this controller support?
A: The controller supports fingerprint, RFID card (125KHz EM or 13.56MHz Mi-fare), PIN code, temporary visitor codes, and multi-user combined unlock (requiring 2–9 authenticated users simultaneously). It can also be configured as a standalone card reader with Wiegand output.
