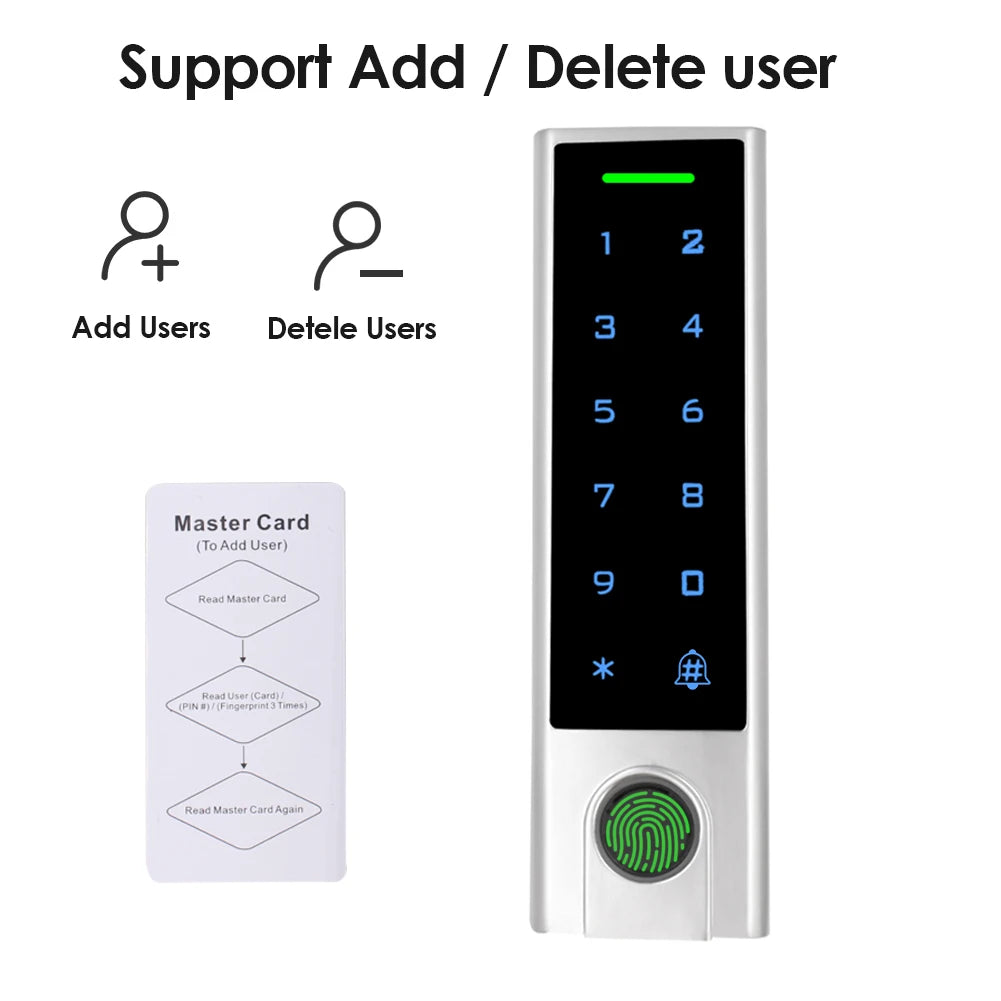

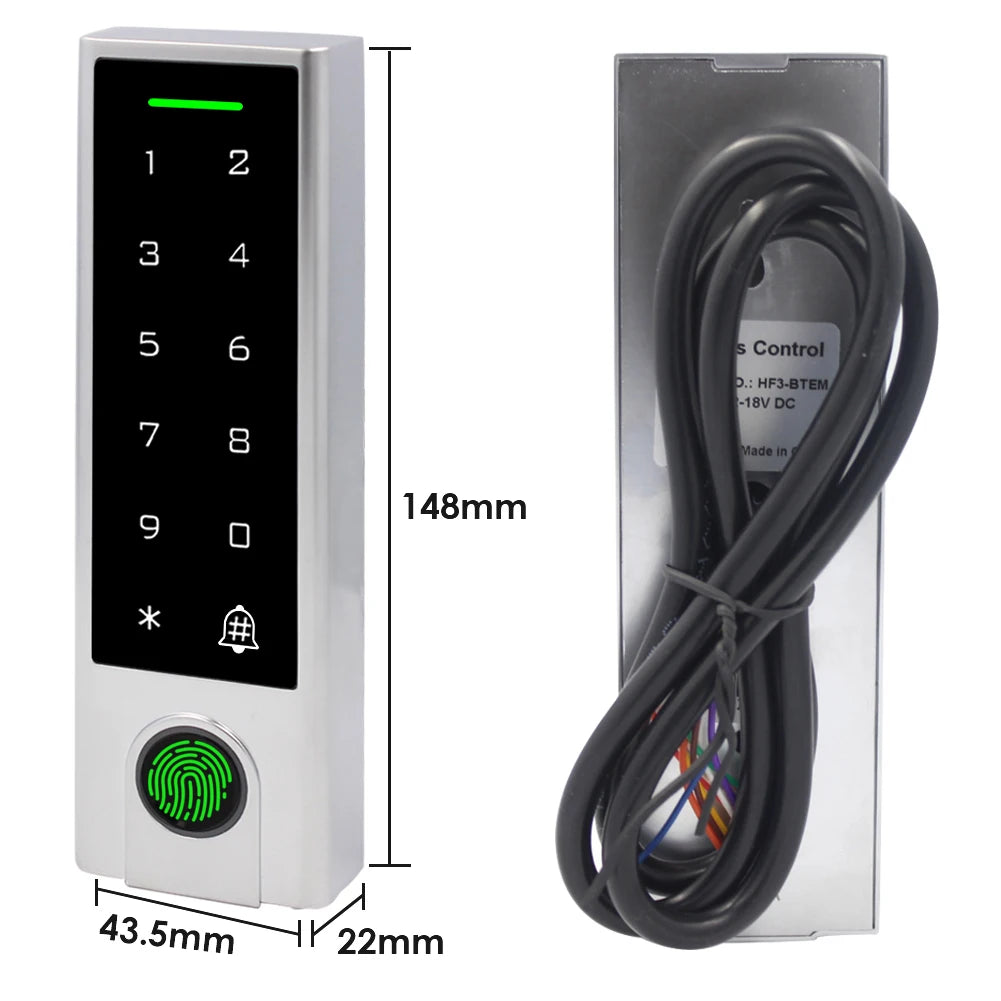

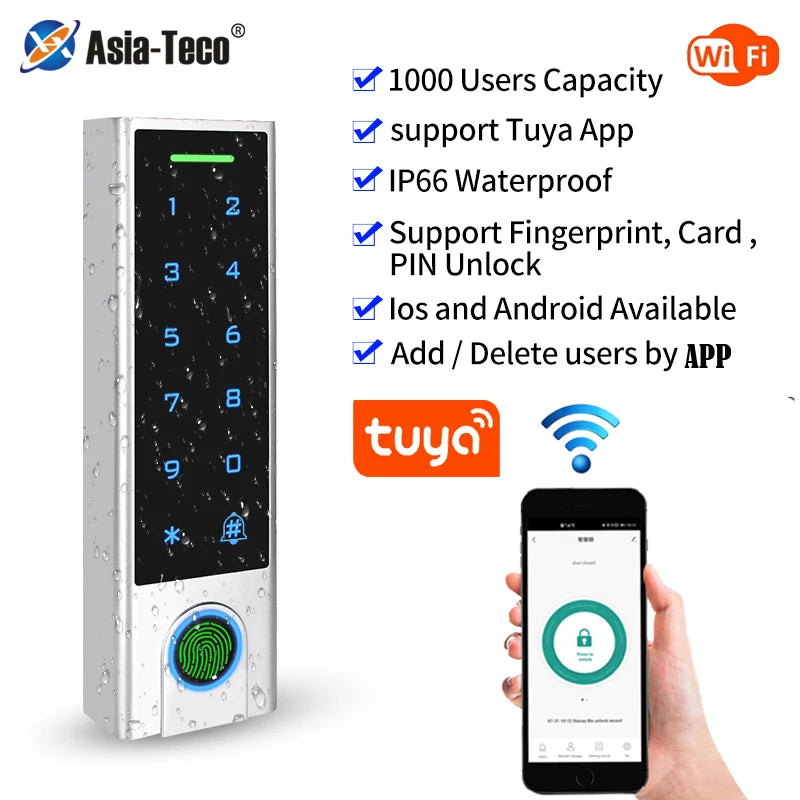

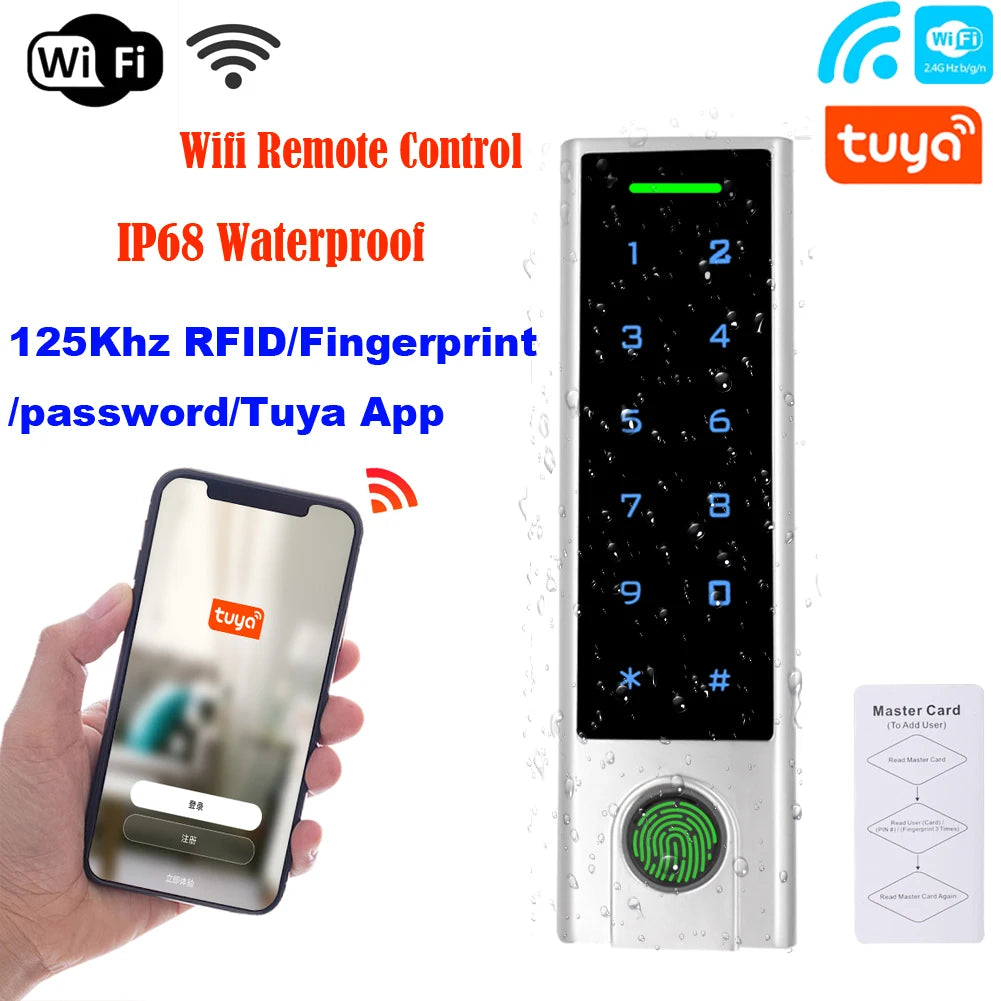

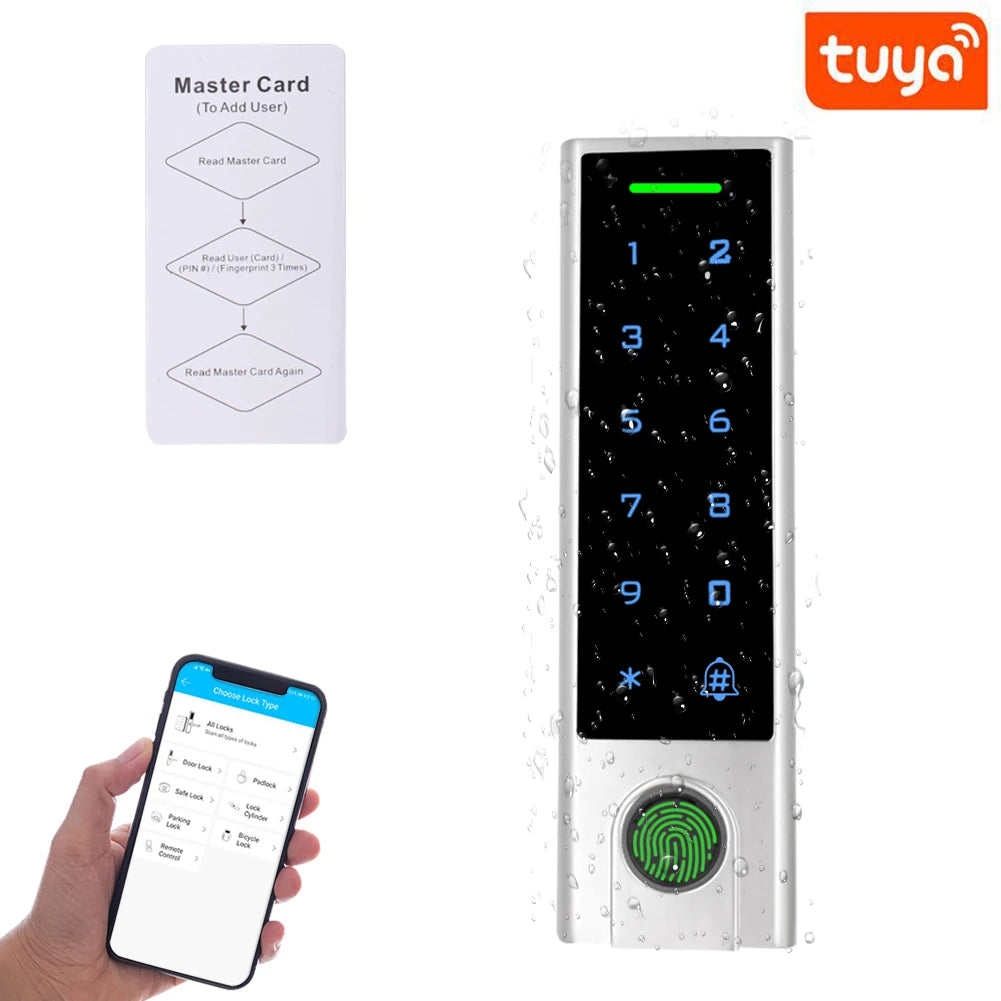

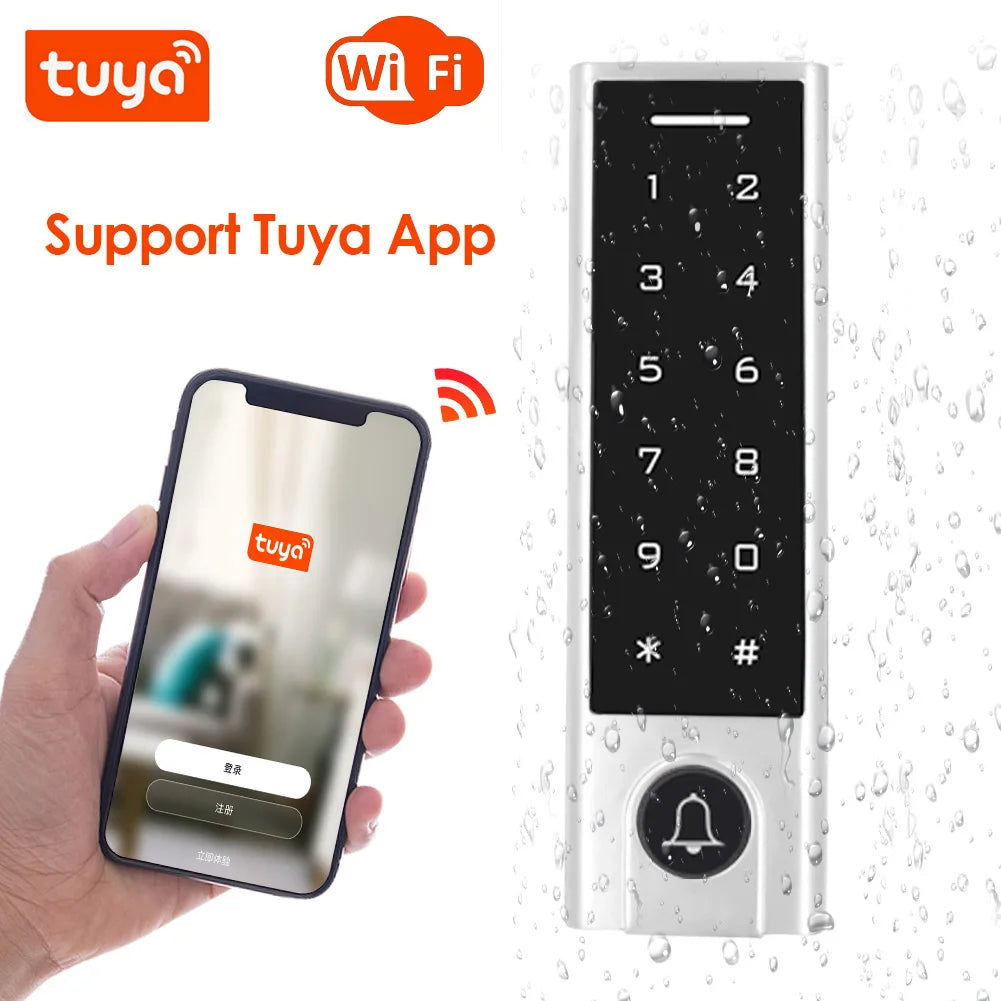

Tuya WiFi Smart Fingerprint & RFID Keypad — Door Access Control System
Take full control of who enters your property — from anywhere in the world. This standalone door access control keypad by Asia-Teco combines fingerprint recognition, 125KHz RFID card reading, PIN code entry, and Tuya App remote access via 2.4G WiFi into one sleek, weatherproof unit. Whether it's a residential building, gated community, office, or commercial facility, this controller delivers reliable, multi-layered entry management with IP67 waterproof protection.
Made in Mainland China.
Key Features
- 4-in-1 Access Methods: Fingerprint, 125KHz RFID card, PIN code, or Tuya smartphone app — your choice every time.
- Tuya App Integration: Open or monitor your door remotely via the Tuya app over 2.4G WiFi — control access from anywhere.
- High Capacity: Supports up to 1,000 users, 1,000 passwords, and 100 fingerprints — ideal for larger properties.
- IP67 Waterproof Rating: Built to withstand rain, dust, and harsh outdoor conditions without compromising performance.
- Backlit Touch Keypad: Clearly visible and easy to operate even in low-light or nighttime conditions.
- Ultra-Fast Response: Card recognition in under 0.1 seconds for smooth, uninterrupted entry.
- Ultra-Low Power Consumption: Standby current under 30mA — energy-efficient and cost-effective.
- Fail-Secure Mode: Door remains locked in the event of a power failure, keeping your property protected at all times.
- Independent PIN Codes: Users can create and use PIN codes without a linked RFID card for added flexibility.
- STC Microprocessor Core: Strong anti-interference capability ensures high security and operational reliability.
- DC 12V Power Supply: Easy to wire into standard access control power systems.
Specifications
| Brand | Asia-Teco |
| Model | HF3EM-WiFi / H3EM-WiFi |
| RFID Frequency | 125KHz (EM card types) |
| WiFi | 2.4GHz |
| Smart Platform | Tuya |
| User Capacity | 1,000 |
| Fingerprint Capacity | 100 |
| Password Capacity | 1,000 |
| Waterproof Rating | IP67 |
| Power Supply | DC 12V |
| Standby Current | <30mA |
| Security Mode | Fail Secure |
| Keypad | Backlit Touch Keypad |
| Origin | Mainland China |
Ideal Applications
This smart access controller is perfectly suited for:
- Residential apartment buildings and gated communities
- Office entrances and commercial facilities
- Warehouses, garages, and storage units
- Schools, gyms, and other shared-access public spaces
Learn More About Smart Home Security Standards
For guidance on home security and electronic access control standards, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer product safety information.
Frequently Asked Questions
Q: What access methods does this Tuya WiFi keypad support?
A: This access control keypad supports four entry methods: fingerprint recognition, 125KHz RFID card, PIN code entry, and remote access via the Tuya smartphone app over 2.4G WiFi. You can use any method individually or combine them for enhanced security.
Q: Is this keypad suitable for outdoor installation?
A: Yes. The unit carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand submersion in water up to 1 meter for 30 minutes. It is well-suited for outdoor gates, building entrances, and any exposed installation.
Q: How many users and credentials can this system store?
A: The system supports up to 1,000 user records, 1,000 individual PIN codes, and 100 fingerprints — making it suitable for multi-tenant buildings, offices, and facilities with a large number of regular users.
Q: Does the door stay locked if the power goes out?
A: Yes. This unit operates in Fail-Secure mode, which means the door lock remains engaged (locked) in the event of a power failure, ensuring your property stays secure even during outages.
Q: What power supply does this access control system require?
A: The keypad requires a DC 12V power supply, which is standard for most access control and electric lock installations. The standby current draw is under 30mA, making it highly energy-efficient.
