Tuya WiFi Fingerprint RFID Keypad Access Control – Smart Gate Lock
Tuya WiFi Fingerprint RFID Keypad Access Control – Smart Gate Lock

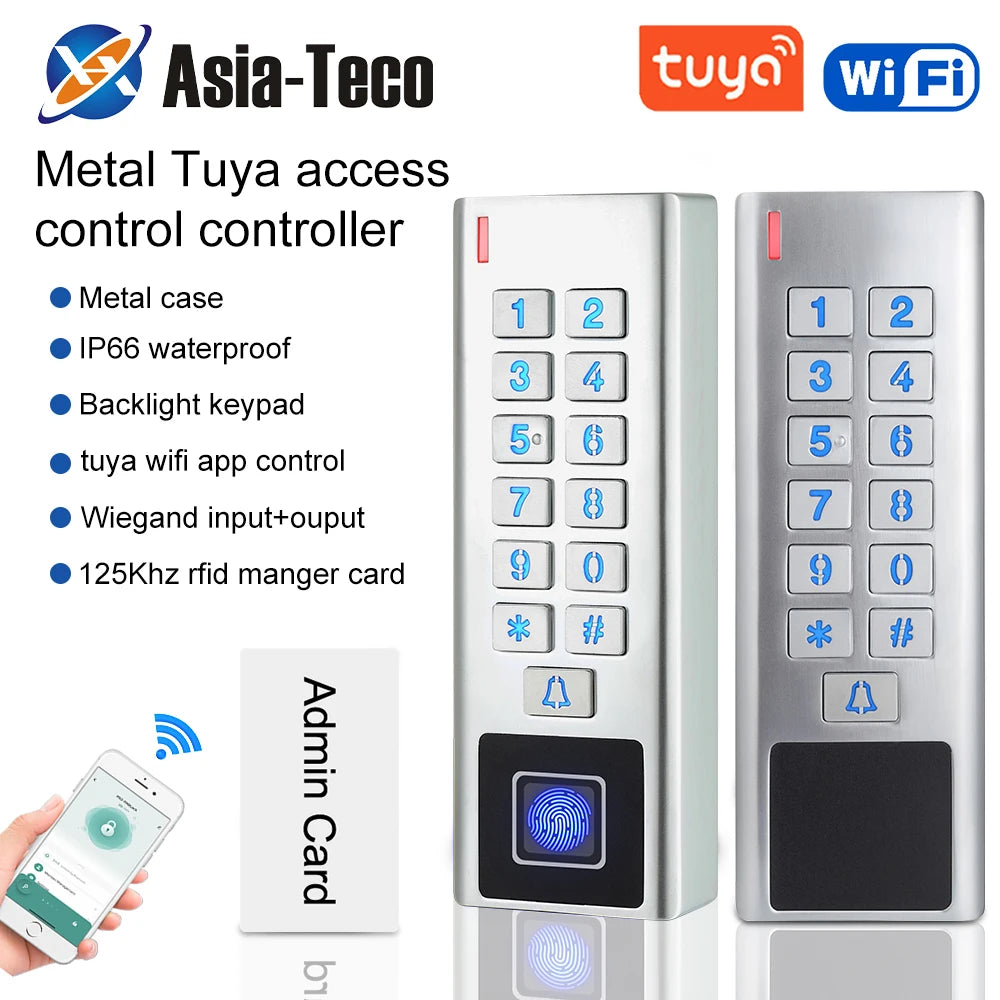

Tuya WiFi Fingerprint RFID Access Control Keypad
Take full command of who enters your property with the Asia-Teco Tuya WiFi Fingerprint Access Control Keypad — a 2024-generation smart security solution engineered for homes, offices, and gates. Featuring biometric fingerprint scanning, RFID card reading, PIN code entry, and full remote control via the Tuya Smart App, this all-in-one unit delivers layered, versatile access management from the palm of your hand.
Built with a rugged ABS shell, anti-tamper design, and an IP66 waterproof rating, this keypad is engineered to withstand harsh outdoor environments — from heavy rain to temperatures ranging from -20°C to +60°C.
Key Features & Advantages

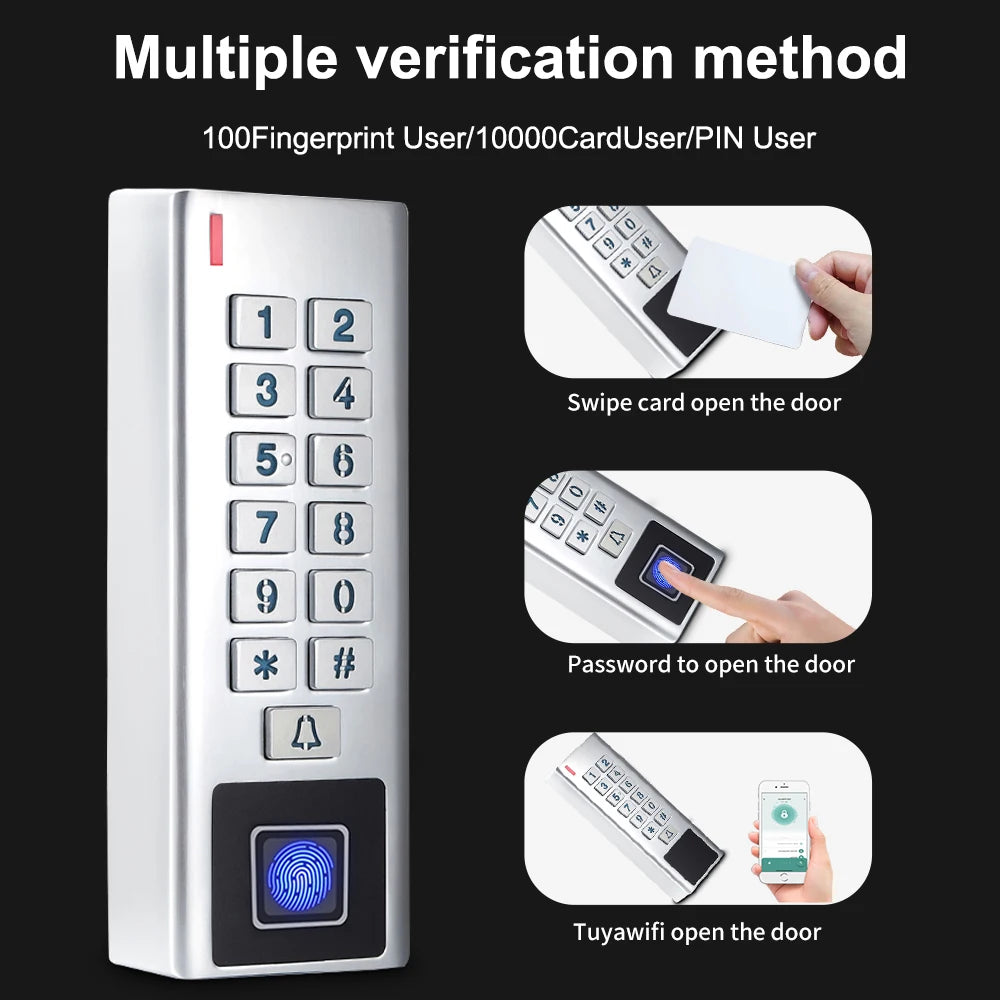

- Multiple Access Modes: Fingerprint, RFID card (125KHz EM), PIN code, multi-user combination, and app-generated temporary PIN — giving you maximum flexibility for every scenario.

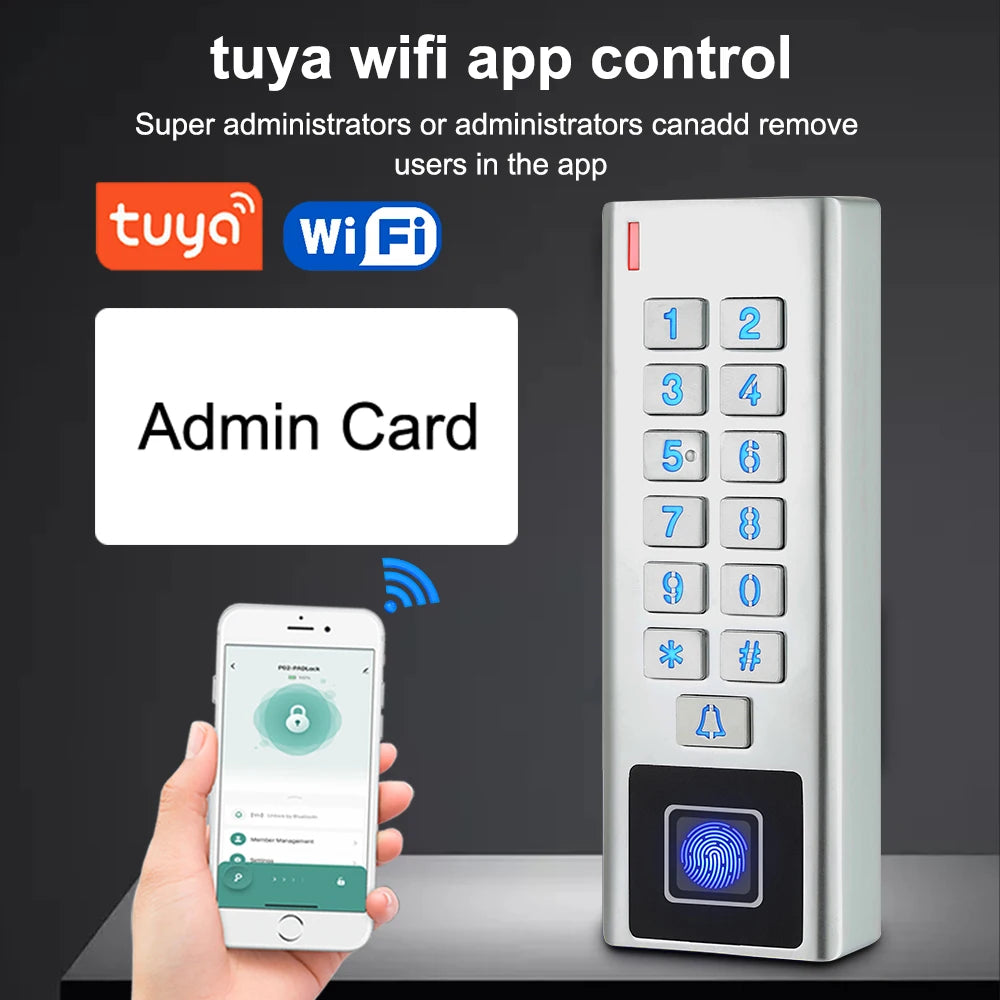

- Tuya Smart App Integration: Remotely unlock your door, check real-time door status, create temporary access codes for guests, and manage up to 10,000 card/PIN users and 100–880 fingerprint profiles — all from your smartphone.
- OTA Over-the-Air Updates: Keep your device current with the latest firmware upgrades pushed directly through the app — no professional service required.
- Wiegand Compatible: Supports Wiegand 26–44 bit, 56-bit, and 58-bit input/output, making it compatible with a wide range of existing access control infrastructure.
- Visitor & Temporary Access: Issue time-limited or one-time PIN codes for guests, delivery personnel, or service providers — then revoke access instantly via the app.
- Pulse & Toggle Relay Modes: Seamlessly integrates with electric locks, magnetic locks, and automatic gate openers.
- IP66 Weatherproof: Fully protected against dust ingress and powerful water jets — ideal for outdoor gates, building entrances, and parking areas.
- Anti-Pry Tamper Protection: Triggers an alert if the unit is physically tampered with.
- Upload/Download User Data: Conveniently batch-manage card and password user data.
Technical Specifications
- Brand: Asia-Teco
- Model: A8-WiFi / HF8-WiFi
- Smart Platform: Tuya
- Operating Voltage: DC 10–24V
- Active Current: <120mA
- Idle Current: <50mA
- Card Frequency: 125KHz (EM)
- Card / PIN Users: Up to 10,000
- Fingerprint Users: Up to 100 (standard) / 880 (extended model)
- RFID Read Range: <60mm
- Wiegand: 26–44 bit, 56 bit, 58 bit Input/Output
- Security Mode: Fail Safe with Signal
- Operating Temperature: -20°C to +60°C
- Operating Humidity: 10%–99%
- Waterproof Rating: IP66
- Shell Material: ABS
- Made in Mainland China
What's in the Box

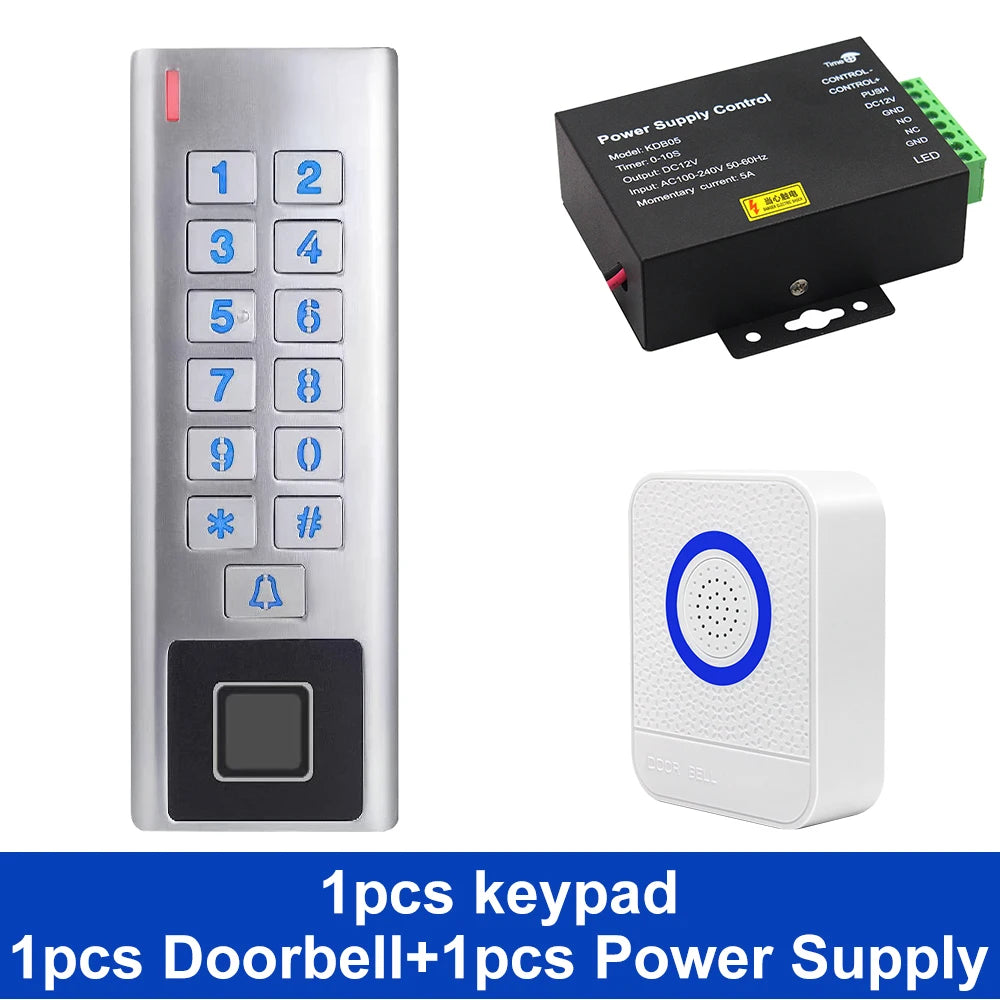

- 1 × Asia-Teco WiFi Fingerprint Access Control Keypad
- Installation hardware & manual
Learn More About Smart Home Security
For guidance on evaluating home security systems and connected devices, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer safety resources on electronic security devices.
Frequently Asked Questions
Q: Does this Tuya WiFi fingerprint keypad work without an internet connection?
A: Yes. While the Tuya App and remote management features require a WiFi connection, the keypad can still grant access locally via registered fingerprints, RFID cards, and PIN codes even when offline.
Q: How many users can be registered on this access control keypad?
A: The system supports up to 10,000 card/PIN users and up to 100 fingerprints (standard model) or up to 880 fingerprints (extended HF8-WiFi model), making it suitable for small businesses, apartment buildings, and residential gates alike.
Q: Is this keypad compatible with my existing electric or magnetic lock?
A: Yes. The keypad operates on DC 10–24V and supports both Pulse and Toggle relay output modes, making it compatible with most electric strikes, magnetic locks, and automatic gate openers. It also features Wiegand 26–58 bit output for integration with existing access control panels.
Q: Can I grant temporary access to a visitor remotely?
A: Absolutely. Through the Tuya Smart App, you can generate a temporary PIN code for visitors and set it to expire automatically — no physical presence required. You can also revoke access instantly at any time.
Q: What does IP66 waterproof rating mean for outdoor use?
A: IP66 means the device is fully dust-tight and protected against powerful jets of water from any direction, making it well-suited for outdoor installation on gates, fences, building entrances, and parking facilities in all weather conditions.
