Tuya WiFi Fingerprint Door Lock IC Card Access Control System
Tuya WiFi Fingerprint Door Lock IC Card Access Control System
Tuya WiFi Fingerprint Access Control System – Smart, Waterproof & Versatile

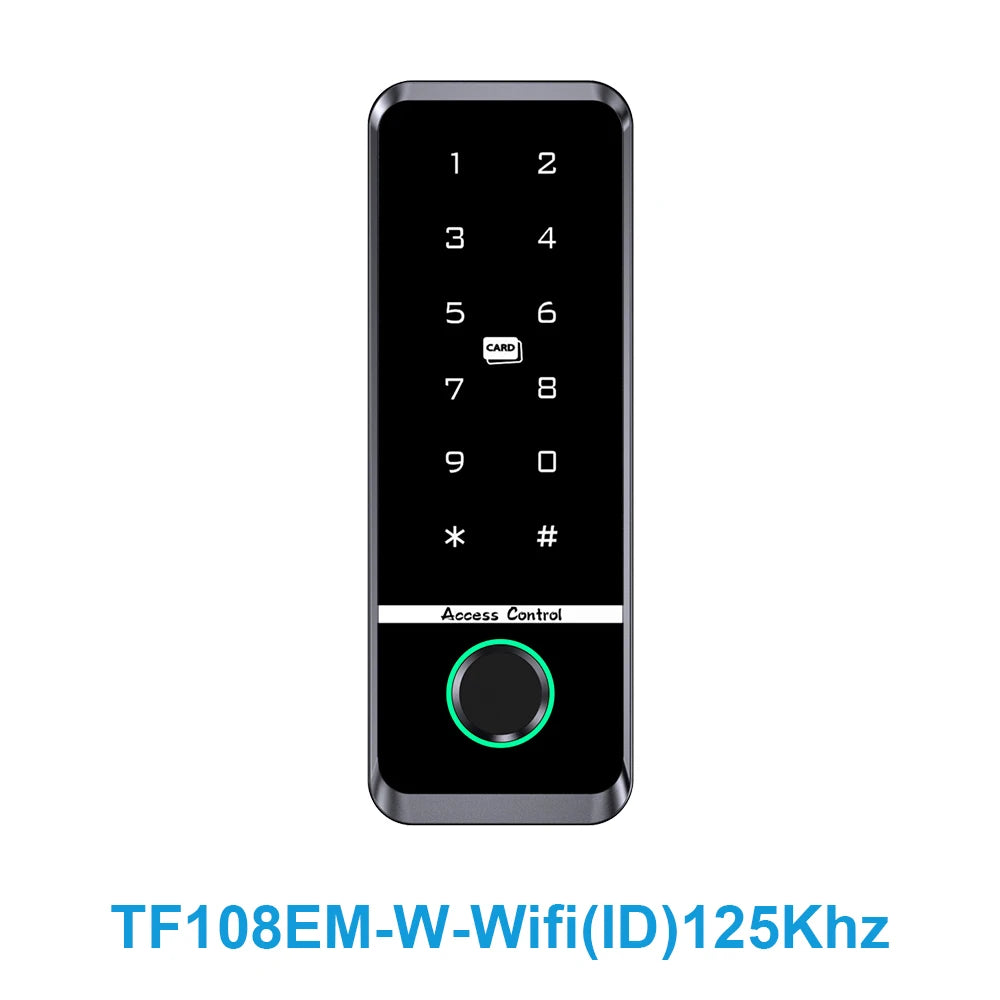

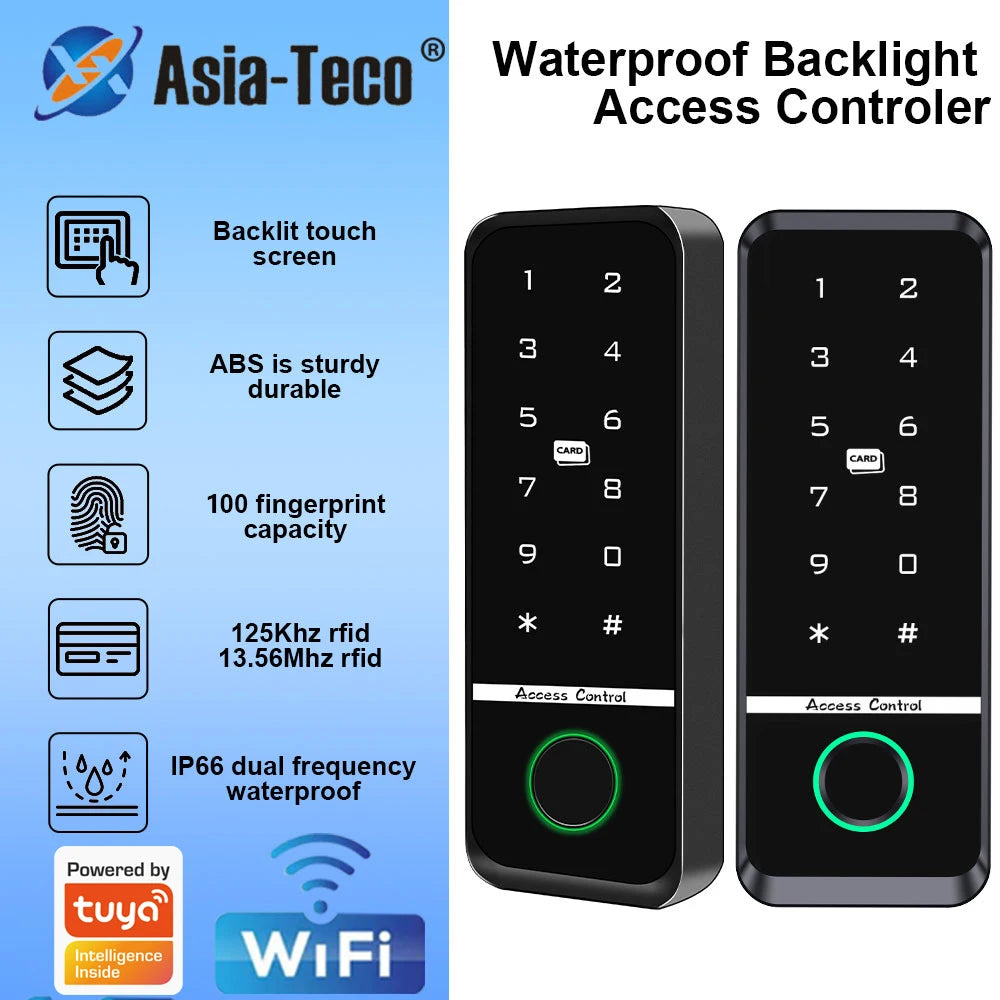

Upgrade your entry points with the Asia-Teco TF108 — a next-generation, standalone smart access control device that combines fingerprint recognition, IC card reading, PIN keypad entry, and full Tuya app integration in one sleek, weatherproof unit. Designed for outdoor installation, it delivers powerful multi-mode entry management for homes, offices, and commercial properties.
Why Choose the Asia-Teco TF108?

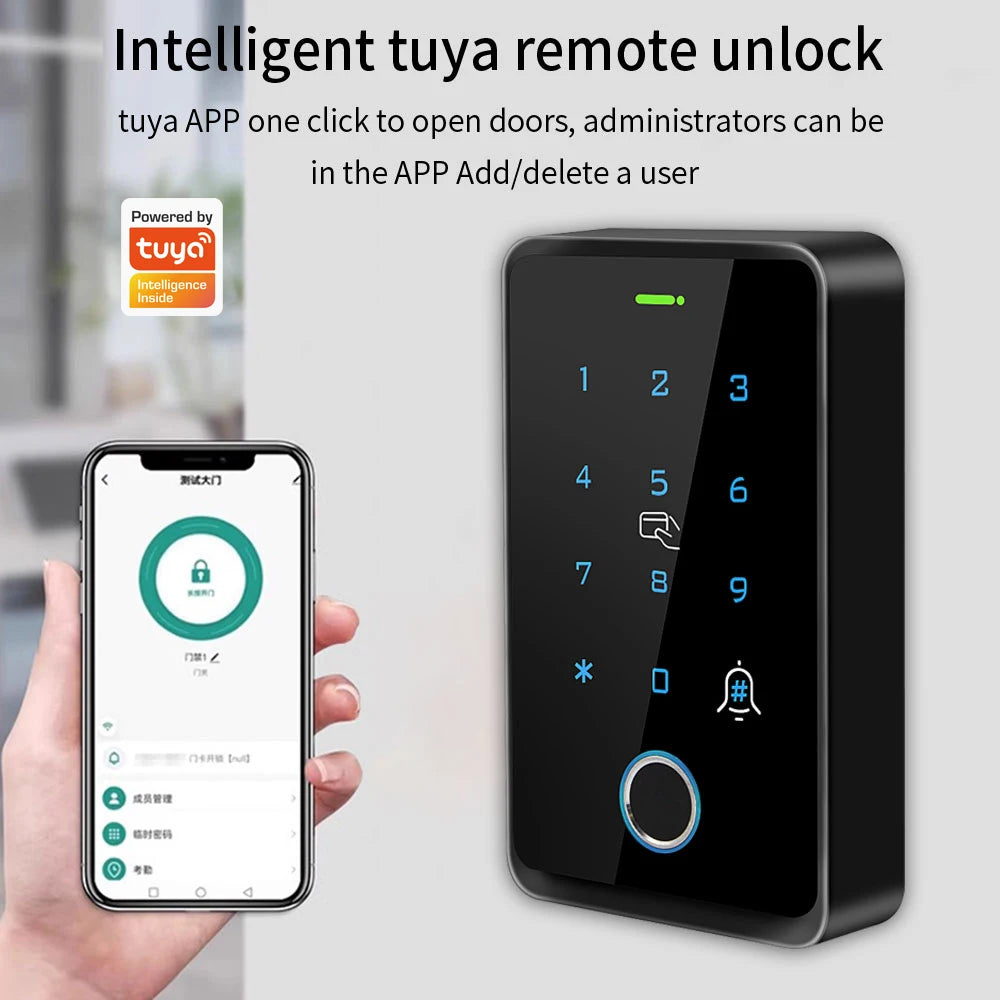

- Tuya App Control: Open doors remotely, generate temporary passwords for visitors, and manage all users directly from your smartphone via the Tuya smart home app over WiFi.
- Multiple Access Modes: Supports fingerprint, IC card (EM or Mifare), PIN keypad, app-generated temporary passwords, and multi-user combination entry — giving you maximum flexibility.
- High Capacity: Store up to 100 fingerprints and 2,800 IC cards locally; manage 100 fingerprints and 400 cards via the Tuya app, plus 10 dedicated visitor user slots.

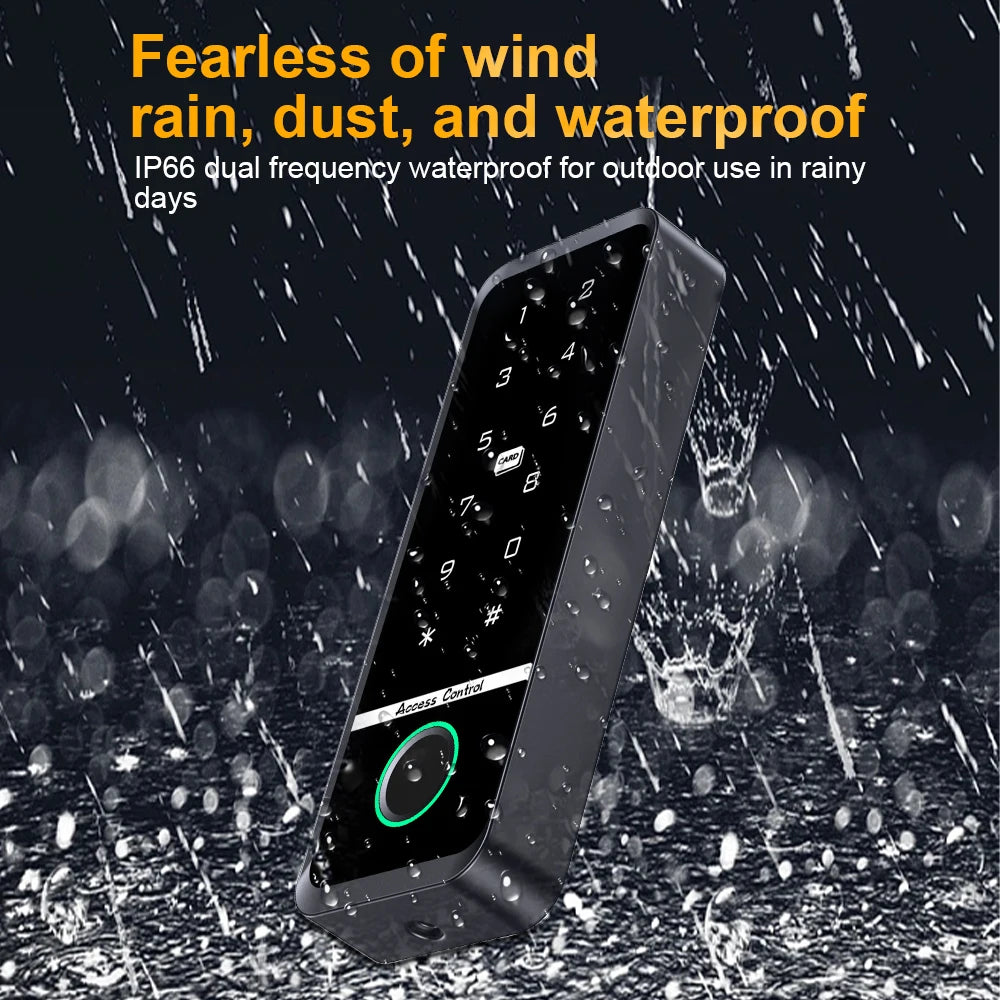

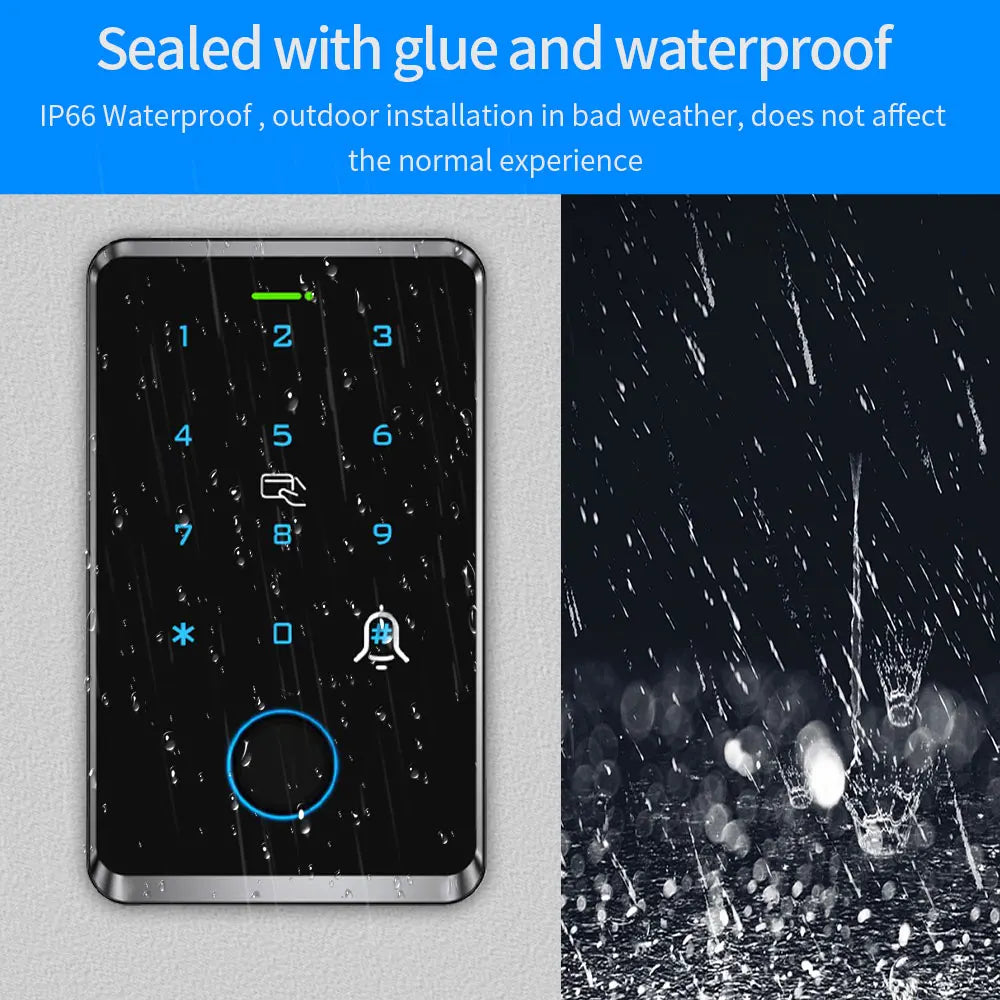

- IP66 Waterproof Rating: Fully sealed against dust and powerful water jets, making it ideal for outdoor gates, building entrances, and exposed entry points.
- Anti-Vandal Construction: Rugged ABS + PC shell engineered to resist tampering and impact, with an anti-prying design for enhanced security.
- Wiegand Compatible: Functions as a professional Wiegand card reader. Supports Mifare Wiegand 26–44 bit, 56-bit, and 58-bit input/output, plus EM Wiegand 26-bit.
- Door Contact Detection: Built-in door status monitoring alerts you if a door is left open or forced.
- Pulse & Toggle Output Modes: Flexible relay output options to suit a wide variety of electric locks and access panels.
- Data Management: Easily upload or download card and password user data to streamline administration for larger deployments.
Key Specifications
| Brand | Asia-Teco |
| Model | TF108 |
| Smart Platform | Tuya (WiFi) |
| Waterproof Rating | IP66 |
| Shell Material | ABS + PC |
| Local Capacity | 100 Fingerprints / 2,800 Cards |
| App Capacity | 100 Fingerprints / 400 Cards |
| Visitor Users | 10 |
| Supported Cards | EM, Mifare |
| Wiegand Formats | 26–44 bit, 56 bit, 58 bit (Mifare); 26 bit (EM) |
| PIN Output Formats | 4 bit, 8 bit (ASCII), 10-digit virtual card |
| Output Modes | Pulse Mode, Toggle Mode |
| Country of Origin | Made in Mainland China |
Perfect For
Residential gates, apartment buildings, office entrances, warehouses, parking facilities, and any outdoor location requiring reliable, multi-credential smart access control.
Learn More About Access Control Best Practices
For guidance on physical security standards and access control system safety, visit the Cybersecurity & Infrastructure Security Agency or review electronic security insights from the National Institute of Standards and Technology (NIST).
Frequently Asked Questions
Q: Does the Asia-Teco TF108 work without a WiFi connection?
A: Yes. The TF108 operates as a fully standalone access control device. Fingerprints, IC cards, and PIN codes stored locally will continue to grant access even without a WiFi or internet connection. WiFi connectivity is required only for Tuya app-based features such as remote unlocking and temporary password generation.
Q: What types of IC cards are compatible with the TF108 access control system?
A: The TF108 supports both EM cards and Mifare cards, two of the most widely used card standards in access control. It is also fully compatible with Wiegand readers and controllers, making integration into existing security infrastructure straightforward.
Q: Is this fingerprint access control system truly waterproof for outdoor use?
A: Yes. The TF108 carries an IP66 waterproof certification, meaning it is protected against powerful water jets from any direction and is fully dust-tight. This makes it well-suited for outdoor gates, building facades, and other exposed environments.
Q: How do I grant temporary access to visitors using the Tuya app?
A: Through the Tuya smart home app, you can generate time-limited temporary passwords and assign them to visitor user slots (up to 10 visitor accounts supported). This allows you to grant controlled, time-bound access without issuing permanent credentials.
