Asia-Teco Tuya Smart Access Control System – Fingerprint, RFID, PIN & App

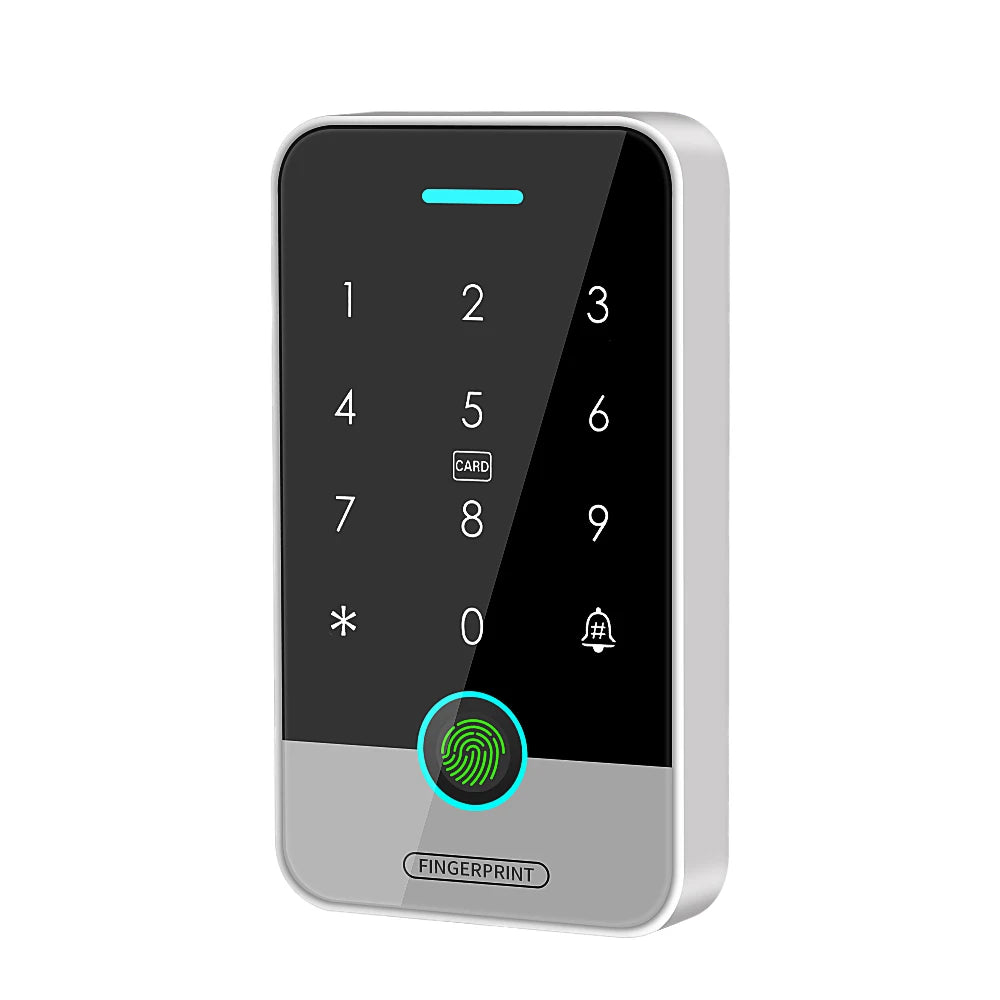

Take full command of who enters your space with the Asia-Teco Tuya Smart Access Control Reader (Model S200A/S300X). This all-in-one keypad combines fingerprint recognition, dual-frequency RFID card reading, PIN code entry, Bluetooth, and Wi-Fi connectivity into a single rugged, weather-resistant unit — all controllable from your smartphone via the Tuya Smart App.
Whether you're securing a home, office, warehouse, or gate, this reader gives you powerful, flexible access management without complicated wiring or proprietary ecosystems.
Key Features
- 5-in-1 Identification: Fingerprint, RFID card (125 kHz & 13.56 MHz dual frequency), PIN password, Tuya app remote unlock, and NFC (most Android devices; select iPhone models)
- Large Capacity: Stores up to 300 fingerprints, 1,000 RFID cards, and 1,000 PIN codes
- IP65 Weather Resistance: Designed for indoor and outdoor installation in a variety of environments
- Wi-Fi Gateway Built-In: Connect directly to your home or business network for seamless remote management
- Bluetooth Proximity Unlock: Walk-up convenience — unlock as you approach
- Tuya Smart App Integration: Monitor door activity logs, grant or revoke access, and unlock remotely from anywhere in the world
- Wiegand WG26 / WG34: Full input/output support plus machine data copy function for easy integration with existing access systems
- Touch Screen Panel with blue backlight for easy nighttime use
- Adjustable Volume: 0–4 levels to suit any environment
- Wired Doorbell Support: Built-in doorbell button compatibility
- Durable ABS Plastic Shell: High-quality housing rated for operating temperatures from -20°C to 70°C
- CE Certified
Technical Specifications

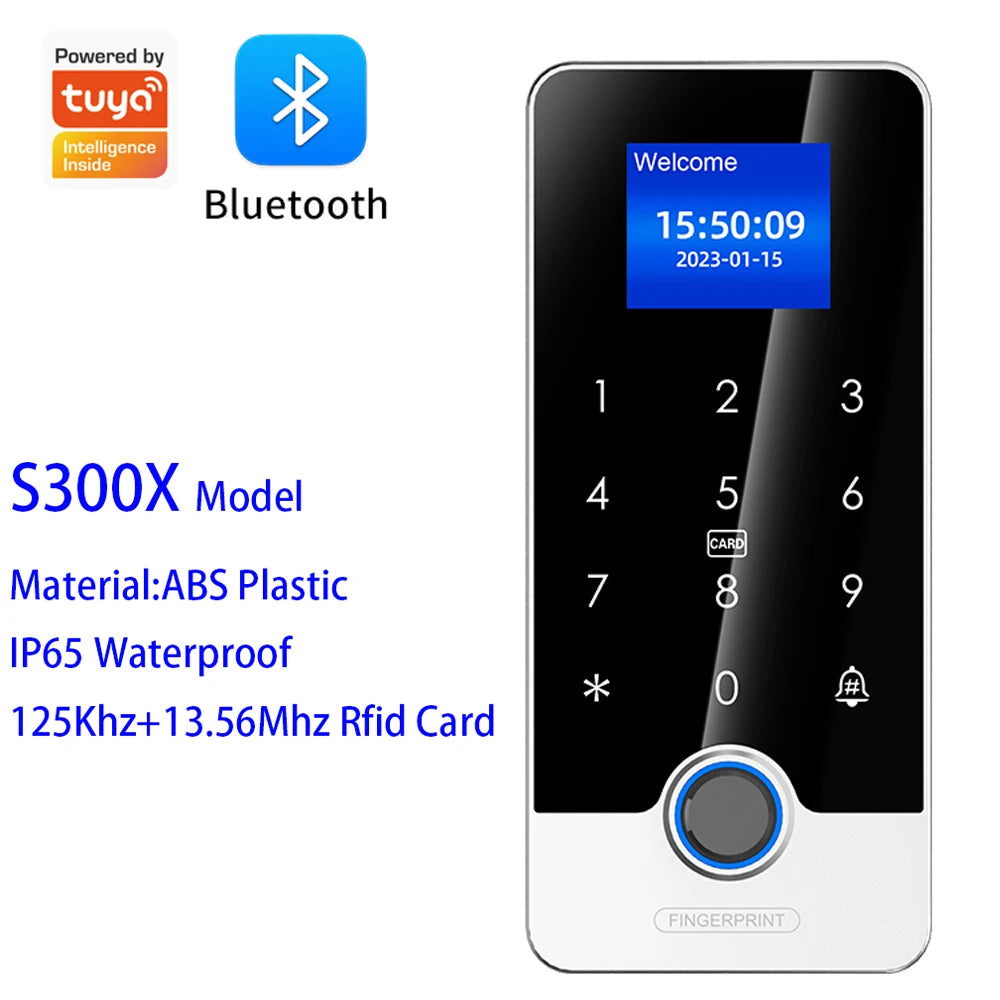

| Model | S200A / S300X |
| Material | High-quality ABS Plastic |
| Smart Platform | Tuya |
| Working Frequency | 125 kHz & 13.56 MHz Dual Frequency |
| Card Reading Distance | 0–5 cm |
| Card Type Supported | EM ID and M1 1K S50 compatible cards |
| Fingerprint Capacity | 300 |
| Card Capacity | 1,000 |
| Password Capacity | 1,000 |
| Wiegand | WG26 / WG34 Input/Output |
| Working Voltage | DC 12V |
| Working Current | 500 mA |
| Standby Current | 80 mA |
| Working Temperature | -20°C ~ 70°C |
| Working Humidity | 20% ~ 90% |
| Product Size | 131.6 × 75 × 18 mm |
| Languages | Chinese, English |
| Certification | CE |
NFC Compatibility Note
Please note: NFC functionality is not supported on all smartphone models. In testing, most Android devices are compatible, while only select iPhone models support NFC unlocking. Please verify your device's NFC capabilities before purchase.
Why Choose the Asia-Teco Tuya Access Controller?
Traditional key-based access is easy to lose and difficult to manage at scale. The Asia-Teco system lets you issue, monitor, and revoke access credentials instantly — whether you're at home or across the country. Its dual-frequency RFID reader ensures compatibility with the widest range of existing cards and fobs, while built-in Wi-Fi and Bluetooth mean no separate gateway hub is required.
For more information on best practices for physical access control security, visit the National Institute of Standards and Technology (NIST) Cybersecurity Resources.
Frequently Asked Questions
Q: Does this Tuya access control system require a separate Wi-Fi hub or gateway?
A: No. The Asia-Teco S200A/S300X has a built-in Wi-Fi gateway, so it connects directly to your 2.4 GHz Wi-Fi network and pairs with the Tuya Smart App without any additional hub or bridge device.
Q: What RFID card types are compatible with this access control reader?
A: This reader supports dual-frequency operation at 125 kHz and 13.56 MHz, making it compatible with EM ID cards and M1 1K S50 cards (Mifare-compatible). The card reading distance is 0–5 cm.
Q: Can I use this access control keypad outdoors?
A: Yes. The unit features an IP65 weather-resistance rating (with IP68 noted in the feature table), durable ABS plastic housing, and an operating temperature range of -20°C to 70°C, making it suitable for outdoor installation in most climates.
Q: How many users can be enrolled in this fingerprint access control system?
A: The system supports up to 300 fingerprints, 1,000 RFID cards, and 1,000 PIN passwords, making it ideal for small-to-medium businesses, apartment buildings, or multi-unit residential properties.
Q: Is this system compatible with existing Wiegand-based access control infrastructure?
A: Yes. The reader supports WG26 and WG34 Wiegand signal input and output, and also includes a machine data copy function, allowing straightforward integration with or replacement of existing Wiegand-compatible access control panels.
