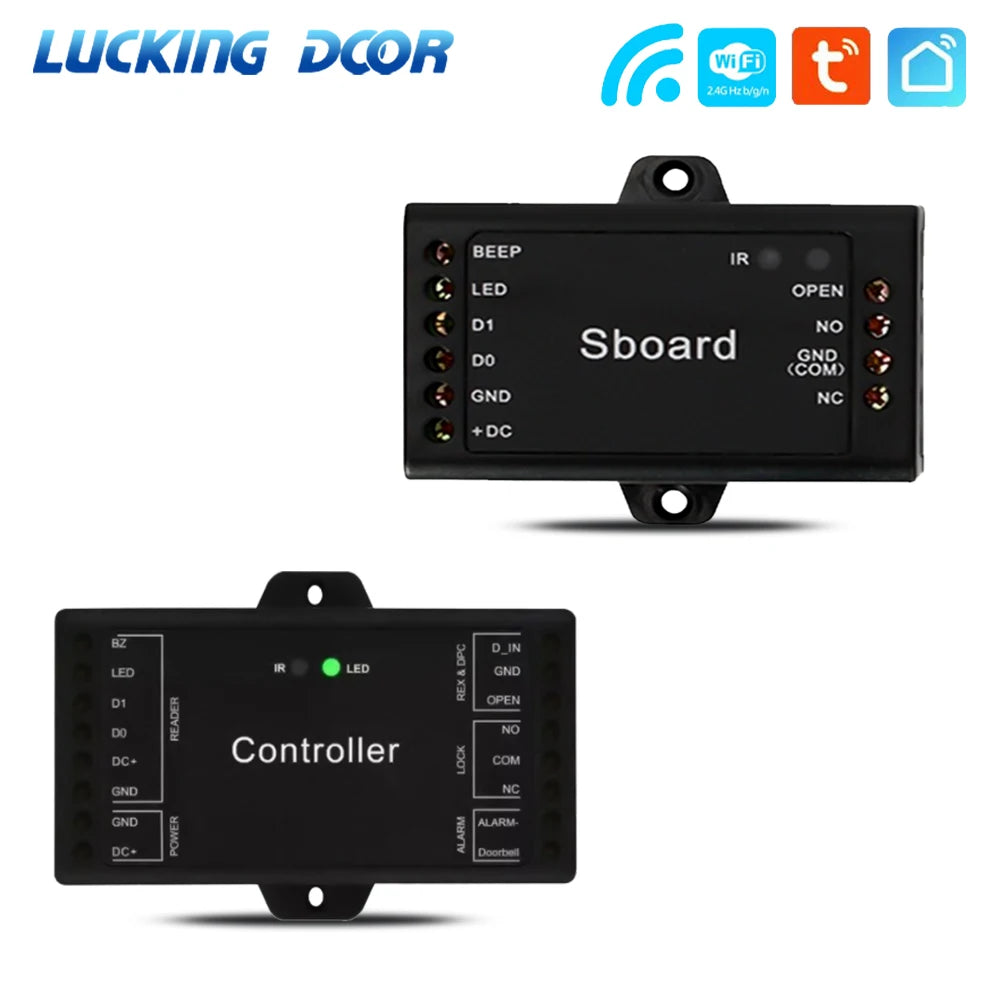

LUCKING DOOR Tuya WiFi Smart Access Control Controller – Sboard Mini / Sboard-III-WiFi
Take full command of your entry points with the LUCKING DOOR Sboard Mini / Sboard-III-WiFi Access Control Panel. This compact 12V DC controller brings smart, app-driven access management to homes, offices, warehouses, and more — all powered by the Tuya Smart platform and compatible with 2.4G/4G/5G WiFi networks for truly remote door control from anywhere in the world.
Key Features
- Multiple Access Modes: Card only, Card or PIN, Card + PIN, and multi-card/multi-PIN configurations for flexible credential management.
- Wide Wiegand Compatibility: Accepts Wiegand 26–44, 56, and 58-bit input, making it compatible with virtually any standard card reader on the market.
- Keypad Reader Support: Works with 4-bit, 8-bit (ASCII), and 10-bit Virtual keypad readers.
- 1,000 User Capacity: Store up to 1,000 credentials locally on the board, plus manage up to 500 users via the Tuya mobile app.

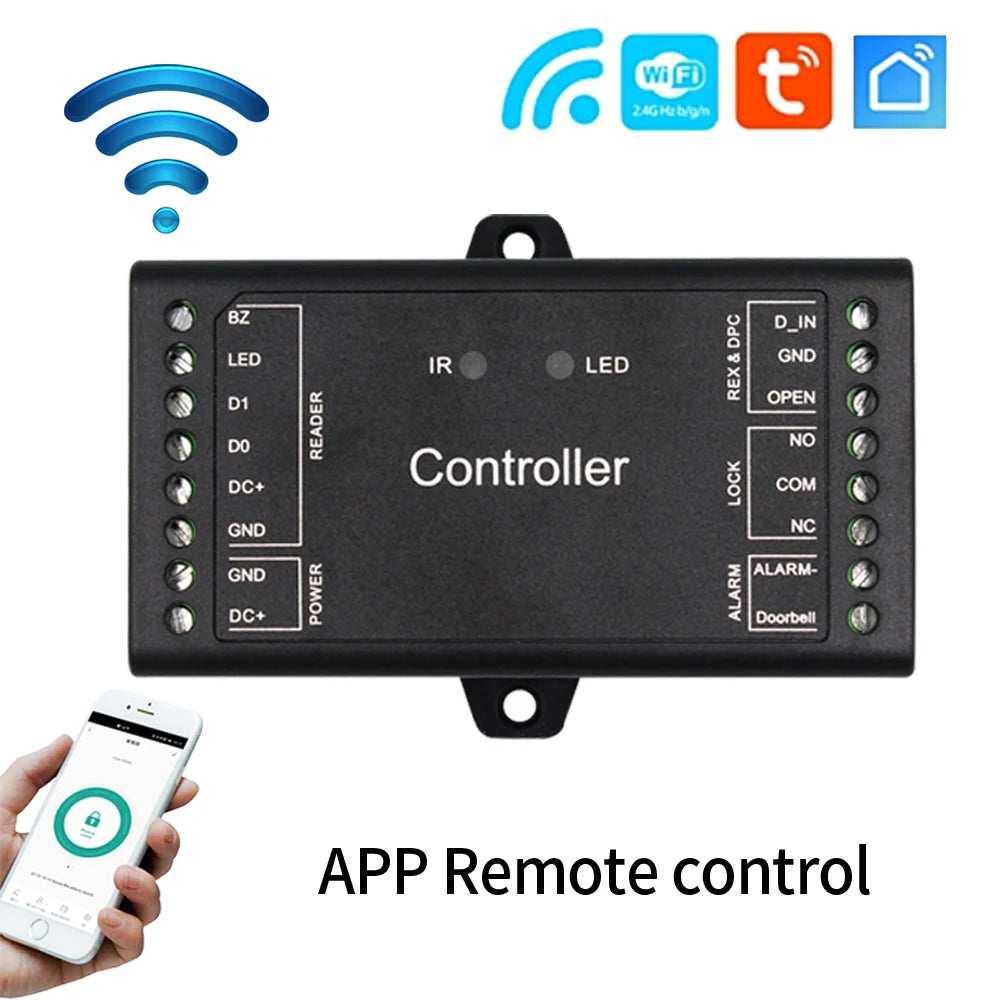

- Remote Access via App: Open doors remotely over 2.4G/3G/4G/5G WiFi using the free Tuya app — available for both iOS and Android.
- Master Card & Principal Card Support: Easily add or remove users in the field using a master card without any software.
- Time Restriction Settings: Define access windows for individual users — ideal for cleaners, contractors, or shift workers.
- Temporary & One-Time Passwords: Issue single-use or time-limited access codes for guests or deliveries.
- Access Record Logging: Review door-opening history directly within the Tuya app for accountability and security auditing.
- Alarm & Door Contact Inputs: Connect external alarm sensors and door-contact switches for a complete integrated security setup.
- Doorbell Call Notice: Supports external doorbell integration with push notification alerts to your phone.
- Fail-Safe Security Mode: Operates in Fail Safe with Signal mode to ensure reliable access even during power fluctuations.
- Compact Mini Size: Space-saving form factor fits discreetly inside most standard access control enclosures.
Specifications
| Brand | LUCKING DOOR |
| Models | Sboard-Mini / Sboard-III-WiFi |
| Power Input | 12V DC |
| WiFi Compatibility | 2.4G / 3G / 4G / 5G |
| Wiegand Input | 26–44, 56, 58 bits |
| Relay | 1 Relay |
| Local User Capacity | 1,000 Users |
| App User Capacity | 500 Users |
| Smart Platform | Tuya App (iOS & Android) |
| Interfaces | Lock Control, Exit Button, Door Contact Input, Alarm Input, Wiegand |
| Security Mode | Fail Safe with Signal |
| Country of Origin | Made in China (Mainland) |

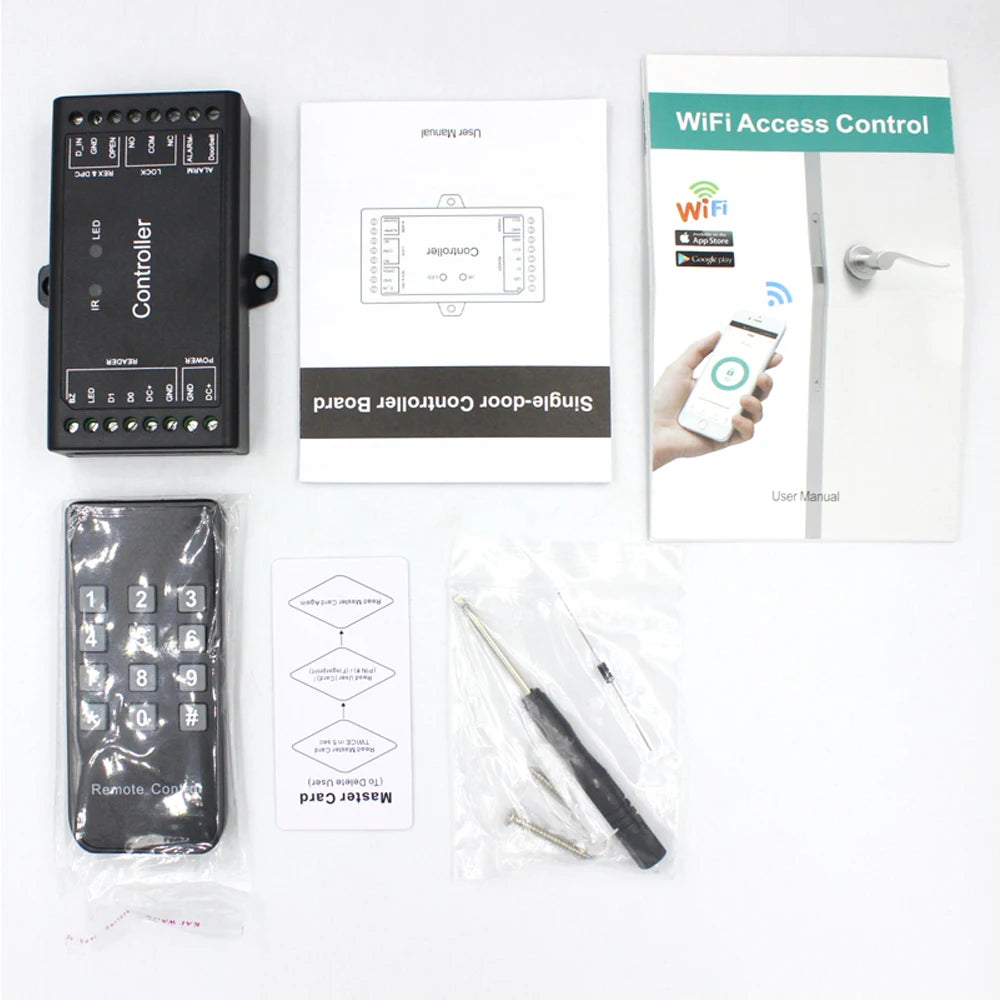

What's in the Box?
1 × LUCKING DOOR Access Control Board (Sboard-Mini or Sboard-III-WiFi, as selected). Please refer to seller notes for any included accessories.
Learn More About Access Control Best Practices
For guidance on physical security and access control systems, visit the Cybersecurity & Infrastructure Security Agency (CISA). For workplace safety considerations when installing electrical control systems, the OSHA Electrical Safety guidelines are a valuable resource.
Frequently Asked Questions
Q: Does this Tuya WiFi access control board work with my existing card readers?
A: Yes. The Sboard Mini / Sboard-III-WiFi supports Wiegand 26–44, 56, and 58-bit protocols, which covers the vast majority of standard proximity card and smart card readers available today. It also works with keypad readers using 4-bit, 8-bit (ASCII), or 10-bit Virtual formats.
Q: Can I control access remotely if I'm away from the building?
A: Absolutely. The Sboard-III-WiFi model connects to 2.4G/3G/4G/5G WiFi networks and integrates with the Tuya Smart app (iOS & Android), allowing you to unlock doors, manage users, issue temporary passwords, and review access logs from anywhere with an internet connection.
Q: How many users can I store on this access control controller?
A: The board stores up to 1,000 users locally via card credentials. Additionally, up to 500 users can be managed and added or deleted directly through the Tuya mobile app. Time restrictions can be set individually for each user.

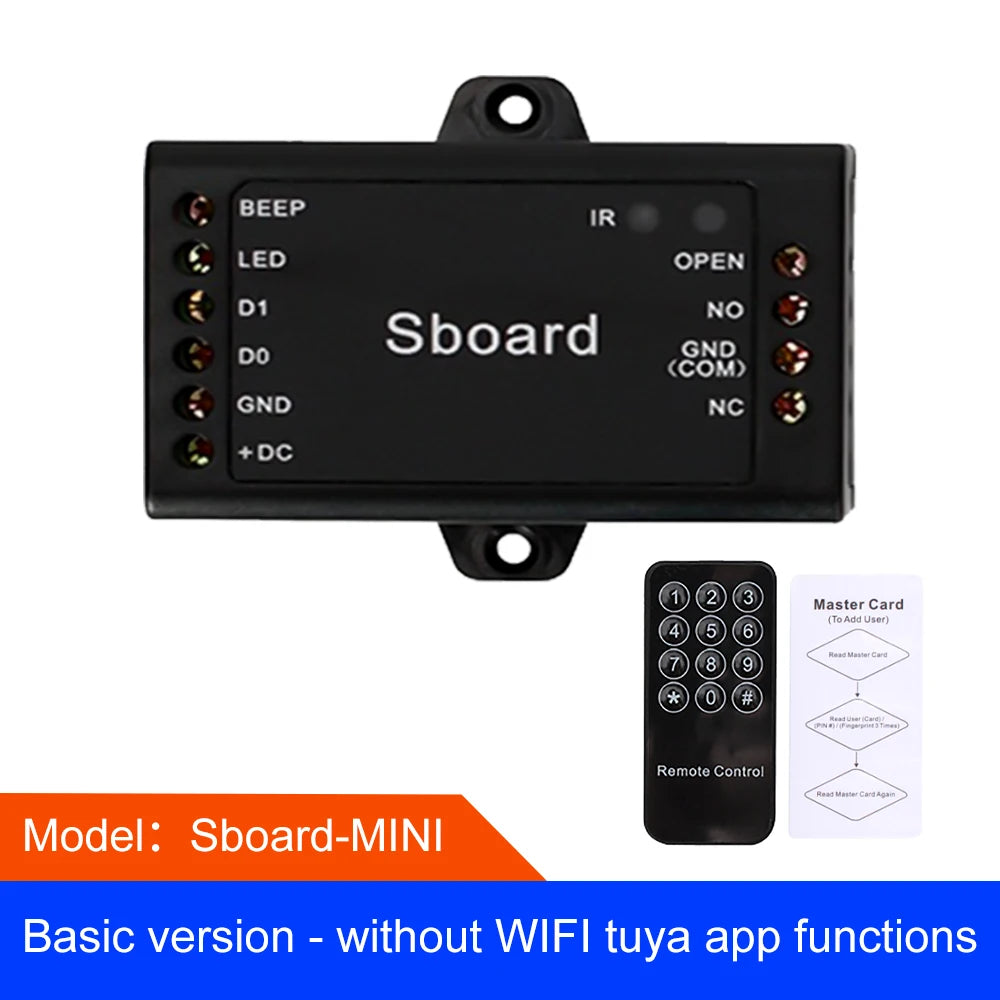

Q: What is the difference between the Sboard-Mini and the Sboard-III-WiFi?
A: The Sboard-Mini is a basic standalone access control board offering local card/PIN management for up to 1,000 users. The Sboard-III-WiFi adds Tuya WiFi connectivity, enabling remote access, app-based user management, temporary password generation, access record checking, and doorbell call notifications via the Tuya Smart app.
Q: Is installation straightforward for a standard 12V access control setup?
A: Yes. The board runs on 12V DC power — the industry-standard voltage for access control systems — and features clearly labeled terminals for lock control, exit button, door contact, alarm input, and Wiegand reader connection. Always follow local electrical safety codes and consult a qualified installer if needed.
