Asia-Teco Tuya Smart Bluetooth Door Lock – Keyless Entry, No Drilling Required

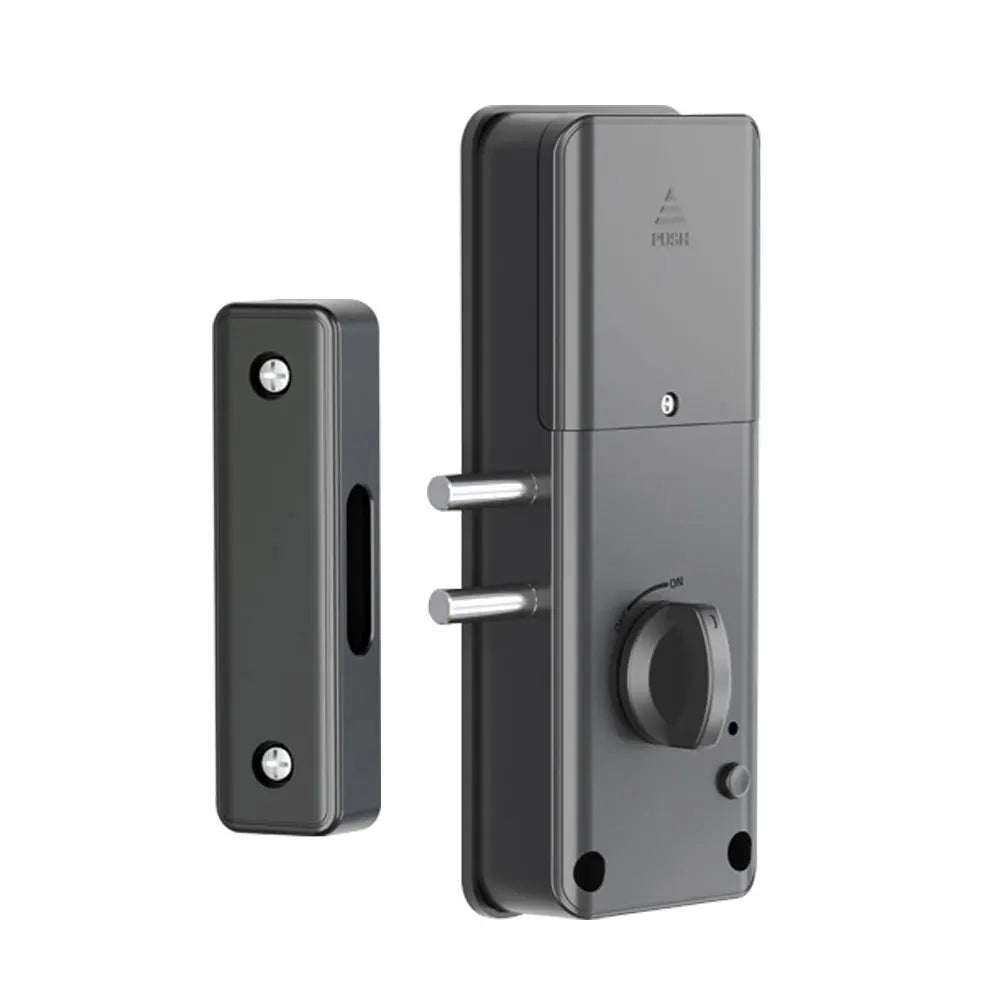

Upgrade your home or office security with the Asia-Teco RX2052 Tuya Smart Bluetooth Door Lock. Designed for indoor wooden doors, this intelligent lock delivers convenient keyless entry through multiple unlock methods — all without drilling a single hole in your door. Its concealed indoor installation leaves no marks or hardware visible from outside, keeping your entryway looking clean and modern.
Key Features
- No-Drill Installation: Mounts entirely on the interior side of the door — zero holes, zero damage to your door frame or exterior.

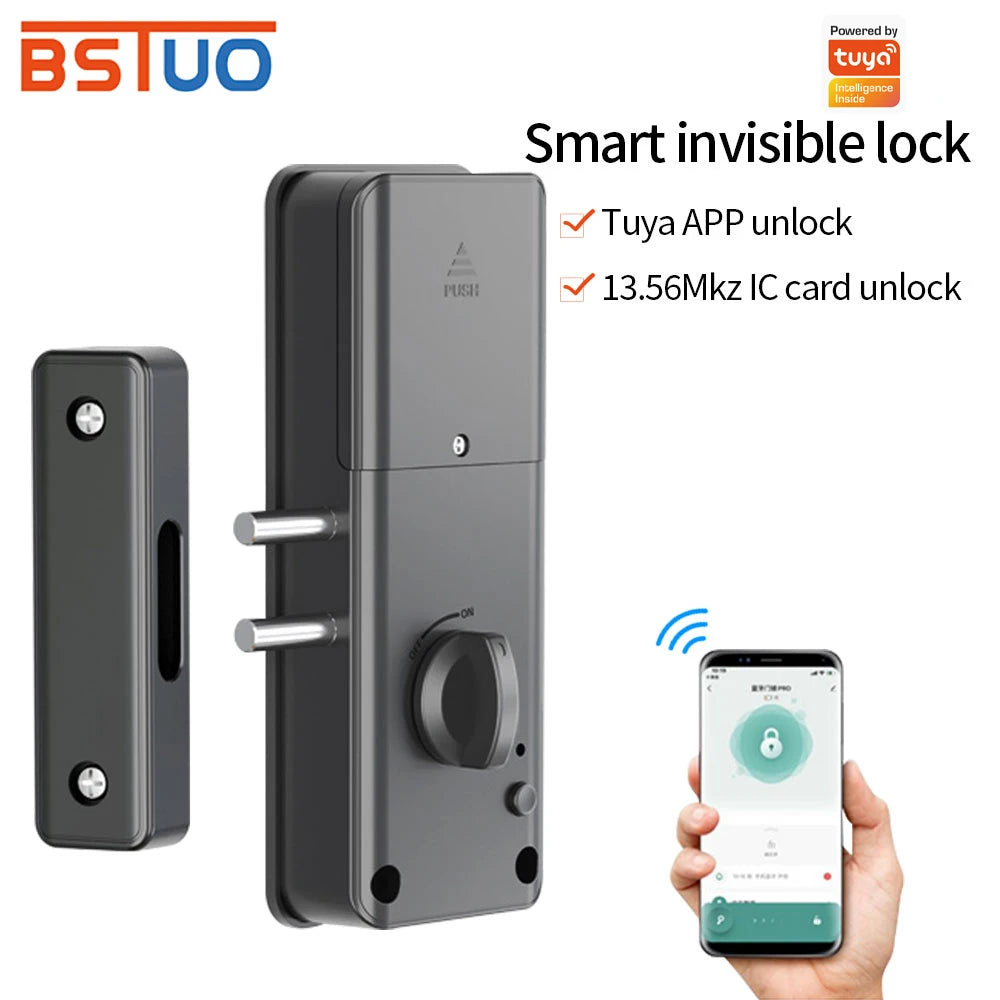

- Multiple Unlock Methods: Unlock via Tuya app (iOS/Android), 13.56MHz MIFARE M1 IC card swipe, Bluetooth, or Wi-Fi through a compatible gateway.
- Auto-Lock on Close: The door locks automatically the moment it closes, so you never have to worry about leaving it unsecured.

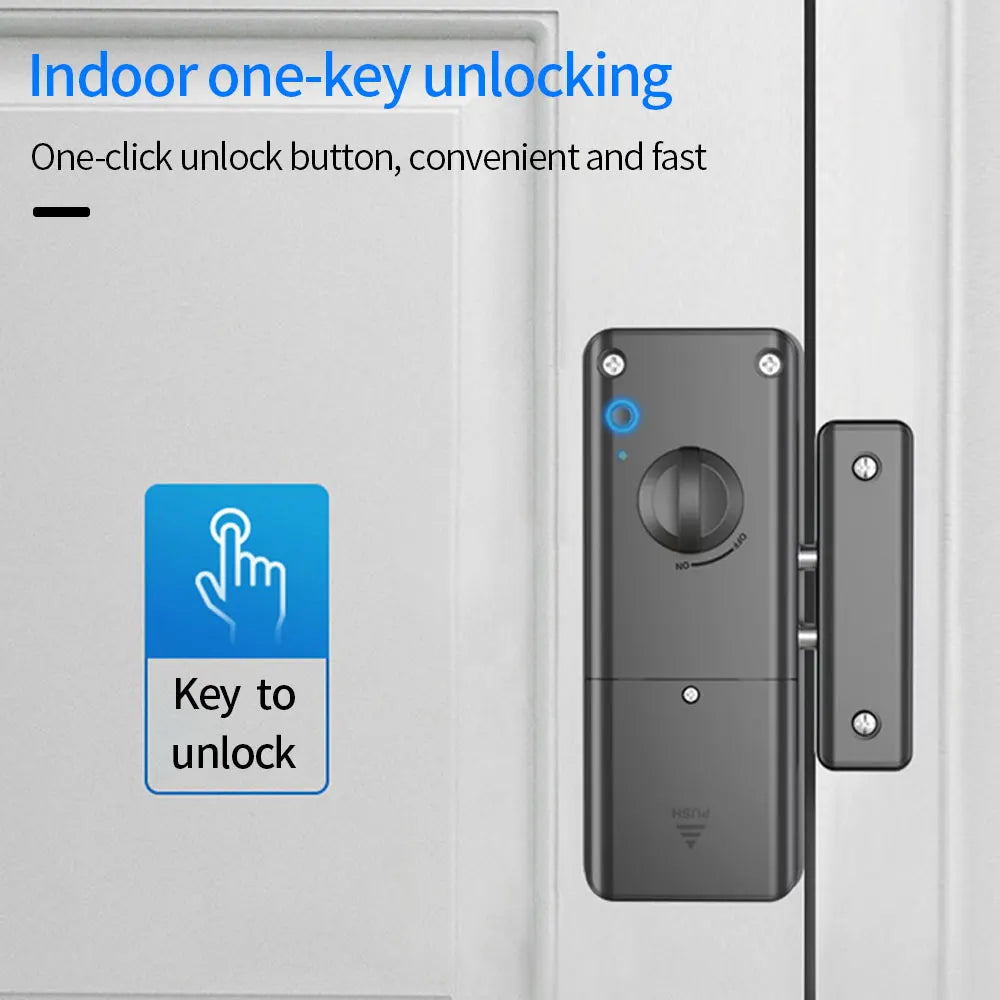

- One-Touch Indoor Release: Open with a single tap on the inside knob — fast, simple, and effortless.
- Live Voice Broadcasts: Audible voice announcements guide you through lock status and low-battery alerts.
- Passage Mode / Toggle Mode: Set the lock to remain open during high-traffic periods for added convenience.
- Unlock Record Monitoring: Every IC card and app-based unlock event is logged. Sync to the Tuya administrator app over your network to view a full history.
- Gateway Support: Pair with a Tuya-compatible gateway for remote access and smart home automation integration.
- Up to 50 IC Cards: Register and manage up to 50 individual IC cards — ideal for families, rental properties, or small offices.
- Direction-Reversible Handle: Adapts to left- or right-handed door configurations.
- Low-Battery Voice Alert: Announces "Low battery, please replace battery" at 4.8V so you're never caught off-guard.
Specifications
| Brand | Asia-Teco |
| Model | RX2052 |
| Certification | CE, FCC |
| Smart Platform | Tuya |
| Unlock Methods | Tuya App, IC Card, Bluetooth, Wi-Fi (via Gateway) |
| Supported Card Type | 13.56MHz MIFARE M1 IC Card |
| IC Card Capacity | Up to 50 cards |
| Unlock Time | 1.5 seconds |
| Power Supply | 4 × AA Alkaline Batteries (6V) |
| Standby Current | < 95 µA |
| Working Current | < 250 mA |
| Operating Temperature | -20°C to +70°C |
| Suitable Door Type | Wooden / Non-Metallic Indoor Door |
| Max Door Thickness | 60mm |
| Handle Direction | Reversible (Left & Right) |
| Waterproof Rating | Indoor Use Only (No Waterproofing) |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × Asia-Teco RX2052 Smart Door Lock Unit
- IC Card(s) (as included in package)
- Installation hardware & instructions
Smart Home Integration
The RX2052 runs on the Tuya Smart platform, one of the world's most widely used smart home ecosystems. Pair it with your existing Tuya-compatible gateway and control your lock remotely, set access schedules, and monitor entry logs — all from the Tuya app on your smartphone. For guidance on smart home device security best practices, visit the FTC Internet of Things Security Resource.
Frequently Asked Questions
Q: Does the Tuya Smart Bluetooth Door Lock require drilling or permanent modifications to my door?
A: No — the Asia-Teco RX2052 is specifically engineered for no-drill, no-damage installation. It mounts on the interior surface of your door, leaving the exterior completely unmarked. It is suitable for wooden and non-metallic indoor doors up to 60mm thick.
Q: What unlock methods does this smart door lock support?
A: The RX2052 supports four convenient unlock methods: (1) Tuya smartphone app via Bluetooth or Wi-Fi (with a compatible gateway), (2) 13.56MHz MIFARE M1 IC card swipe, (3) one-touch interior knob, and (4) manual interior knob. Up to 50 IC cards can be registered simultaneously.
Q: Do I need a gateway for remote (Wi-Fi) access?
A: For Bluetooth-only use, no gateway is needed — you can unlock the door when your phone is within Bluetooth range. To access the lock remotely over Wi-Fi and receive real-time unlock notifications from anywhere, a Tuya-compatible gateway (sold separately) is required.
Q: How long do the batteries last, and how will I know when they need replacing?
A: The lock operates on 4 standard AA alkaline batteries. When the voltage drops to 4.8V, the lock announces a voice alert — "Low battery, please replace battery" — so you have ample warning before the batteries are fully depleted.
