Tuya Smart Access Control Kit – Fingerprint RFID Keypad & App
Tuya Smart Access Control Kit – Fingerprint RFID Keypad & App
Tuya Smart Door Access Control System – Fingerprint, RFID, PIN & App Unlock

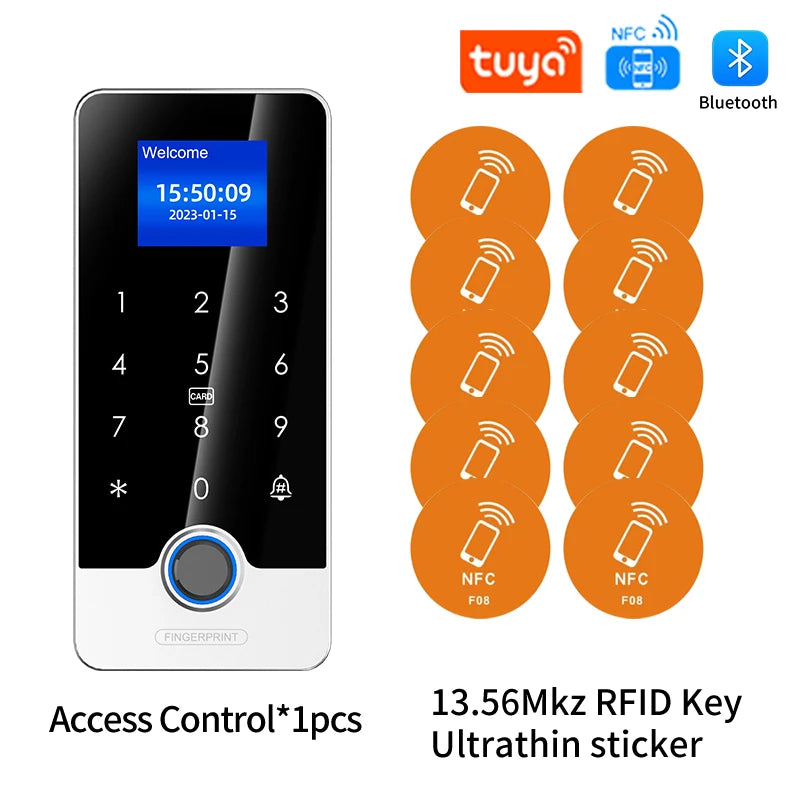

Take full command of who enters your property with the Asia-Teco J200F Tuya Smart Access Control Kit. This all-in-one system combines a 1.77-inch color display, Bluetooth-enabled metal keypad, capacitive fingerprint reader, RFID IC card reader, and full Tuya Smart App integration — giving you four convenient ways to unlock your door from anywhere in the world.
Key Features
- 4-in-1 Unlock Methods: Fingerprint, RFID IC Card (13.56MHz / MF 1K), PIN password, or the Tuya smartphone app — use any combination for maximum flexibility.
- Large User Capacity: Stores up to 300 fingerprints, 1,000 RFID cards, and 1,000 PIN codes — ideal for offices, apartments, and commercial spaces.
- 1.77" Color Touchscreen: Bright white backlit display for easy nighttime use; supports Chinese, English, French, German, Spanish, Italian, Romanian, and Latin.
- IP65 Weatherproof: Fully rated for outdoor installation; operates reliably in temperatures from -20°C to 50°C and humidity up to 90%.
- Remote Access & Monitoring: Use the Tuya App to grant or revoke access, issue time-limited temporary credentials, and review the latest door-open history log — all from your phone.
- Wiegand WG26/34 Interface: Compatible with most existing access control infrastructure for easy integration or upgrade.
- Doorbell Function: Built-in support for wired doorbell — no extra hardware needed.
- Fail-Safe Security Mode: Operates in Fail Safe with Signal mode for dependable entry management even during power interruptions.
- Durable Metal Construction: Heavy-duty metal housing resists tampering and daily wear; quiescent current ≤ 30mA for energy efficiency.
Technical Specifications
- Working Voltage: DC 12V | Working Current: 500mA
- Working Frequency: 13.56MHz (MF 1K compatible)
- Card Read Distance: 0–5 cm
- Fingerprint Capacity: 300 | Card Capacity: 1,000 | Password Capacity: 1,000
- Wiegand Interface: WG26 / WG34
- Smart Platform: Tuya (Wi-Fi + Bluetooth)
- Waterproof Rating: IP65
- Display: 1.77" color screen with white backlight
- Product Size (S300A): 132 × 75 × 18 mm | (S300X): 163 × 75 × 18 mm
- Operating Temperature: -20°C ~ 50°C | Humidity: 20% ~ 90%
How to Use

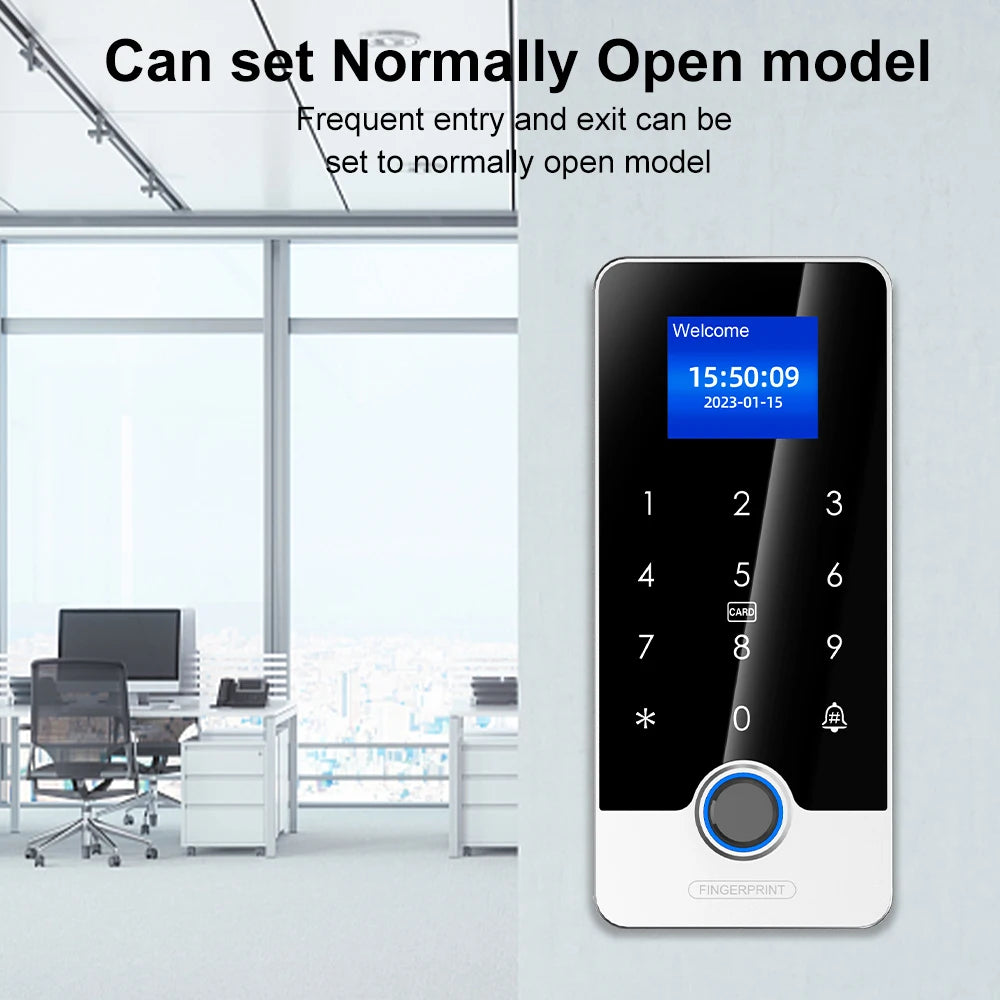

- Regular Open Mode: After unlocking, enter "* and #" within 3 seconds to activate continuous open state (indicator turns purple); repeat to exit.
- Temporary Access: Via the Tuya app home page, tap "Temporary" to generate a single-use or time-limited unlock credential for guests or service personnel.
- Keypad Navigation: * = back, # = confirm, 2 = scroll up, 0 = scroll down; long-press 2 or 0 for fast scroll.
Made in Mainland China.
For guidance on best practices in physical access control and security systems, refer to the U.S. Consumer Product Safety Commission (CPSC) for product safety information.
Frequently Asked Questions
Q: Is the Tuya access control keypad compatible with the Tuya Smart App on both iOS and Android?
A: Yes, the Asia-Teco J200F Tuya access control system is fully compatible with the Tuya Smart App available on both iOS (iPhone) and Android devices. Simply download the app, connect via Wi-Fi or Bluetooth, and manage users, credentials, and door history remotely.
Q: Can I install this RFID fingerprint keypad outdoors?
A: Absolutely. The keypad carries an IP65 waterproof rating, meaning it is protected against dust ingress and low-pressure water jets, making it suitable for outdoor gate or door installations in most weather conditions. It also operates across a wide temperature range of -20°C to 50°C.
Q: How many users can be registered on this access control system?
A: The system supports up to 300 unique fingerprints, 1,000 RFID IC cards, and 1,000 PIN codes simultaneously — making it well suited for small offices, apartment buildings, warehouses, or any multi-user environment.
Q: What is the Wiegand interface used for on this keypad?
A: The WG26/WG34 Wiegand interface allows this keypad to connect to and communicate with compatible access control panels and electric lock controllers. This makes it easy to integrate with existing security systems or upgrade your current setup without replacing the entire infrastructure.
