Smart Tuya IR Touchless Infrared Exit Button – Contactless Door Lock Release Switch
Upgrade your access control system with the Ximiir Smart Tuya Infrared Exit Button (Model EI10) — a hands-free, contactless door release switch engineered for modern homes, offices, and commercial facilities. Controlled via the Tuya APP and included remote control, this surface-mounted exit button uses infrared sensing technology to trigger your door lock release without any physical contact.
Why Choose This Touchless Exit Button?
- Completely Hands-Free Operation: Infrared (IR) sensing detects your hand within 3–15 cm (adjustable) and instantly triggers the door release — no touching required.
- Smart Tuya APP Control: Connect and manage the switch remotely via the Tuya smart home app for added convenience and integration with your existing smart home ecosystem.

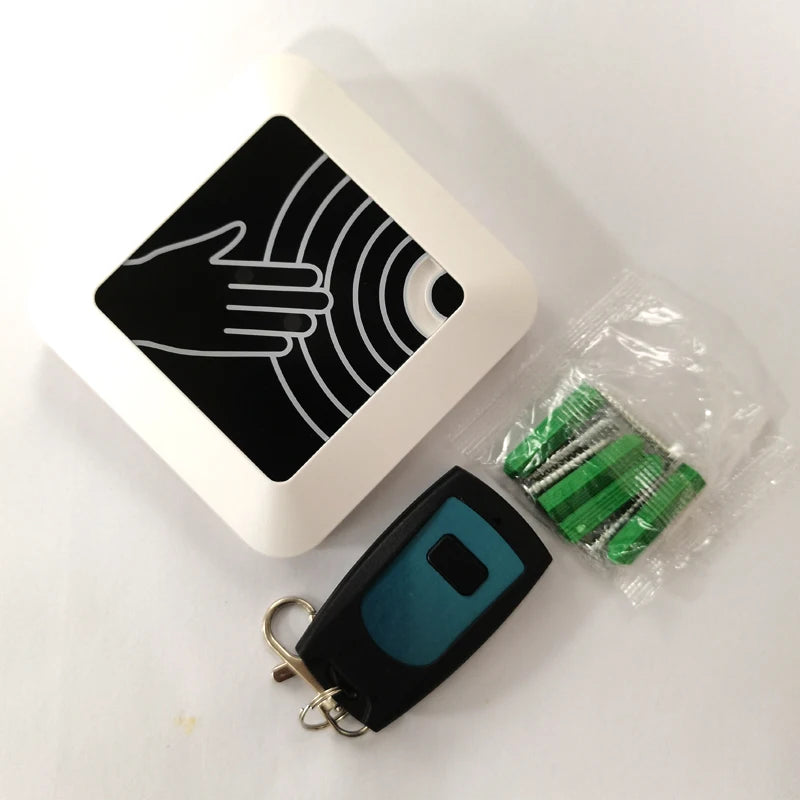

- Includes Remote Control: Operate the exit button from a distance without approaching the sensor.
- Agile & Quick Response: Engineered for fast, reliable triggering every time — no lag, no missed activations.

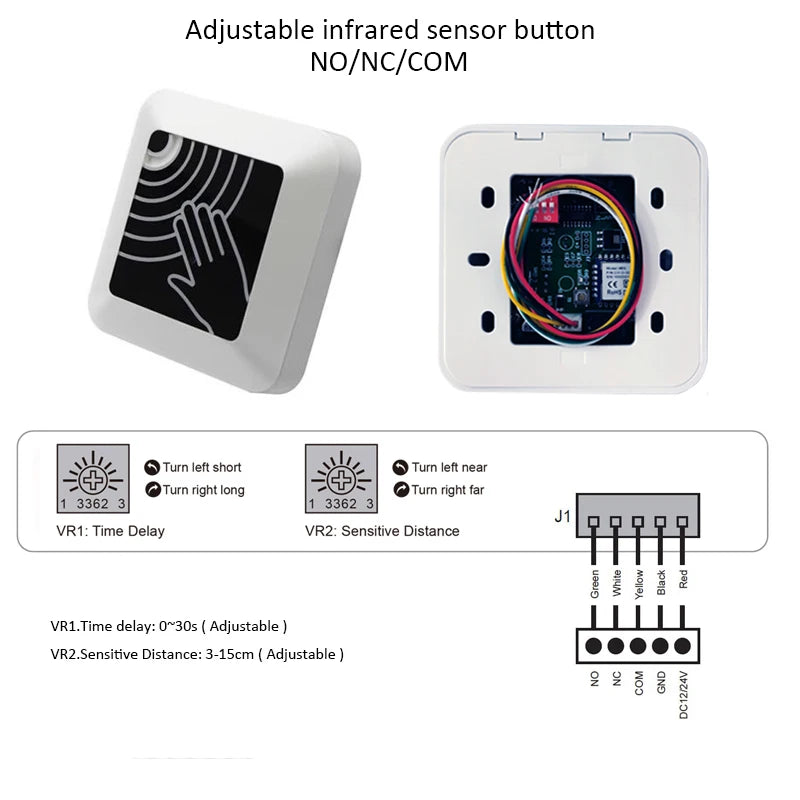

- Adjustable Time Delay: Set the output relay time delay from 0 to 30 seconds to suit your access control needs.
- Universal Compatibility: Supports NO / NC / COM output contact configurations — works with virtually any door lock, gate, or access automation system.
- Wide Input Voltage Range: Accepts DC 12V–24V input, making it compatible with most standard access control power supplies.

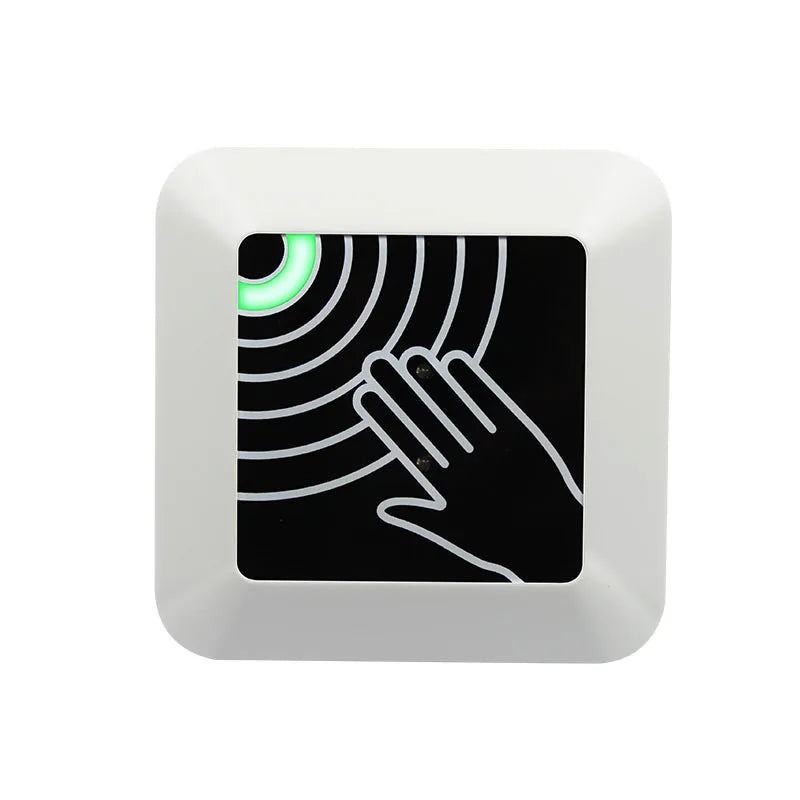

- Clear LED Status Indicators: Red LED = standby; Green LED = visitor/hand detected. Always know the system status at a glance.
- Durable Plastic Construction: Built from tough, impact-resistant plastic for long-lasting daily use.
- Surface Installation: Easy surface-mount design — no deep wall recessing needed. Standard 86 × 86 mm footprint fits most standard wall plate boxes.
Technical Specifications
| Brand | Ximiir |
| Model | EI10 |
| Input Voltage | DC 12V – 24V |
| Contact Rating | 3A @ 36V DC Max |
| Output Contact | NO / NC / COM |
| Sensing Distance | 3 – 15 cm (adjustable) |
| Time Delay | 0 – 30 seconds (adjustable) |
| Operating Temperature | 0°C – 50°C (32°F – 122°F) |
| Material | Plastic |
| Size | 86 × 86 mm |
| LED Indication | Red (Standby) / Green (Activated) |
| App | Tuya Smart |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Office and commercial entry/exit doors
- Residential smart home door automation
- Electric gate release systems
- Hospitals, clinics, and high-hygiene environments
- Schools, warehouses, and secure facilities
Learn More About Smart Access Control
For guidance on electronic access control systems and best practices for building security, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer safety standards and product compliance information.
Frequently Asked Questions
Q: Does this touchless infrared exit button work with any door lock system?
A: Yes. The Ximiir EI10 supports NO (Normally Open), NC (Normally Closed), and COM output contacts, making it compatible with virtually all standard electric door locks, magnetic locks, electric strike locks, and gate control systems that accept a dry-contact trigger signal.
Q: How do I control this exit button with the Tuya app?
A: Simply download the Tuya Smart app on your iOS or Android device, add the device through the app's pairing process, and you'll be able to monitor and control the exit button remotely. It also includes a physical remote control for direct operation.
Q: What is the maximum sensing distance for the infrared sensor?
A: The infrared sensing distance is fully adjustable between 3 cm and 15 cm. You can fine-tune the sensitivity to avoid accidental triggers while ensuring reliable hands-free activation when needed.
Q: Is the installation process complicated?
A: No. This unit features a straightforward surface installation design with a standard 86 × 86 mm footprint. It mounts directly onto the wall surface without deep recessing, and connects to your existing DC 12V–24V access control power supply.
