Tuya Bluetooth RFID Touch Keypad Access Controller – IP66 1000 Users
Tuya Bluetooth RFID Touch Keypad Access Controller – IP66 1000 Users
Asia-Teco H2-BT Tuya Bluetooth Touch Keypad & RFID Access Control System
Take full command of your entry points with the Asia-Teco H2-BT — a feature-packed, Bluetooth-enabled touch keypad and RFID access controller powered by the Tuya Smart App. Whether you're securing a home, office, warehouse, or gate, this rugged IP66-rated device delivers flexible, smart access management for up to 1,000 users right from your smartphone.
Why Choose the Asia-Teco H2-BT?
- Tuya App Integration: Manage your access system remotely via the free Tuya Smart App on iOS or Android. Add or delete users, check entry logs, and control the door — all from your phone.

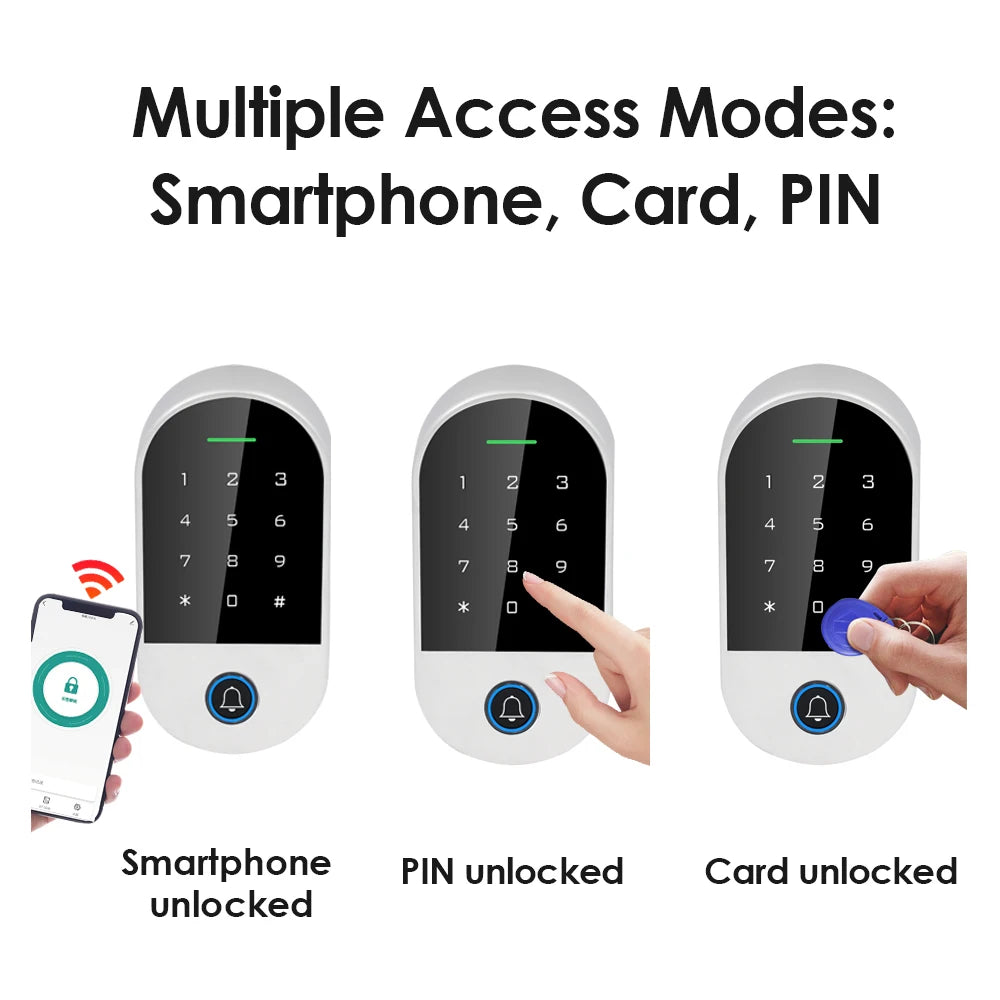

- Triple Access Modes: Grant entry via smartphone (Bluetooth), 125 kHz RFID card (EM Card or Mifare Card), or PIN code — choose the method that suits each user.
- 1,000-User Capacity: Supports up to 1,000 total users (988 common users, 10 visitor users, and 2 panic users), making it ideal for small businesses, multi-tenant buildings, and larger facilities.
- IP66 Weatherproof Rating: Fully protected against dust and powerful water jets — built for reliable outdoor installation in all weather conditions.
- Anti-Vandal Metal Housing: The robust metal enclosure resists tampering and physical impact, ensuring long-term durability in high-traffic areas.
- Adjustable Relay Output: Configure the relay output duration from 0 to 99 seconds (5-second default) to match your door hardware requirements.
- Wide Operating Temperature: Functions dependably from -40°C to 60°C (-40°F to 140°F), suitable for extreme climates.
- Gateway Support: Extend connectivity and integrate with Tuya-compatible smart home or building automation ecosystems via a supported gateway.
- Entry Log Tracking: Easily check opening records through the Tuya app to monitor who entered and when.
Technical Specifications
| Model | H2-BT |
| Brand | Asia-Teco |
| Operating Voltage | 12–28V AC/DC |
| Active Current | ≤ 150mA |
| Relay Output Time | 0–99 Seconds (5s default) |
| User Capacity | 1,000 (988 Common / 10 Visitor / 2 Panic) |
| RFID Frequency | 125 kHz (EM Card / Mifare Card) |
| Read Range | 2–6 cm |
| IP Rating | IP66 (Waterproof & Dustproof) |
| Dimensions | 145 × 68 × 25 mm |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| App Compatibility | Tuya Smart (iOS & Android) |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × Asia-Teco H2-BT Bluetooth Tuya Touch Keypad & RFID Access Controller
- Mounting hardware & wiring accessories
Learn More About Access Control Standards
For guidance on physical security best practices for businesses and facilities, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does the Asia-Teco H2-BT Tuya keypad work with both iOS and Android smartphones?
A: Yes. The H2-BT is fully compatible with both iOS and Android devices via the free Tuya Smart App. Simply download the app, pair the keypad over Bluetooth, and manage all users and settings directly from your phone.
Q: How many users can the H2-BT RFID access controller support?
A: The H2-BT supports up to 1,000 users in total — including 988 common users, 10 visitor users, and 2 panic users. Users can be added or removed easily through the Tuya app without any manual programming.
Q: Is the H2-BT suitable for outdoor installation?
A: Absolutely. The H2-BT meets the IP66 weatherproof standard, meaning it is fully protected against dust ingress and powerful water jets. Its anti-vandal metal housing also makes it resistant to tampering, making it an excellent choice for outdoor gates, doors, and entrances exposed to the elements.
Q: What RFID card types are compatible with this access keypad?
A: The H2-BT operates at 125 kHz and is compatible with EM Cards (EM4100 type) and Mifare Cards. The read range is approximately 2–6 cm from the reader surface.
Q: Can I check a log of who has entered using the Tuya app?
A: Yes. The Tuya Smart App allows you to view a full opening record log, showing you which user accessed the door and at what time — great for monitoring entry activity remotely.
