Tuya Bluetooth RFID Keypad Door Access Control System IP67
Tuya Bluetooth RFID Keypad Door Access Control System IP67

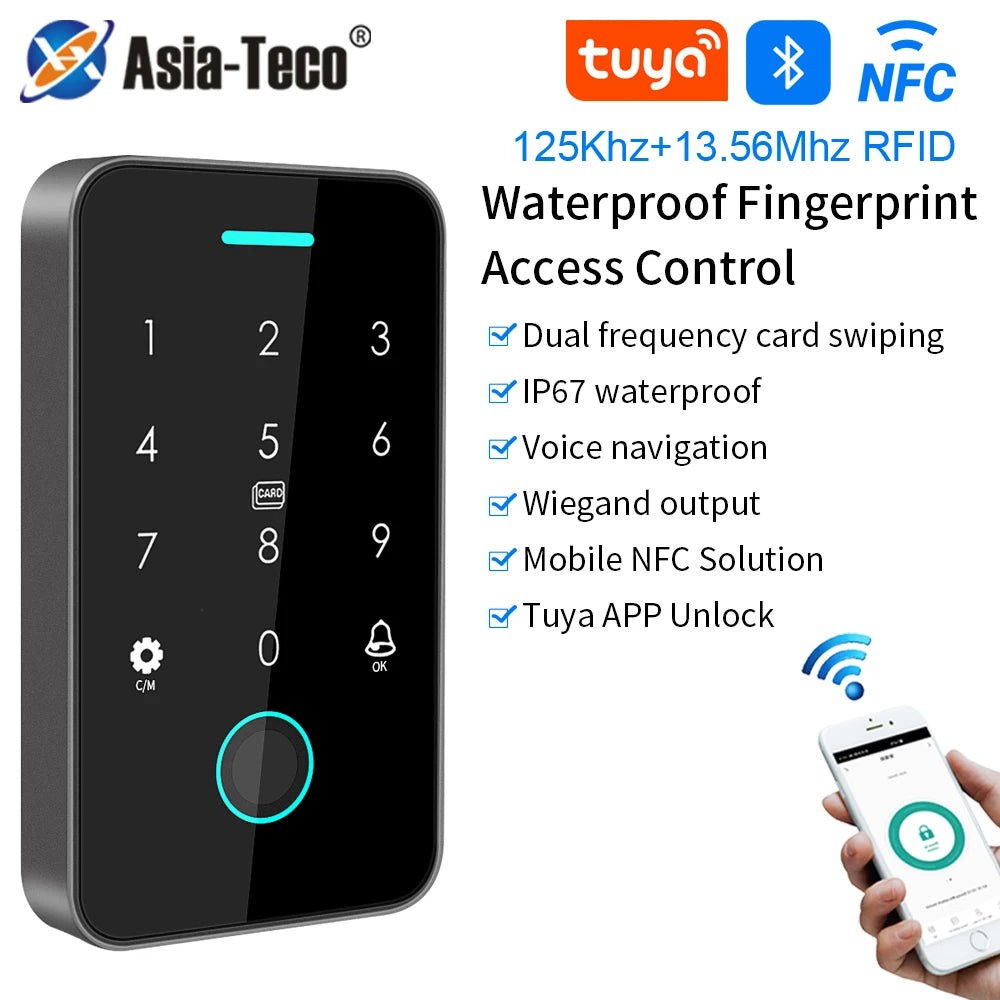

Tuya Bluetooth RFID Keypad Door Access Control System — IP67 Waterproof
Take full control of who enters your property with this advanced Tuya Smart door access control system. Featuring a 13.56 MHz / 125 kHz dual-frequency RFID card reader, backlit touch keypad, Bluetooth connectivity, and seamless Tuya App integration, this standalone controller delivers professional-grade security for residential communities, office buildings, and commercial properties — all in a rugged IP67 waterproof housing.
Made in Mainland China.
Key Features
- Multiple Entry Methods: RFID card, PIN code, password, or the Tuya mobile app — giving users and administrators maximum flexibility.
- Dual-Frequency RFID: Compatible with both 13.56 MHz (MF/NFC) and 125 kHz (EM) card types for broad compatibility.
- Tuya App & Bluetooth Control: Manage access, add/delete users, and monitor entry events remotely via the free Tuya Smart app. Also supports optional USB Tuya Wi-Fi gateway for extended remote management.
- Large User Capacity: Stores up to 1,000 users and 1,000 PIN codes, plus 100 fingerprint records.
- Ultra-Fast Response: Card recognition in under 0.1 seconds for smooth, uninterrupted entry flow.
- Backlit Touch Keypad: Easy-to-use illuminated keypad ensures reliable operation day or night.

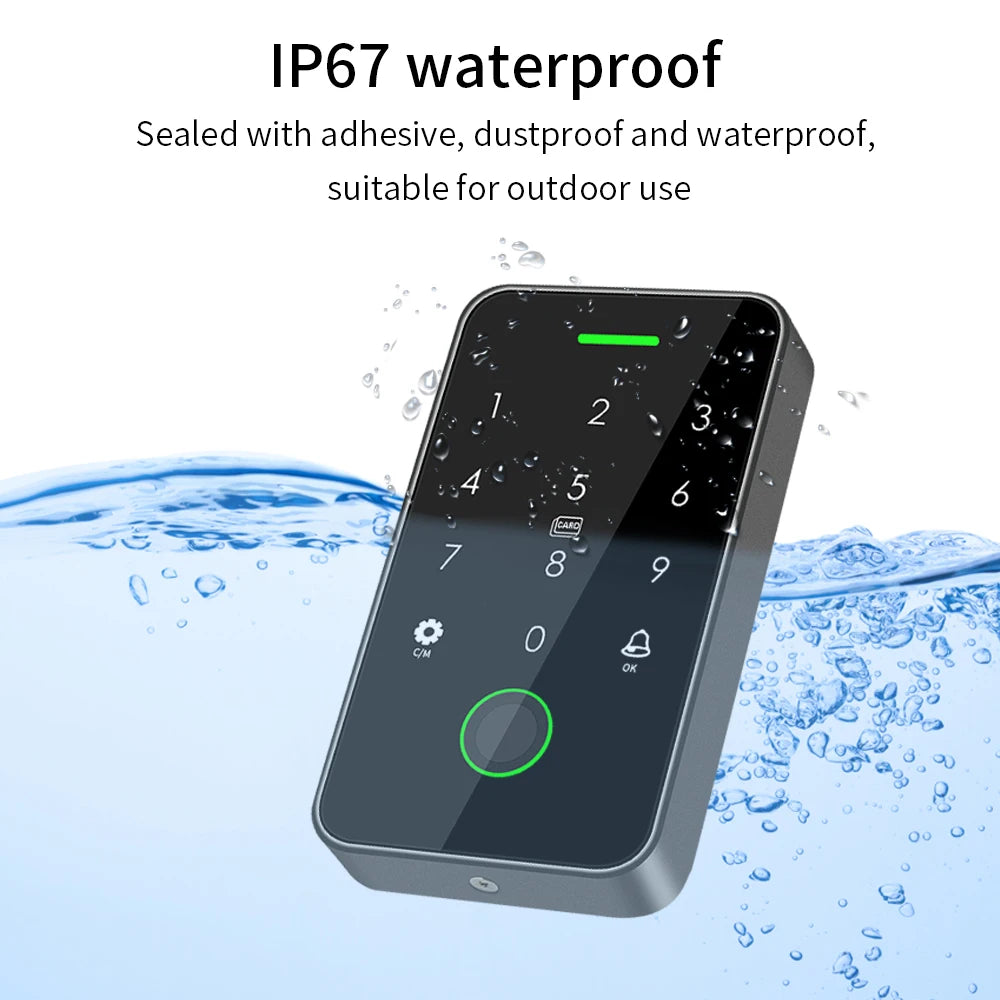

- IP67 Waterproof & Weatherproof: Rated IP67, this controller is built to withstand outdoor environments, rain, and dust.
- Wiegand Output (WG34): Can be used as a card reader connected to an existing access control board — ideal for system integrations.
- Doorbell Interface: Supports an external wired doorbell for added convenience.
- Ultra-Low Power: Standby current under 30 mA, keeping operating costs minimal.
- Fail-Safe Security Mode: Designed to maintain security integrity even during power interruptions.
- User Self-Service Codes: Individual users can update their own PIN codes independently.
Specifications
| Brand | Asia-Teco |
| Model | SF2-EM/MF-W |
| RFID Frequency | 13.56 MHz / 125 kHz |
| Power Supply | DC 12V |
| Waterproof Rating | IP67 |
| User Capacity | 1,000 users / 1,000 PIN codes / 100 fingerprints |
| Connectivity | Bluetooth + optional Tuya Wi-Fi Gateway (USB) |
| Smart Platform | Tuya Smart |
| Wiegand Output | WG34 |
| Security Mode | Fail Safe |
| Standby Current | < 30 mA |
| Country of Origin | Mainland China |
NFC Note: NFC mobile entry is supported on most Android devices. iPhone compatibility is limited to select models — please verify NFC support for your specific iPhone before purchasing.
Ideal Applications
- Residential apartment buildings & gated communities
- Office buildings & commercial premises
- Co-working spaces & shared facilities
- Warehouses & storage facilities
- Any location requiring secure, managed entry control
For more information on electronic security standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What entry methods does the Tuya RFID access control system support?
A: This system supports four entry methods: RFID card (13.56 MHz or 125 kHz), PIN/password code, fingerprint (up to 100 records), and the Tuya Smart mobile app via Bluetooth. An optional USB Tuya Wi-Fi gateway also enables full remote management from anywhere.
Q: Is this door access controller suitable for outdoor installation?
A: Yes. The controller is rated IP67 waterproof, meaning it is fully protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. It is well-suited for outdoor gates, building entrances, and other exposed environments.
Q: How many users can this access control system manage?
A: The system supports a capacity of 1,000 individual users, 1,000 unique PIN codes, and 100 fingerprint records — making it scalable for both small offices and larger residential communities.
Q: Can this controller be integrated with an existing access control board?
A: Yes. The device features a Wiegand WG34 output, which allows it to function as a standalone reader connected to a compatible third-party access control board, making it easy to integrate into existing security infrastructures.
