Smart Fingerprint Time Clock with Tuya App & RFID Access Control
Take full control of employee attendance and door access with the Asia-Teco HY-F601S-ID-TUYA — a powerful all-in-one time clock and access control terminal. Whether you're managing a small office, warehouse, or retail team, this device combines fingerprint recognition, 125KHz RFID card reading, PIN keypad entry, and remote management via the Tuya Smart App into a single sleek unit.
Key Features
- 4-in-1 Entry Methods: Fingerprint, 125KHz RFID card, PIN code, or remote unlock via the Tuya App — flexible access for every employee scenario.

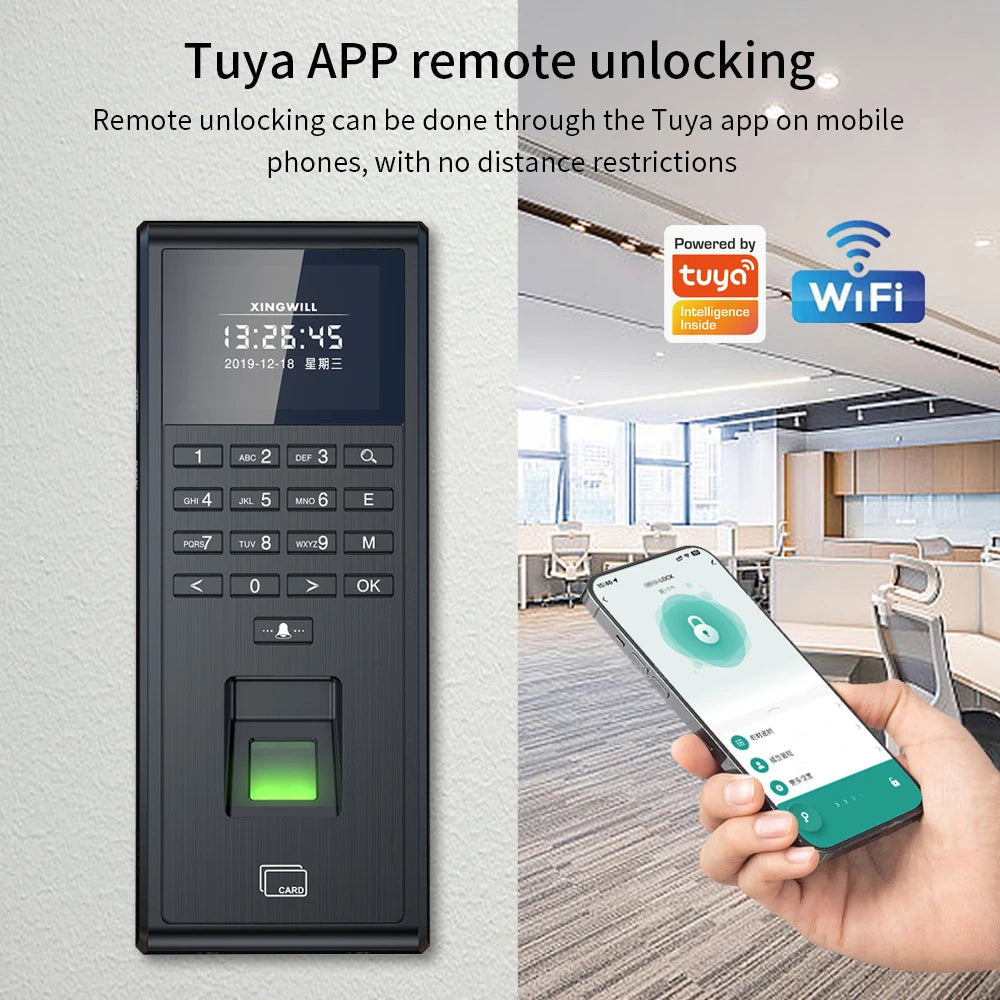

- Tuya Smart App Integration: Open the door remotely, monitor access events, and manage users from anywhere using the free Tuya App on iOS or Android.

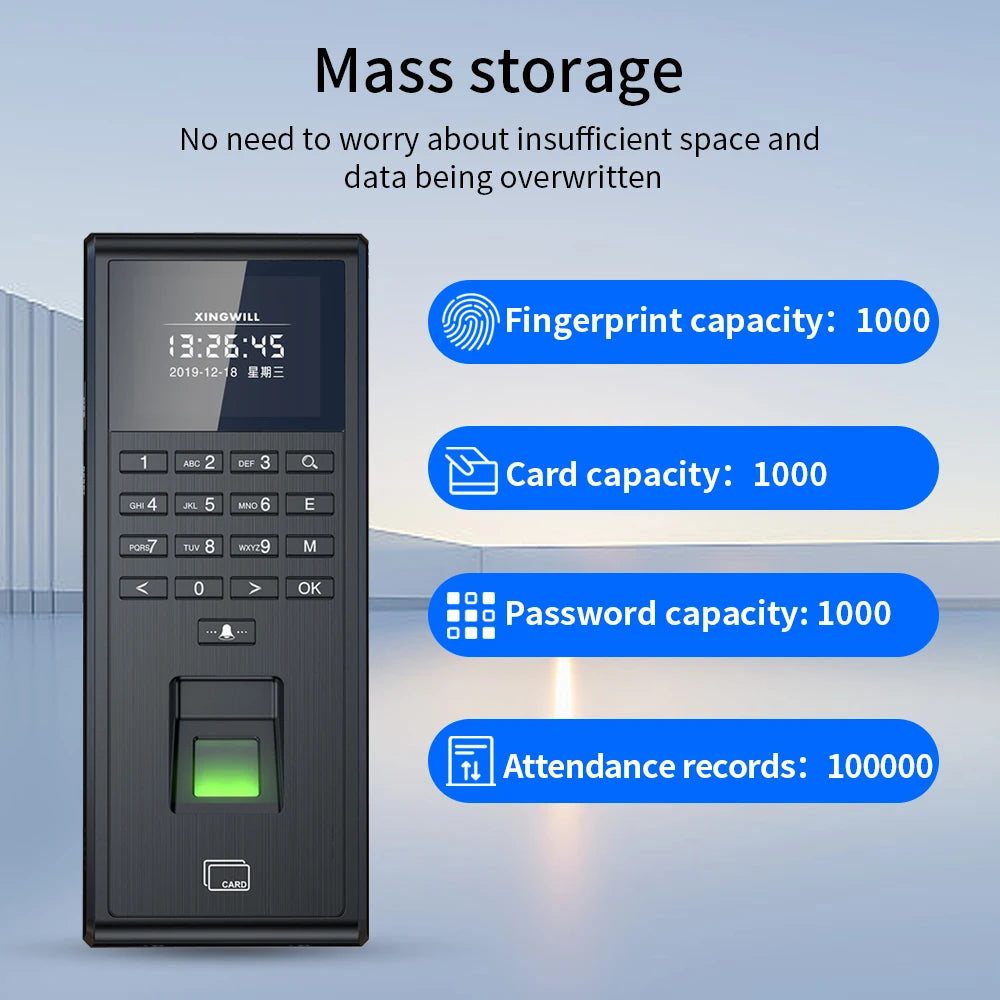

- High-Capacity Storage: Stores up to 1,000 fingerprints, 1,000 RFID cards, 1,000 PIN codes, and logs up to 100,000 attendance records.

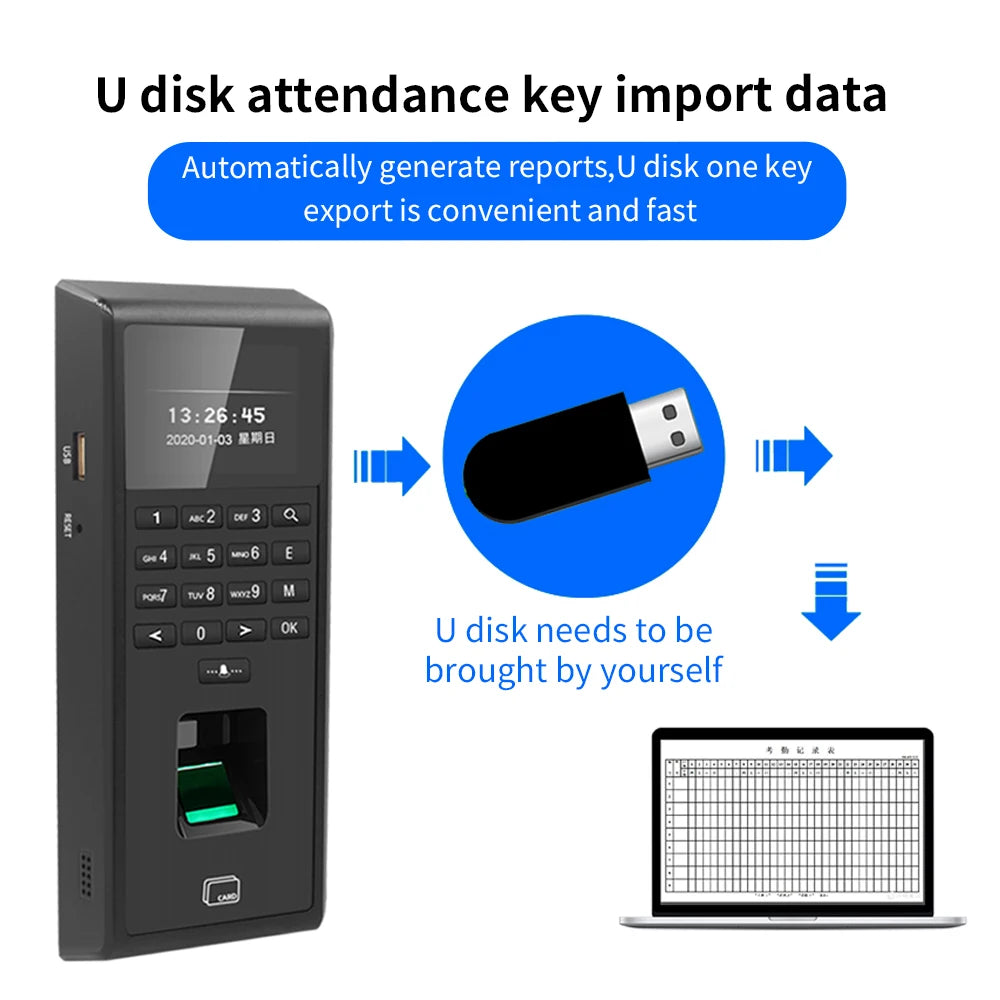

- USB Attendance Export: Quickly export attendance data via the USB port for seamless payroll and HR reporting.
- Wiegand Output: Functions as a standalone Wiegand reader, making it compatible with a wide range of existing access control systems.
- External Doorbell Support: Built-in doorbell output connects directly to a wired doorbell for visitor notification.
- 17-Key Backlit Keypad: 10 numeric keys, 6 function keys, and 1 dedicated doorbell key for easy navigation.
- Holiday & Record Query: Built-in holiday scheduling and instant attendance record lookup directly on the device.
- Wide Operating Range: Designed for indoor and outdoor installations — operates reliably from -20°C to 50°C.
- Multilingual Interface: Supports both English and Chinese display languages.
Specifications
| Model | HY-F601S-ID-TUYA |
| Power Supply | DC 12V 1A |
| Current Draw | <350mA |
| Fingerprint Capacity | 1,000 |
| Card Capacity | 1,000 (125KHz EM Card) |
| PIN Code Capacity | 1,000 |
| Log / Travel Record Capacity | 100,000 |
| Screen Size | 2 inch |
| Communication | USB, Tuya (Wi-Fi) |
| Interfaces | Lock Control, Exit Button, Alarm Output, Wiegand, USB |
| Machine Dimensions | 8cm × 20cm × 2.8cm |
| Net Weight | 255.9g |
| Operating Temperature | -20°C to 50°C |
| Humidity | 10%–85% RH |
| Languages | English, Chinese |
| Country of Origin | Made in Mainland China |
What's in the Box
The unit ships ready for installation. Please ensure you have a compatible DC 12V 1A power supply and the appropriate mounting hardware for your installation surface.
Why Choose This Time Clock?
Traditional punch-card or PIN-only systems are easy to abuse with "buddy punching." The Asia-Teco fingerprint time clock eliminates this problem by tying each check-in to a unique biometric identity. Combined with Tuya App remote access and USB data export, it streamlines attendance tracking for businesses of all sizes — with no monthly subscription required for core functions.
For guidance on workplace timekeeping compliance and best practices, visit the U.S. Consumer Product Safety Commission (CPSC) and the NIST Biometrics Resource Center for information on biometric standards and security.
Frequently Asked Questions
Q: Does this fingerprint time clock require a subscription or cloud service fee?
A: No ongoing subscription is required for basic attendance and access control functions. The Tuya App is free to download and use for remote door unlocking and user management. Attendance records can also be exported locally via the USB port without any cloud dependency.
Q: What RFID card frequency does this device support?
A: This time clock supports 125KHz EM cards (also known as EM4100 or compatible format cards). It does not support 13.56MHz Mifare cards. Up to 1,000 RFID cards can be enrolled in the system.
Q: Can this device be integrated with an existing access control system?
A: Yes. The unit features Wiegand output, which allows it to function as a Wiegand card/fingerprint reader compatible with most third-party access control panels. It also includes Lock Control, Exit Button, and Alarm Output interfaces for a complete door access setup.
Q: How do I export attendance records from the device?
A: Attendance data can be exported directly via the built-in USB port. Simply insert a USB drive and follow the on-screen prompts to download up to 100,000 attendance records for use in payroll or HR management software.
Q: Is the Tuya App compatible with both iOS and Android?
A: Yes. The Tuya Smart App is available for free on both the Apple App Store (iOS) and Google Play Store (Android). Once connected, you can remotely unlock the door, manage enrolled users, and receive access notifications from anywhere with an internet connection.
