Tuya App Fingerprint Time Clock & RFID Access Control Terminal
Tuya App Fingerprint Time Clock & RFID Access Control Terminal
Smart Fingerprint Time Clock & Access Control System with Tuya App
Take full control of your workplace entry and employee attendance with the Asia-Teco HY-F601S-ID-TUYA — a powerful all-in-one access control and time attendance terminal. Whether you're managing a small business, office, or retail space, this compact yet feature-rich device delivers four flexible authentication methods, seamless Tuya App connectivity, and a massive log capacity to keep your records organized and accurate.
Made in Mainland China.
Why Choose This Time Attendance Terminal?

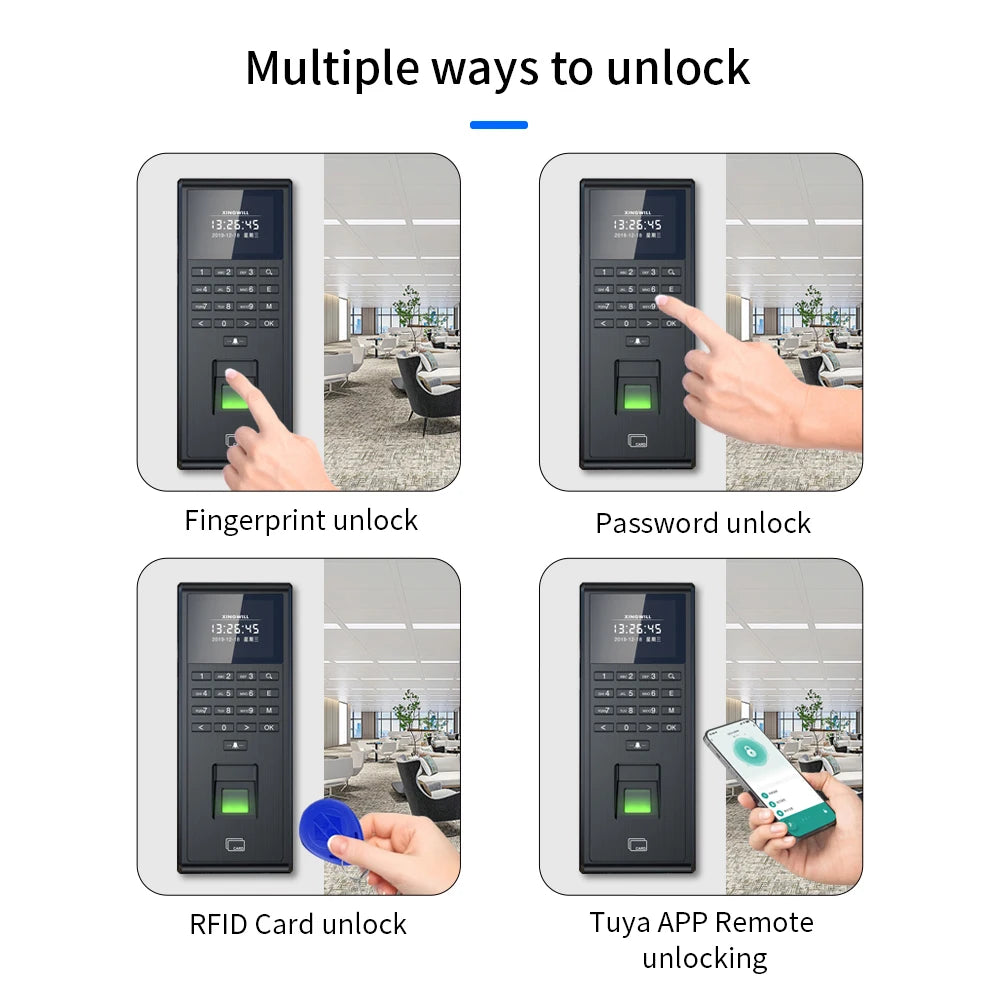

- 4-in-1 Authentication: Verify entry via fingerprint scan, 125KHz RFID card, PIN/password, or remotely through the Tuya App — giving your team maximum flexibility.
- Tuya App Remote Access: Open the door and manage settings from anywhere using the Tuya smartphone app — perfect for managers who need remote oversight.

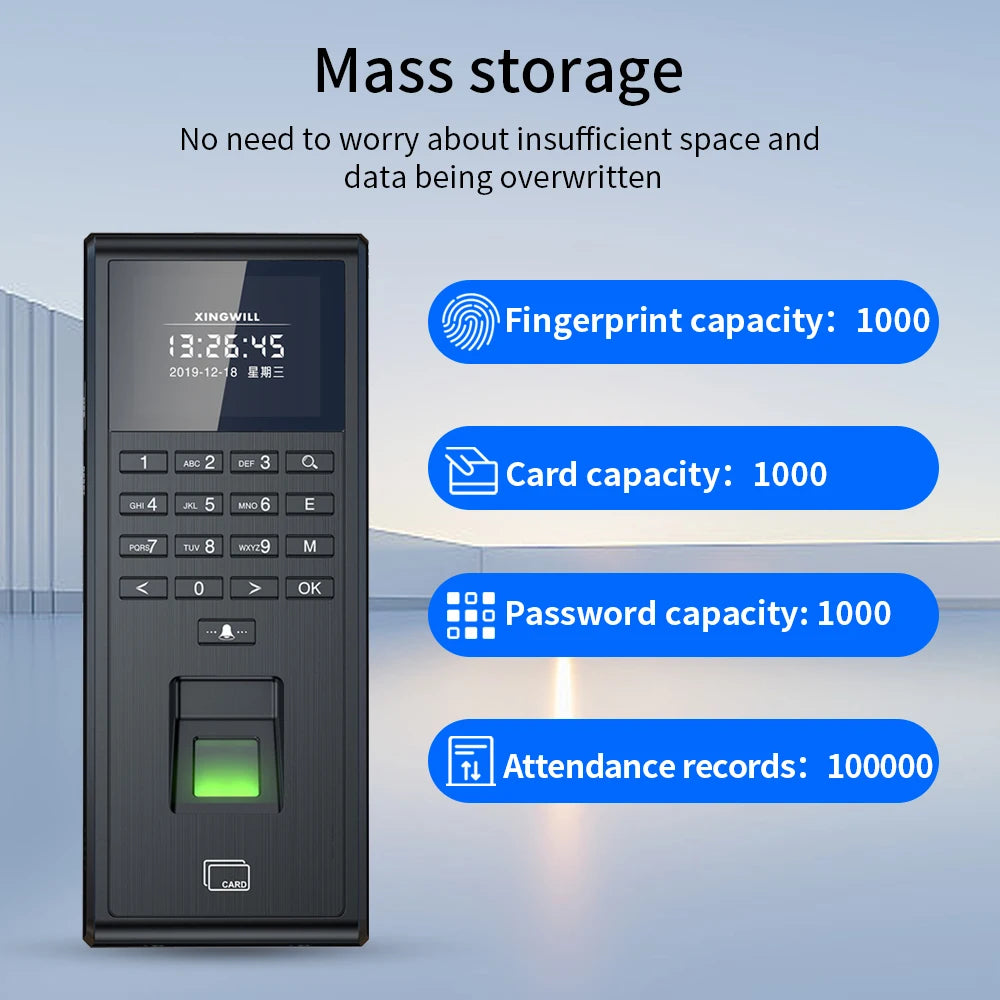

- Large Storage Capacity: Stores up to 1,000 users, 1,000 fingerprints, 1,000 RFID cards, 1,000 passwords, 30,000 management records, and up to 100,000 travel/attendance logs.

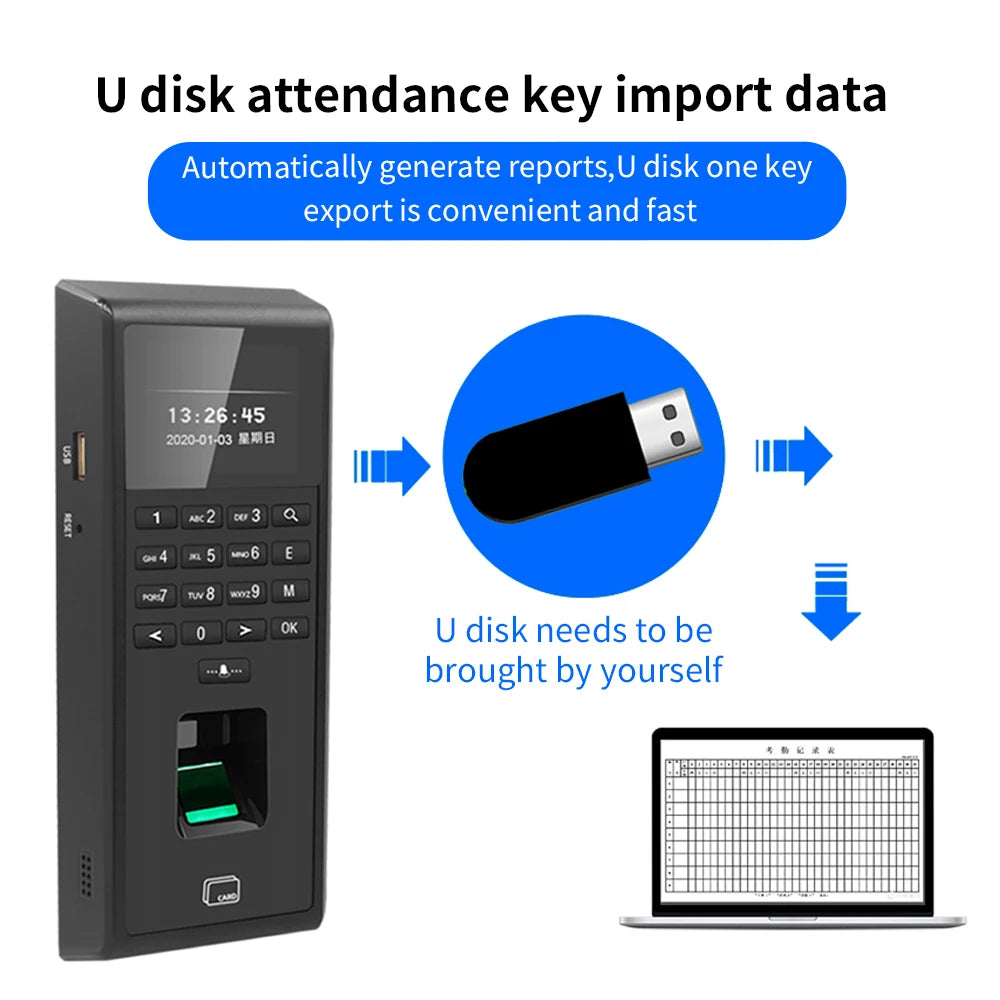

- USB Attendance Export: Quickly export attendance records via the USB port for payroll processing, audits, or HR reporting — no complicated software required.
- Wiegand Output: Functions as a standalone Wiegand reader, making it easy to integrate with existing access control infrastructure.
- External Doorbell Support: Connect a wired doorbell directly to the unit for a complete front-door solution.
- Holiday & Record Query Features: Built-in holiday scheduling and on-device record queries streamline attendance management.
- Wide Operating Range: Operates reliably in temperatures from -20°C to 50°C and humidity from 10% to 85% — suitable for a variety of environments.
Key Specifications
| Model | HY-F601S-ID-TUYA |
| Power Supply | DC 12V 1A |
| Current Draw | <350mA |
| Screen Size | 2-inch display |
| Machine Size | 8cm × 20cm × 2.8cm |
| Net Weight | 255.9g |
| User Capacity | 1,000 users |
| Fingerprint Capacity | 1,000 |
| Card Capacity | 1,000 (125KHz EM Cards) |
| Password Capacity | 1,000 |
| Log Capacity | 30,000 management + 100,000 travel records |
| Keyboard | 10 numeric keys, 6 function keys, 1 doorbell key |
| Interfaces | Lock Control, Exit Button, Alarm Output, Wiegand, USB |
| Communication | USB, Tuya (Wi-Fi) |
| Languages | Chinese & English (multi-language) |
| Working Temperature | -20°C to 50°C |
| Humidity | 10%–85% |
| Country of Origin | Mainland China |
What's in the Box?
- 1× Asia-Teco HY-F601S-ID-TUYA Fingerprint Access Control & Time Clock Terminal
- Mounting hardware and accessories (as included by manufacturer)
Ideal For
- Small to medium businesses tracking employee check-in/check-out
- Offices, warehouses, retail stores, and clinics needing door access control
- Facilities requiring integration with existing Wiegand access systems
- Managers who want app-based remote door control via Tuya
For guidance on workplace security and access control best practices, visit the OSHA Workplace Safety resource.
Frequently Asked Questions
Q: How do I export attendance records from this time clock?
A: Simply plug a USB drive into the device's USB port. Attendance and time records can be exported directly to the drive, making it easy to import data into payroll or HR software on your computer — no special cables or software installation needed.
Q: Can I control the door lock remotely with this access control machine?
A: Yes! The device supports the Tuya App, which lets you remotely unlock the door and manage access settings from your smartphone, anywhere with an internet connection. This makes it ideal for managers who need off-site control.
Q: Is this fingerprint access terminal compatible with existing access control systems?
A: Yes. The unit features a Wiegand output, allowing it to function as a Wiegand card/fingerprint reader that integrates with most standard access control panels and systems already in place at your facility.
Q: How many employees can this time attendance machine support?
A: The device supports up to 1,000 users, each with their own fingerprint, RFID card, and/or password credentials. It can store up to 30,000 management records and 100,000 attendance log entries, making it well-suited for growing teams.
Q: What RFID card frequency does this device use?
A: This access control terminal reads 125KHz EM-format RFID cards — a widely used standard. Up to 1,000 cards can be enrolled in the system.
