Tuya 3-Phase Bidirectional Smart Energy Meter WiFi Zigbee Modbus
Tuya 3-Phase Bidirectional Smart Energy Meter WiFi Zigbee Modbus
Tuya WiFi/Zigbee 3-Phase Bidirectional Smart Energy Meter with Modbus RTU
Take full command of your electrical system with this advanced 3-Phase Bidirectional Smart Energy Meter. Compatible with the Tuya Smart and Smart Life apps, this WiFi/Zigbee-enabled meter delivers real-time monitoring, multi-tariff tracking, and remote relay control — all from your smartphone. Whether you're managing a commercial installation or a smart home setup, this energy meter brings professional-grade power intelligence to your fingertips.
Made in Mainland China.
Key Features
- Real-Time Phase Monitoring: Continuously tracks voltage, current, and power consumption on each of the three phases independently.

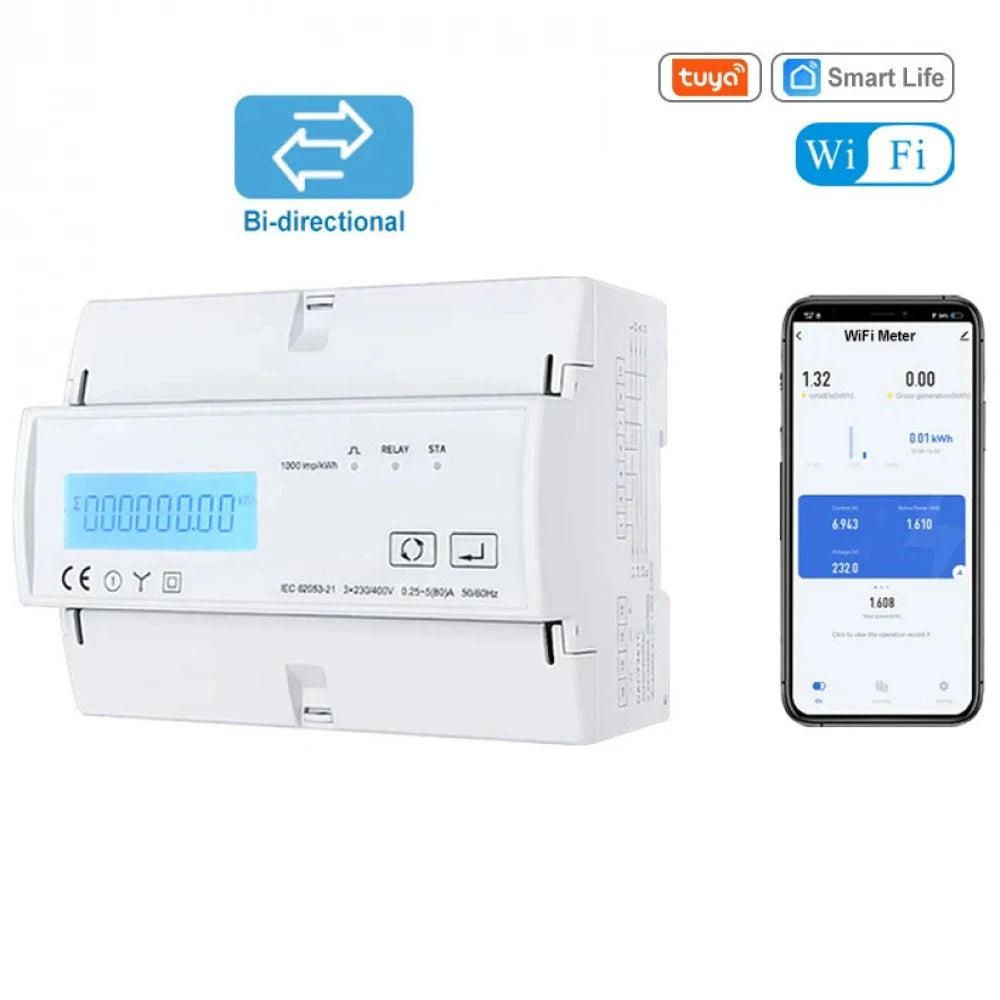

- Bidirectional Metering: Measures both imported and exported energy — ideal for solar or renewable energy setups.
- Multi-Tariff Support: Accurately logs energy usage across different rate periods for precise billing and cost analysis.
- Remote Relay Control: Switch the relay on or off remotely via the Tuya Smart or Smart Life app from anywhere in the world.
- Modbus RTU Support: Seamlessly integrates with industrial automation systems, BMS, and SCADA platforms via Modbus RTU protocol.
- Pulse Output Interface: Includes an optical coupler pulse output socket — pulse parameters are fully configurable.
- Home Automation Ready: Create smart scenes, schedules, and automation routines directly from the app.
- Power Statistics & History: Query and review historical energy consumption data at any time.

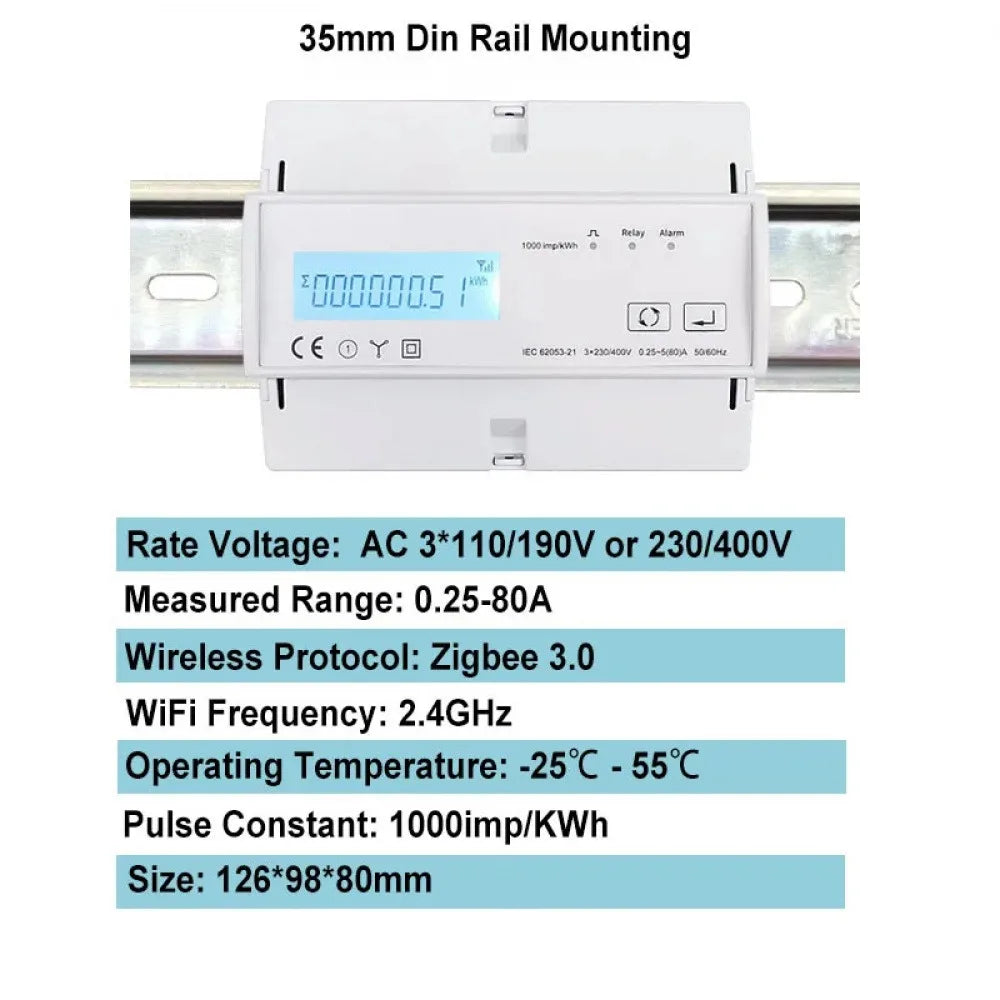

Technical Specifications
| Connectivity | WiFi / Zigbee 3.0 (2.4GHz) |
| Compatible App | Tuya Smart / Smart Life |
| Supported Current Range | 0.25A – 80A |
| Power Input | AC 3×110/190V or 230/400V |
| Protocol | Modbus RTU |
| Operating Temperature | -25°C to 55°C |

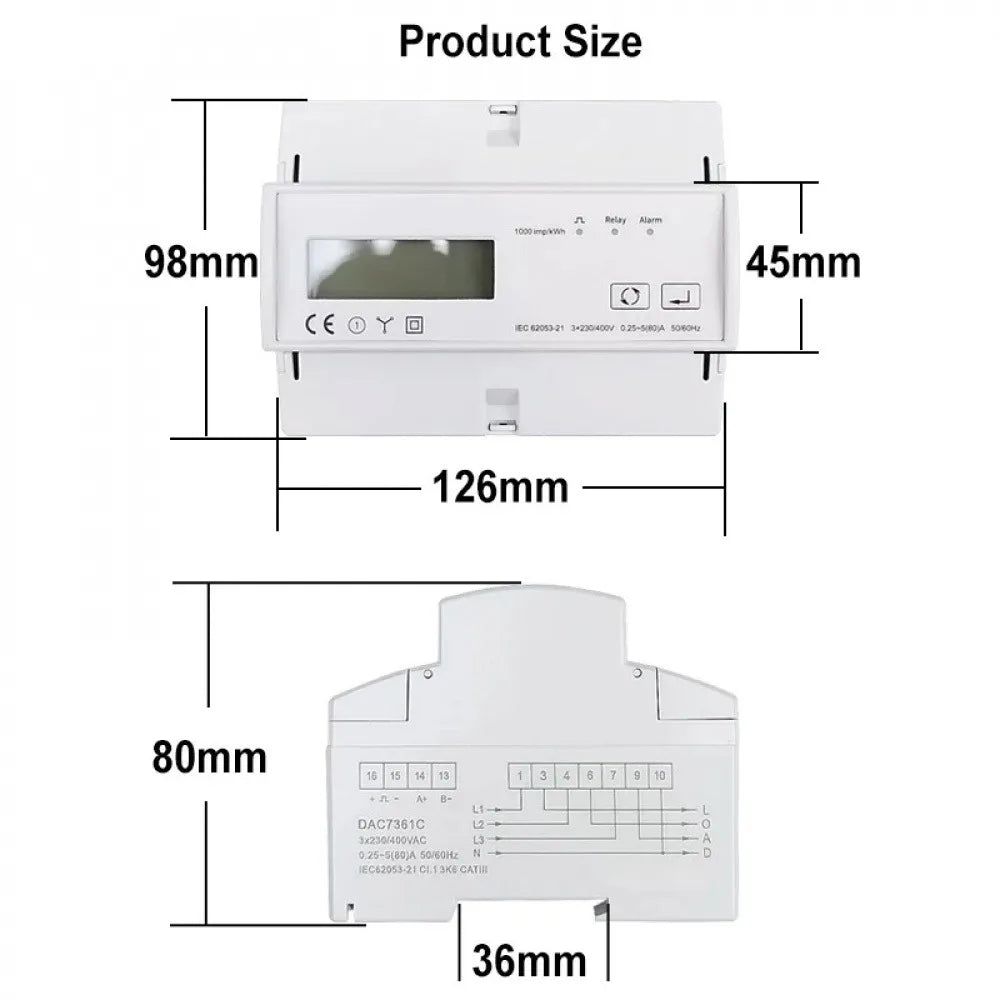

| Dimensions | 126 × 98 × 30 mm |
| Battery | Not required |
What's in the Box
- 1× 3-Phase Smart Energy Meter
Important Notes
- Due to lighting and screen variation, actual product color may differ slightly from images.
- Please allow 1mm–1cm measurement variance due to manual measurement methods.
For more information on smart energy metering standards and best practices, visit the U.S. Department of Energy – Home Energy Audits resource.
Frequently Asked Questions
Q: Does this 3-phase smart energy meter work with both WiFi and Zigbee simultaneously?
A: The meter is available in WiFi or Zigbee variants. Please select the version that matches your existing smart home infrastructure. The Zigbee version operates on the Zigbee 3.0 standard at 2.4GHz and requires a compatible Zigbee hub/gateway, while the WiFi version connects directly to your home network.
Q: Can this energy meter be used with solar or renewable energy systems?
A: Yes. Thanks to its bidirectional metering capability, this energy meter can measure both energy drawn from the grid and energy exported back to it — making it an excellent choice for properties with solar panels or other renewable energy sources.
Q: Is Modbus RTU support useful for home users, or is it mainly for commercial applications?
A: Modbus RTU is primarily used in industrial and commercial environments — such as building management systems (BMS), SCADA platforms, and energy management systems — but advanced home users and prosumers who want to integrate the meter into a local automation server (e.g., Home Assistant with RS485) can also take advantage of it.
Q: What app do I use to monitor and control this smart energy meter remotely?
A: This meter is compatible with the Tuya Smart and Smart Life apps, both available free on iOS and Android. From the app, you can view real-time data, check historical consumption, set tariff schedules, control the relay switch, and configure automation scenes.
