TTLock TTB01 WiFi Access Controller

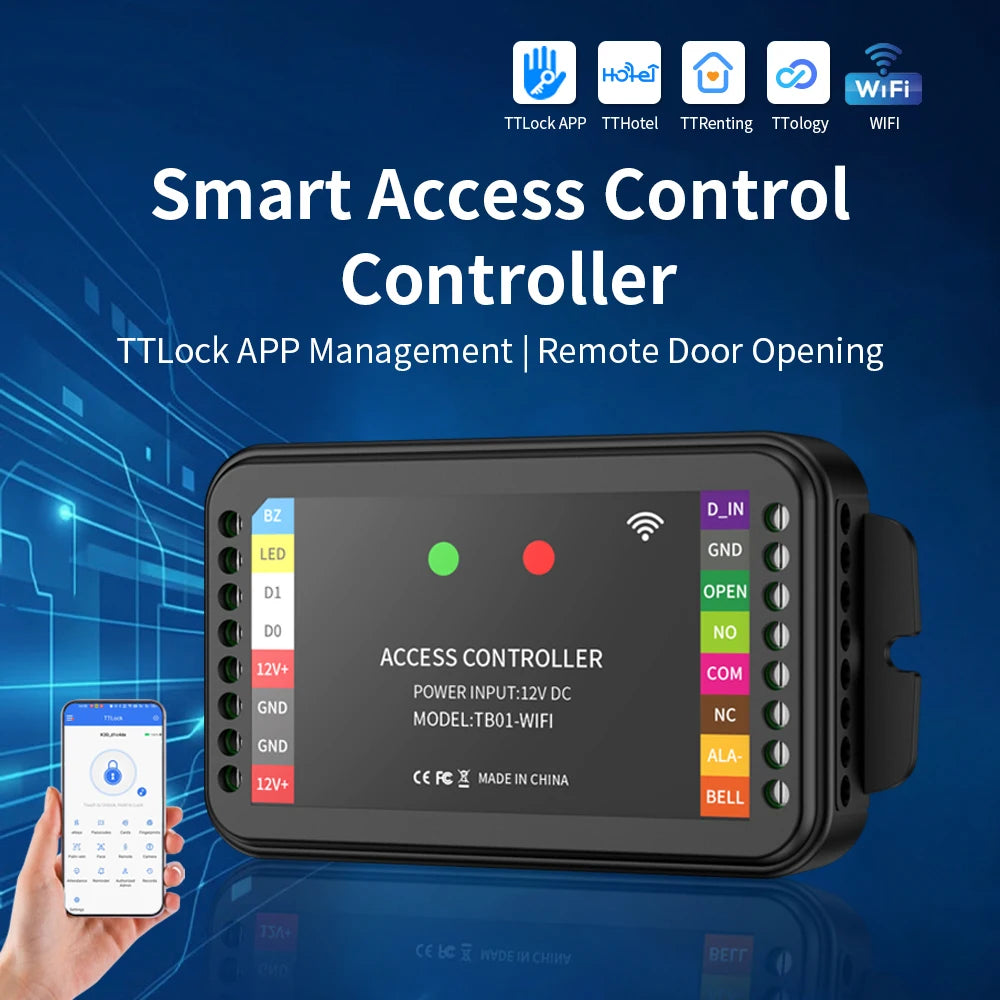

Take full command of your entry points with the TTLock TTB01 WiFi Access Controller. Combining Bluetooth and WiFi communication in a single compact unit, the TTB01 delivers flexible, cloud-connected access management for homes, offices, and commercial facilities — all from your smartphone or computer.
Key Features
- Dual Communication: Built-in WiFi and Bluetooth modules for both remote and proximity-based access control.

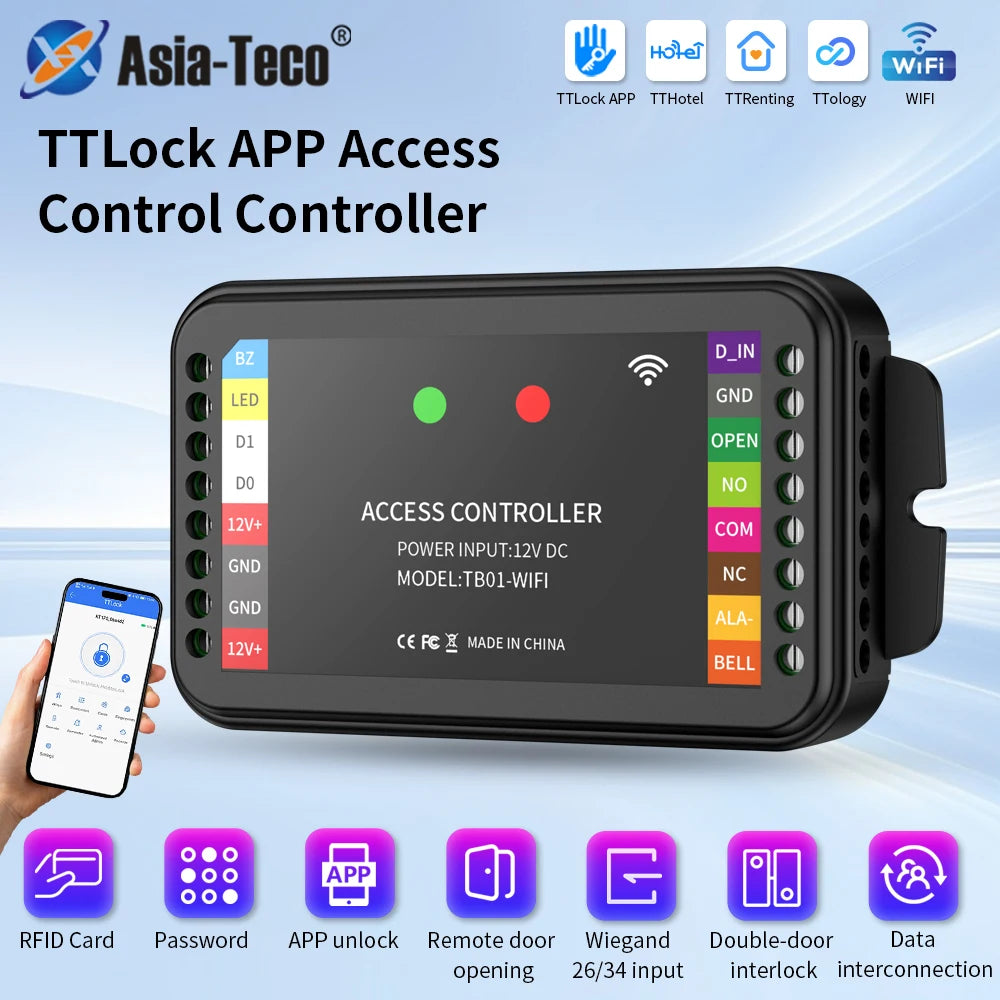

- Multiple Entry Methods: Supports TTLock APP remote unlock, Bluetooth unlock, card swipe, and password entry.
- Wiegand Interface Input: Compatible with Wiegand 26/34 for easy integration with existing card readers and peripherals.
- Large Card Capacity: Standard 2,000-card capacity with an optional upgrade to 20,000 cards — ideal for large organizations.
- Generous Password Support: Up to 250 custom and permanent passwords, plus unlimited dynamic passwords for guests or temporary access.
- Adjustable Relay Output: Configure relay output time from 0–99 seconds (default: 5 seconds) to suit your door hardware.
- Cloud-Based Management: Monitor access status and view operation records in real time via the dedicated TTLock cloud platform on any device.
- Wide Power Input: Accepts 12V–24V DC input (±20% tolerance), making it compatible with most standard access control power supplies.
- Dual Color LED Indicators: Provides instant visual feedback on system status.
- Broad Operating Range: Designed to perform reliably from -20°C to 70°C (-4°F to 158°F).

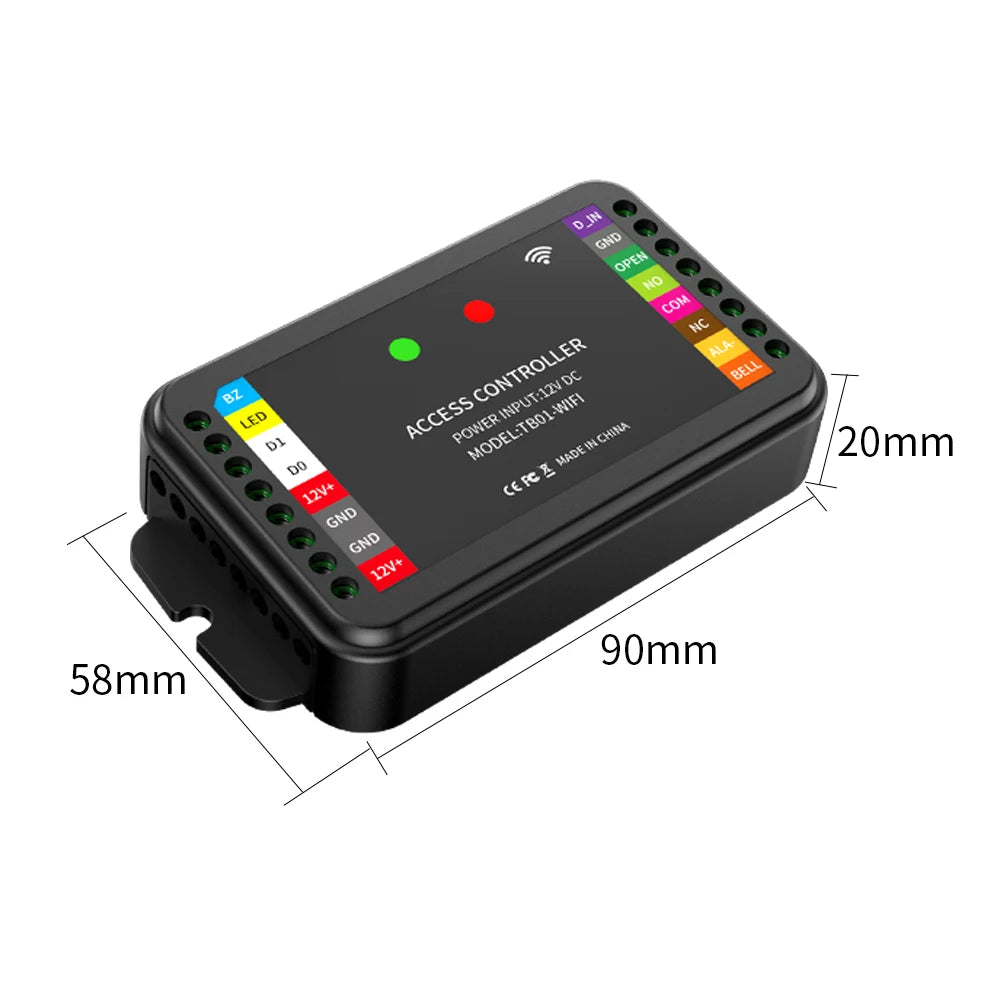

- Durable ABS Housing: Compact 90 × 58 × 20 mm enclosure built for longevity.
Specifications
| Model | TTB01 |
| Brand | Asia-Teco |
| Communication | WiFi + Bluetooth |
| Wiegand Input | Wiegand 26 / 34 |
| Card Frequency | 125 kHz / 13.56 MHz |
| Card Capacity | 2,000 (standard) / 20,000 (optional) |
| Passwords | 250 custom/permanent + Unlimited dynamic |
| Power Supply | DC 12V–24V (±20%) |
| Standby Current | ~45 mA |
| Working Current | <200 mA |
| Relay Output Time | 0–99 seconds (default 5s) |
| Bluetooth Range | Up to 10 m (open, unobstructed) |
| Operating Temperature | -20°C to 70°C |
| Dimensions | 90 × 58 × 20 mm |
| Material | ABS |
| Origin | Made in China |
Wiring Connections
The TTB01 supports relay output, exit button, alarm, door magnet, and Wiegand input connections, giving you a fully integrated access control solution right out of the box.
Cloud & App Management

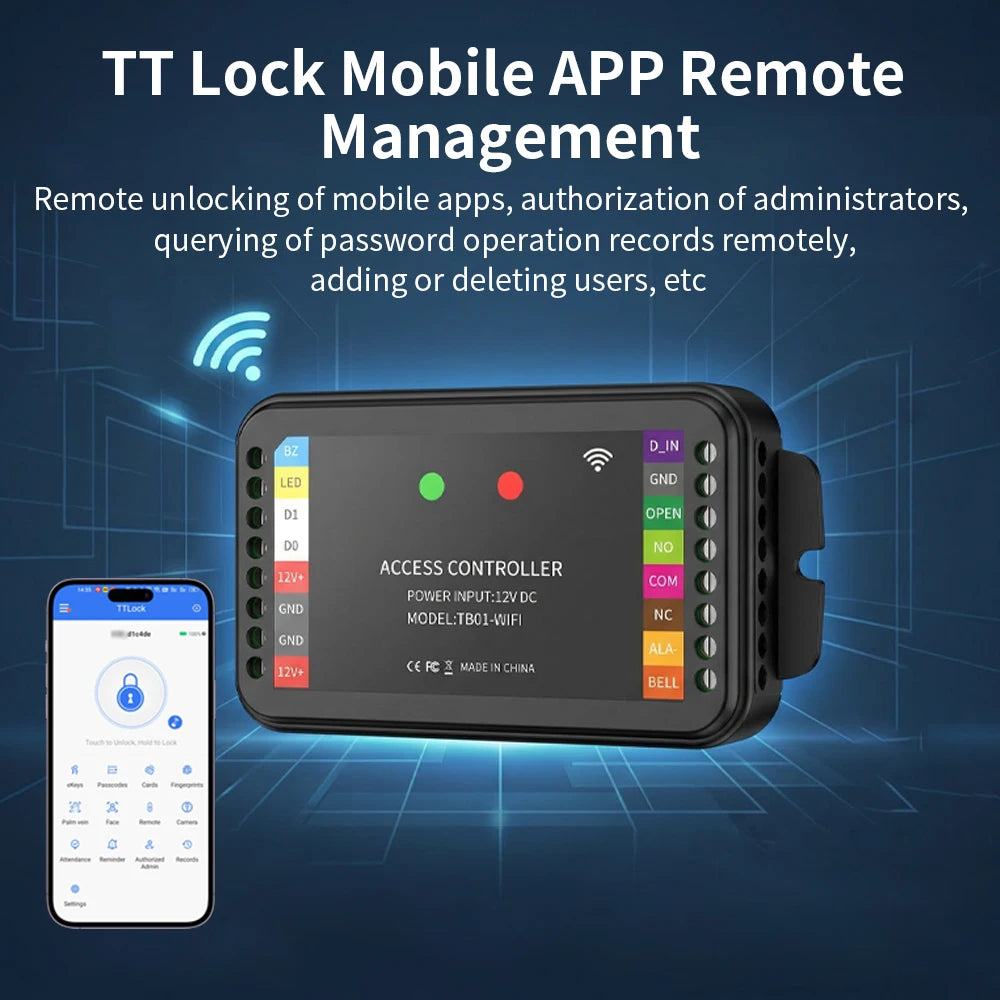

Using the TTLock app (iOS & Android) and cloud dashboard, administrators can manage user permissions, set time-limited access, view real-time door status, and query historical operation records — all remotely. Administrator-level authorization ensures granular control over who can access what and when.
For general guidance on electronic device safety and installation best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What communication methods does the TTLock TTB01 WiFi Access Controller support?
A: The TTB01 supports both WiFi and Bluetooth communication. WiFi enables remote cloud-based management and unlocking via the TTLock app, while Bluetooth allows proximity-based unlocking from a smartphone within up to 10 meters in an open, unobstructed environment.
Q: How many access cards and passwords can the TTB01 store?
A: The TTB01 comes with a standard card capacity of 2,000 cards, with an optional upgrade to 20,000 cards. It supports up to 250 custom and permanent passwords, as well as unlimited dynamic (one-time or time-limited) passwords for temporary access needs.
Q: What Wiegand standard does the TTB01 support?
A: The TTB01 is compatible with both Wiegand 26 and Wiegand 34 input protocols, allowing it to integrate seamlessly with a wide range of existing card readers and access control peripherals.
Q: What power supply does the TTB01 require?
A: The TTB01 operates on DC 12V to 24V with a ±20% voltage tolerance. This makes it compatible with the majority of standard access control power supplies. The standby current is approximately 45 mA and the working current is under 200 mA.
Q: Can I view entry logs and manage permissions remotely?
A: Yes. Through the TTLock cloud platform and mobile app, administrators can view real-time access status, query operation records, grant or revoke user permissions, and manage door access schedules from any internet-connected computer or mobile device.
