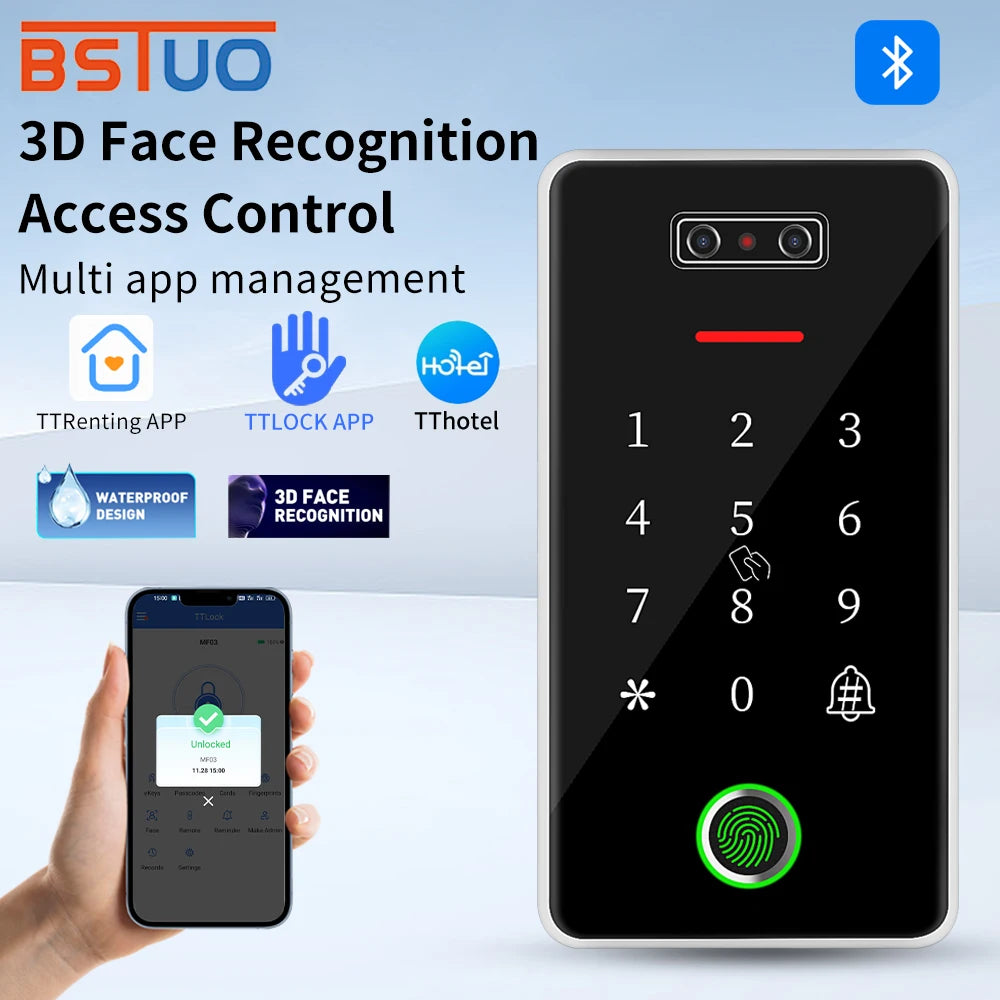

Asia-Teco MF03-TT TTlock Smart Door Lock with Face Recognition, RFID & Keypad
Upgrade your hotel, rental property, or office entrance with the Asia-Teco MF03-TT Smart Door Lock — a premium, all-in-one access control system built on the TTlock platform. Manage entry effortlessly via the TTlock App, TTRenting, or TTHotel systems, and enjoy six convenient unlocking methods: face recognition, fingerprint, RFID IC card, PIN code, app, or temporary password. Built from durable aluminum alloy with a sleek glass panel, and rated IP67 waterproof for reliable outdoor use.
Made in Mainland China.
Key Features

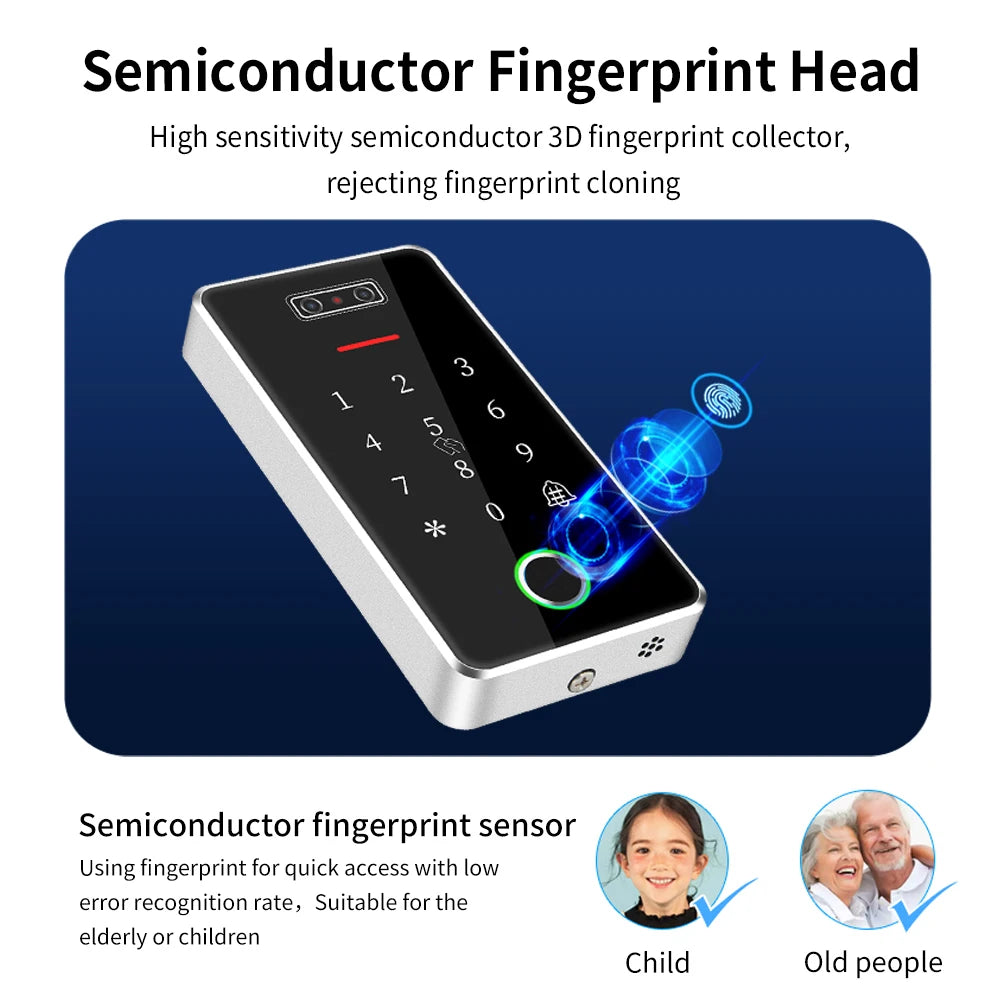

- 6-in-1 Access Methods: Face recognition, semiconductor fingerprint, M1 RFID IC card (13.56 MHz), PIN code, TTlock App, and temporary/dynamic passwords — all in one device.
- High-Capacity Storage: Supports up to 100 faces, 100 fingerprints, 1,000 IC cards, and 250 permanent/custom passwords — ideal for hotels, rentals, and offices.
- TTlock Ecosystem Integration: Compatible with TTlock App, TTRenting App, TTHotel system, and Sciener Web — perfect for short-term rental and hospitality management.
- Bluetooth 5.0 BLE: Fast, stable wireless connectivity. Add the optional G2 WiFi Gateway for full remote access and control from anywhere in the world.
- Voice Control Compatible: Works with Amazon Alexa and Google Assistant (G2 Gateway required) for hands-free convenience.

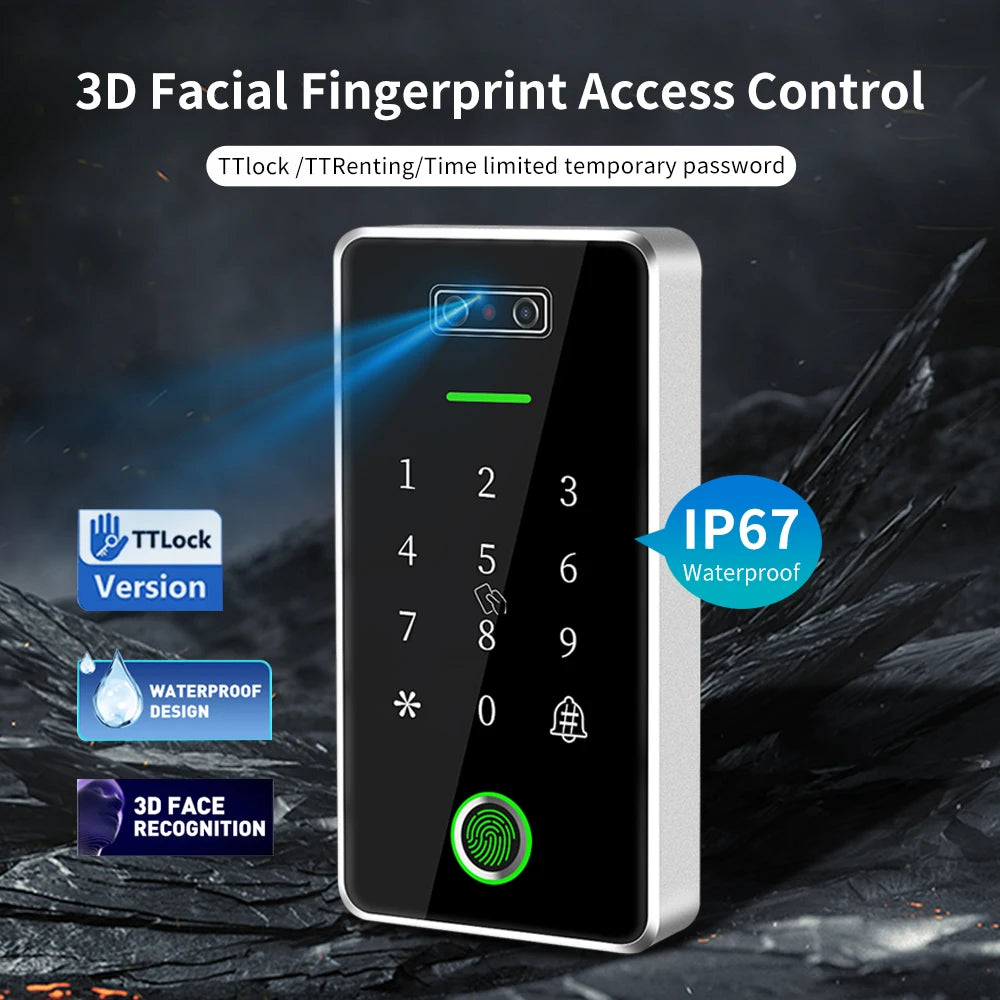

- IP67 Waterproof Rated: Engineered for outdoor installation — rain, dust, and temperature extremes from -20°C to 70°C are no match for this lock.
- Intelligent Security: Keypad auto-locks for 5 minutes after 5 incorrect entries; pseudo-passcode technology hides your real code among extra digits.
- Auto-Lock: Automatically secures the door within 5 seconds of unlocking for consistent protection.
- Time Attendance Tracking: Monitor and record employee clock-in and clock-out times directly through the app.
- Real-Time Notifications: Administrators receive instant push alerts when the lock is accessed or reset.
- Cloud-Based User Management: Add or remove users remotely; share eKeys or access codes via social messaging apps.
- Capacitive Touch Keypad: Backlit for nighttime use with manual on/off control for battery conservation.
- Fast Unlock Speed: Recognizes and grants entry in just 1.5 seconds.
Specifications
| Model | MF03-TT |
| Bluetooth | Bluetooth 5.0 BLE |
| Power Supply | DC 12V |
| Standby Current | <85mA |
| Working Current | 1A |
| Face Capacity | 100 faces |
| Fingerprint Capacity | 100 fingerprints |
| IC Card Capacity | 1,000 cards |
| Passwords | 250 permanent/custom + unlimited dynamic |
| Supported Cards | M1 card (13.56 MHz) |
| Material | Aluminum alloy / Glass panel |
| Waterproof Rating | IP67 |
| Working Temperature | -20°C to 70°C |
| Mobile OS Support | Android 4.3+ / iOS 7.0+ |
| Certification | CE |
| Origin | Mainland China |
What's in the Box
- 1x Face Recognition Access Control Unit
- 1x Fixed Mounting Bracket
- 1x Expansion Tube
- 1x Screw Set (4+1)
- 1x Hex Screwdriver
- 1x User Manual
- 1x G2 WiFi Gateway (Optional)
- 1x R1 Remote Control (Optional)
Need remote access? To control and monitor the lock from anywhere, simply add the optional G2 TTlock Bluetooth-to-WiFi Gateway to your order.
For best practices on securing commercial and residential entry systems, refer to the Cybersecurity & Infrastructure Security Agency and the NIST Cybersecurity Resources for guidance on access control and digital security standards.
Frequently Asked Questions
Q: Do I need the G2 Gateway to use the TTlock App with this smart door lock?
A: No — the lock connects directly to your smartphone via Bluetooth 5.0 BLE without the Gateway. However, if you want to unlock, monitor, or manage the lock remotely (away from Bluetooth range) or via Amazon Alexa and Google Assistant voice commands, you will need the optional G2 TTlock WiFi Gateway.
Q: Is this smart door lock suitable for outdoor use?
A: Yes. The Asia-Teco MF03-TT carries an IP67 waterproof rating, making it fully protected against dust and water immersion. It also operates reliably across a wide temperature range of -20°C to 70°C, making it ideal for outdoor entrances, hotel corridors, and commercial properties.
Q: How many users can this access control system support?
A: The MF03-TT supports up to 100 stored faces, 100 fingerprints, 1,000 RFID IC cards, 250 permanent or custom PIN codes, and an unlimited number of dynamic/temporary passwords — making it suitable for large hotels, apartment buildings, and busy office environments.
Q: Can I share access with guests or temporary visitors?
A: Absolutely. The TTlock app lets administrators share eKeys or time-limited access codes directly through messaging or social apps. Temporary passwords expire automatically, so you stay in full control of who enters and when.
Q: What platforms and apps are compatible with this smart lock?
A: This lock works with the TTlock App, TTRenting App, TTHotel system, and the Sciener Web System. It also integrates with Amazon Alexa and Google Assistant via the G2 Gateway, making it highly versatile for both personal and commercial deployments.
