TTLock K3QW WiFi Smart Access Control Keypad with QR Code & RFID
Take full command of who enters your property with the TTLock K3QW Smart Access Control Reader. Combining built-in WiFi, 13.56 MHz RFID card reading, QR code scanning, and PIN code entry into one sleek, IP67-rated unit, this keypad delivers enterprise-grade access management for homes, offices, hotels, and commercial buildings alike — all managed from the free TTLock app.
Key Features
- Multiple Unlock Methods: Open doors via the TTLock app, QR code, 13.56 MHz IC card, PIN password, remote control, temporary password, or PC terminal — total flexibility for every user scenario.
- Built-in WiFi Module: No extra gateway required for WiFi operation. Also supports Bluetooth connection via the optional G2 Bluetooth gateway.
- IP67 Waterproof Rating: Fully sealed against dust and water submersion, making it ideal for outdoor entrances, gates, and exposed installations.
- Voice Assistant Compatible: Works seamlessly with Amazon Alexa and Google Home for hands-free control.
- QR Code Visitor Sharing: Generate and share time-limited QR codes with guests, delivery personnel, or friends directly through social apps or messaging platforms.
- Time & Attendance Tracking: Built-in time attendance function logs employee clock-in records that can be downloaded and reviewed in the TTLock app.
- Large Card Capacity: Supports up to 20,000 RFID cards — suitable for large teams and high-traffic facilities.

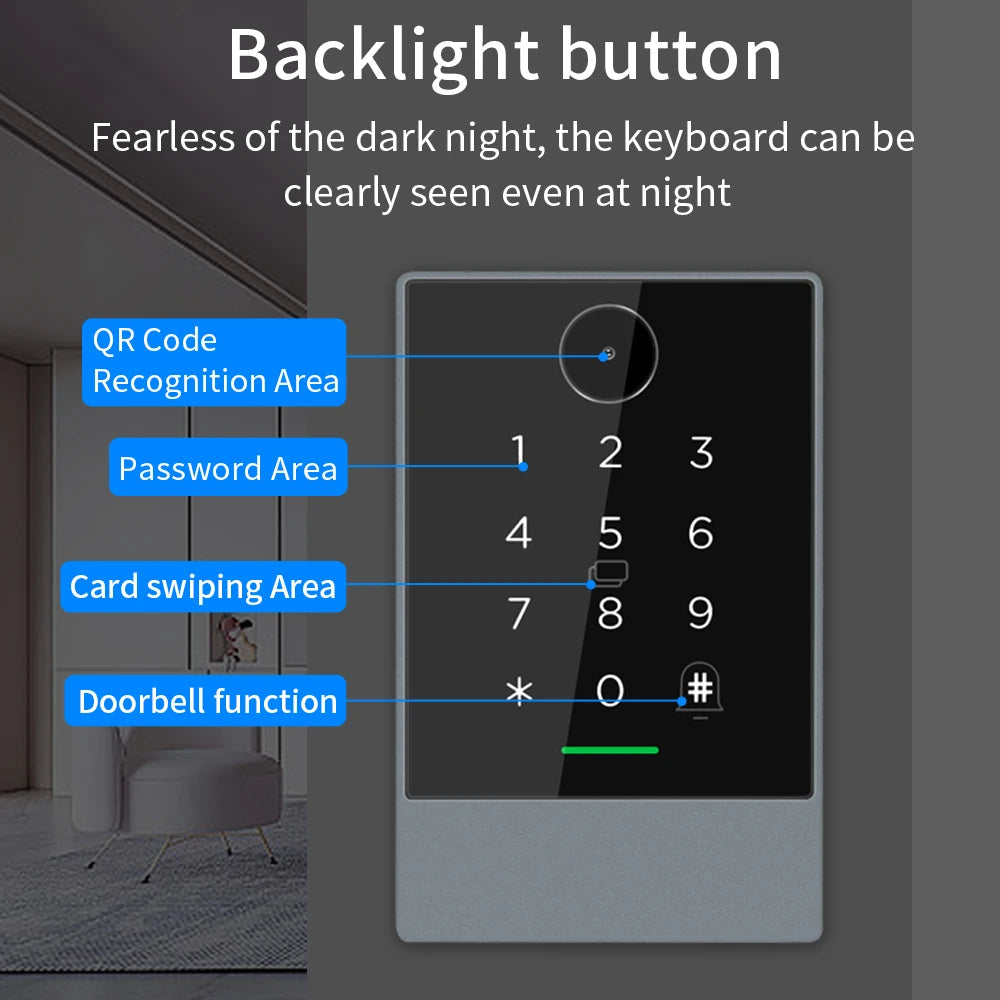

- Adjustable Backlit Keypad: Turn the keyboard backlight on or off manually to suit any environment or preference.

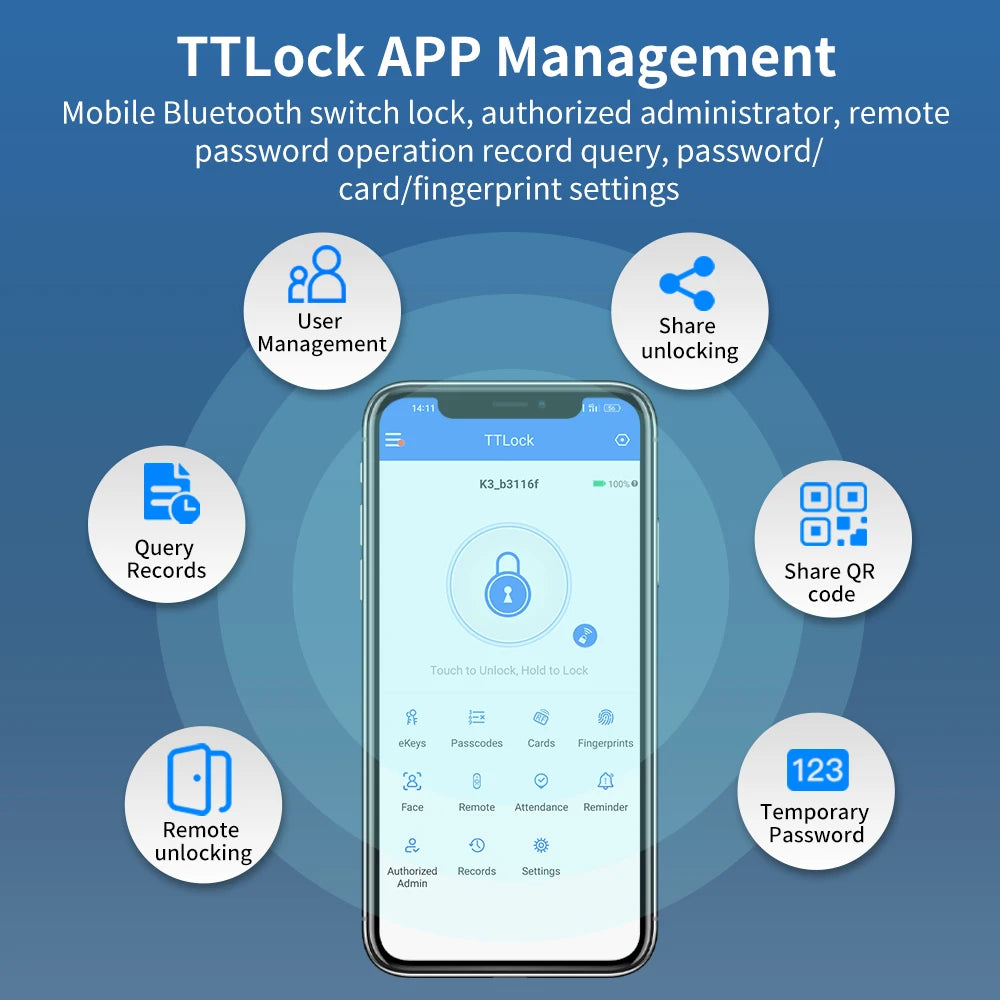

- Multi-Platform Support: Compatible with TTLock App, TTHotel, and the Sciener Web System for comprehensive access management.
- Durable Construction: Built with ABS body and an acrylic panel for long-lasting performance in demanding environments.
Specifications
- Model: K3QW
- Brand: Asia-Teco
- Card Frequency: 13.56 MHz (IC Card)
- Card Capacity: 20,000 cards
- Connectivity: Built-in WiFi; optional Bluetooth via G2 Gateway
- Waterproof Rating: IP67
- Material: ABS & Acrylic Panel
- Compatible Platforms: TTLock App, TTHotel, Sciener Web System
- Voice Control: Amazon Alexa, Google Home
- Country of Origin: Made in China
What's in the Box
- Access Control Unit × 1
- Fixed Mounting Bracket × 1
- Expansion Tube × 4
- Screws (4+1) × 1 set
- Hexagon Screwdriver × 1
- User Manual × 1
Optional Accessories: G2 Bluetooth Gateway, R1 Remote Control Key (sold separately).
For guidance on electronic security and access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does the TTLock K3QW require a separate WiFi gateway to connect to the internet?
A: No. The K3QW has a built-in WiFi module, so it connects directly to your home or office WiFi network without needing the optional G2 Bluetooth gateway. The gateway is only required if you prefer Bluetooth-based remote access.
Q: What RFID card frequency does the K3QW support?
A: The K3QW supports 13.56 MHz IC cards (such as Mifare and similar standards). It can store up to 20,000 cards, making it suitable for large offices, hotels, and commercial facilities.
Q: Is the K3QW keypad suitable for outdoor installation?
A: Yes. The K3QW carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary submersion in water. It is designed for both indoor and outdoor use, including gates, building entrances, and exposed door frames.
Q: How do I share access with visitors or temporary guests?
A: Using the TTLock app, you can generate time-limited QR codes or temporary PIN passwords and share them with visitors directly via social apps or messaging platforms. Access can be set to expire automatically after a specified period.
Q: Is the TTLock K3QW compatible with Amazon Alexa and Google Home?
A: Yes. The K3QW integrates with both Amazon Alexa and Google Home, allowing you to control and manage access using voice commands through your existing smart home setup.
