TTLock K3D Face Recognition Fingerprint WiFi Access Control IP67
TTLock K3D Face Recognition Fingerprint WiFi Access Control IP67

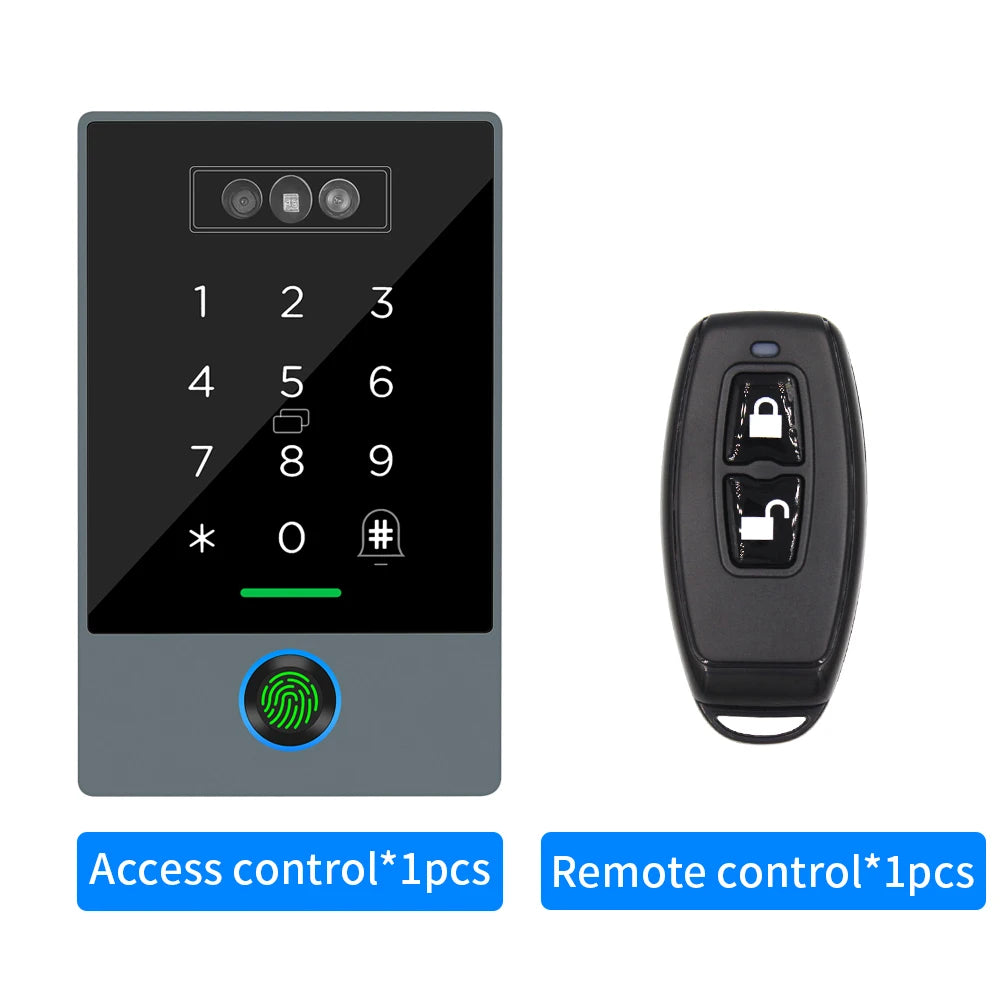

TTLock K3D Smart Access Control Panel — Face, Fingerprint & Video Intercom
Upgrade your entrance security with the Asia-Teco TTLock K3D Intelligent Access Control System — a feature-packed, weatherproof door controller that combines face recognition, fingerprint scanning, palm detection, password entry, RFID card access, and remote WiFi control in one sleek unit. With a built-in camera and two-way audio, it doubles as a visual video intercom, letting you see and speak with visitors from anywhere via the TTLock app.
Key Features

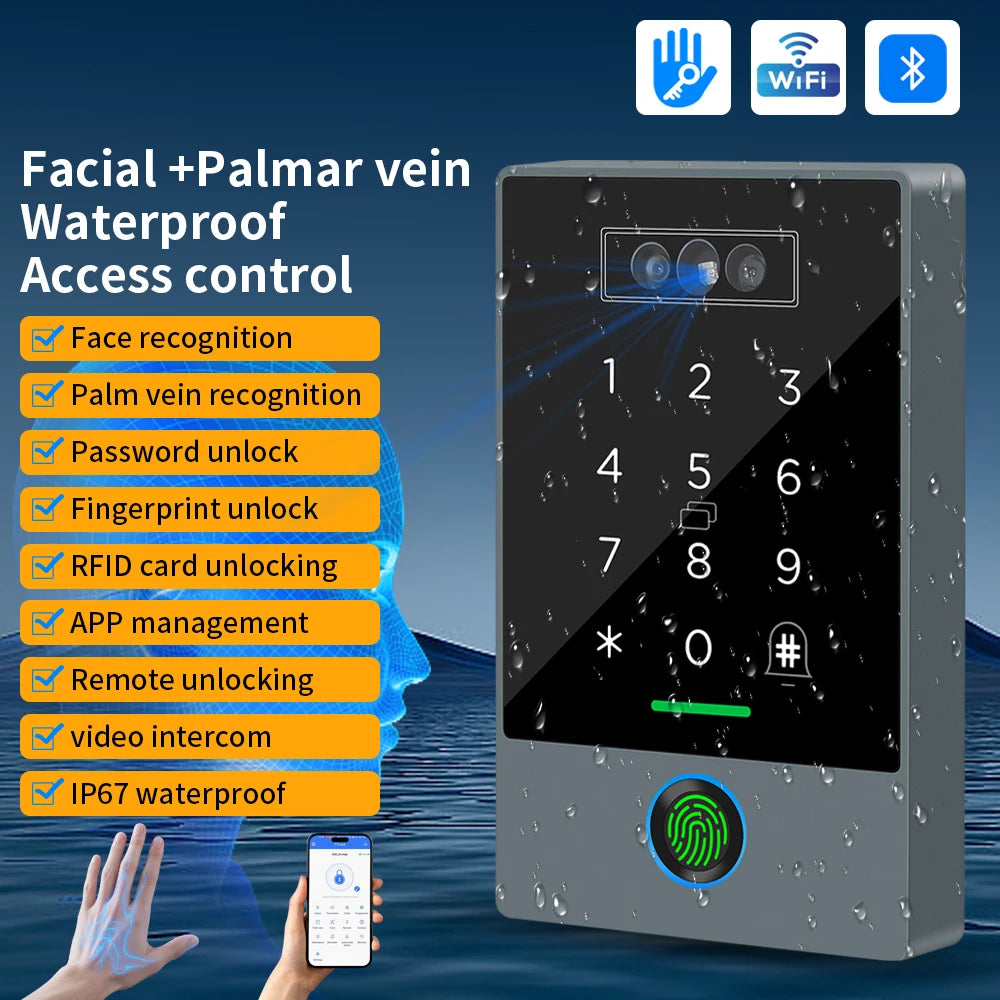

- 6-in-1 Unlock Methods: Face recognition, fingerprint, palm scan, RFID card, password, and remote WiFi/Bluetooth control
- Visual Video Intercom: Built-in camera and two-way audio for real-time visitor communication via smartphone
- Large Storage Capacity: Up to 2,000 cards, 100 faces, 100 fingerprints, and 100 palm profiles
- IP67 Waterproof & Dustproof: Rated for all-weather outdoor and indoor installation, operating reliably from -20°C to 70°C (-4°F to 158°F)
- WiFi 2.4G + Bluetooth Connectivity: Manage users and access logs remotely through the TTLock app (iOS & Android)
- CE & FCC Certified: Meets international safety and electromagnetic compliance standards
- Compact ABS/Acrylic Housing: Slim profile (W80mm × H130mm × T20mm) fits most standard door frames and access panels
- Stable Power Input: DC 12–24V with a low standby current of just 60mA (backlight on)
Technical Specifications
| Model | K3D |
| Brand | Asia-Teco (TTLock Platform) |
| Dimensions | 80mm × 130mm × 20mm |
| Card Capacity | 2,000 |
| Face Storage | 100 profiles |
| Fingerprint Storage | 100 profiles |
| Palm Storage | 100 profiles |
| Network | WiFi 2.4G + Bluetooth |
| Power Supply | DC 12–24V |
| Standby Current | 60mA (backlight on) |
| Protection Rating | IP67 (Waterproof & Dustproof) |
| Operating Temperature | -20°C to 70°C |
| Certifications | CE, FCC |
| Material | ABS / Acrylic |
| Country of Origin | Made in Mainland China |
Why Choose the TTLock K3D?
Whether you're securing a home, office, apartment building, or commercial space, the K3D delivers professional-grade access control without complex wiring. The TTLock app lets administrators add or revoke user credentials remotely, review access logs in real time, and share e-keys with guests — all without physical key handovers. The IP67 rating ensures the unit holds up against rain, dust, and extreme temperatures, making it equally suited for outdoor gates, garage entries, and indoor server rooms.
For more guidance on best practices for electronic access control and physical security systems, visit the Cybersecurity & Infrastructure Security Agency. You can also review consumer electronics safety standards at cpsc.gov.
Frequently Asked Questions
Q: What app does the TTLock K3D access control panel use?
A: The K3D works with the TTLock app, available for both iOS and Android. Through the app you can add user credentials (faces, fingerprints, cards, passwords), view real-time access logs, grant temporary e-keys to visitors, and control the door remotely over WiFi or Bluetooth.
Q: Is the TTLock K3D suitable for outdoor installation?
A: Yes. The K3D carries an IP67 waterproof and dustproof rating, meaning it is fully protected against dust ingress and can withstand temporary water immersion. It operates in temperatures ranging from -20°C to 70°C, making it ideal for outdoor gates, building entrances, and exposed entry points in most climates.
Q: How many users can the TTLock K3D store?
A: The K3D can store up to 2,000 RFID cards, plus 100 face profiles, 100 fingerprint profiles, and 100 palm profiles — making it well-suited for multi-unit residences, small offices, and commercial properties with many users.
Q: Does the K3D support two-way communication with visitors?
A: Yes. The device features a built-in camera and two-way audio, functioning as a video intercom. You can see and speak with visitors in real time directly through the TTLock app on your smartphone, even when you are not on-site.
Q: What power supply does the TTLock K3D require?
A: The K3D requires a DC 12–24V power supply. It draws just 60mA standby current (with backlight on), making it energy-efficient for continuous 24/7 operation.
