TTlock K2/K2F Bluetooth Access Control System — Smart, Secure & Weatherproof
Upgrade your entry management with the TTlock K2/K2F Bluetooth Access Control System — a sleek, multi-method door access controller built from durable aluminum alloy and tempered glass. Whether you're securing a home, office, co-working space, or rental property, this system delivers enterprise-grade convenience in a compact 79 × 125 × 15.5 mm form factor. Made in Mainland China.
Key Features

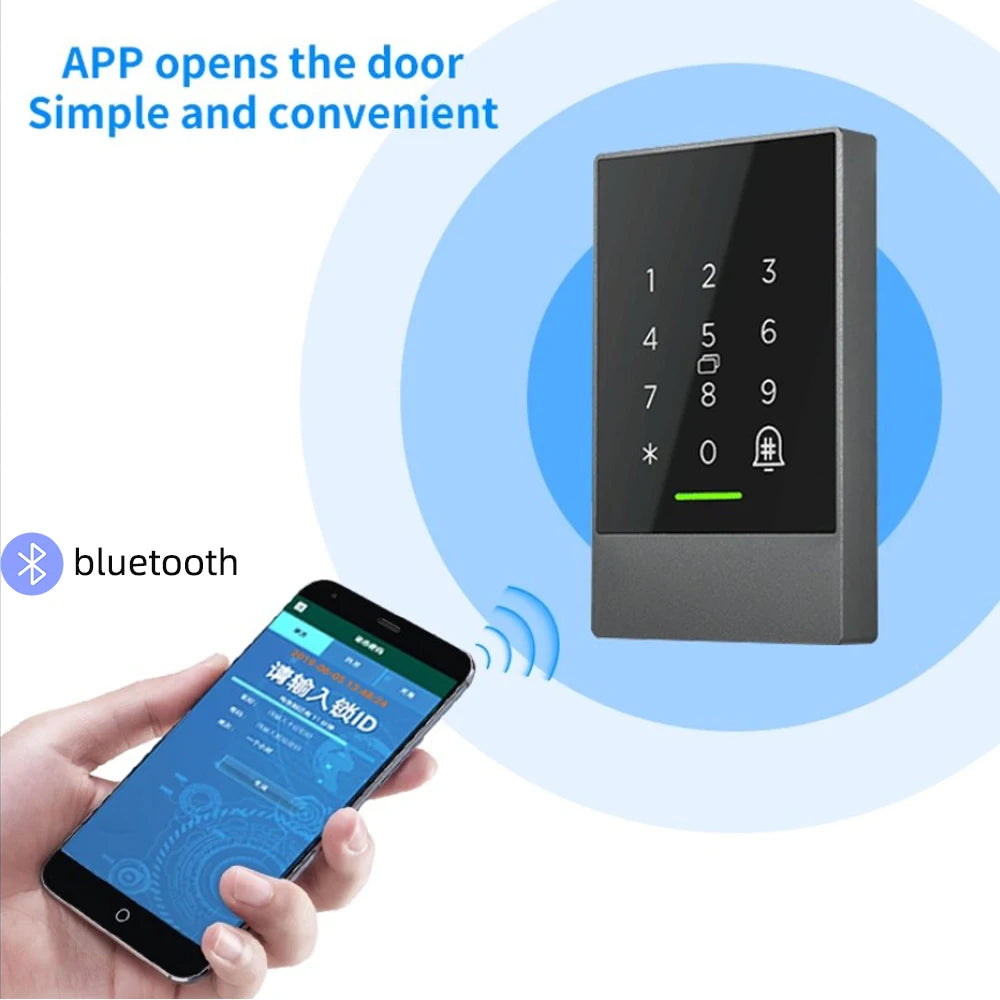

- Three Unlock Methods: Unlock via the TTlock smartphone app (Bluetooth), numeric keypad password, or 13.56 MHz RFID card — giving you and your users flexible access options.
- Wi-Fi Gateway Compatible (K2F): Pair with the optional Wi-Fi gateway to manage access remotely from anywhere, at any time, through the TTlock app.
- Fingerprint Reader Ready: The K2F variant supports fingerprint authentication for a fast, credential-free entry experience.
- Large Card Capacity: Supports up to 20,000 RFID cards — ideal for larger teams, apartment buildings, or commercial facilities.
- Time-Limited & eKey Sharing: Generate one-time-use or time-restricted passcodes directly from the app; share digital eKeys with different authorization levels.
- Cloud Data Storage: Access logs and user records are stored securely in the cloud for easy review and remote management.
- Real-Time Notifications: Administrators receive instant push alerts when a user unlocks the door, keeping you informed at all times.
- Keypad Security Lock: After 5 incorrect code entries, the keypad locks for 5 minutes. The phantom-code feature lets users prepend random digits to their real passcode for extra privacy.
- Auto-Lock: The system automatically re-locks within 5 seconds of unlocking — no manual re-securing required.

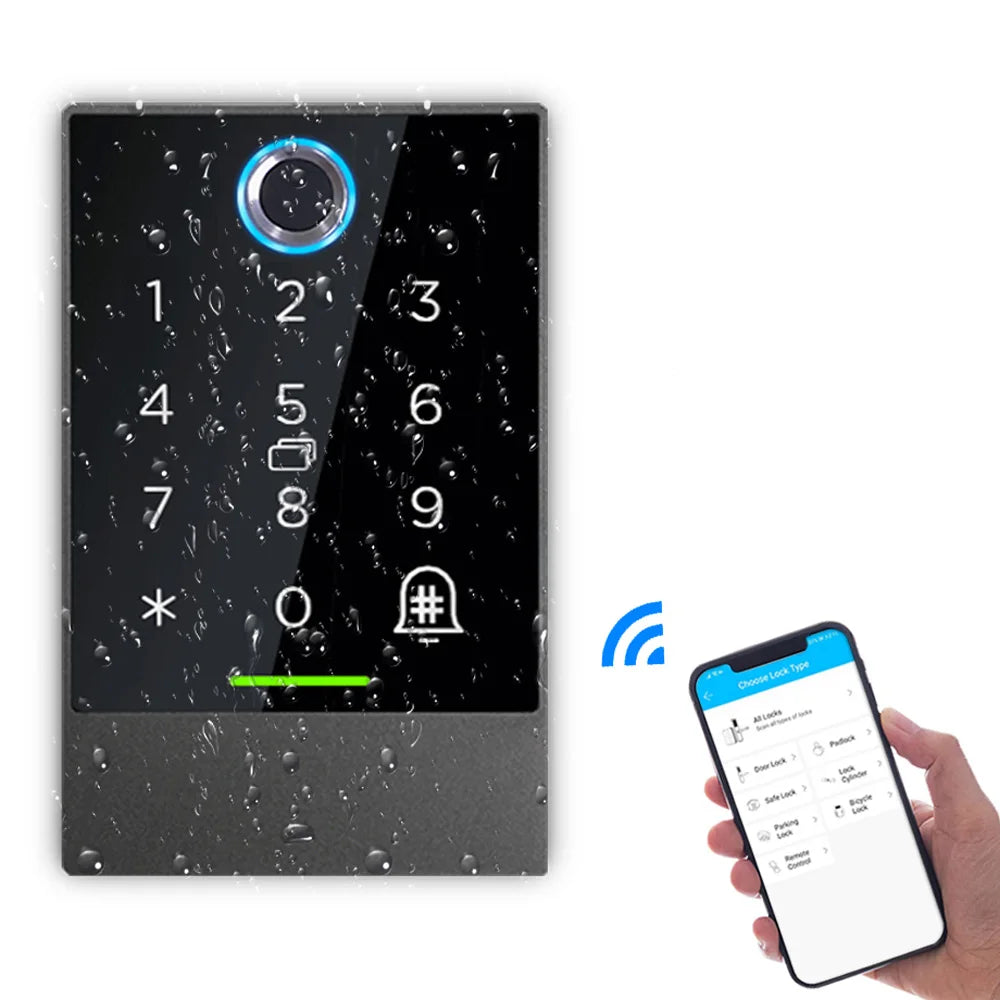

- IP66 / IP65 Weatherproof Rating: K2 is rated IP66; K2F is rated IP65 — both are well-protected against dust ingress and powerful water jets, suitable for outdoor and semi-outdoor installations.
- Fail-Secure Mode: Door remains locked during a power outage for maximum security.
- CE Certified: Meets European conformity safety standards.

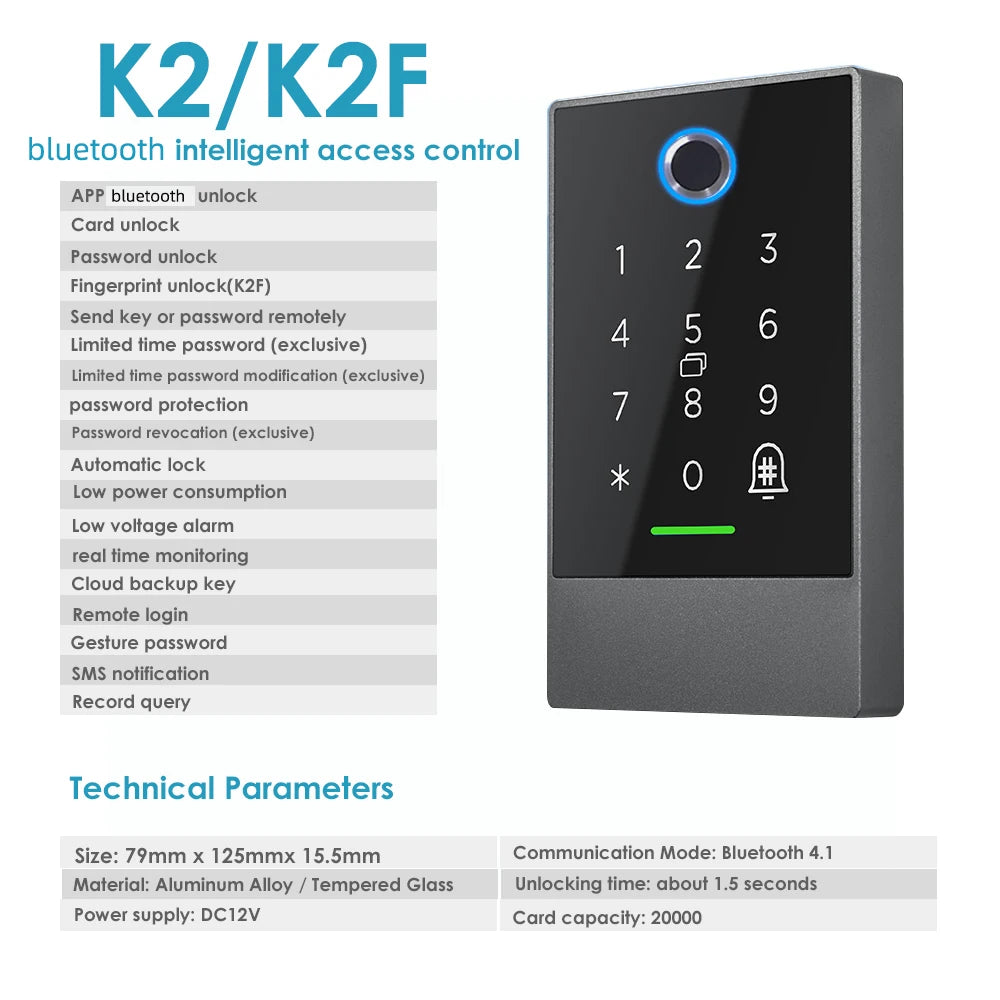

Technical Specifications
| Model | K2 / K2F |
| Material | Aluminum Alloy / Tempered Glass |

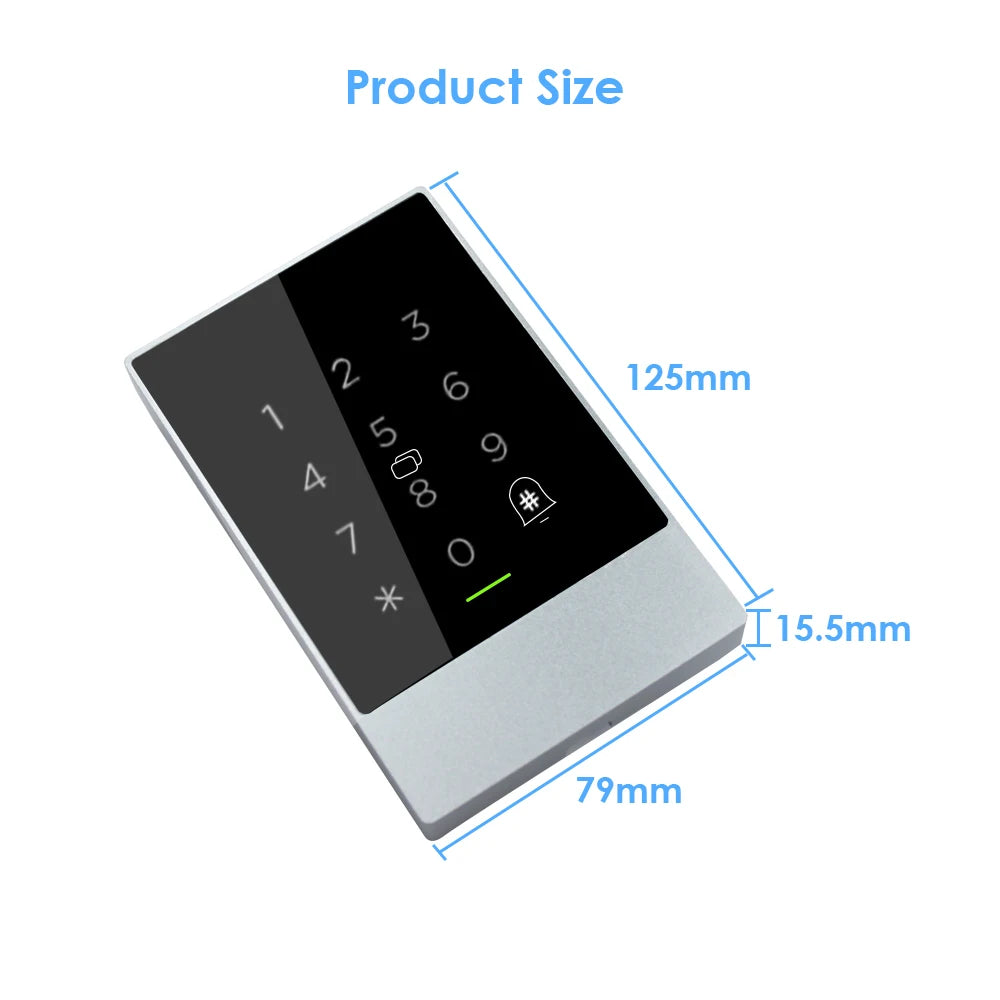

| Dimensions | 125 mm × 79 mm × 15.5 mm |
| Communication | Bluetooth 4.1 |
| Card Standard | 13.56 MHz RFID |
| Card Capacity | 20,000 |
| Power Supply | DC 12V |
| Unlock Time | ~1.5 seconds |
| Waterproof Rating | K2: IP66 | K2F: IP65 |
| Security Mode | Fail Secure |
| Certification | CE |
| App Platform | TTlock (iOS & Android) / Sciener Web System |
| Origin | Made in Mainland China |

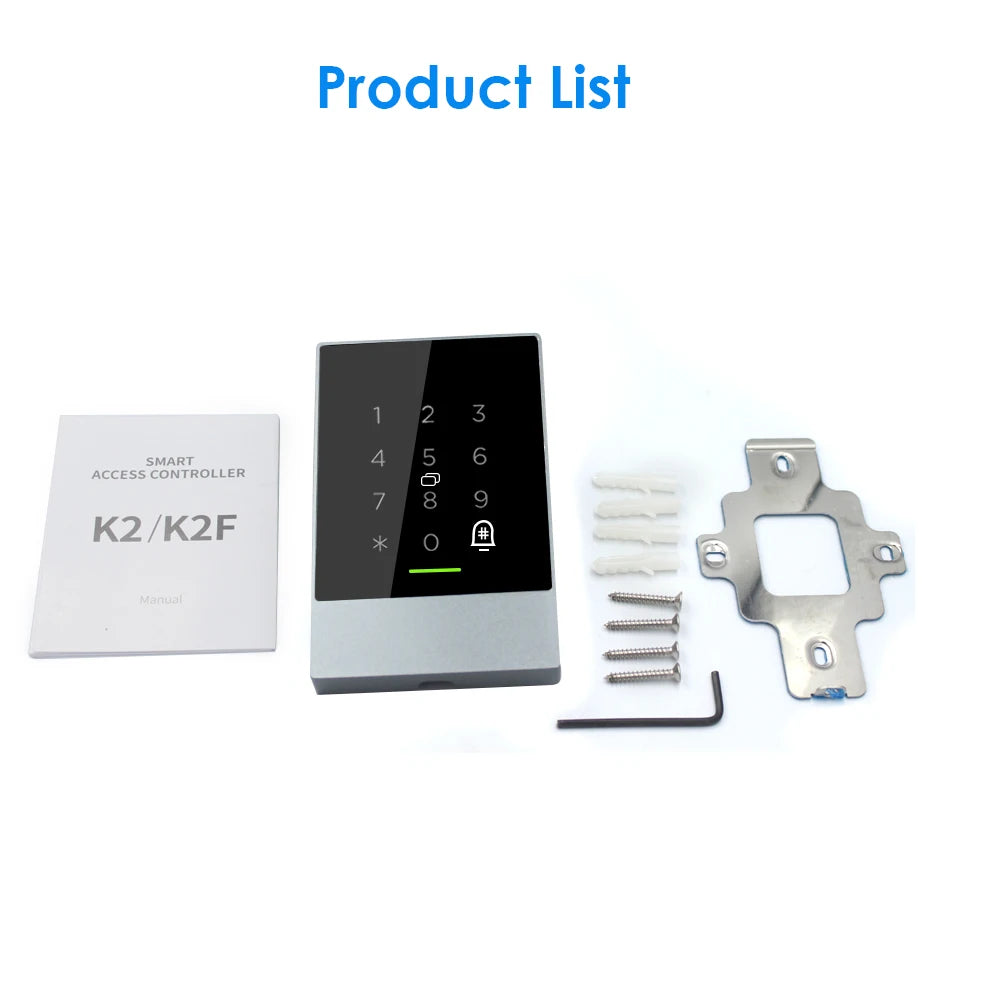

What's in the Box?
Please refer to your order variant for exact package contents. Typical inclusions are the K2 or K2F access controller unit, mounting hardware, and a wiring diagram. The Wi-Fi gateway (for K2F remote access) may be sold separately.
Who Is This For?
The TTlock K2/K2F is an excellent fit for rental property owners, small businesses, co-working spaces, gyms, offices, and smart-home enthusiasts who want a modern, app-managed access solution without the complexity of traditional wired access control systems.
For guidance on general access control best practices and physical security standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does the TTlock K2/K2F work without a Wi-Fi gateway?
A: Yes. The K2 and K2F both operate via Bluetooth 4.1, so you can unlock the door using the TTlock smartphone app within Bluetooth range without any gateway. However, for remote access and management from outside Bluetooth range, the optional Wi-Fi gateway (compatible with K2F) is required.
Q: What RFID card standard does this access controller use?
A: The system uses the 13.56 MHz RFID standard (commonly associated with Mifare and ISO 14443 cards). It supports up to 20,000 cards, making it suitable for large-scale deployments like apartment complexes or commercial offices.
Q: Can I set time-limited access for guests or temporary staff?
A: Absolutely. Through the TTlock app, administrators can create time-restricted passcodes and eKeys that are only valid during a set date/time window. Once the period expires, access is automatically revoked — no manual intervention needed.
Q: What is the difference between the K2 and the K2F models?
A: The primary differences are the waterproof rating (K2 is IP66; K2F is IP65) and the K2F's support for fingerprint reader functionality and Wi-Fi gateway connectivity for remote management. Both models share the same core app, card, and keypad access methods.
Q: Is the TTlock K2/K2F suitable for outdoor installation?
A: Yes. Both variants carry high IP waterproof ratings — IP66 for the K2 (dust-tight and protected against powerful water jets) and IP65 for the K2F (dust-tight and protected against water jets), making them well-suited for outdoor gates, building entrances, and covered external doors.
