TTLock Invisible Smart Door Lock – No-Drill Bluetooth & IC Card
TTLock Invisible Smart Door Lock – No-Drill Bluetooth & IC Card

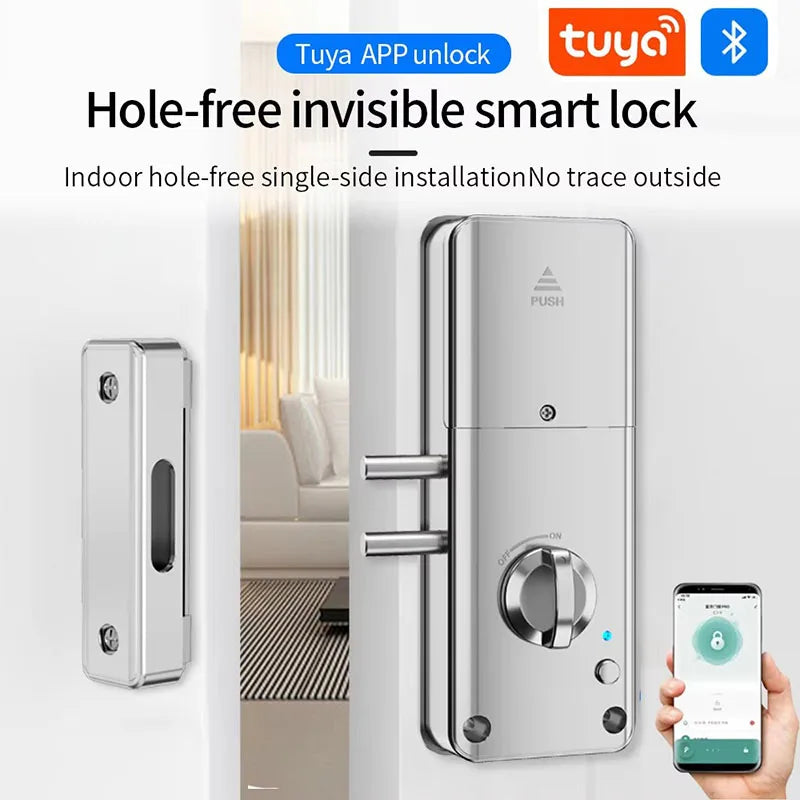

Upgrade your home or office security with the TTLock Invisible Smart Door Lock — a sleek, no-drill mortise lock designed for wooden doors. Install it indoors without leaving a single trace outside, keeping your entryway looking clean and seamless while delivering modern keyless convenience.
Key Features
- No-Drill, Punch-Free Installation: Single-sided indoor installation with zero visible hardware on the exterior. Setup is straightforward with no permanent modifications to your door.
- Ultra-Fast Unlocking: Simply swipe your IC card outdoors and the lock opens in just 0.5 seconds — smooth, silent, and instant.
- Two Convenient Unlock Methods: Use the TTLock smartphone app (iOS & Android) or the included IC cards to access your door. The app also lets you view real-time unlock history anytime.
- Bluetooth Remote Control: Unlock from up to ~8 metres via Bluetooth through the app. Pair with an optional gateway (sold separately) for true internet-based remote access from anywhere.
- Smart Magnetic Auto-Locking: The lock tongue senses the built-in magnetic stone when the door closes and automatically latches — no manual locking required.
- Low-Battery Protection: When voltage drops below 4.6V, the voice system alerts you to replace the batteries, and the lock tongue retracts automatically so you're never locked out.
- Reversible Handle Direction: Fits both left- and right-handed door configurations.
- Wide Compatibility: Designed for non-metal indoor doors (home, office, rental, etc.) with a thickness of up to 60mm.
Specifications
| Material | Steel |
| Unlock Methods | App (Bluetooth), IC Card |
| Connectivity | Bluetooth (TTLock / Tuya platform) |
| Power Source | 4 × AA batteries (not included) |
| Door Thickness | Up to 60mm |

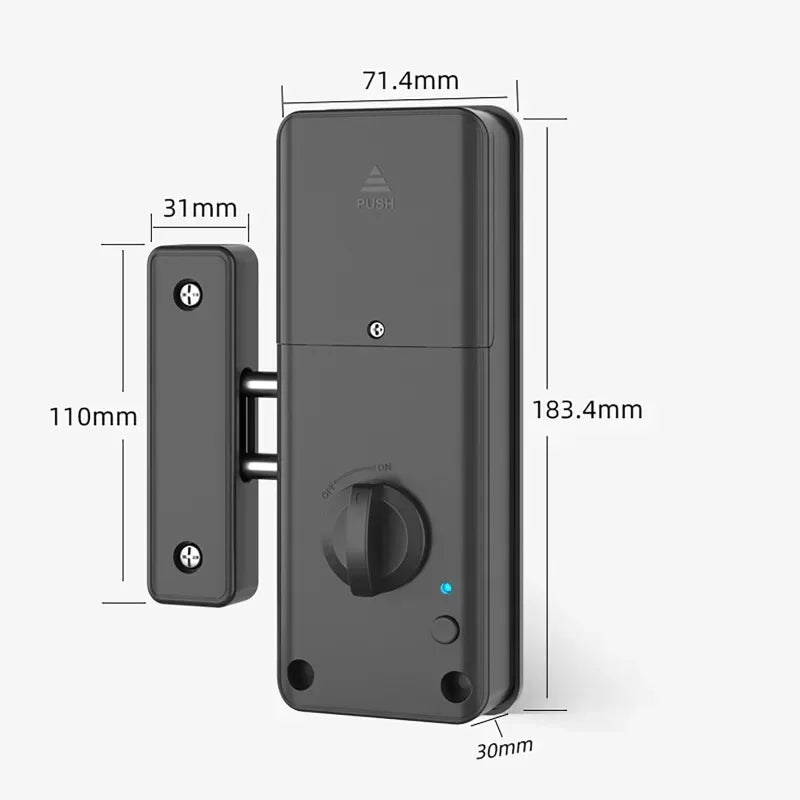

| Dimensions | 183.4 × 71.4 × 30mm |
| Colors Available | Black, Silver |
| Waterproof Rating | Indoor use only (no waterproofing) |
| Country of Origin | Made in Mainland China |

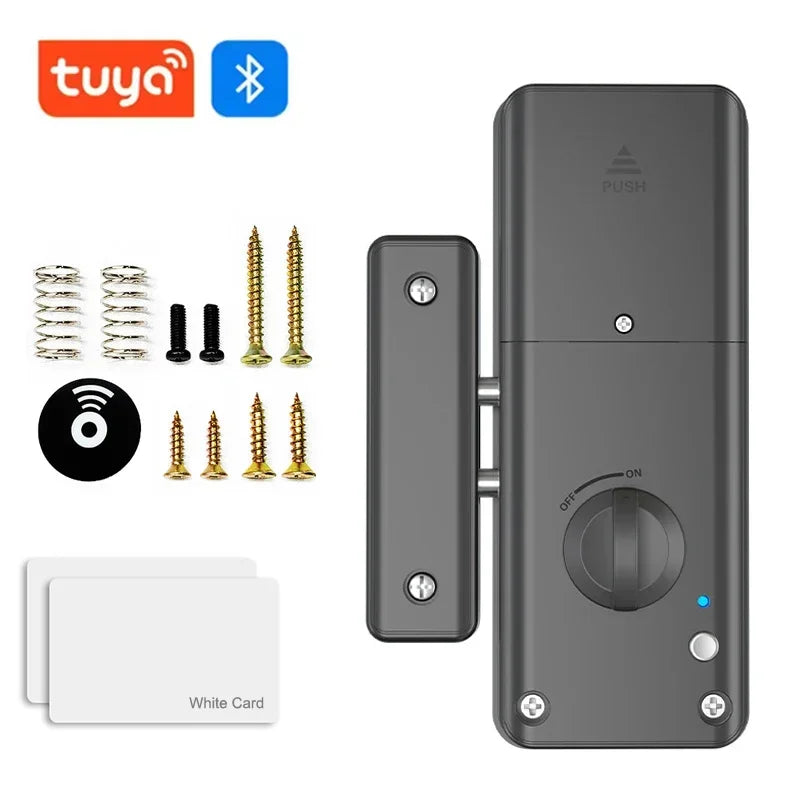

What's in the Box
- 1 × Invisible Smart Door Lock
- 2 × IC Cards
- 1 × Installation Accessories Kit
- 1 × Instruction Manual
Note on Gateway vs. Bluetooth-Only: Without an optional gateway, the app can unlock the door within standard Bluetooth range (~8 metres). With a gateway connected to your Wi-Fi, you can unlock from any location remotely.
Please Note: Due to manual measurement and monitor color differences, dimensions may vary by 1–3 cm and colors may appear slightly different from product images.
For general guidance on home security best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does the TTLock invisible smart door lock require drilling holes in my door?
A: No — this smart door lock features a completely punch-free, no-drill installation method. All hardware is mounted on the indoor side only, leaving zero visible marks or holes on the exterior of your door.
Q: What happens if the batteries run out while the door is locked?
A: The lock includes a low-battery voice alert system that warns you before power is critically low. When the voltage drops below 4.6V, the lock tongue automatically retracts, ensuring you are never locked out due to a dead battery.
Q: Can I control this smart lock remotely from outside Bluetooth range?
A: Within Bluetooth range (~8 metres), you can unlock via the TTLock app directly. For true long-distance remote access from anywhere in the world, you'll need to pair the lock with an optional compatible gateway device (sold separately) that connects to your home Wi-Fi.
Q: What door types and thicknesses is this lock compatible with?
A: This invisible smart lock is designed for non-metal indoor wooden doors with a thickness not exceeding 60mm. It is ideal for homes, offices, rental properties, and similar interior applications.
