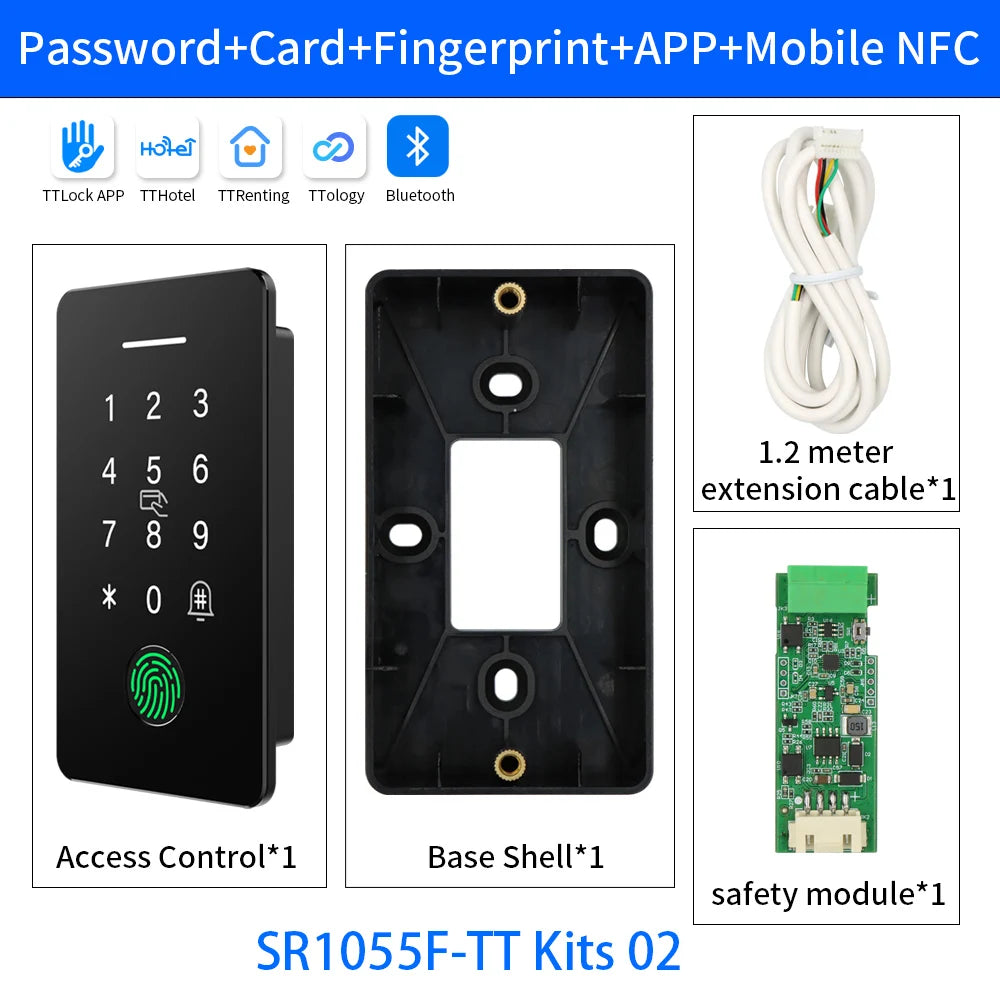

Asia-Teco TTLock Smart Fingerprint Access Control Kit — IP67 Waterproof with NFC & Security Module
The Asia-Teco SR1055 / SR1055F is a professional-grade, embedded smart access control system designed for high-security environments including banks, government facilities, corporate offices, and other confidential locations. Built with an IP67 waterproof rating, this unit handles outdoor installation with ease, performing reliably in temperatures from -20°C to 70°C.
Powered by the TTLock app (compatible with Android 4.3+ and iOS 7.0+) via Bluetooth 5.0 BLE, this access control kit brings modern smart security to any door. The integrated security module ensures that even if the device is physically tampered with, the door cannot be forced open — giving you true peace of mind in demanding environments.
Key Features
- Multiple Unlock Methods: App, fingerprint (optional), password, 13.56MHz NFC/RFID card (MIFARE M1), and temporary password
- Dual Authentication Mode: Require two methods simultaneously (e.g., fingerprint + password, card + password) for enhanced security
- High-Capacity Storage: Supports up to 20,000 NFC cards, 500 passwords, and 500 fingerprints (fingerprint model)
- Ultra-Low False Acceptance Rate: FAR <0.001% — semiconductor fingerprint sensor with precision accuracy
- Tamper-Resistant Security Module: Anti-strong-magnetic design prevents unauthorized entry even under physical attack
- Attendance Tracking: Export employee attendance records directly via the TTLock app — no USB drive required
- Flexible Power Input: Operates on 12V–24V DC; standby current only 7.4mA for energy efficiency
- Touch Button Interface: Smooth capacitive touch keypad for quick, responsive entry
- CE & FCC Certified: Meets international electronic safety standards
Technical Specifications
| Model | SR1055-TT |
| Bluetooth | Bluetooth 5.0 BLE |
| Card Type | MIFARE M1 (13.56MHz NFC) |
| Card Capacity | 20,000 |
| Password Capacity | 500 |
| Fingerprint Capacity | 500 (fingerprint model only) |
| False Acceptance Rate (FAR) | <0.001% |
| False Rejection Rate (FRR) | <1.0% |
| Waterproof Rating | IP67 |
| Voltage | 12V–24V DC |
| Working Current | <200mA |
| Standby Current | 7.4mA |
| Working Temperature | -20°C to 70°C |
| App Compatibility | Android 4.3+ / iOS 7.0+ |
| Certification | CE, FCC |
| Country of Origin | Made in Mainland China |
Who Is This For?
The SR1055 series is ideal for:
- Banks, government buildings, and secure facilities requiring multi-factor entry
- Corporate offices needing employee attendance management
- Outdoor entrances exposed to weather, dust, or moisture
- Any location where anti-tamper security is a top priority
Learn More About Smart Access Control Standards
For information on physical security standards and best practices for electronic access control, visit the NIST Cybersecurity & Physical Security Resources — a trusted authority on security standards for government and enterprise environments.
Frequently Asked Questions
Q: What unlock methods does the Asia-Teco TTLock SR1055 access control kit support?
A: The SR1055 series supports up to five unlock methods: TTLock smartphone app (via Bluetooth 5.0), 13.56MHz NFC/RFID card (MIFARE M1), password, fingerprint (available on the SR1055F fingerprint model), and temporary password. You can also configure dual-authentication, requiring two methods at once for maximum security.
Q: Is this access control unit suitable for outdoor installation?
A: Yes. The unit carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary immersion in water. It operates reliably from -20°C to 70°C, making it well-suited for outdoor doors, building entrances, and exposed environments.
Q: How does the security module protect against tampering?
A: The integrated security module is designed so that even if the access control reader is physically damaged, cut, or subjected to strong magnetic interference, the door lock mechanism cannot be forced open. This makes the SR1055 particularly suitable for high-security facilities where physical attack is a concern.
Q: Can I use this system for employee attendance tracking?
A: Absolutely. The TTLock app allows administrators to export attendance records directly from the cloud — no USB drive or additional hardware needed. This streamlines check-in management and reduces administrative workload for HR and security teams.
Q: How many users and credentials can this system store?
A: The SR1055 supports up to 20,000 NFC/RFID cards, 500 individual passwords, and — on the fingerprint model — up to 500 fingerprint profiles, making it suitable for large organizations and high-traffic entry points.
