TTLock Facial Recognition Access Control RFID Fingerprint IP67 MF03

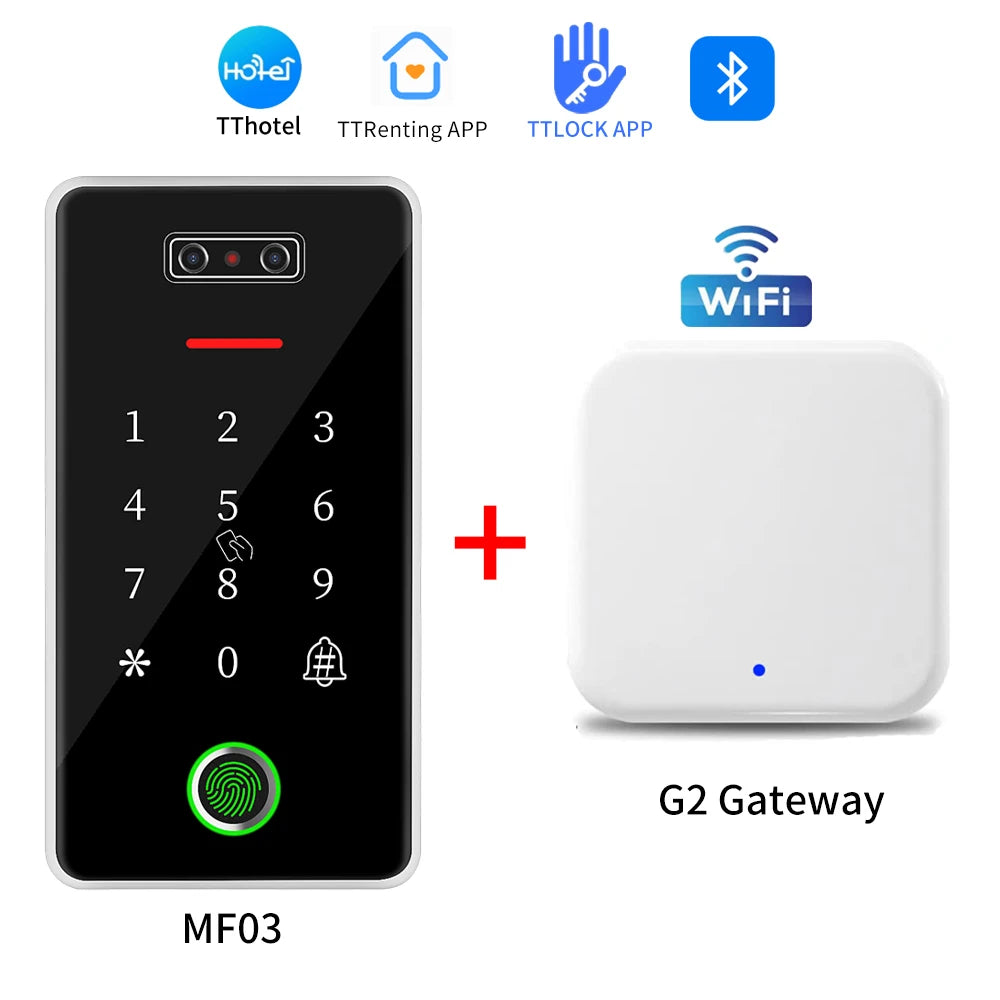

Asia-Teco MF03 TTLock Smart Access Control Panel — Facial Recognition, Fingerprint, RFID & App

Take door security to the next level with the Asia-Teco MF03-TT TTLock Access Control Device. Housed in a rugged aluminum alloy and glass-panel chassis, this IP67-rated, weatherproof reader supports five convenient entry methods — facial recognition, fingerprint scan, M1 RFID card, password keypad, and the TTLock smartphone app — making it the ideal smart access solution for offices, apartment buildings, hotels, warehouses, and gated facilities.

Made in Mainland China.

Why Choose the MF03-TT?

• 5-in-1 Entry Methods: Face recognition (up to 100 faces), semiconductor fingerprint sensor (up to 100 prints), 13.56 MHz M1 RFID card (up to 1,000 cards), PIN password (250 custom/permanent + unlimited dynamic), and TTLock app — all in one sleek panel.
• IP67 Waterproof Metal Housing: Aluminum alloy body with a glass touch panel withstands rain, dust, and extreme temperatures from -20 °C to 70 °C — purpose-built for outdoor and semi-outdoor installations.
• Fast 1.5-Second Unlock: Capacitive touch keypad with auto-backlight (on/off toggle) and rapid 1.5-second recognition unlocking keeps traffic flowing smoothly.
• Bluetooth 5.0 BLE Built-In: Connects directly to iOS and Android (Android 4.3 / iOS 7.0 and above) via the TTLock app. Add the optional G2 Wi-Fi Gateway for full remote control from anywhere in the world.
• Voice Assistant Compatible: Works with Amazon Alexa and Google Assistant when paired with the G2 Gateway, enabling hands-free access control.
• Time & Attendance Tracking: Built-in time-attendance function logs employee clock-in records — perfect for small businesses and access-managed workspaces.
• Smart Security Features: Keypad locks for 5 minutes after 5 incorrect entries; pseudo-passcode support disguises your real PIN; auto-lock triggers within 5 seconds of unlocking.
• Cloud-Based User Management: Add or remove users remotely via the TTLock cloud. Admins receive real-time push notifications whenever the device is unlocked or reset.
• Easy eKey & Code Sharing: Share temporary or permanent access codes and digital eKeys with guests or staff through any social messaging app.
• Multi-Platform Support: Compatible with TTLock App, TTRenting App, TTHotel, and the Sciener Web System — ideal for short-term rental, hospitality, and enterprise deployments.

Technical Specifications

What's in the Box

• 1× MF03-TT Facial Recognition Access Control Reader
• 1× Fixed Mounting Bracket
• 1× Expansion Tube
• 5× Screws (4+1)
• 1× Hex Screwdriver
• 1× User Manual
• 1× G2 Wi-Fi Gateway (Optional)
• 1× R1 Remote Control (Optional)

Remote Access Note

For full remote door control from any location via the internet, the G2 TTLock Bluetooth Gateway (sold separately) is required to bridge the device to your Wi-Fi network.

For general smart home security guidance, visit the U.S. Consumer Product Safety Commission – Home Safety Resources.

Frequently Asked Questions

Q: Can the TTLock MF03-TT be used outdoors in rain or harsh weather?

A: Yes. The MF03-TT carries an IP67 waterproof rating, meaning it is fully protected against dust and can withstand temporary submersion in water. Its aluminum alloy housing operates reliably from -20 °C to 70 °C, making it suitable for outdoor gates, building entrances, and industrial environments.

Q: Do I need the G2 Gateway to use the TTLock app?

A: No — the device connects directly to your smartphone via Bluetooth 5.0 BLE for local control without any additional hardware. The optional G2 Wi-Fi Gateway is only required if you want to control, monitor, or manage the device remotely over the internet from a location away from the door.

Q: How many users can be registered on the MF03-TT access control device?

A: The MF03-TT supports up to 100 face profiles, 100 fingerprints, 1,000 RFID M1 cards, and 250 custom or permanent passwords, plus an unlimited number of dynamic/temporary passwords — making it scalable for small offices, apartment complexes, and hotel properties alike.

Q: Is the MF03-TT compatible with voice assistants like Alexa or Google Assistant?

A: Yes. When paired with the G2 TTLock Bluetooth-to-Wi-Fi Gateway, the MF03-TT integrates with both Amazon Alexa and Google Assistant, allowing hands-free voice commands to control door access.

Q: What happens if someone enters the wrong passcode multiple times?

A: After five consecutive incorrect passcode entries, the keypad automatically locks for 5 minutes to deter unauthorized access attempts. The device also supports a pseudo-passcode feature, where any extra digits can be entered before or after the real code without triggering the lockout, adding an additional layer of security.
