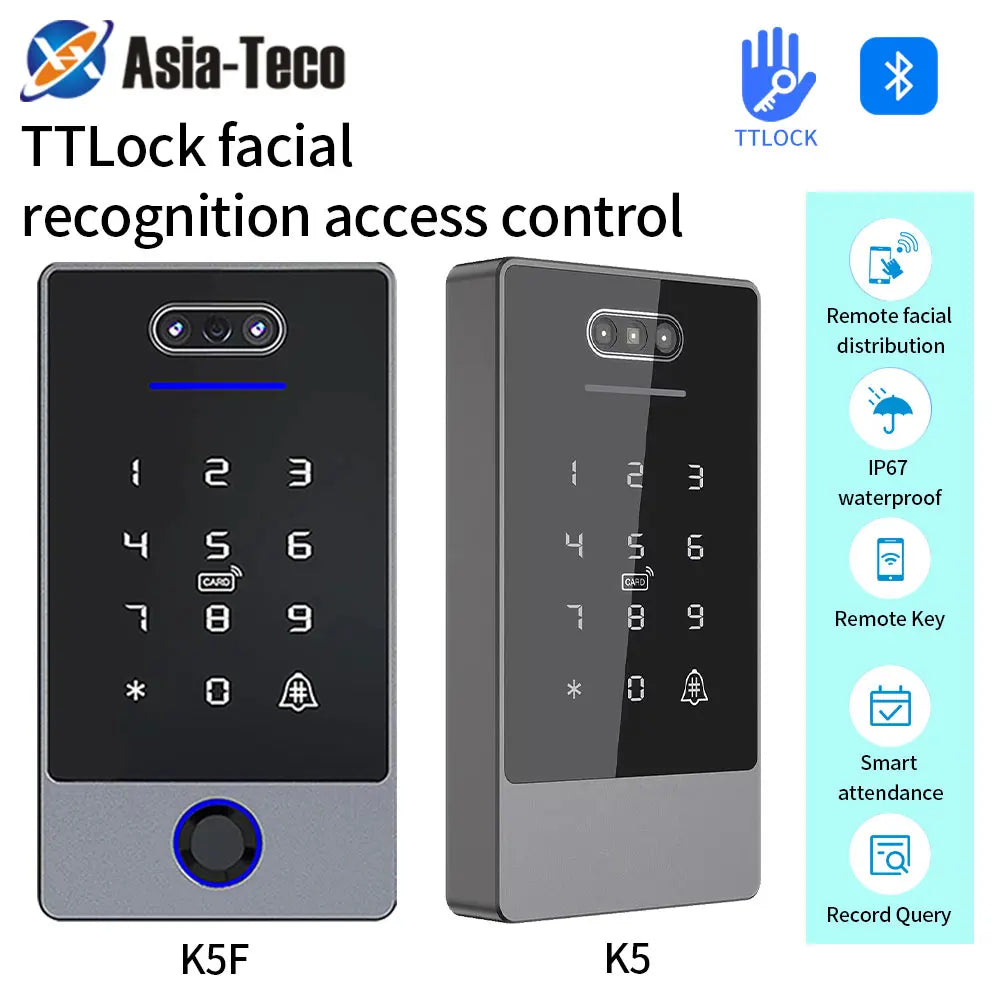

TTLock Face Recognition Smart Access Control Keypad (K5 / K5F)
Upgrade your entry points with the Asia-Teco TTLock K5/K5F Face Recognition Smart Access Control Keypad — a powerful, multi-method access controller built for homes, offices, hotels, and rental properties. With an IP66-rated aluminum frame, Bluetooth 5.0 connectivity, and support for the TTLock, TTRenting, and TThotel platforms, this smart keypad delivers seamless, app-managed access at every door.
Made in Mainland China.
Key Features
- Multiple Unlock Methods: Face recognition, PIN code, 13.56 MHz IC card, TTLock app, TTLock R1 remote control, and temporary passcodes — all in one device.
- Fast Face Recognition: Recognizes up to 100 enrolled faces with an unlock time of just 1.5 seconds.

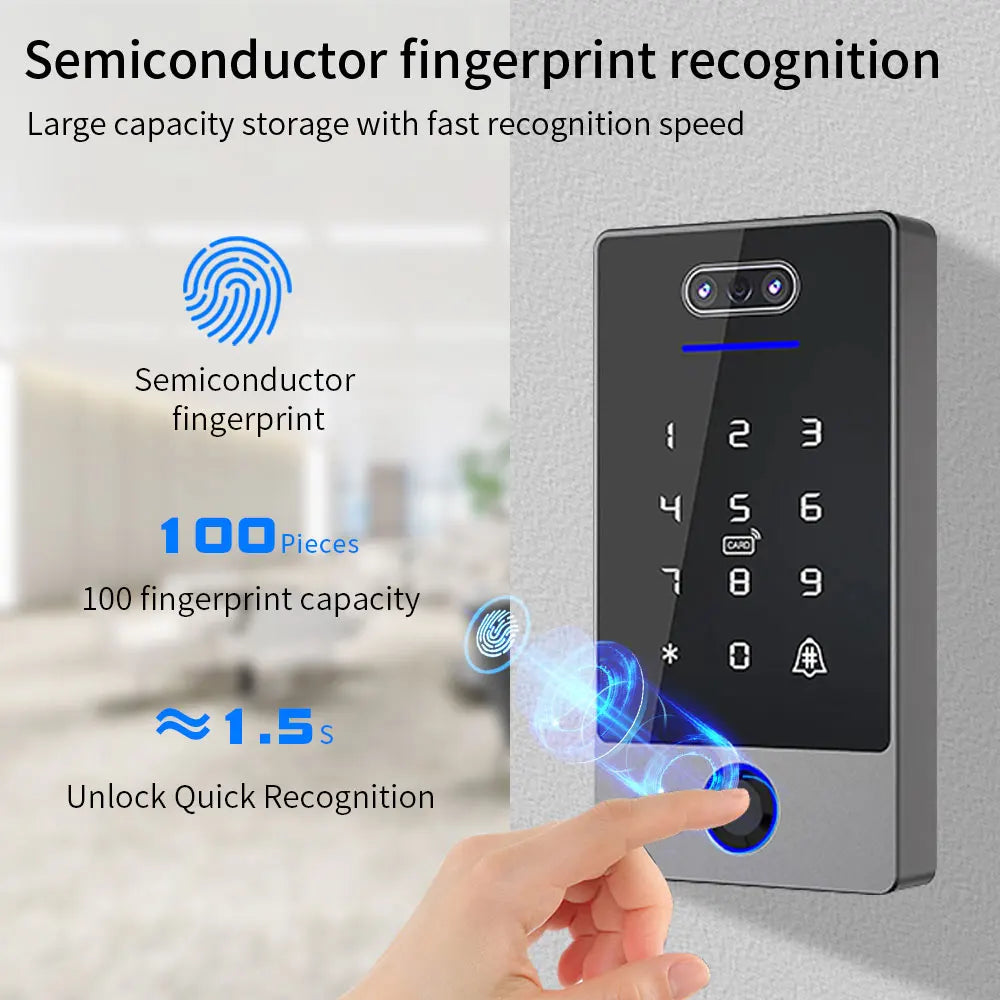

- Biometric Fingerprint (K5F Model): The K5F variant stores up to 100 fingerprints for touchless, keyless entry.
- High Card Capacity: Supports up to 1,000 IC cards — ideal for large offices, apartment buildings, or hotel operations.
- Bluetooth 5.0 + Optional WiFi: Connect via Bluetooth 5.0 out of the box; add the optional G2 TTLock Bluetooth Gateway for full remote WiFi control from anywhere.
- Smart Platform Integration: Compatible with TTLock App, TTRenting App, TThotel, and the Sciener Web System. Works with Amazon Alexa and Google Assistant for voice control.
- Time Attendance Tracking: Built-in time attendance function helps businesses manage and record employee clock-in and clock-out logs effortlessly.
- Cloud Data Storage: Users can be added or removed remotely via the cloud — perfect for property managers and hotel administrators.
- eKey & Code Sharing: Share access codes or digital eKeys with guests, staff, or visitors directly through social or messaging apps.

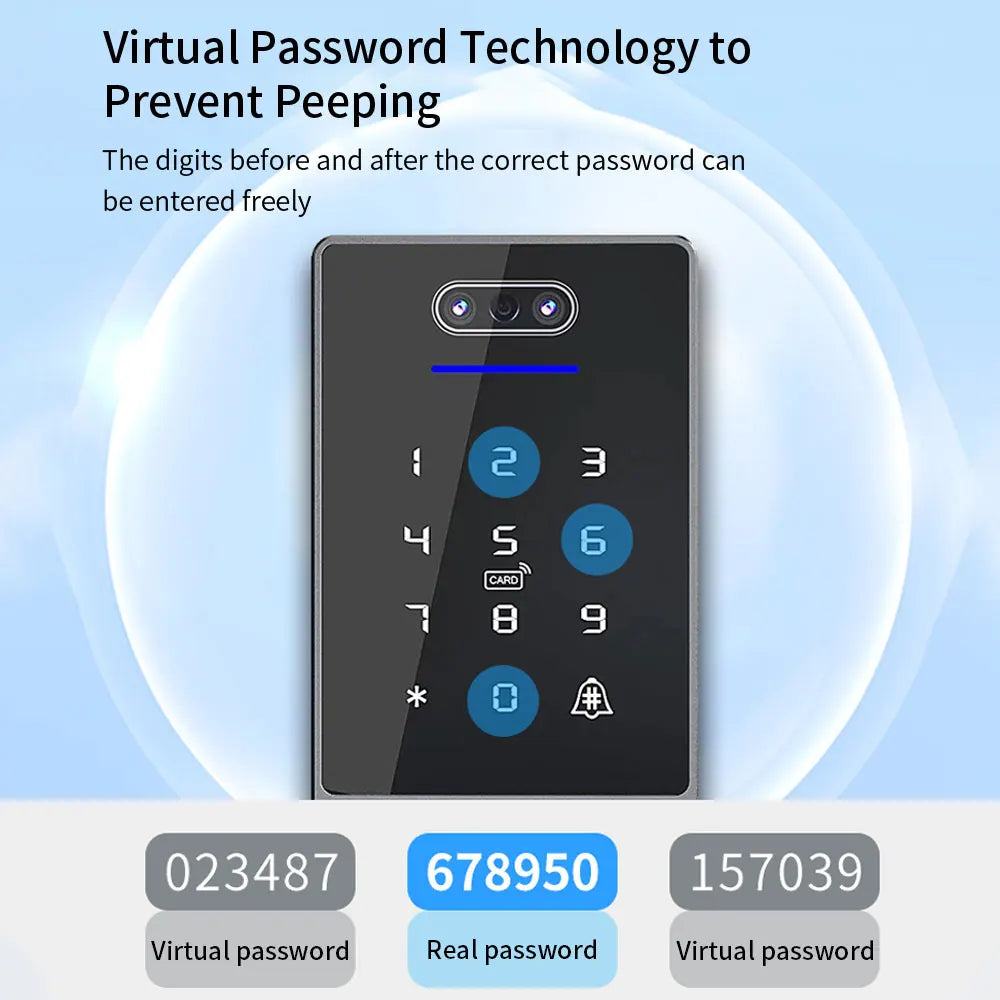

- Anti-Tamper Keypad Protection: Keypad locks for 5 minutes after 5 consecutive incorrect passcode entries. Pseudo-passcode support lets users add random digits before or after their real code for extra security.
- Auto-Lock: Automatically secures within 5 seconds after unlocking.
- Real-Time Notifications: Administrators receive instant push notifications whenever the lock is accessed or reset.
- Adjustable Backlight: Keyboard backlight can be toggled on or off manually.
- Weatherproof Build: IP66-rated for outdoor use — resistant to dust and water ingress.
- Durable Aluminum Frame: Slim profile (79mm × 145mm × 19mm) with a robust, corrosion-resistant aluminum housing.
Specifications
| Model | K5 / K5F |
| Brand | Asia-Teco |
| Smart Platform | TTLock / TTRenting / TThotel / Sciener Web |
| Communication | Bluetooth 5.0 |
| Face Capacity | 100 |
| Fingerprint Capacity | 100 (K5F only) |
| Card Capacity | 1,000 |
| Unlock Time | 1.5 seconds |
| Power Supply | 12V DC |
| Dynamic Current | 1A |
| Quiescent Current | 15mA |
| Dimensions | 79mm × 145mm × 19mm |
| Material | Aluminum frame |
| Waterproof Rating | IP66 |
| Supported OS | Android 4.3+ / iOS 7.0+ |
| Certification | CE |
| Origin | Mainland China |
What's in the Box
- Face Recognition Access Control Unit × 1
- Fixed Mounting Bracket × 1
- Expansion Tubes × 4
- Screws × 5 (4+1)
- Hex Screwdriver × 1
- User Manual × 1
- G2 WiFi Gateway × 1 (Optional — required for remote WiFi control)
Note: For remote door access and control from any location, the G2 TTLock Bluetooth Gateway must be purchased separately to enable WiFi connectivity.
For general guidance on electronic security devices and best practices for access control systems, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does the TTLock K5/K5F smart access control keypad work without WiFi?
A: Yes. The K5/K5F connects via Bluetooth 5.0 and can be operated locally through the TTLock app without any WiFi connection. However, for full remote access and management from anywhere in the world, you will need the optional G2 TTLock Bluetooth Gateway, which bridges Bluetooth to your WiFi network.
Q: What is the difference between the K5 and K5F models?
A: Both models support face recognition, PIN code, IC card, app-based, and remote control entry. The K5F additionally includes a biometric fingerprint reader capable of storing up to 100 fingerprints, making it ideal for environments where touchless or multi-method verification is required.
Q: Is the TTLock K5/K5F access control keypad suitable for outdoor installation?
A: Yes. The unit is rated IP66, meaning it is fully protected against dust ingress and powerful water jets, making it suitable for outdoor gates, building entrances, and covered exterior doorways.
Q: Can I manage multiple users and doors remotely using this access control keypad?
A: Absolutely. When paired with the G2 WiFi Gateway, administrators can add or remove users, issue temporary eKeys, monitor access logs in real time, and receive push notifications — all remotely via the TTLock, TTRenting, or TThotel app from any smartphone running Android 4.3+ or iOS 7.0+.
