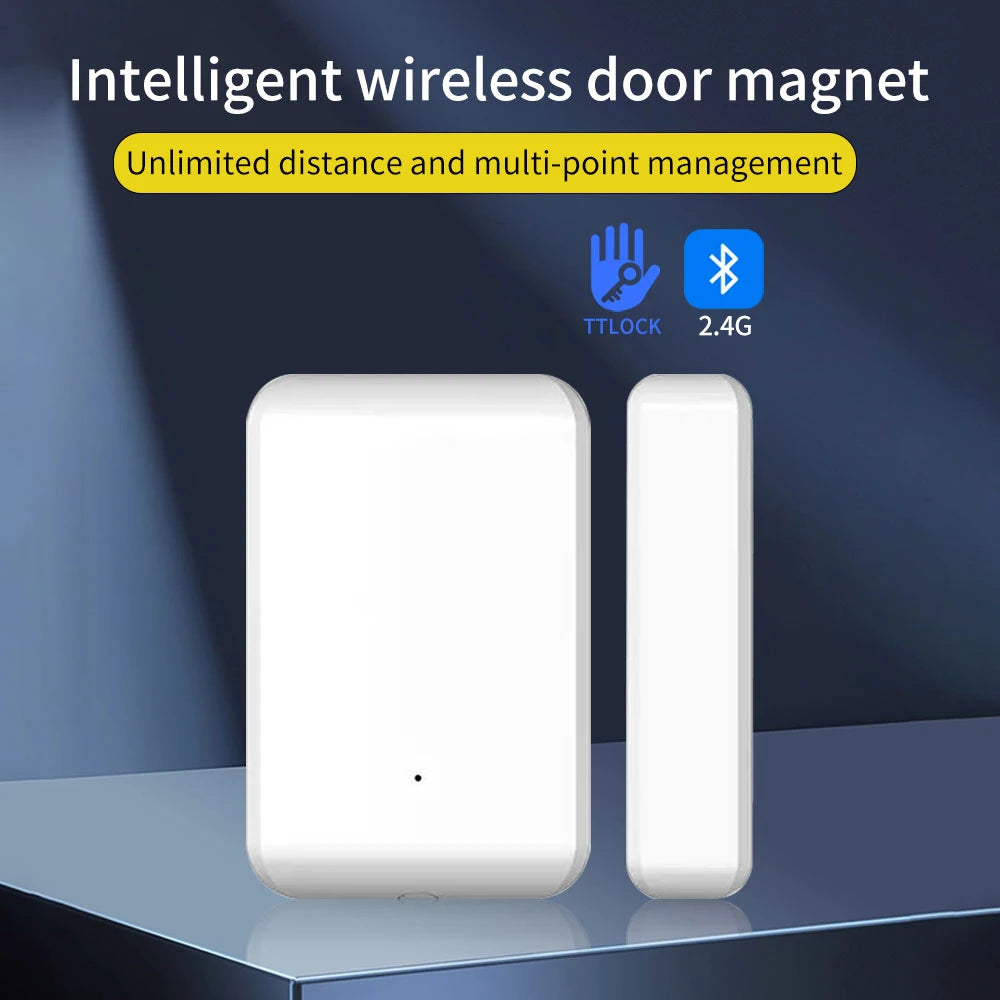

TTLock DS2 Wireless Door & Window Contact Sensor
Keep tabs on every entry point in your home or office with the TTLock DS2 2.4GHz Wireless Door & Window Sensor. Designed to work seamlessly with the TTLock App ecosystem (including the G2 gateway and all compatible TTLock smart lock devices), this compact contact sensor gives you instant, real-time visibility into whether your doors or windows are open or closed — right from your smartphone.
Made in Mainland China.
Key Features
- Real-Time Status Monitoring: Instantly know when any door or window opens or closes via the TTLock App — no guessing, no checking manually.
- Unlock Record Tracking: Automatically logs open/close activity so you always have a clear access history at your fingertips.
- Auto-Lock Support: Triggers your compatible TTLock smart lock's auto-lock function when the door closes (requires a lock with auto-lock capability).
- Ultra-Low Standby Power: Draws less than 5µA in standby mode, so your CR2032 battery lasts up to 2 years before needing replacement.
- 2.4GHz Wireless: Reliable, interference-resistant wireless communication keeps your sensor always connected within range.
- Compact & Discreet Design: Measuring just 41 × 10 × 11.5 mm, the slim ABS housing installs cleanly on virtually any door or window frame.
- Wide Operating Temperature: Performs reliably from -10°C to +50°C, making it suitable for both indoor and mild outdoor environments.
Specifications
- Model: DS2
- Brand: LUCKING DOOR
- Working Frequency: 2.4GHz
- Power Supply: CR2032 3V button battery (battery removed for shipping; purchase separately)
- Standby Current: <5µA
- Detection Distance: <22mm
- Dimensions: 41 × 10 × 11.5 mm
- Material: ABS
- Operating Temperature: -10°C to +50°C
- Battery Life: Up to 2 years
- Smart Home Platform: TTLock App
- Compatible Devices: All TTLock smart devices that support adding a door sensor in the settings menu
- No Hazardous Chemicals: None
⚠️ Important Note: The DS2 door sensor cannot function independently. It must be paired with a compatible TTLock smart device (such as the G2 gateway) that supports the door sensor add-on feature in its settings.
Why Upgrade to a Smart Door Sensor?
Smart contact sensors are a foundational part of any connected home security setup. The U.S. Consumer Product Safety Commission (CPSC) highlights the importance of monitoring home entry points for added safety — a smart sensor like the DS2 makes that effortless. Learn more about home safety technology at CPSC.gov.
Frequently Asked Questions
Q: Does the TTLock DS2 door sensor work with all TTLock smart locks?
A: The DS2 is compatible with all TTLock smart devices that include the "Add Door Sensor" option in their settings menu. Always verify your specific lock or gateway model supports this feature before purchasing. It is confirmed to work with the TTLock G2 gateway.
Q: Does the DS2 door sensor work on its own without a TTLock device?
A: No. The DS2 must be paired with a compatible TTLock smart device (such as the G2 gateway). It cannot operate independently and requires the TTLock App ecosystem to communicate status updates to your smartphone.

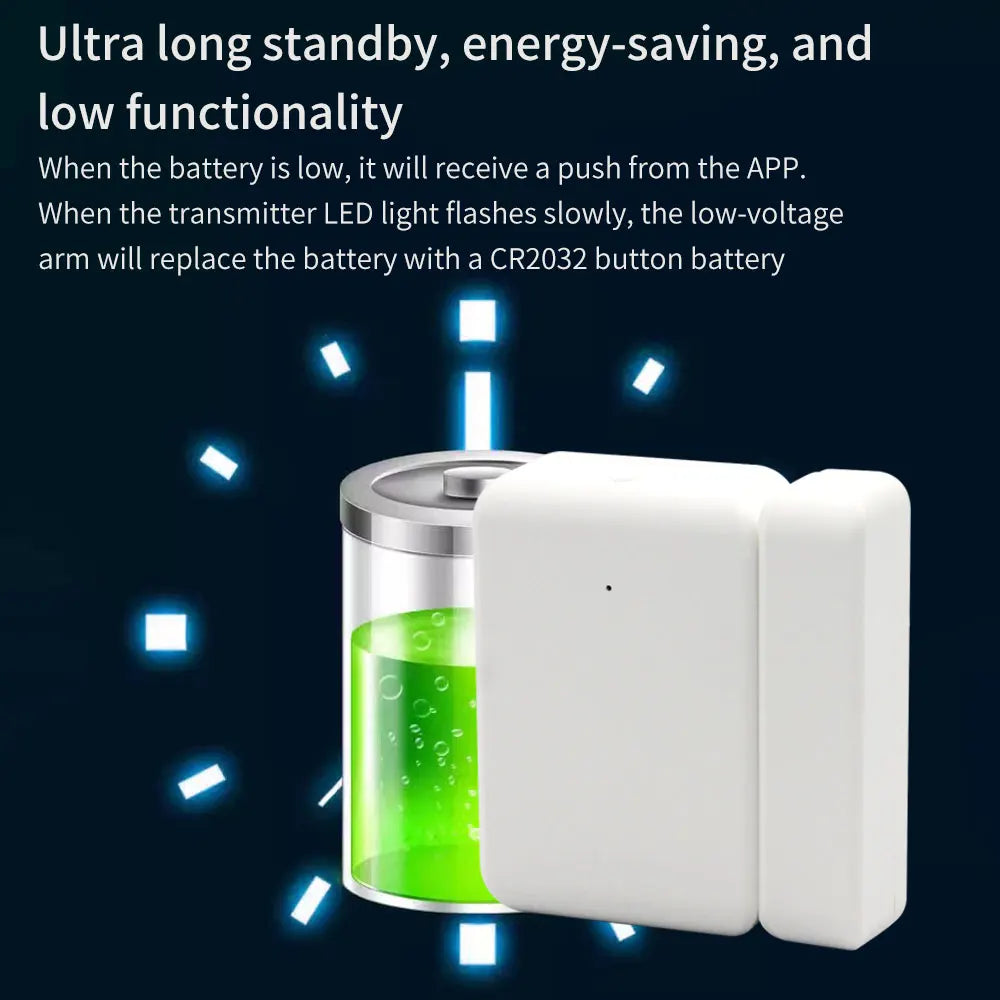

Q: What battery does the TTLock DS2 use, and how long does it last?
A: The DS2 uses a standard CR2032 3V button battery. Thanks to its ultra-low standby current of less than 5µA, the battery can last up to 2 years under typical usage. Note that the battery is removed during shipping due to carrier restrictions — you will need to insert one before first use.
Q: Can the DS2 trigger my smart lock to lock automatically when the door closes?
A: Yes! When used with a compatible TTLock smart lock that has an auto-lock function, the DS2 can trigger automatic locking as soon as the door is detected closed. This feature is only available if your lock model supports auto-lock.
Q: What is the maximum gap between the sensor and magnet for reliable detection?
A: The DS2 reliably detects open/closed status when the gap between the sensor body and its magnet is less than 22mm. For best results, install both pieces as close together as possible on your door or window frame.
