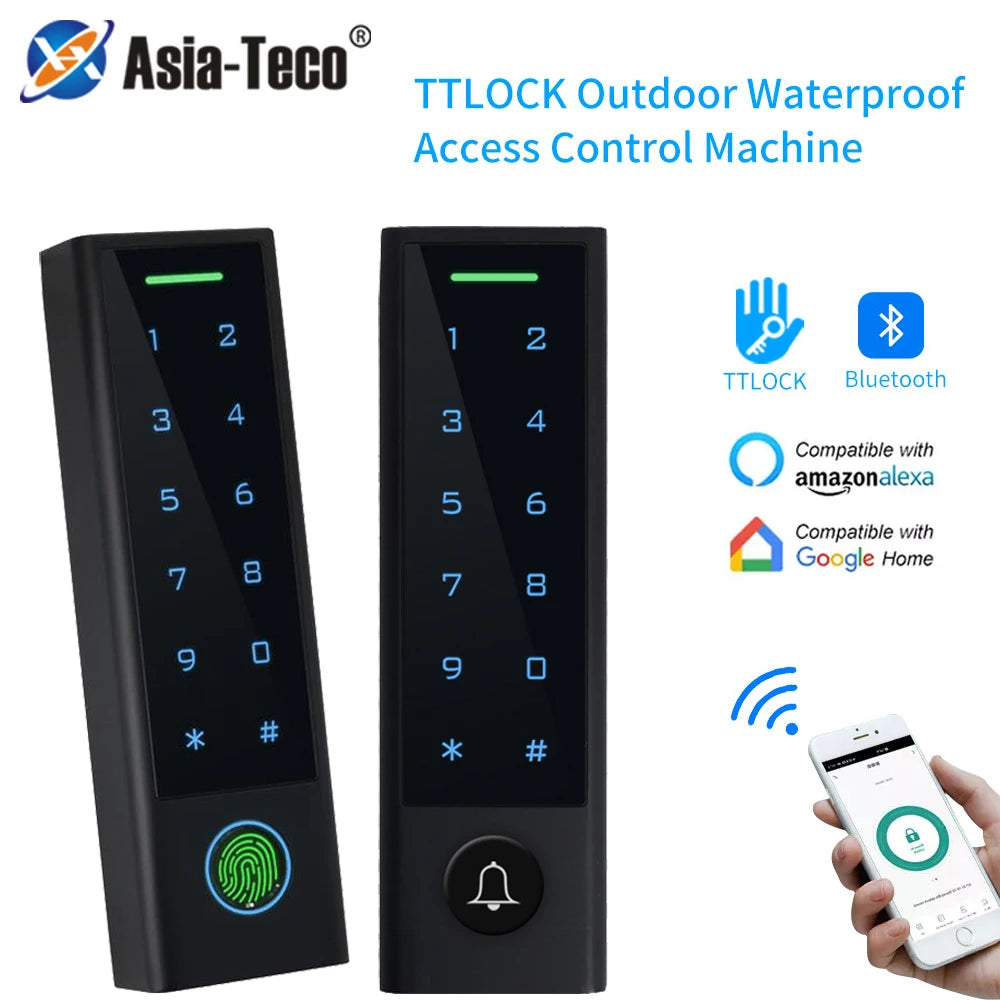

TTLock Bluetooth Fingerprint Access Control Keypad with RF IC Card Reader
Upgrade your entryway with the Asia-Teco TTLock Bluetooth Fingerprint Access Control Keypad — a feature-packed, weather-resistant smart access solution designed for homes, offices, and commercial properties. Manage who comes and goes with ease using fingerprint recognition, RF IC cards, PIN codes, or the TTLock smartphone app, all in one sleek, black ABS-housing keypad.
Key Features
- IP66 Waterproof Rating — Built to withstand rain, dust, and extreme outdoor conditions, operating reliably from -20°C to +60°C.
- Multiple Access Methods — Unlock via fingerprint, 13.56MHz Mifare/M1 IC card, custom or dynamic PIN code, or the TTLock smartphone app (iOS & Android).
- Bluetooth BLE 4.1 — Seamless wireless connectivity with Android 4.3+ and iOS 7.0+ devices.
- Smart Home Integration — Compatible with Amazon Alexa and Google Assistant for hands-free voice control.

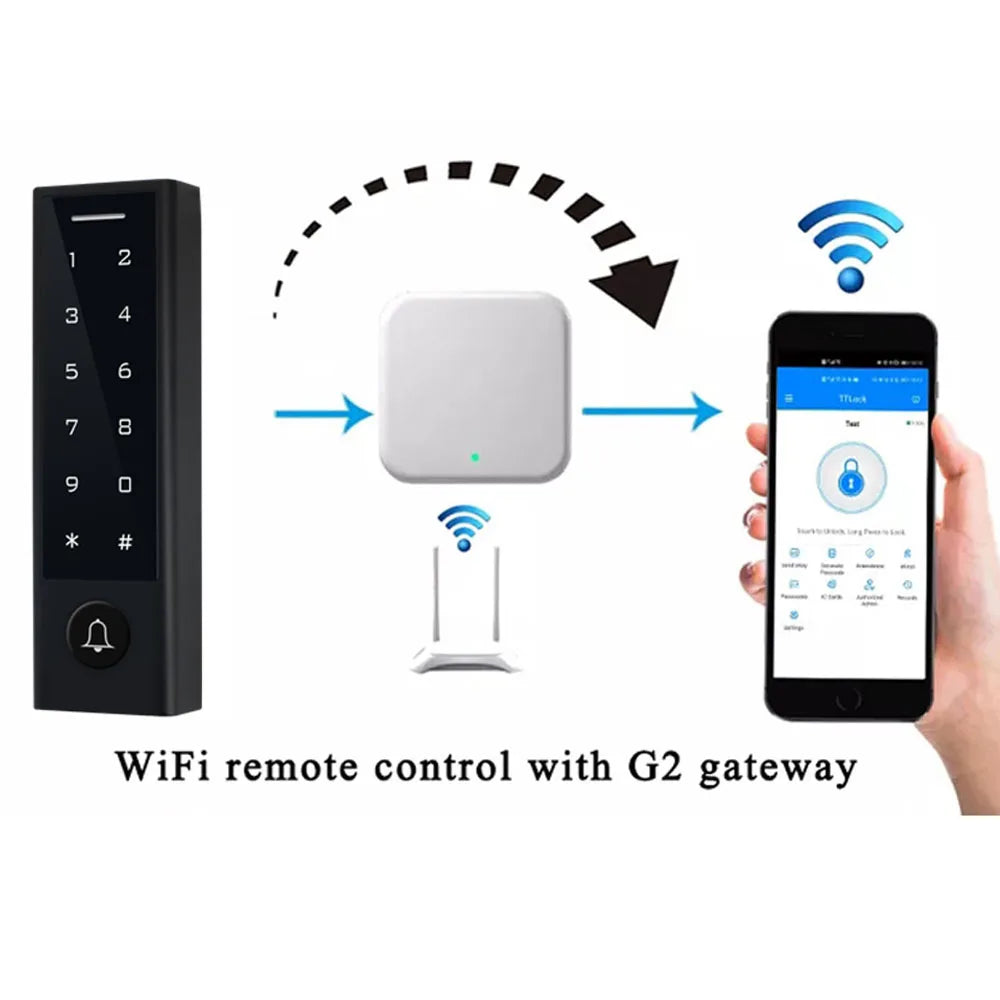

- WiFi-Ready via Gateway — Add the optional G2 TTLock Bluetooth Gateway (sold separately) to enable remote management over WiFi from anywhere.
- Large User Capacity — Store up to 100 fingerprints, 200 IC cards, 150 custom PINs, and 150 dynamic passwords.
- Access Log & Time Attendance — Review opening records and track time attendance directly in the TTLock app.
- Capacitive Touch Keypad — Responsive, durable touch interface for effortless entry every time.
- Multi-Language Support — Supports English, Spanish, French, German, Italian, Russian, Portuguese, Serbian, Malaysian, Japanese, Vietnamese, and more.
- CE, FCC & RoHS Certified — Meets international safety and compliance standards.
Technical Specifications
| Bluetooth | BLE 4.1 |
| Card Type | 13.56MHz Mifare / M1 IC Card |
| Card Reading Distance | 2–4 cm |
| Fingerprint Capacity | 100 |
| Card User Capacity | 200 |
| PIN User Capacity | 150 custom + 150 dynamic passwords |
| Operating Voltage | 12V DC |
| Working Current | ≤80mA |
| Lock Output Load | ≤2A |
| Waterproof Rating | IP66 |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 0%RH – 85%RH |
| Security Mode | Fail Safe |
| Dimensions | 148 × 43.5 × 22 mm |
| Unit Weight | 330g |
| Housing Material | High-quality ABS |
| Colour | Black |
| Model Number | CH3-TTLOCK / CF3-TTLOCK |
| Certifications | CE, FCC, RoHS |
| Country of Origin | Made in Mainland China |
Note: WiFi remote management requires the optional G2 TTLock Bluetooth Gateway, available separately.
Why Choose the TTLock Access Control Keypad?
Whether you're securing a residential front door, a commercial office, or a rental property, this keypad delivers professional-grade access control at an accessible price. The TTLock ecosystem allows you to add or delete users instantly, monitor entry logs in real time, and set custom access schedules — all from your smartphone. Its IP66-rated weatherproof construction means it performs just as well in a rainy outdoor entryway as it does in a climate-controlled lobby.
For more information on smart home device security standards, visit the NIST Cybersecurity resources.
Frequently Asked Questions
Q: Does the TTLock Bluetooth Fingerprint Keypad work without a smartphone?
A: Yes! You can unlock the door using a registered fingerprint, an RF IC card, or a PIN code even without a smartphone nearby. The TTLock app is required only for initial setup, user management, and remote access features.
Q: Do I need a WiFi gateway for remote access with this keypad?
A: The keypad connects via Bluetooth BLE 4.1 for local control. For remote management over the internet — such as unlocking from a different location — you will need the optional G2 TTLock Bluetooth Gateway (sold separately), which bridges the Bluetooth connection to your WiFi network.
Q: Is this access control keypad suitable for outdoor installation?
A: Absolutely. The keypad carries an IP66 waterproof rating, meaning it is fully protected against powerful water jets and dust ingress. Its operating temperature range of -20°C to +60°C makes it suitable for a wide variety of climates and outdoor environments.
Q: How many users can be registered on this keypad?
A: The keypad supports up to 100 fingerprints, 200 IC cards, 150 custom PIN codes, and 150 dynamic passwords — making it well-suited for small to medium-sized teams or multi-tenant properties.
Q: Is the TTLock keypad compatible with Alexa and Google Assistant?
A: Yes. When paired with a compatible TTLock Gateway, this keypad integrates with Amazon Alexa and Google Assistant, allowing you to manage access hands-free through voice commands.
