TTLock App Bluetooth 4.0 Electronic Lock Module – SN-9134

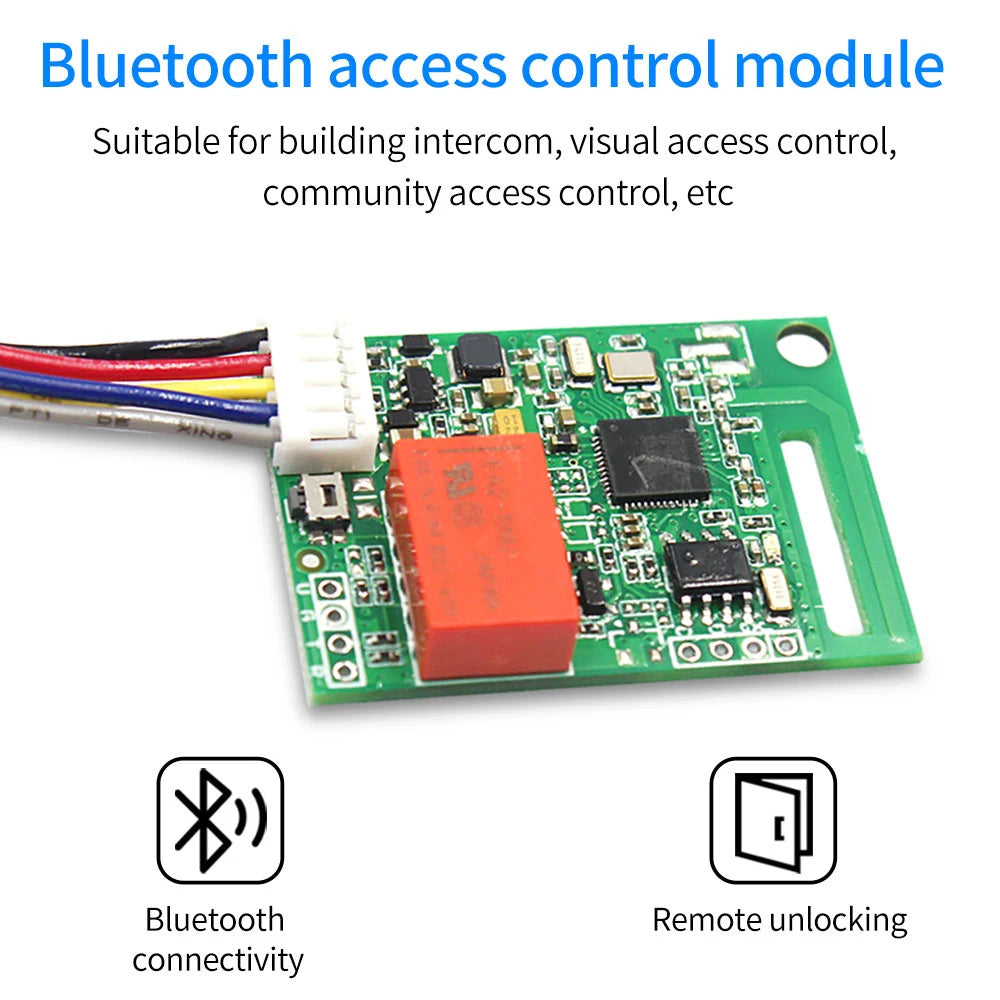

Take full control of door access from your smartphone with the LUCKING DOOR SN-9134 BLE Lock Module. Designed to integrate seamlessly with the TTLock App, this compact Bluetooth 4.0 relay board lets you manage entry permissions, set timed access, and monitor door activity — all wirelessly. Whether you're upgrading a home, office, or commercial space, this module delivers a reliable, low-power smart access solution. Made in Mainland China.

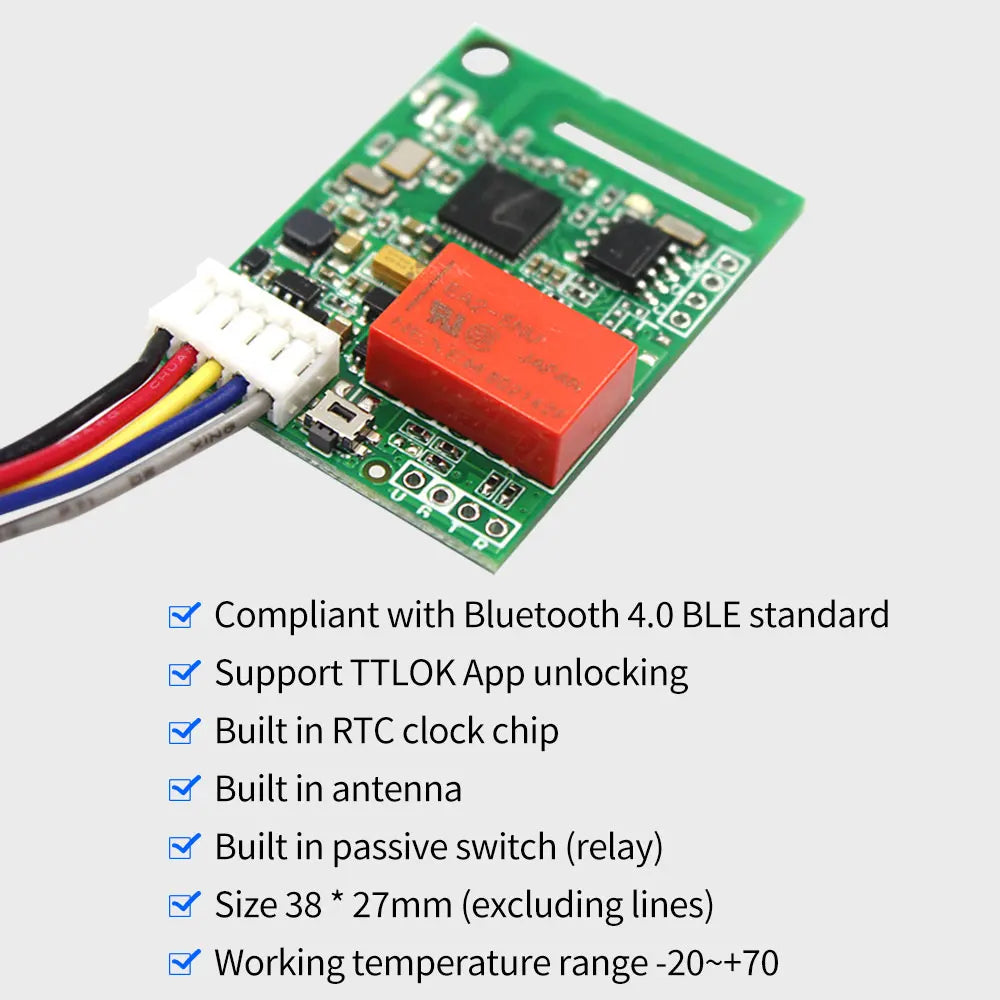

Key Features
- Bluetooth 4.0 BLE Standard: Energy-efficient wireless communication with a reliable range for door access control.
- TTLock App Compatible: Works with the TTLock smart platform (iOS & Android) for convenient smartphone-based door management.
- Built-in RTC Clock Chip: Enables time-based access scheduling and event logging without an external clock module.
- Integrated Antenna: Built-in antenna ensures clean installation without external antenna clutter.
- Passive Relay Switch (NO/NC/COM): Flexible relay output supports both normally open and normally closed door hardware configurations.
- Wide Operating Temperature Range: Functions reliably from -20°C to +70°C, suitable for indoor and sheltered outdoor installations.
- Compact Form Factor: Measures just 38 × 27 mm (excluding wiring), making it easy to fit inside existing door control enclosures.
- Sleep Mode by Default: Module stays in low-power sleep state and activates only when an unlock command is received via the app — maximizing energy efficiency.
Technical Specifications
| Model | SN-9134 |
| Communication | Bluetooth 4.0 BLE |
| Smart Platform | TTLock App |
| Input Voltage (VCC) | 8–18V DC |
| Relay Output | NO / NC / COM |
| Operating Temperature | -20°C to +70°C |
| Module Size | 38 × 27 mm (excluding wiring) |
| Country of Origin | Mainland China |
Important Usage Notes
- Always operate within the specified 8–18V input voltage range. Operating below minimum voltage may cause malfunction; exceeding maximum voltage may cause permanent damage.
- Avoid exposure to extreme environments (extreme humidity, condensation, or temperatures outside the rated range) to prevent unexpected module behavior.
- The module defaults to sleep mode and wakes only upon receiving an app unlock command — this is normal and expected behavior.
Learn More About Smart Access & Electrical Safety
For guidance on electrical safety standards for access control hardware, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What app does the SN-9134 BLE lock module work with?
A: The SN-9134 is designed to work exclusively with the TTLock App, available for both iOS and Android. Through the app, you can unlock doors, assign access to multiple users, set timed access schedules, and review entry logs.
Q: What voltage does the SN-9134 BLE lock module require?
A: The module requires a DC supply voltage between 8V and 18V. Always ensure your power supply falls within this range — too low may cause the module to malfunction, and too high can permanently damage it.
Q: Can I use this module with normally closed (NC) door locks?
A: Yes. The SN-9134 includes a relay with NO (Normally Open), NC (Normally Closed), and COM (Common) terminals, making it compatible with a wide range of electric door locks, strikes, and magnetic locks in both normally open and normally closed configurations.
Q: What is the Bluetooth range of the SN-9134 module?
A: The module uses Bluetooth 4.0 BLE with a built-in antenna. Typical indoor range is approximately 5–10 meters, though actual performance may vary depending on walls, interference, and environmental conditions.
Q: Does the module consume a lot of power when idle?
A: No. The SN-9134 is designed to remain in a low-power sleep state when not in use. It only activates when an unlock signal is sent via the TTLock App, keeping energy consumption minimal.
