TTLock Biometric Face & Fingerprint RFID Door Access Controller
TTLock Biometric Face & Fingerprint RFID Door Access Controller

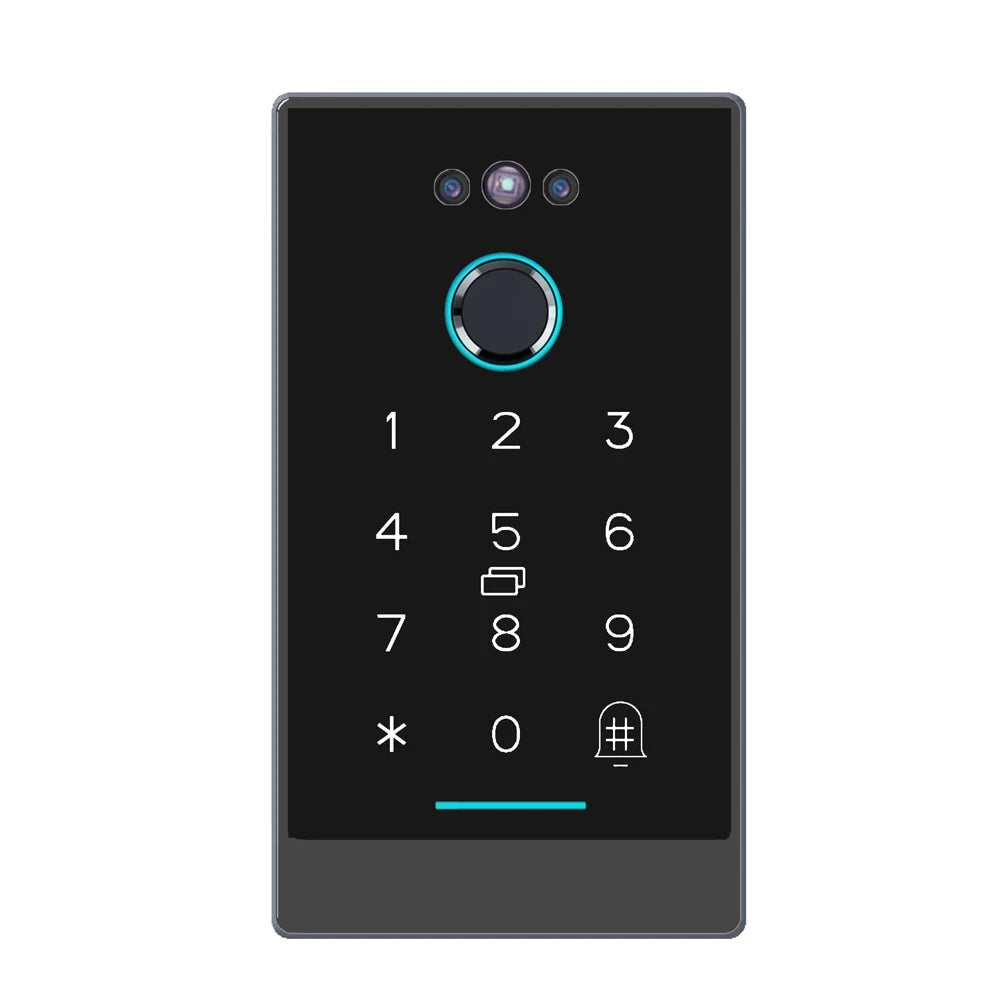

TTLock H3D Smart Biometric Access Control System
Take full command of who enters your space with the Asia-Teco H3D-TTLOCK Biometric Door Access Controller — a feature-rich, app-connected entry system that combines facial recognition, fingerprint scanning, RFID card reading, PIN code entry, and smartphone control into one sleek, IP66-rated device. Whether you're securing an office, rental property, or commercial space, this smart access controller delivers fast, keyless entry with a full time-attendance logging function built right in.
Made in Mainland China.
Why Choose the Asia-Teco H3D-TTLOCK?
- 5-in-1 Entry Methods: Unlock via the TTLock app, facial recognition, fingerprint, 13.56 MHz IC/RFID card, temporary password, or the optional TTLock R1 remote control — maximum flexibility for every user.
- Time & Attendance Logging: Built-in employee clock-in record management lets you track entry events in real time — ideal for small businesses, offices, and co-working spaces.
- Large Credential Capacity: Stores up to 1,000 RFID cards, 100 faces, 100 fingerprints, and 100 unique PIN codes simultaneously.
- Bluetooth & Wi-Fi Ready: Connects via Bluetooth out of the box. Add the optional G2 TTLock Bluetooth Wi-Fi Gateway for remote access and control from anywhere in the world.
- Voice Assistant Compatible: Works seamlessly with Amazon Alexa and Google Assistant for hands-free control.
- Cloud-Based User Management: Add or remove users remotely through the TTLock app — no on-site visit required.
- eKey & Code Sharing: Grant temporary or permanent access to visitors, guests, or colleagues by sharing eKeys or passcodes via messaging apps and social platforms.
- Real-Time Push Notifications: Administrators receive instant alerts whenever the lock is triggered or reset — stay informed at all times.
- Anti-Tamper Keypad Protection: Keypad locks for 5 minutes after 5 consecutive incorrect PIN entries. Pseudo-passcode support adds an extra layer of discreet security.
- Auto-Lock: Automatically re-locks within 5 seconds of unlocking for continuous security.
- IP66 Weatherproof Rating: Designed for outdoor installation and built to withstand dust and heavy rain.
- Backlit Keypad: Adjustable keyboard backlight for easy use day or night.
Technical Specifications
| Brand | Asia-Teco |
| Model | H3D-TTLOCK |
| Card Capacity | 1,000 |
| Face Capacity | 100 |
| Fingerprint Capacity | 100 |
| Password Slots | 100 |
| Power Supply | DC 12V |
| Operating Current | 1A |
| Standby Current | 66mA (backlight active) |
| Dimensions | 150mm × 80mm × 21mm |
| Material | ABS / Acrylic |
| Waterproof Rating | IP66 |
| App Support | TTLock App, TTRenting, TTHotel, Sciener Web System |
| Compatibility | Android 4.3+ / iOS 7.0+ |
| Voice Control | Amazon Alexa, Google Assistant |
| Origin | Made in Mainland China |
What's In the Box
- 1× H3D-TTLOCK Face Recognition Access Controller
- 1× Fixed Mounting Bracket
- 1× Expansion Tube
- 5× Screws (4+1)
- 1× Hex Screwdriver
- 1× User Manual

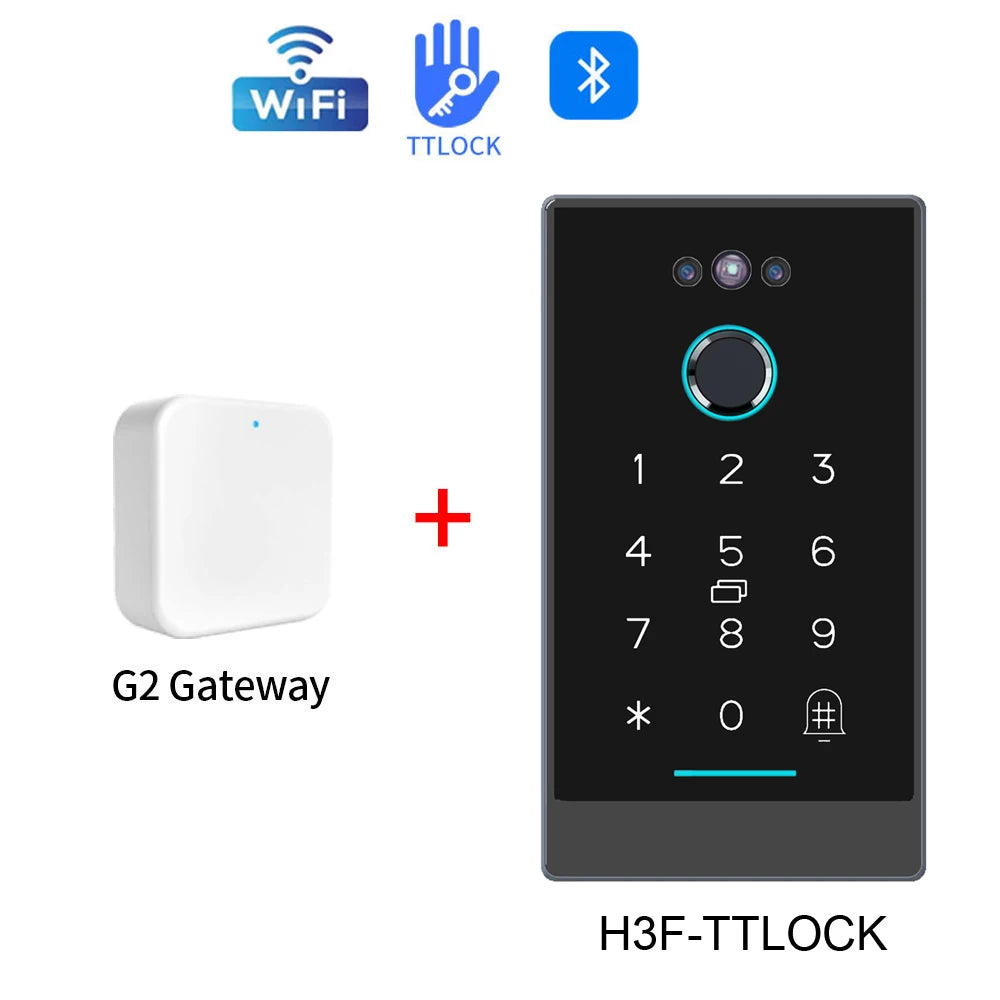

- 1× G2 Wi-Fi Gateway (Optional — required for remote access over the internet)
Note: Remote door control from any location requires the optional G2 TTLock Bluetooth Gateway for Wi-Fi connectivity. The device connects via Bluetooth by default.
For more information on electronic security standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Can I control the TTLock H3D-TTLOCK access controller remotely from my smartphone?
A: Yes — but remote Wi-Fi access requires the optional G2 TTLock Bluetooth Gateway. Once connected, you can unlock, monitor, and manage users from anywhere using the TTLock app on Android 4.3+ or iOS 7.0+ devices. Without the gateway, the device operates over Bluetooth within standard range.
Q: How many users can be registered on the H3D-TTLOCK biometric access controller?
A: The controller supports up to 1,000 RFID/IC cards, 100 registered faces, 100 fingerprints, and 100 PIN codes — making it well-suited for small to medium-sized offices, rental properties, and commercial facilities.
Q: Is the Asia-Teco H3D-TTLOCK suitable for outdoor installation?
A: Yes. The device carries an IP66 weatherproof rating, meaning it is protected against powerful water jets and dust ingress, making it reliable for covered outdoor entryways, gates, and building exteriors in most weather conditions.
Q: Does this access controller work with Amazon Alexa or Google Assistant?
A: Absolutely. The H3D-TTLOCK is compatible with both Amazon Alexa and Google Assistant, allowing you to trigger access commands using voice control when connected through the TTLock smart home platform.
