TTLock Biometric Access Control – Face, Fingerprint & RFID Keypad
TTLock Biometric Access Control – Face, Fingerprint & RFID Keypad
TTLock Biometric Time Attendance & Access Control System

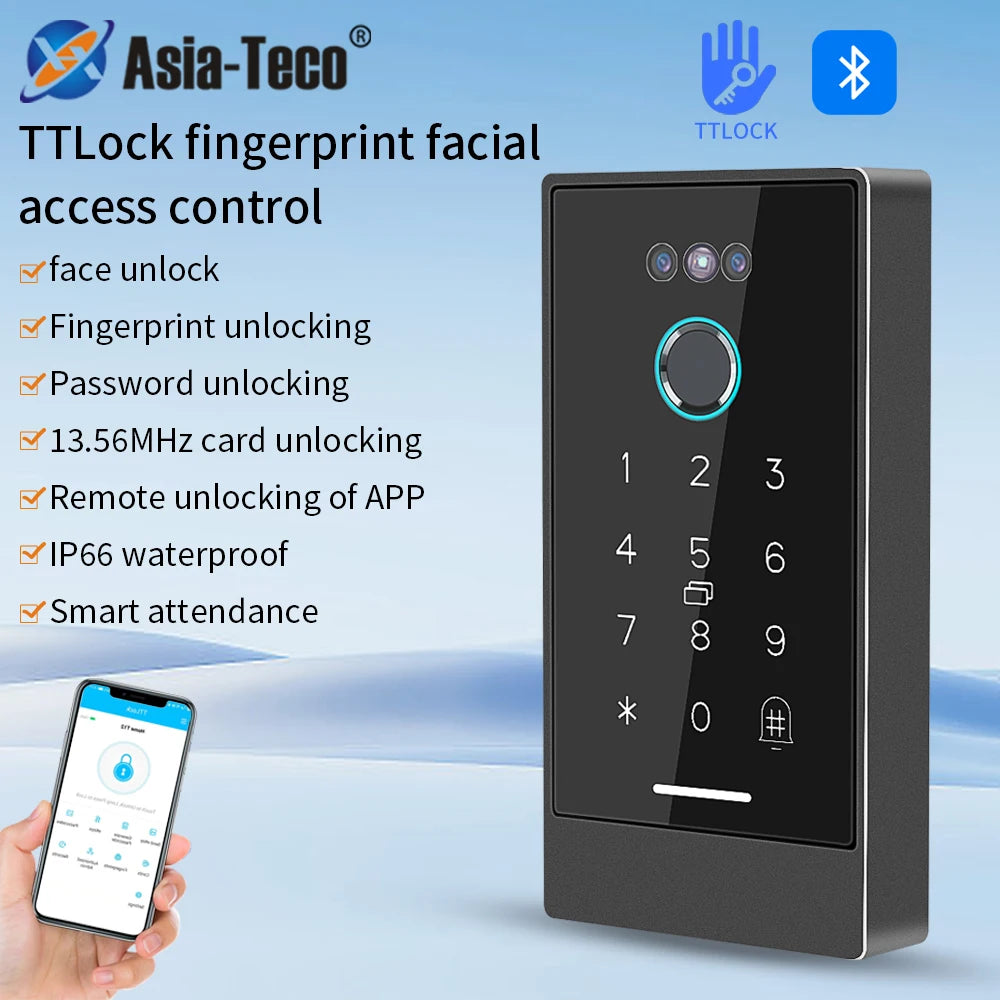

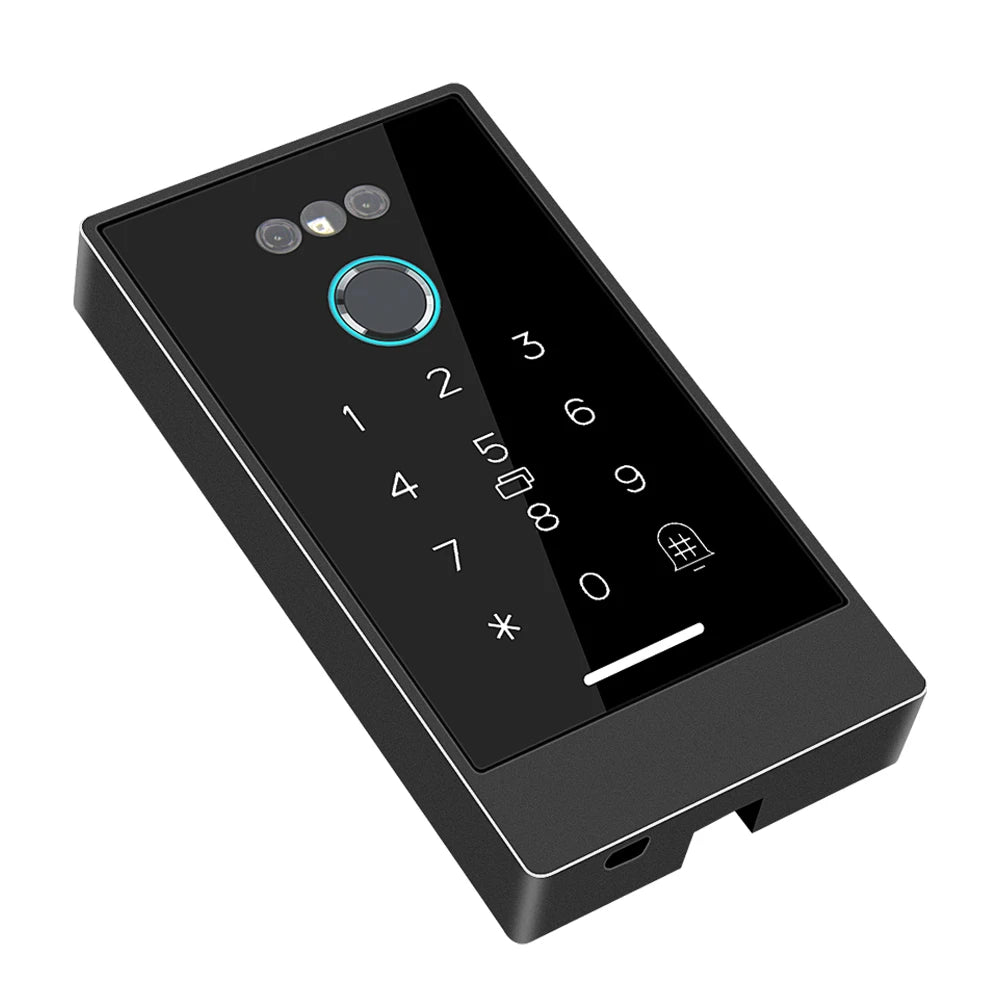

Take full command of your entry points with the TTLock H3D-TTLOCK Biometric Access Control Keypad — a multi-credential smart security panel that combines facial recognition, fingerprint scanning, RFID card reading, PIN codes, and app-based remote access in one sleek, IP66-rated device. Perfect for offices, warehouses, co-working spaces, rental properties, and any environment where secure, trackable entry management matters.
Made in Mainland China.
Key Features
- 5-in-1 Entry Methods: Unlock via face recognition, fingerprint scan, 13.56 MHz IC card, PIN code, or the TTLock smartphone app.
- Time & Attendance Tracking: Built-in clock-in/clock-out logging lets administrators monitor employee attendance records directly from the cloud dashboard or PC software.
- Cloud-Based Management: User credentials are stored and managed in the cloud — add or remove users remotely at any time without being on-site.
- Large Credential Capacity: Supports up to 1,000 RFID cards, 100 faces, 100 fingerprints, and 100 PIN codes simultaneously.
- Smart Home Compatible: Works natively with Amazon Alexa and Google Assistant for voice-controlled access.
- Bluetooth & Optional Wi-Fi: Connects via Bluetooth out of the box; add the optional G2 TTLock Bluetooth Gateway for full Wi-Fi and remote control from anywhere in the world.
- Temporary & Shared eKeys: Issue time-limited passwords or digital eKeys to visitors, contractors, or guests directly through social messaging apps.
- Real-Time Push Notifications: Administrators receive instant alerts whenever the lock is accessed, reset, or triggered after repeated incorrect entries.
- Anti-Tamper Keypad Lock: After 5 consecutive incorrect PIN attempts, the keypad locks for 5 minutes. Pseudo-passcode feature masks the real code from onlookers.
- Auto-Lock: The lock re-engages automatically within 5 seconds of being released for continuous security.
- IP66 Weatherproof: Rated for outdoor installation — built to withstand rain, dust, and harsh environmental conditions.
- Backlit Keypad: Manually toggle the keyboard backlight on or off for convenient nighttime use.
- Multiple Platforms: Fully integrated with TTLock App, TTRenting App, TTHotel, and Sciener Web System.
Technical Specifications
| Model | H3D-TTLOCK |
| Brand | Asia-Teco |
| Card Capacity | 1,000 |
| Face Capacity | 100 |
| Fingerprint Capacity | 100 |
| Password Slots | 100 |
| Power Supply | DC 12V |
| Operating Current | 1A |
| Standby Current | 66mA (backlight active) |
| Dimensions | 150mm × 80mm × 21mm |
| Material | ABS / Acrylic / Panel |
| Waterproof Rating | IP66 |
| Card Standard | 13.56 MHz IC (RFID) |
| App Compatibility | Android 4.3+ / iOS 7.0+ |
| Voice Assistants | Amazon Alexa, Google Assistant |
| Country of Origin | Mainland China |
What's in the Box
- 1× Face Recognition Access Control Unit (H3D-TTLOCK)
- 1× Fixed Mounting Bracket
- 1× Expansion Tube
- 5× Screws (4+1)
- 1× Hex Screwdriver
- 1× User Manual
- 1× G2 Wi-Fi Gateway (Optional – required for remote Wi-Fi control)
Note: Remote access from any location requires the separately available G2 TTLock Bluetooth Gateway for Wi-Fi connectivity.
Learn More About Access Control Standards
For guidance on physical security standards and best practices for electronic access control systems, visit the NIST Cybersecurity & Physical Security Resources and OSHA's guidelines on workplace access and egress.
Frequently Asked Questions
Q: Do I need a Wi-Fi gateway to use this TTLock access control system?
A: No — the H3D-TTLOCK connects via Bluetooth directly to your smartphone through the TTLock app, which is sufficient for on-site management. However, if you want to unlock, manage users, or monitor activity remotely from anywhere in the world, you will need to purchase the optional G2 TTLock Bluetooth Gateway, which bridges the device to your Wi-Fi network.
Q: How many users can this biometric access control keypad support?
A: The system supports up to 1,000 RFID card users, 100 registered faces, 100 fingerprint profiles, and 100 unique PIN codes — making it well suited for small-to-medium businesses, offices, rental properties, and hotels.
Q: Is this facial recognition access control panel suitable for outdoor installation?
A: Yes. The H3D-TTLOCK is rated IP66 for weatherproofing, meaning it is protected against powerful water jets and heavy dust ingress, making it fully suitable for outdoor entry points such as building gates, parking barriers, and exterior office doors.
Q: Can I track employee attendance using this device?
A: Absolutely. The built-in time attendance function logs every clock-in and clock-out event. Administrators can review these records through the cloud PC software or via the TTLock / Sciener Web System dashboard — no additional hardware required.
Q: What smart home platforms are compatible with this access control keypad?
A: The TTLock H3D-TTLOCK is compatible with both Amazon Alexa and Google Assistant, allowing for voice-activated control. It also integrates with the TTLock App, TTRenting App, TTHotel platform, and the Sciener Web System for comprehensive management.
