TTLock App Keyless Electronic Cabinet Lock – RFID Card & Password Keypad
Upgrade your locker security with the Asia-Teco EM167 Electronic Cabinet Lock — a smart, keyless solution compatible with the TTLock App. Built from durable zinc alloy with a plastic composite panel, this digital lock offers multiple unlock methods and a sleek, modern design perfect for gyms, spas, schools, offices, and more.
Key Features

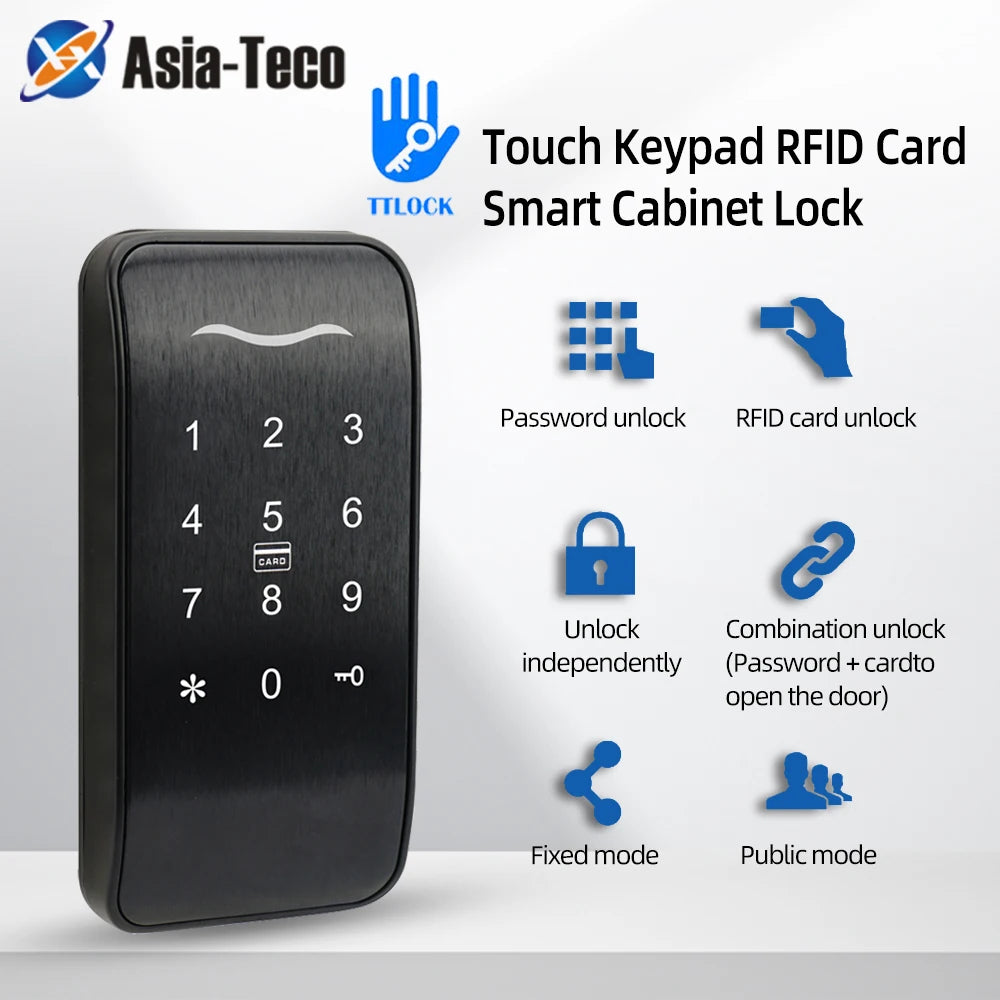

- Multiple Unlock Methods: Unlock via RFID card (125KHz TK4100 / ID Card), numeric touch keypad password, or a combined card + password mode for added security.
- TTLock App Compatible: Manage access, assign codes, and monitor your lock remotely using the TTLock smart platform app on your smartphone.
- Automatic Locking: Built-in magnetic sensor detects door closure and automatically secures the lock — no manual re-locking needed.
- Sturdy Zinc Alloy Construction: Precision-crafted metal body provides long-lasting durability, resistance to tampering, and a premium look in gold, silver, or black finishes.
- Easy Installation: Requires only a threaded hole, panel wire connection, and two securing screws — no specialist tools or complex wiring.
- Wide Application: Ideal for school lockers, gym and sauna changing rooms, swimming pool facilities, spa cabinets, office drawers, and more.
- Low Power Consumption: Ultra-low static draw (<40µA) keeps your 4 × AA batteries lasting longer between changes.
Specifications
| Model | EM167 |
| Material | Zinc Alloy + Plastic |

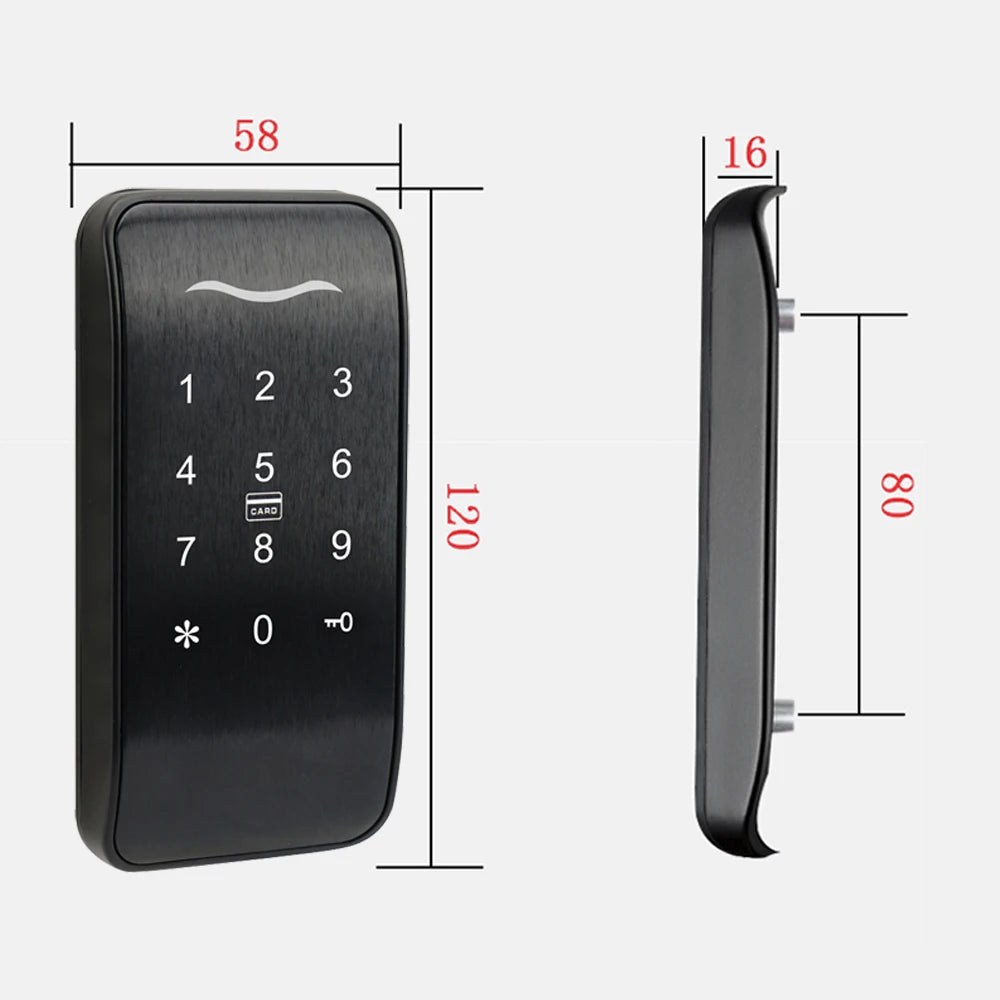

| Panel Size | 120 × 58 × 16 mm |

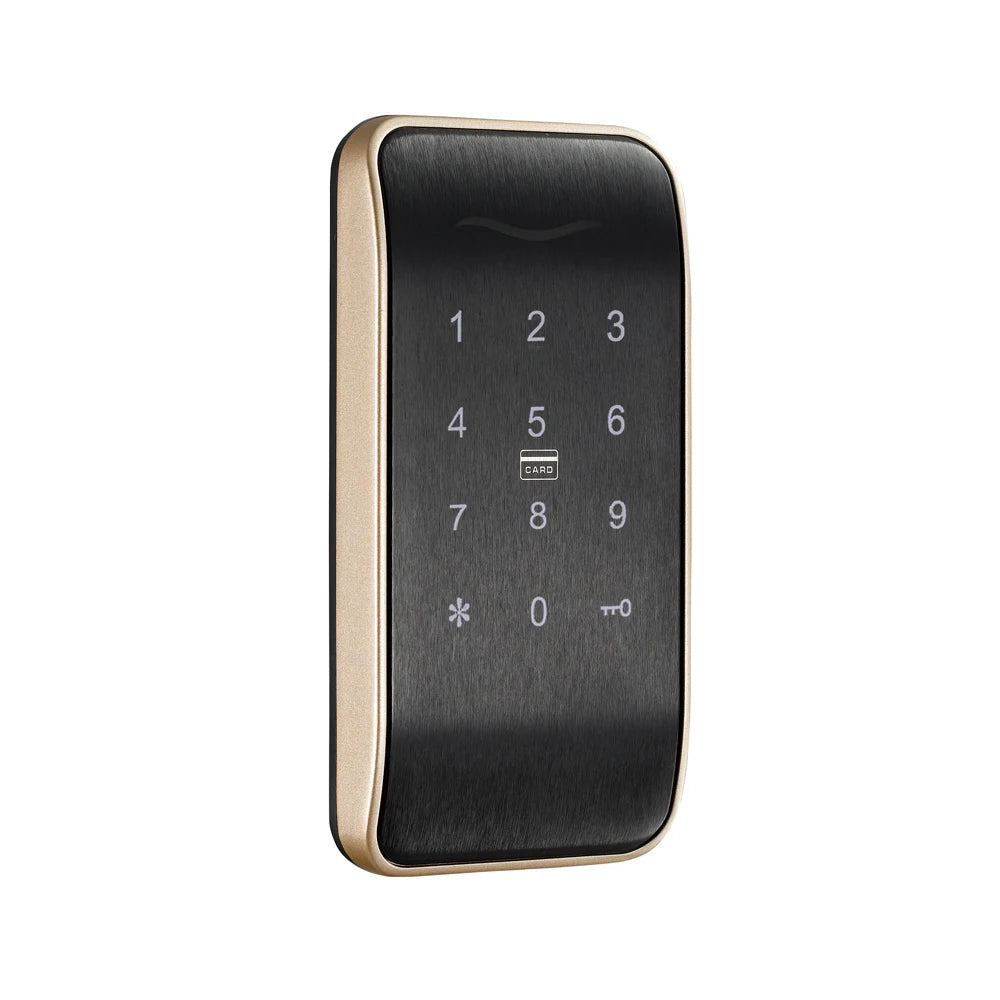

| Panel Colors | Gold / Silver / Black |
| Card Type | 125KHz TK4100 (ID Card) |
| Unlock Methods | RFID Card, Password, Card + Password |
| Power Supply | DC 4.5V – 4 × AA Batteries (not included) |
| Static Power Draw | <40µA |
| Dynamic Power Draw | <300mA |
| Working Temperature | -10°C to 80°C (14°F to 176°F) |
| Smart Platform | TTLock App |
| High-Concern Chemicals | None |
| Country of Origin | Made in China |
What's in the Box
- 1 × Electronic Password RFID Cabinet Lock Panel
- 1 × Lock Box
- 1 × Lock Body
- 1 × RFID Card
- 1 × Mounting Screw Package
- 1 × Instruction Manual
For general guidance on electronic access control and physical security best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What unlock methods does this electronic cabinet lock support?
A: The Asia-Teco EM167 supports three convenient unlock methods: RFID card (125KHz TK4100), numeric touch keypad password, and a dual-mode card + password combination for extra security — all manageable through the TTLock App.
Q: Is the TTLock App electronic cabinet lock easy to install?
A: Yes. Installation is straightforward — drill a single threaded hole, connect the panel wires to the lock body, and secure the panel with two screws. No specialist tools or electrician is required. A full instruction manual is included in the box.
Q: What type of batteries does the EM167 keypad cabinet lock require?
A: The lock is powered by 4 × AA batteries (DC 4.5V), which are not included. Thanks to its ultra-low static power consumption (<40µA), the batteries provide a long operational life between replacements.
Q: Where can this RFID cabinet lock be used?
A: The lock is widely suitable for school lockers, gym and fitness center cubicles, sauna and spa changing rooms, swimming pool facilities, office drawers, and any other cabinet or locker application where keyless secure access is needed.
Q: Does the lock automatically re-lock after the door is closed?
A: Yes. The built-in magnetic sensor detects when the door is closed and automatically engages the lock — giving you hands-free, reliable security every time.
