TTL 40KM Optical Transceiver Module – Drone-Specific Optical Communication
Take your drone's communication range to the next level with this high-performance TTL 40KM Optical Transceiver Module. Engineered specifically for drone and UAV applications, this compact PCB-based optical communication terminal delivers reliable long-range signal transmission up to 40 kilometers. Whether you need a TX (transmitter) or RX (receiver) configuration, this module integrates seamlessly into professional drone setups requiring stable optical data links.
Key Features
- Long-Range Optical Communication: Supports transmission distances up to 40 km, ideal for extended-range drone operations.
- Wide Voltage Input: Compatible with DC 5.5V–26V power supplies, making it versatile across a wide range of drone and UAV power systems.
- TTL Interface: Simple TTL-level signal interface for straightforward integration with flight controllers and onboard electronics.

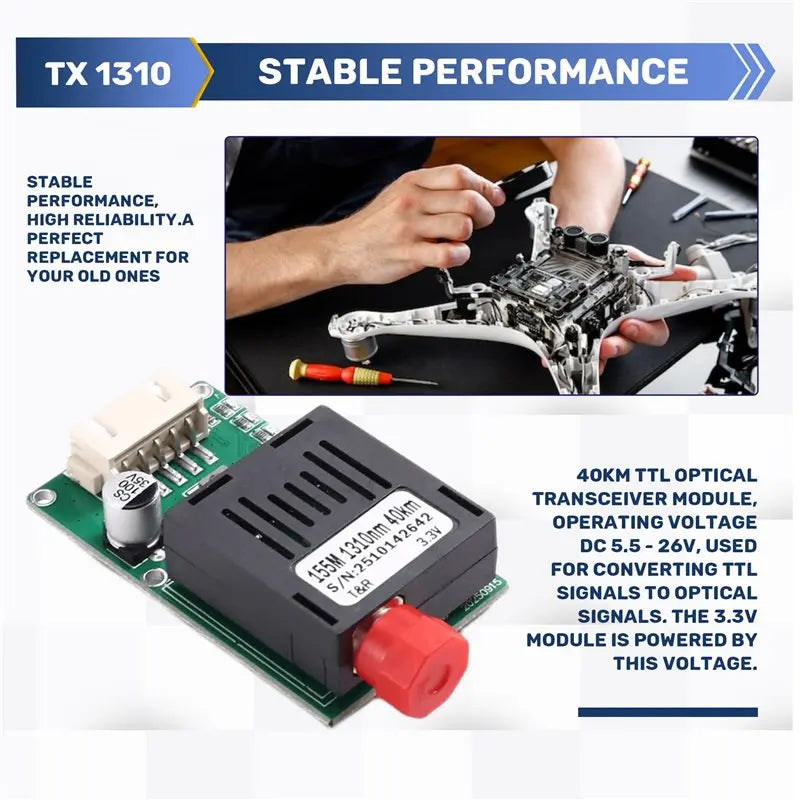

- TX 1310 Specification: Operates at 1310 nm wavelength for stable, low-loss optical signal transmission.

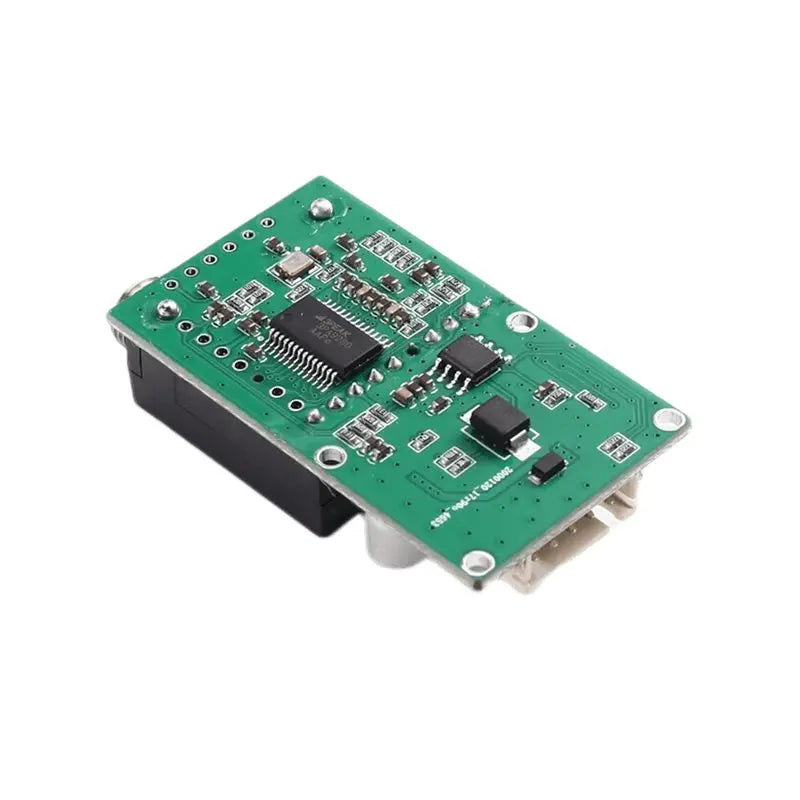

- Compact Green PCB Design: Lightweight and space-efficient, engineered for drone installation environments.
- Available in TX and RX Variants: Select the transmitter (TX) or receiver (RX) module to build your complete optical communication link.
- Plug-and-Play Setup: Minimal configuration required — connect power and your TTL data lines and you're ready to go.
Specifications
| Interface | TTL |
| Wavelength | 1310 nm (TX 1310) |
| Max Range | Up to 40 km |
| Input Voltage | DC 5.5V – 26V |
| Material | PCB |
| Color | Green |
| Variants | TX (Transmitter) / RX (Receiver) |
| Wireless | No (Optical Fiber Communication) |
| Country of Origin | Made in China |
What's in the Box
- 1 × TTL Optical Transceiver Module (TX or RX, as selected)
Who Is This For?
This module is designed for drone builders, UAV engineers, and hobbyist pilots who require long-range, stable optical communication links between ground stations and aircraft. It's also well-suited for industrial remote sensing, point-to-point fiber-optic data links, and other applications demanding high-bandwidth, low-latency signal transmission over extended distances.
For more information on safe drone and UAV operations, visit the FAA Unmanned Aircraft Systems (UAS) resource page.
Frequently Asked Questions
Q: What is the difference between the TTL TX and TTL RX optical transceiver modules?
A: The TTL TX (transmitter) module sends optical signals over the fiber link, while the TTL RX (receiver) module receives those optical signals and converts them back into TTL-level electrical signals. For a complete point-to-point optical communication link, you need one TX module on the transmitting end and one RX module on the receiving end.
Q: What power supply does this TTL optical transceiver module require?
A: This module supports a wide DC input voltage range of 5.5V to 26V, making it compatible with most standard drone and UAV battery systems, including 2S to 6S LiPo configurations.
Q: Is this module compatible with standard drone flight controllers?
A: Yes. The TTL interface is a standard serial communication protocol supported by the vast majority of drone flight controllers and companion computers, including popular platforms like ArduPilot, Pixhawk, and similar systems. Simply connect the TX and RX data lines to the corresponding UART port on your flight controller.
Q: Can this optical transceiver module really transmit data up to 40 km?
A: The 40 km specification refers to the optical transmission distance over a suitable fiber-optic cable under ideal conditions. Actual performance may vary depending on fiber quality, connectors, and environmental factors. This module is designed for professional and advanced hobbyist long-range UAV applications.
