JCSMARTS TTHotel Bluetooth RFID Smart Lock Chip Replacement
JCSMARTS TTHotel Bluetooth RFID Smart Lock Chip Replacement

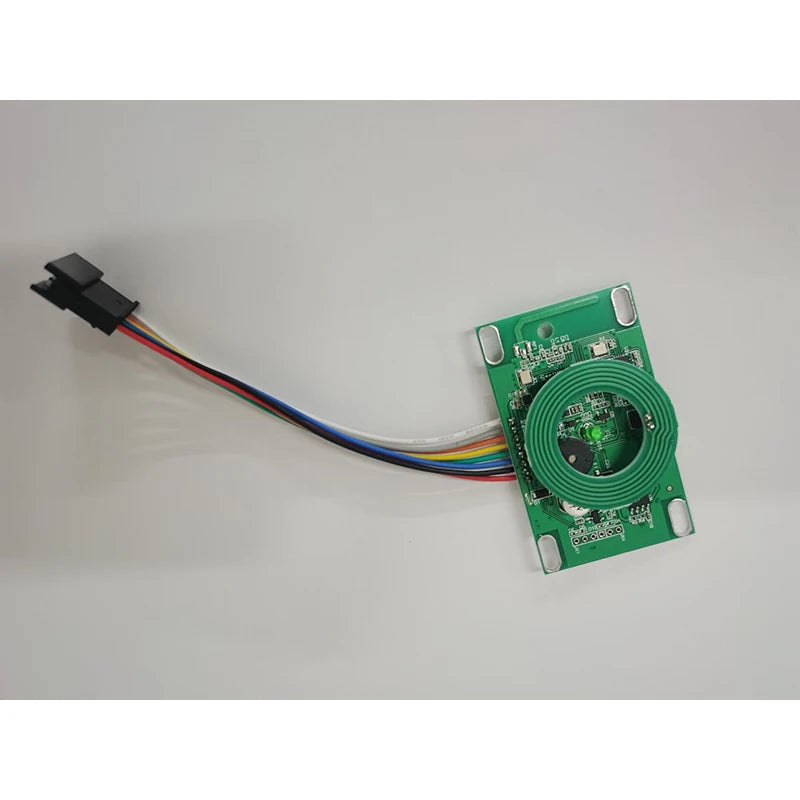

JCSMARTS TTHotel Bluetooth RFID Smart Lock Chip
Upgrade or replace the lock chip in your hotel's existing mortise lock with the JCSMARTS TTHotel Bluetooth RFID Smart Lock Chip. Designed exclusively for the TTHotel online management system, this drop-in replacement chip brings modern Bluetooth and RFID card access to your property — without replacing the entire lock hardware. Made in China.
Key Features
- Dual Unlock Methods: Supports both RFID card access and smartphone eKey via the TTlock app — giving guests and staff flexible, convenient entry options.
- Cloud-Based Management: All room and guest data is securely stored in the cloud, accessible from the TTHotel PC software or mobile app at any time.
- Remote Management: With an optional gateway, reception staff can remotely unlock doors, monitor real-time door-opening records, and check battery status for every lock — all from a central computer.
- Smartphone Compatible: Managers and guests can use the TTHotel / TTlock app to issue eKeys, manage check-ins, and oversee daily hotel operations from anywhere.
- ANSI Mortise Compatible: Designed to work with ANSI mortise locks. Direction-reversible for flexible installation.
- Easy Reset: Simply turn the cylinder key 5 times on the mortise to reset the chip.
- Battery Powered: Runs on 4 × AA dry-cell batteries (not included).
- CE Certified: Meets CE safety and compliance standards.
Specifications
- Brand: JCSMARTS
- Model: TTHotel Chip
- Certification: CE
- Power Supply: 4 × AA Dry Batteries
- Open Direction: Reversible
- Compatible Mortise: ANSI Mortise
- Waterproofing: Not waterproof (indoor use)
- Chip Dimensions: 60.4 mm (L) × 36.5 mm (W) × 7.6 mm (H)
- Country of Origin: Made in China

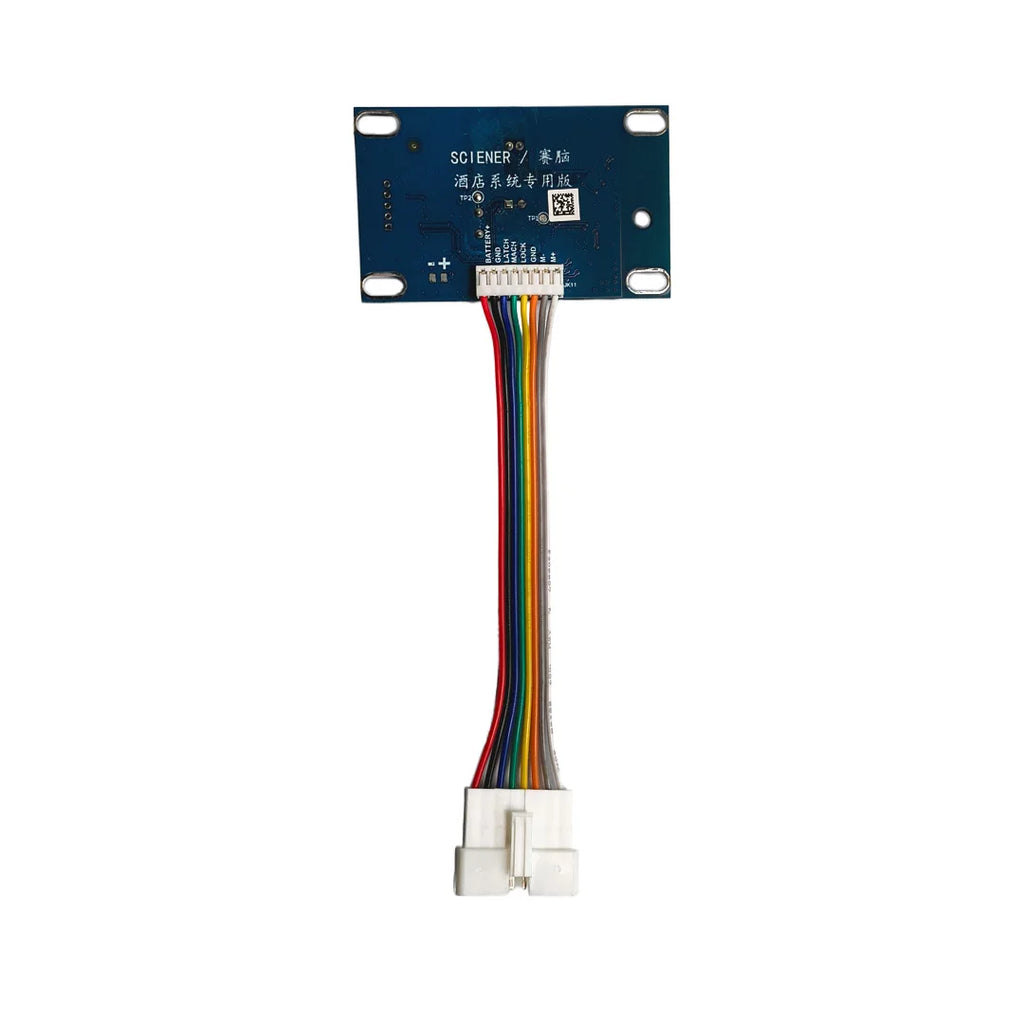

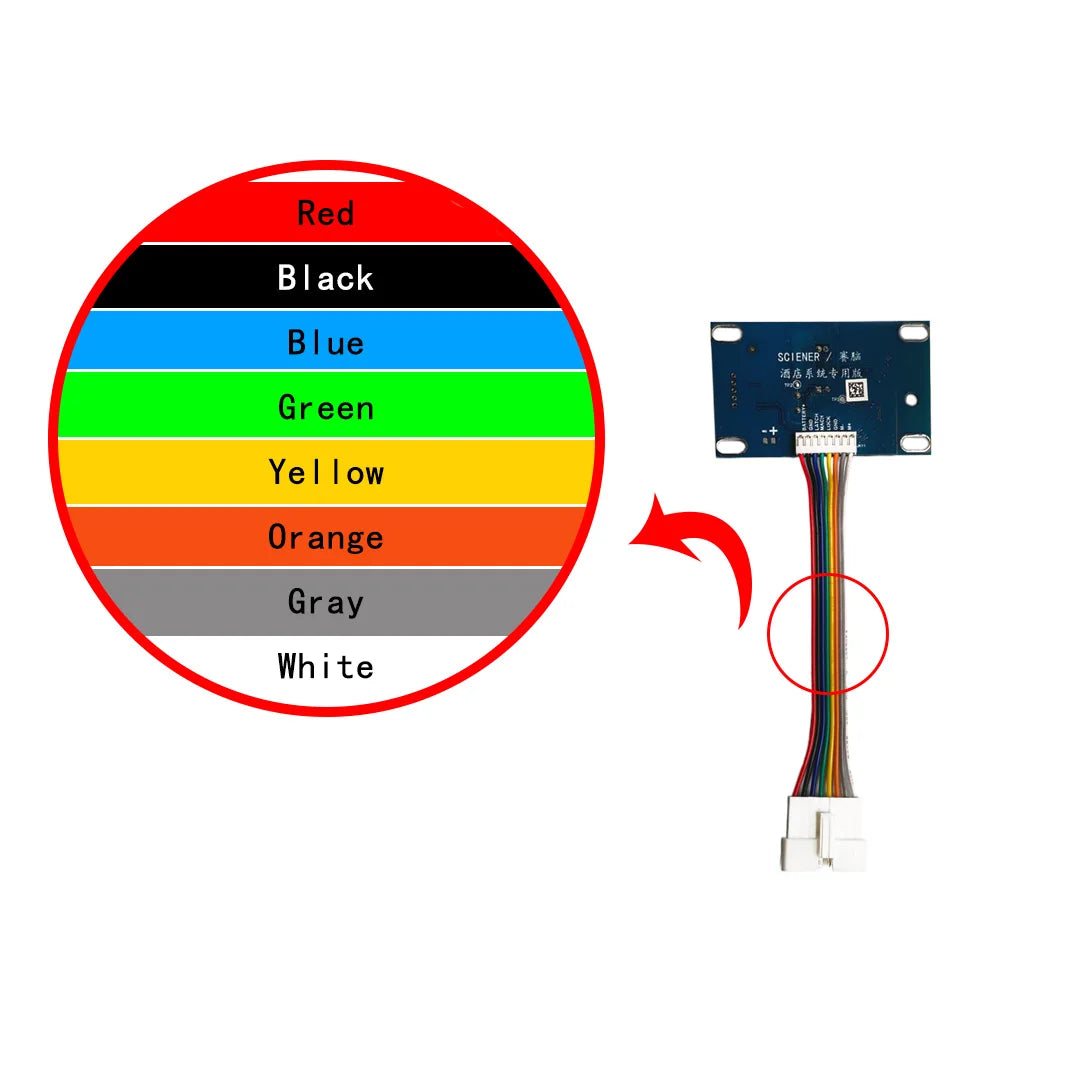

Chip Connection — Important Before Ordering
Before placing your order, please verify your mortise connector diagram matches ours. You can confirm this by comparing the mortise connector and old chip connector. If you are unsure, send us a photo and we will help confirm compatibility. If your connector diagram differs, let us know when ordering — we can adjust the cable to match your configuration.
How the TTHotel System Works
- Set Up: Download the TTHotel app on your computer and smartphone, then register with your phone number.
- Configure Rooms: Input room information via the PC software.
- Program Locks: Use the TTHotel smartphone app to configure each lock.
- Issue Access: Issue RFID cards from the PC software or send eKeys via the app to guests' smartphones.
- Monitor Operations: Track door access records, battery levels, and staff activity in real time (gateway required for live monitoring).
Note: An active internet connection is required on the host computer at all times to issue guest cards. All data is saved to the cloud.
For more information about the TTHotel system or to get a full-system quotation, please contact the JCSMARTS team directly.
For guidance on smart access control standards and building security best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What lock types is the TTHotel RFID Smart Lock Chip compatible with?
A: The JCSMARTS TTHotel lock chip is designed specifically for ANSI mortise locks. It is a replacement chip for existing hotel lock systems running the TTHotel online platform. Please measure your lock cavity before ordering to confirm the chip dimensions (60.4 mm × 36.5 mm × 7.6 mm) will fit.
Q: Can guests unlock the door with their smartphone?
A: Yes! Guests simply download the TTlock app, register with their phone number, and the hotel manager can send them a digital eKey via the TTHotel software. The guest can then unlock the door directly from their smartphone via Bluetooth — no physical card needed.
Q: Do I need a gateway for the TTHotel chip to work?
A: The chip functions without a gateway for basic card and eKey access. However, adding a gateway unlocks additional features: remote unlocking via the reception computer over Wi-Fi, real-time door access logs, and live battery status monitoring for each lock.
Q: How do I reset the TTHotel lock chip?
A: Resetting is straightforward — simply turn the cylinder key 5 times on the mortise lock and the chip will be reset to its default state.
Q: What if my connector diagram doesn't match the chip's connector?
A: No problem. Before ordering, check your mortise connector and compare it to the chip's connector diagram. If they differ, notify JCSMARTS at the time of order and the cable will be adjusted to match your connector configuration at no extra charge.
