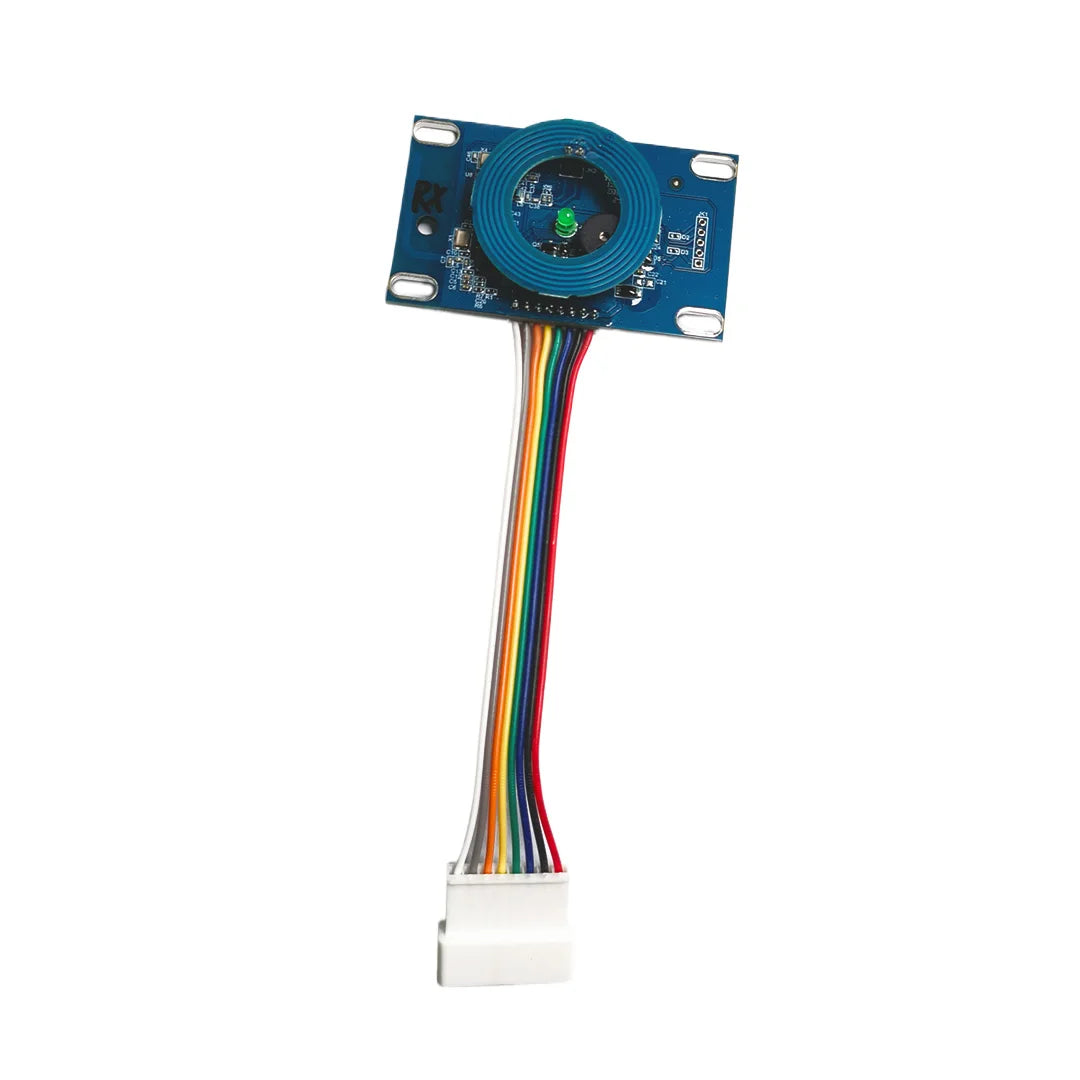

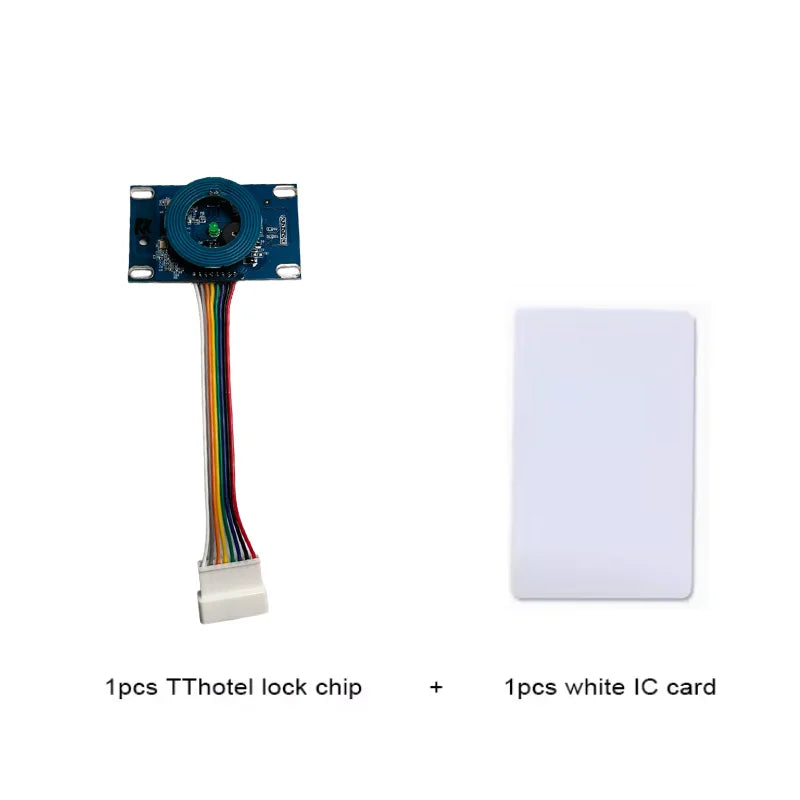

JCSMARTS TThotel Bluetooth RFID Smart Lock Chip
Upgrade or replace your existing hotel door lock system with the JCSMARTS TThotel Bluetooth RFID Smart Lock Chip. Designed specifically for use with the TThotel online hotel management system, this compact lock chip integrates seamlessly with ANSI mortise locks and supports both RFID card access and smartphone eKey unlocking via Bluetooth. Perfect for hotel managers looking to modernize their property's access control without replacing entire lock hardware.
Made in Mainland China.
Key Features
- TThotel System Compatible: Works exclusively with the TThotel online hotel management platform for streamlined guest access control.
- Dual Unlock Methods: Supports both RFID card access and smartphone eKey (via the TTlock app) for flexible, modern entry.
- Cloud-Based Management: All room and guest data is securely saved in the cloud for easy remote management.
- Reversible Open Direction: Directionally reversible design accommodates a variety of door configurations.
- Gateway-Ready: When paired with an optional gateway, allows remote unlocking from the reception computer via Wi-Fi, real-time door-open records, and live battery status monitoring for each lock.
- Easy Reset: Simply turn the key 5 times on the mortise to reset the lock chip.
- CE Certified: Meets CE certification standards for quality and safety.
- No High-Concern Chemicals: Free from high-concern chemical substances.
Specifications
| Brand | JCSMARTS |
| Model | TThotel Chip |
| Certification | CE |
| Power Supply | 4 × AA Dry Batteries (not included) |
| Unlock Methods | RFID Card, Smartphone eKey (Bluetooth) |
| Compatible Mortise | ANSI Mortise |
| Open Direction | Direction Reversible |
| Protection Level | Indoor Use (No Waterproof Rating) |
| Chip Length | 60.4 mm |
| Chip Width | 36.5 mm |
| Chip Height | 7.6 mm |
| Origin | Mainland China |
What's Included & Compatibility Notes
- This chip is compatible with ANSI mortise locks only. Please confirm your mortise type before ordering.
- Measure your lock cavity before ordering to ensure the chip dimensions (60.4 × 36.5 × 7.6 mm) will fit.
- Check the connector diagram of your existing mortise and old chip before purchase. If your connector diagram differs, contact the seller with a photo — the cable can be adjusted to match your configuration.
TThotel System Setup Guide
1. Setting Up the TThotel System
- Download the TThotel app on your computer and smartphone, then register with your phone number.
- Configure room information using the PC software.
- Use the TThotel smartphone app to program lock settings.
2. Internet Requirements
The computer must remain connected to the internet at all times. An internet outage will prevent new key cards from being issued to guests. All room and guest data is stored securely in the cloud.
3. Smartphone Unlock (eKey)
Guests download the TTlock app, register with their phone number, and you send them an eKey via the TThotel software. They can then unlock their door directly from their smartphone via Bluetooth.
4. Gateway Functions (Optional)
- Remotely unlock doors from the reception computer via Wi-Fi
- View real-time door-open activity logs
- Monitor battery status for every connected lock
5. TThotel Manager App Features
- Remotely monitor hotel daily operations
- Manage staff and rooms
- Configure locks, gateways, lift controllers, and power savers
- Send eKeys to guests for contactless check-in
For guidance on electronic access control standards and best practices, refer to the U.S. Consumer Product Safety Commission (CPSC).
Learn more: Electronic lock
Frequently Asked Questions
Q: What type of lock is the TThotel RFID Smart Lock Chip compatible with?
A: The JCSMARTS TThotel lock chip is compatible with ANSI mortise locks only. It is not designed for other mortise types. Always verify your lock type and measure the available chip cavity (60.4 × 36.5 × 7.6 mm) before ordering.
Q: Can guests unlock the door using their smartphone?
A: Yes! Guests can use the TTlock app (available on iOS and Android) to unlock their room via Bluetooth. The hotel manager sends an eKey to the guest's registered phone number through the TThotel software, enabling keyless entry.
Q: What happens if the hotel's internet connection goes down?
A: While existing eKeys and issued RFID cards will continue to function for guests who already have access, new RFID cards cannot be issued from the computer without an active internet connection, since the system relies on cloud-based management. It is recommended to maintain a reliable internet connection at the front desk at all times.
Q: How do I reset the TThotel lock chip?
A: To reset the lock chip, insert the cylinder key into the ANSI mortise and turn the key 5 times. This resets the chip to its default state, ready for fresh configuration within the TThotel system.
Q: What if my connector diagram is different from the standard TThotel chip connector?
A: If your mortise connector diagram differs from the standard configuration, you can send a photo of your existing connector to the seller before ordering. The cable can be customized to match your specific connector layout at no extra charge — just mention this when placing your order.
