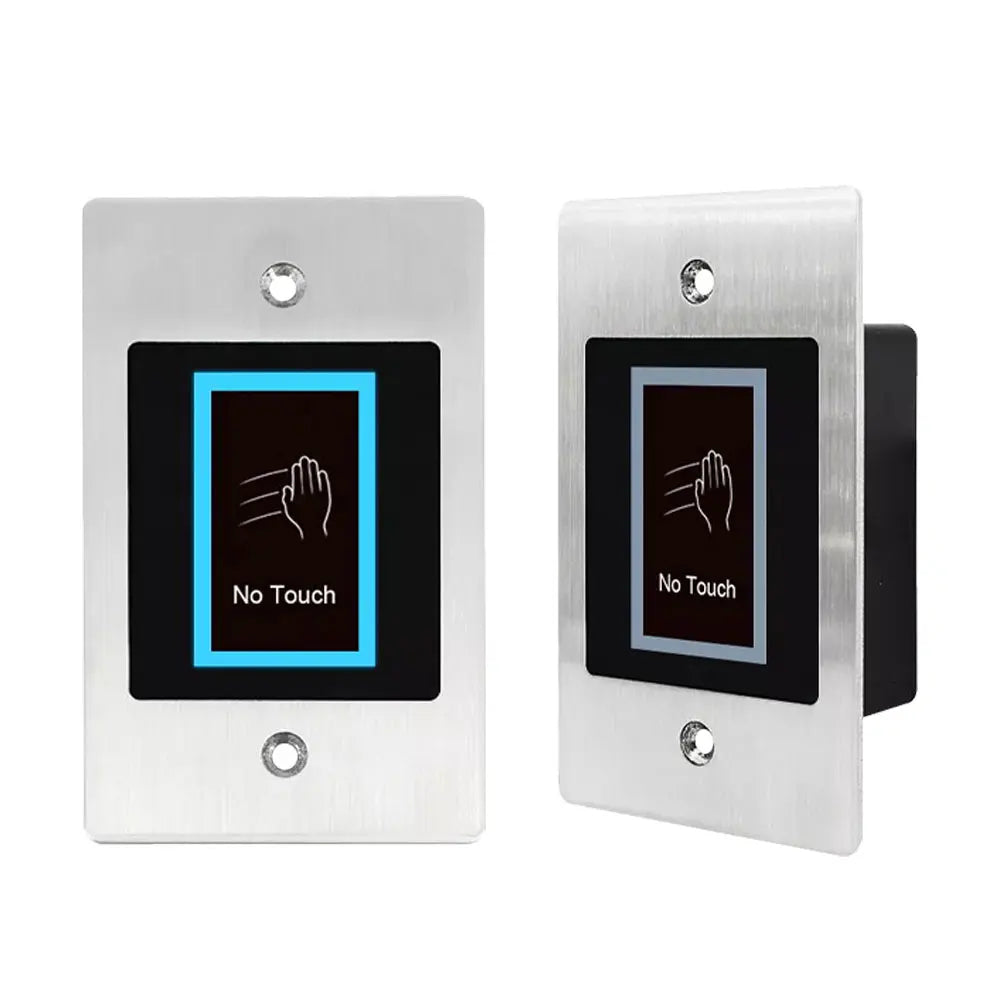

Touchless IR Exit Button – Waterproof IP66 Door Access Control Switch
Upgrade your door access control system with this Asia-Teco Infrared No-Touch Exit Button. Simply wave your hand within 10 cm to trigger the door release — no physical contact needed. Ideal for high-traffic commercial entrances, medical facilities, offices, and anywhere hygiene and convenience matter most.
Key Features
- Truly Contactless Operation: Infrared (IR) sensor detects hand presence within ~10 cm, triggering the lock release without any physical touch.
- IP66 Waterproof Rating: Fully sealed against dust ingress and powerful water jets — suitable for both indoor and outdoor installations.
- Wide Voltage Compatibility: Operates on DC 10V–24V, compatible with virtually all standard access control systems.
- Flexible Output Contacts: Supports NO / NC / COM / DC / GND configurations for seamless integration with electric strikes, magnetic locks, and more.
- Dual LED Status Indicators: Blue LED glows during standby; Green LED activates when a visitor is detected — clear visual feedback at all times.
- Wide Operating Temperature: Performs reliably from -20 °C to 50 °C, making it suitable for demanding environments.

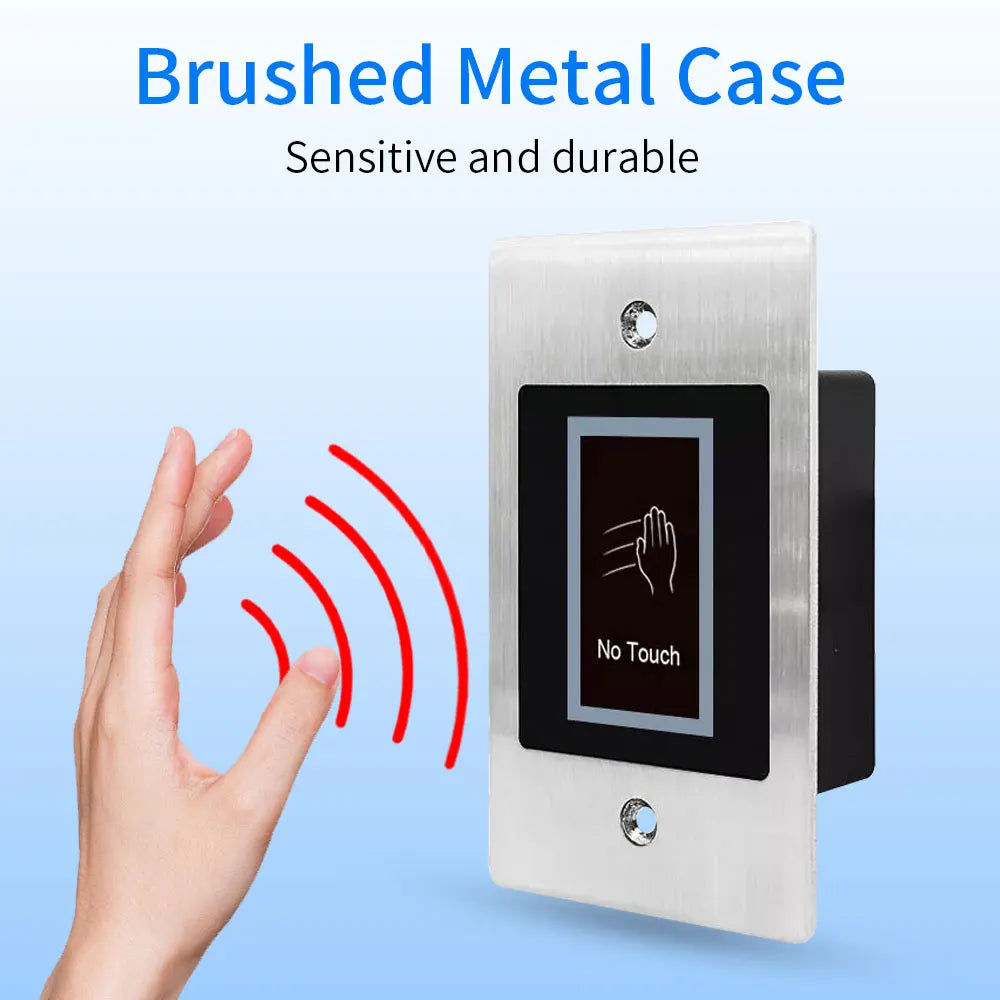

- Durable Build: Robust housing designed for long-term use in commercial and residential settings.
Technical Specifications
| Brand | Asia-Teco |
| Model | ebutton |
| Input Voltage | DC 10V – 24V |

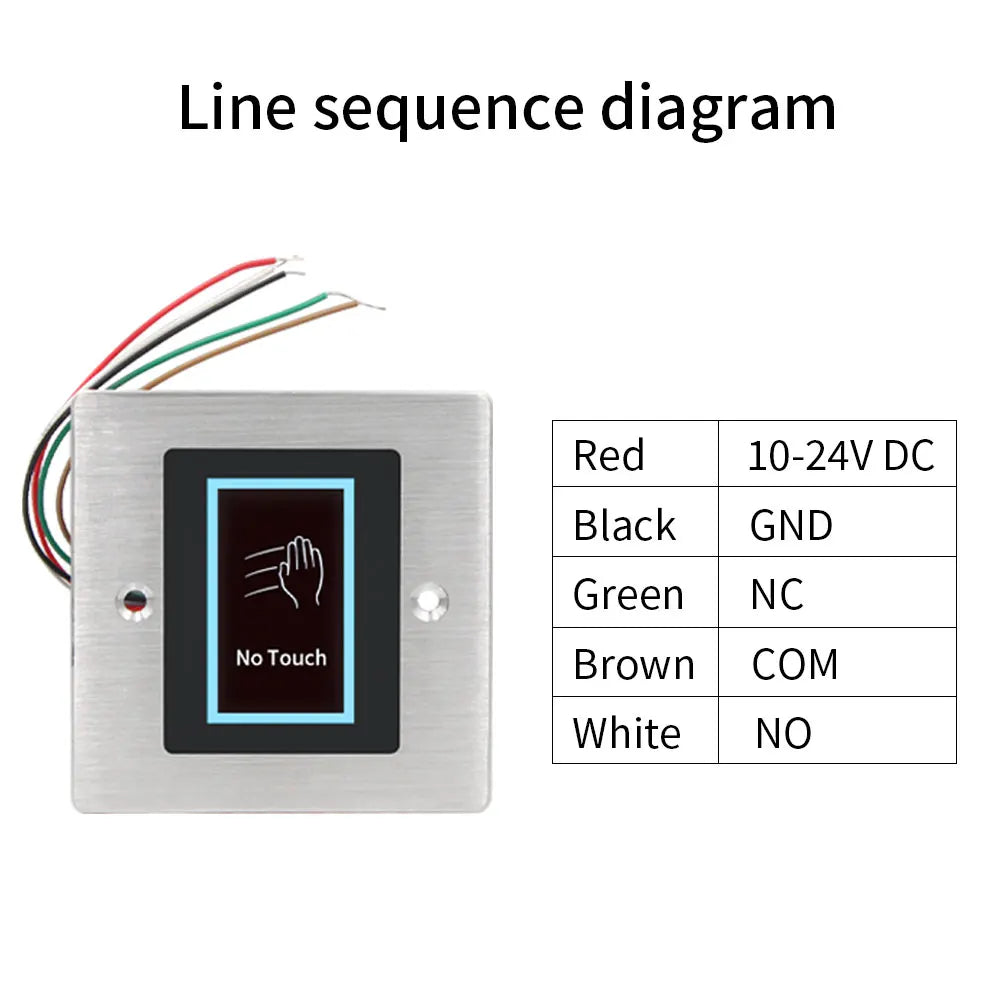

| Output Contact | NO / NC / COM / GND / DC 10–24V |
| IR Response Range | Within 10 cm |
| Waterproof Grade | IP66 |
| Working Temperature | -20 °C to 50 °C |
| LED Indication | Standby: Blue ON | Visitor Detected: Green ON |
| High-Concern Chemicals | None |
| Country of Origin | Made in Mainland China |
Who Is This For?
This touchless exit button is perfect for offices, retail stores, hospitals, clean rooms, warehouses, and residential entryways where a hygienic, hands-free exit solution is essential. Its IP66 waterproof rating also makes it a reliable choice for outdoor gate control applications.
Installation Notes
Compatible with standard access control panels and electric locking hardware. Wire using the provided NO/NC/COM terminals to suit your specific locking configuration. Ensure your power supply delivers DC 10V–24V for correct operation.
For general guidance on electrical safety when installing low-voltage devices, refer to OSHA's Electrical Safety Resource.
Frequently Asked Questions
Q: What is the detection range of this infrared no-touch exit button?
A: The IR sensor is calibrated to detect hand movement within approximately 10 cm (about 4 inches). This ensures intentional activation while minimizing false triggers from passing traffic.
Q: Is this exit button suitable for outdoor installation?
A: Yes. The Asia-Teco touchless exit button carries an IP66 waterproof rating, meaning it is fully protected against dust and powerful water jets, making it well-suited for covered outdoor entrances and gate control panels.
Q: What type of locking hardware is compatible with this switch?
A: This exit button supports NO (Normally Open), NC (Normally Closed), and COM output contacts, making it compatible with electric strikes, electromagnetic locks (maglocks), and most standard access control systems operating on DC 10V–24V.
Q: What do the LED indicators mean?
A: A steady Blue LED indicates the device is in standby mode and ready to detect. When a visitor or hand is detected within range, the LED switches to Green, confirming the sensor has been triggered and the door release signal has been sent.
Q: Can this be used in cold or hot environments?
A: Yes. The operating temperature range of -20 °C to 50 °C (-4 °F to 122 °F) ensures reliable performance in both cold outdoor climates and warm interior environments.
