Touchless Infrared Door Exit Button — IP68 Waterproof Access Control Switch

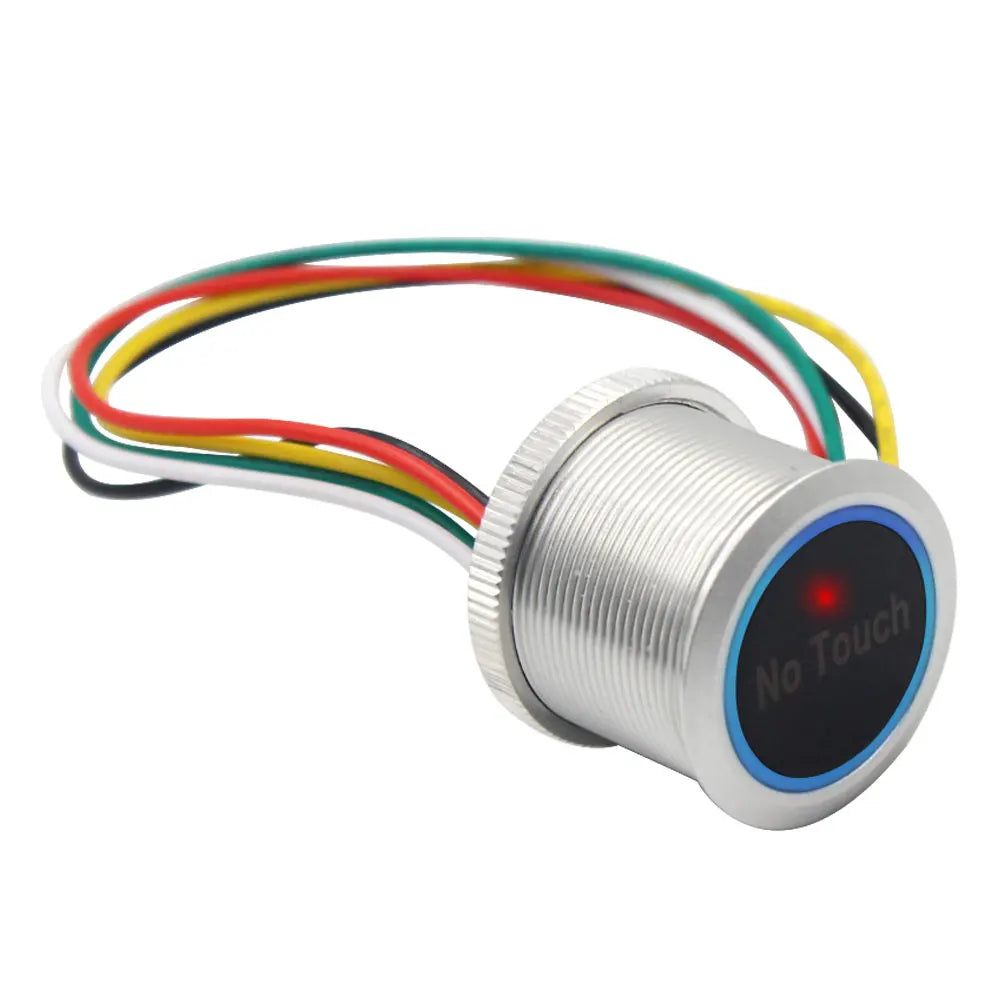

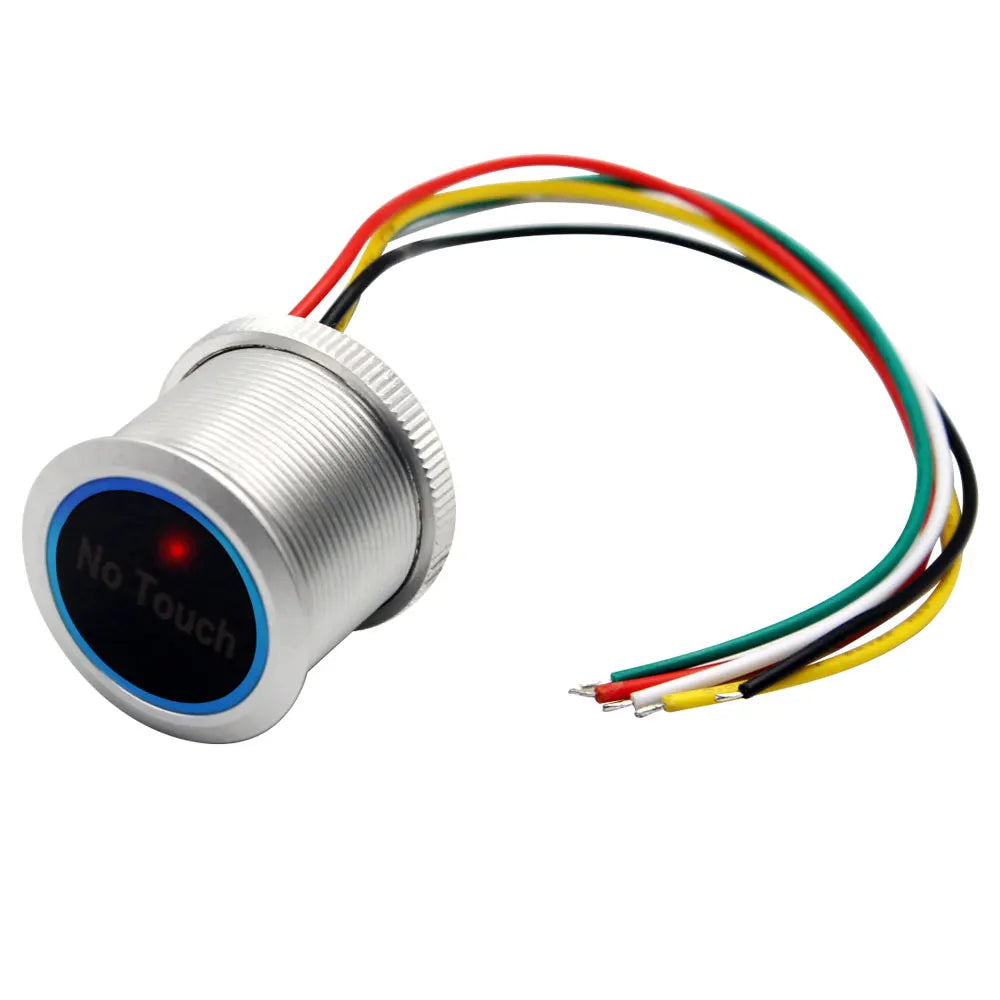

Upgrade your entry and exit points with the Asia-Teco 28NT-W Touchless Infrared Exit Switch — a hygienic, hands-free alternative to traditional push buttons for doors, gates, and automated access control systems. Simply wave your hand within 5–10 cm of the sensor and the relay triggers instantly, with no physical contact required.
Key Features
- Completely Touch-Free Operation: Infrared diffused-detection technology activates the switch when a hand is detected within 5–10 cm — ideal for high-traffic areas where hygiene matters.

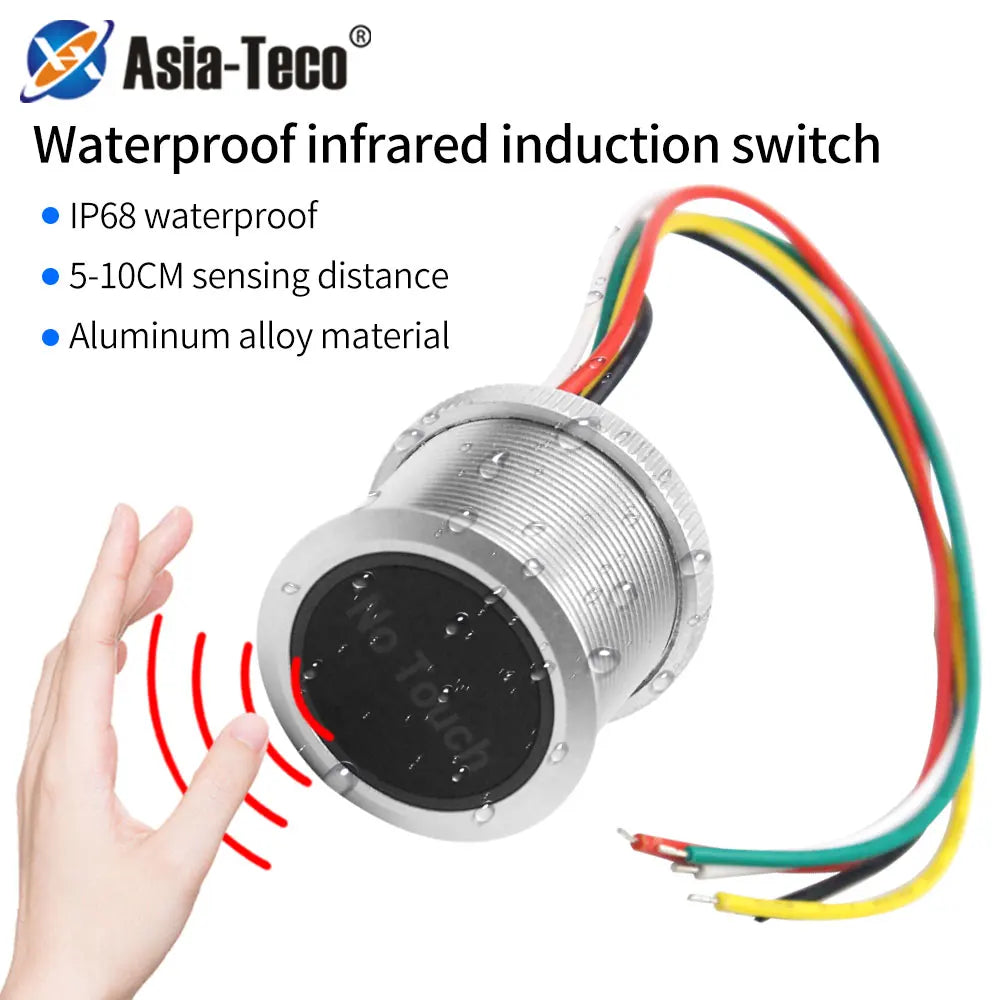

- IP68 Waterproof Rating: Fully sealed against dust and water ingress, making it suitable for outdoor gates, car parks, industrial doors, and wet environments.
- Universal NO / NC / COM Relay Output: Compatible with virtually all access control systems — easily wired as Normally Open, Normally Closed, or Common relay output.
-
Triple LED Status Indicators:
- White LED: Power OFF
- Blue LED: Power ON / Standby
- Red LED: Sensor triggered (detection active)
- DC 12V Input: Low-voltage operation for safe, energy-efficient performance.
- Long Mechanical Life: Rated for 500,000 activation cycles for years of reliable service.
- Wide Operating Range: Functions in temperatures from -20°C to +55°C (-4°F to 131°F) and humidity up to 95% (non-condensing).
- Compact Square Form Factor: 31 × 27 × 26 mm — fits standard wall-mount and door-frame cutouts with minimal modification.
- DIY-Friendly Installation: Simple wiring and clear LED feedback mean most users can install it without an electrician.
- No Hazardous Chemicals: Contains no high-concern substances.
Specifications
| Model | 28NT-W |
| Detection Technology | Infrared (Diffused Detection) |
| Detection Range | 5 – 10 cm |
| Input Voltage | DC 12V |
| Output | NO / NC / COM Relay |
| Ingress Protection | IP68 |
| Mechanical Life | 500,000 cycles |
| Operating Temperature | -20°C to +55°C (14°F to 131°F) |
| Operating Humidity | 0 – 95% RH (non-condensing) |
| Dimensions (Square Type) | 31 × 27 × 26 mm |
| Weight | 38 g / 68 g (variant dependent) |
| LED Indicators | White (off) / Blue (standby) / Red (active) |
| Applications | Gates, Doors, Exits, Automation Control |
| Country of Origin | Made in China |
Ideal Applications
- Office and commercial building exit doors
- Secure entry and gate automation systems
- Parking barriers and vehicle access gates
- Industrial and warehouse roller doors
- Any environment where touchless access enhances cleanliness
Safety & Standards
For best practices on access control and electrical safety during installation, refer to the OSHA Electrical Safety Guidelines. Always follow local building codes and disconnect power before wiring.
Frequently Asked Questions
Q: What is the detection range of this touchless exit switch?
A: The Asia-Teco 28NT-W infrared touchless exit switch detects a hand or object within a range of 5 to 10 cm. This short, precise detection range minimises false triggers while ensuring reliable, hands-free activation every time.
Q: Is this touchless door exit button suitable for outdoor use?
A: Yes. The switch carries an IP68 waterproof ingress protection rating, meaning it is fully protected against dust and continuous water immersion — making it well-suited for outdoor gates, car-park barriers, and exposed door frames in all weather conditions.
Q: What access control systems is it compatible with?
A: The 28NT-W provides standard NO (Normally Open), NC (Normally Closed), and COM (Common) relay output contacts, which are compatible with the vast majority of commercial and residential access control systems, electromagnetic locks, electric strikes, and gate controllers operating on DC 12V.
Q: How do I know if the sensor has detected my hand?
A: The switch features three built-in LED indicators: a Blue LED illuminates during standby/power-on, and a Red LED lights up the moment the sensor detects an approaching hand within range — providing clear, instant visual confirmation of activation.
