Touchless Door Exit Button Switch 12V-24V + Remote Control
Touchless Door Exit Button Switch 12V-24V + Remote Control

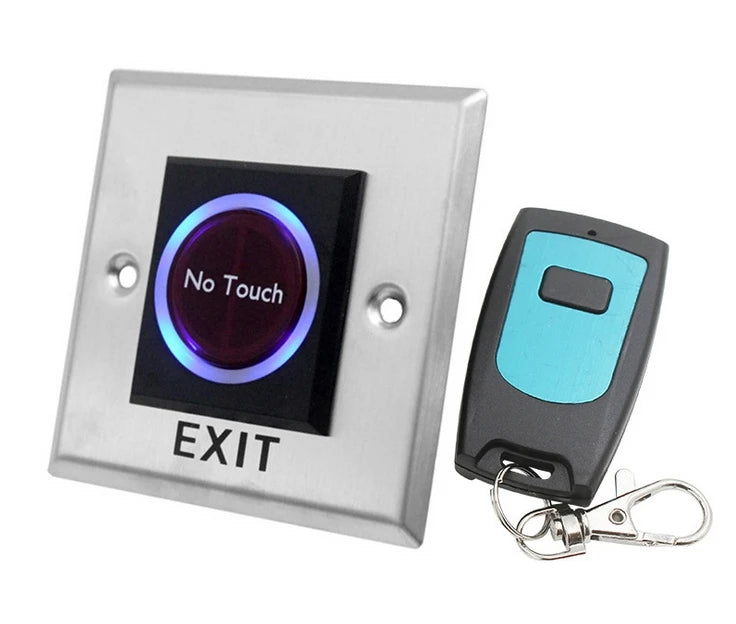

Touchless Door Exit Button Release Switch with Remote Control
Upgrade your home or office security with the Asia-Teco K1RM / K2RM Touchless Door Exit Button Release Switch — a smart, hygienic, and reliable way to control electronic locks without physical contact. Simply wave your hand within 10cm of the sensor to trigger the door release. Ideal for high-traffic areas, offices, warehouses, hospitals, and any space where hands-free operation is a priority.
Key Features
- No-Touch Activation: Infrared proximity sensor triggers the switch within a 10cm response range — no need to physically press a button.

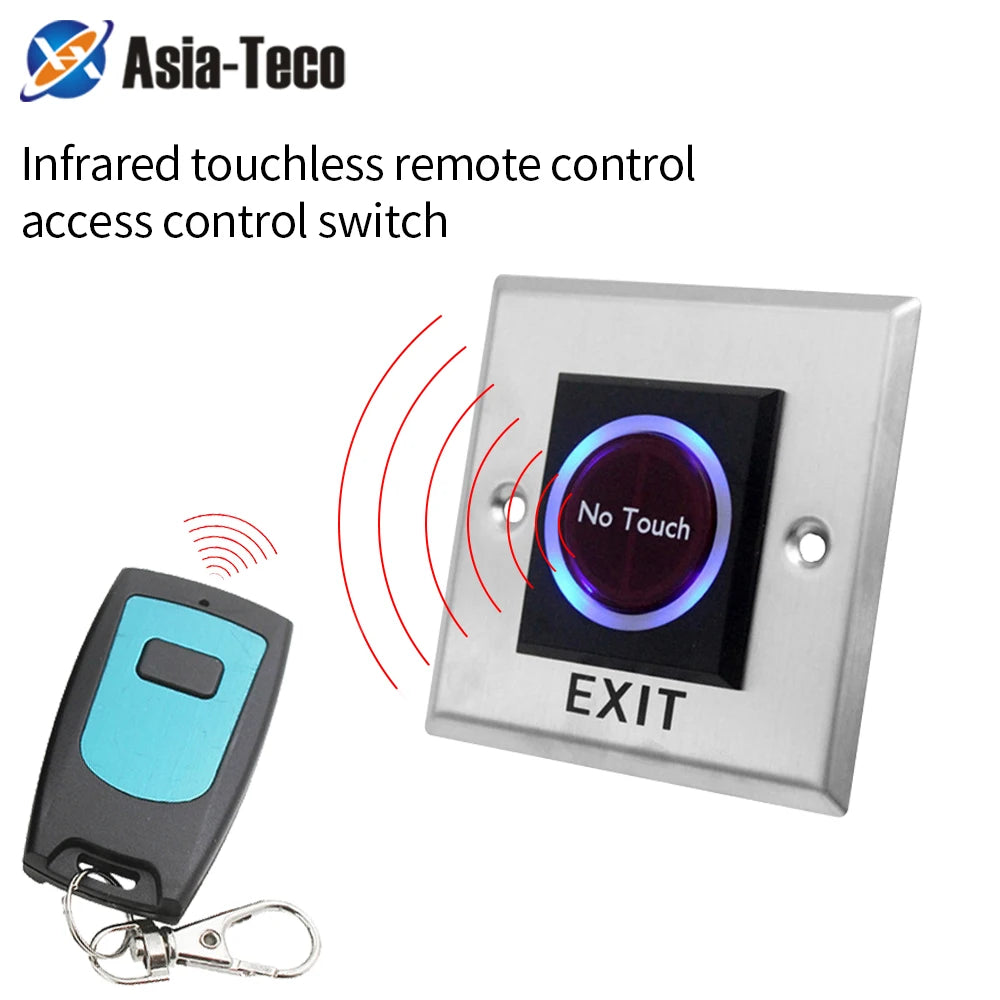

- Remote Control Support: Each exit button supports up to 30 × 433MHz remote controls with an effective distance of up to 15 metres, offering flexible access control from a distance.
- Wide Voltage Compatibility: Operates on DC 12V–24V power supply, making it compatible with the vast majority of electronic lock systems.
- Durable Stainless Steel Panel: Sturdy and sleek construction built to withstand everyday use in demanding environments.
- LED Status Indicators: Blue LED glows on standby; Green LED activates when a visitor approaches — making it easy to monitor the system at a glance.

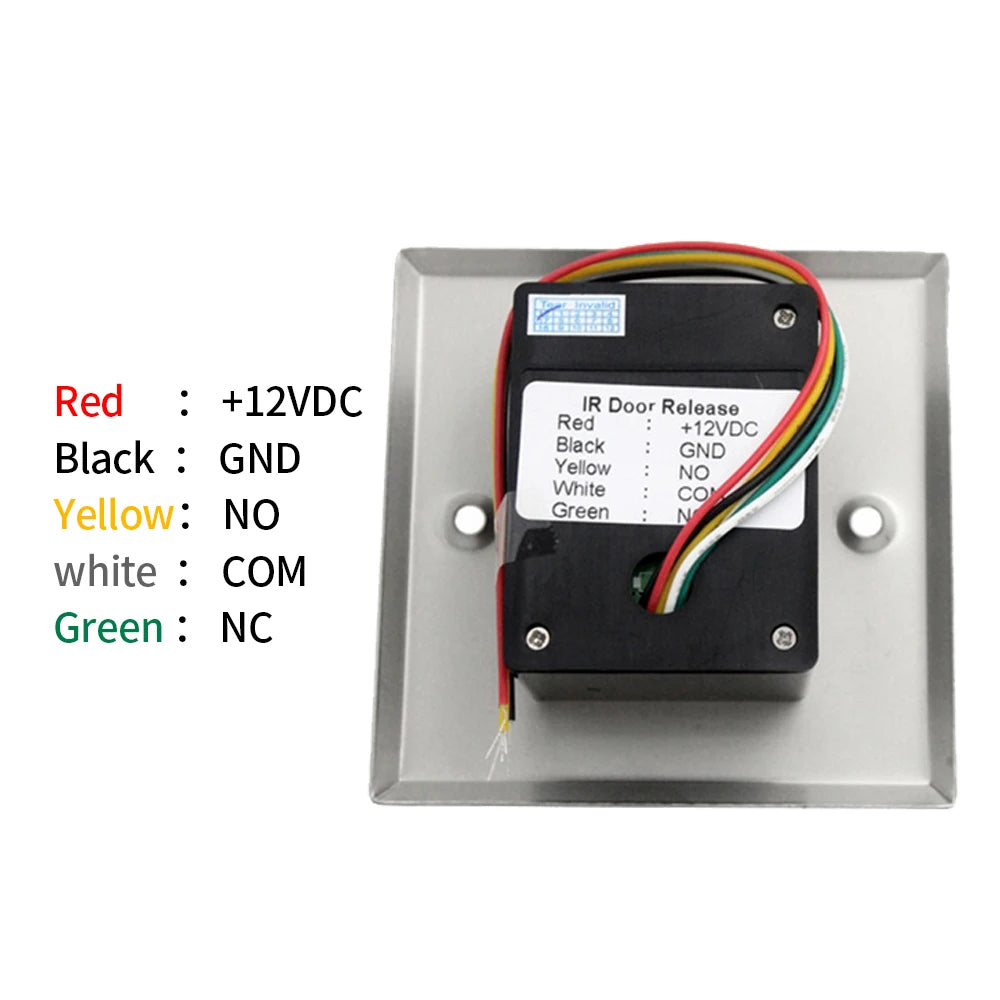

- Flexible Output Contacts: NO / NC / COM output options ensure seamless integration with a wide variety of electronic lock and access control systems.
- Wide Operating Temperature: Reliable performance from -20°C to 50°C, suitable for both indoor and outdoor installations.
Technical Specifications
| Brand | Asia-Teco |
| Model | K1RM / K2RM |
| Material | Stainless Steel Panel |
| Input Voltage | DC 12V – 24V |
| Contact Rating | 3A, AC 120V / DC 12–24V |
| Output Contact | NO / NC / COM |
| Response Range | Within 10cm |
| Remote Control Distance | Up to 15m (433MHz) |
| Remote Controls Supported | Up to 30 per unit |
| LED Indication | Blue (standby) / Green (approaching) |
| Operating Temperature | -20°C to 50°C |
| Dimensions | 86 × 86 × 24mm (standard) / 115 × 80 × 24mm (K1RL) |
| Weight | Approx. 80g |
| Country of Origin | Made in China |
Why Choose a Touchless Exit Switch?
Touchless switches minimise surface contact, making them a smart choice for environments where hygiene and convenience matter. Whether you're securing a commercial premises or upgrading your home access control, this switch integrates effortlessly with most standard electronic locking systems. For guidance on physical security best practices, visit the U.S. Cybersecurity & Infrastructure Security Agency or refer to the Consumer Product Safety Commission (CPSC) for product safety standards.
Frequently Asked Questions
Q: What types of electronic locks is this touchless exit button compatible with?
A: The Asia-Teco K1RM / K2RM touchless door exit button switch is compatible with most standard electronic lock systems that accept NO/NC/COM output contacts and operate on DC 12V–24V. This includes electric strikes, magnetic locks, and electromagnetic door locks commonly used in homes, offices, and commercial buildings.
Q: How many remote controls can be paired with this exit button?
A: Each unit supports up to 30 × 433MHz remote controls, with an effective remote control distance of up to 15 metres. This makes it ideal for multi-user access environments where multiple people need independent remote access.
Q: Is this switch suitable for outdoor installation?
A: The stainless steel panel and wide operating temperature range of -20°C to 50°C make this switch robust enough for many installation environments. However, for fully exposed outdoor use, ensure the unit is protected from direct water ingress, as no IP weatherproofing rating is specified.
Q: How does the touchless sensor work?
A: The switch uses an infrared proximity sensor. When a hand or object comes within approximately 10cm of the sensor surface, it detects the presence and triggers the door release signal — no physical touch required. The Green LED illuminates to confirm activation.
